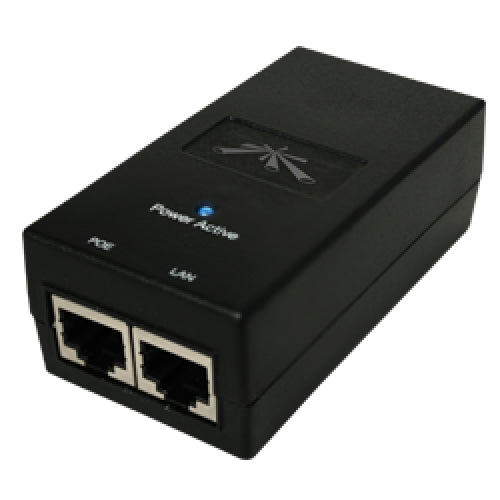

Ubiquiti POE-24-12W-G | 24V Passive PoE Adapter, 12W, Gigabit, AU Plug, Black
Ubiquiti POE-24-12W-G | 24V Passive PoE Adapter, 12W, Gigabit, AU Plug, Black
Authorised Ubiquiti Partner
SKU:POE-24-12W-G
In stock: 64
Couldn't load pickup availability
Description
Description
The Ubiquiti POE-24-12W-G is a mid-power 24V passive PoE adapter that delivers 12W (24V DC at 0.5A) to Ubiquiti PoE devices over a single Ethernet cable. This black Gigabit model ships with an Australian plug and a Gigabit LAN port, making it a practical power source for UniFi access points and airMAX equipment where no PoE switch is available.
Built-in surge and clamping protection (11V data, 60V power) and ESD protection through the grounded AC cable and shielded RJ45 help safeguard connected equipment. A remote reset capability and reset button allow connected devices to be restarted, and the universal 100-240V AC input suits a wide range of installations.
Features
Features
- Powers 24V passive PoE Ubiquiti devices such as UniFi access points and airMAX gear
- Gigabit Ethernet data pass-through
- Surge and clamping protection on data and power lines
- ESD protection through the grounded AC cable and shielded RJ45
- Remote reset capability and reset button
- Universal 100-240V AC input
Warranty
Warranty
Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.
Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Output: 24V DC @ 0.5A (12W)
- Gigabit LAN port
- Input: 100-240V AC, 50/60Hz
- Input current: 0.3A @ 120V AC, 0.2A @ 240V AC
- AC connector: IEC-320 C6, AC power cable included
- Data IN / PoE: shielded RJ45 socket
- 2-pair powering: pins 4, 5 (+) and pins 7, 8 (-)
- Surge and clamping protection: 11V data, 60V power
- Remote reset capability and reset button
- Efficiency: 75+%
- Dimensions: 87 x 44 x 29 mm
- Weight: 99 g
- Operating temperature: 0 to 40°C
- Operating humidity: 35 to 95% noncondensing
- Certifications: CE, FCC, IC, UL
FAQs
Q: What power does the POE-24-12W-G deliver?
A: It outputs 24V DC at 0.5A, which is 12W, over the Ethernet cable.
Q: Is this adapter 802.3af/at compliant?
A: No. It is a 24V passive PoE adapter intended for Ubiquiti devices that use 24V passive PoE. Do not connect it to equipment that expects standards-based PoE.
Q: Does it support Gigabit Ethernet?
A: Yes. It has a Gigabit LAN port and passes data at Gigabit speeds.
Q: Does it include an AC power cable?
A: Yes. It uses an IEC-320 C6 AC connector and the AC power cable is included.
Q: What protection features are built in?
A: It includes surge and clamping protection (11V data, 60V power) and ESD protection via the grounded AC cable and shielded RJ45.
Q: Can I reset a connected device remotely?
A: Yes. The adapter offers remote reset capability, and it also has a reset button.
