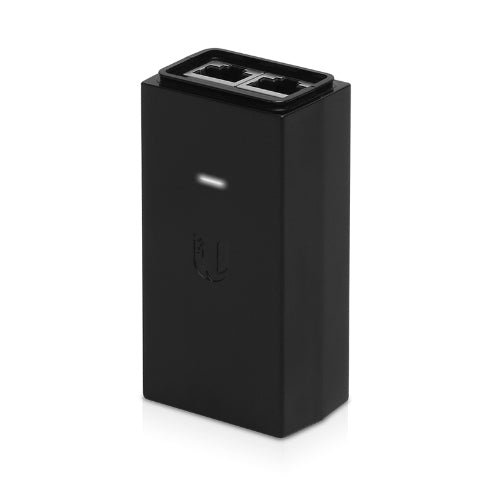

Ubiquiti POE-24-12W-AU | 24V 0.5A 12W Passive PoE Injector, AU Plug, Fast Ethernet

Ubiquiti POE-24-12W-AU | 24V 0.5A 12W Passive PoE Injector, AU Plug, Fast Ethernet

Authorised Ubiquiti Partner

SKU:POE-24-12W-AU

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The POE-24-12W-AU is a 24V DC, 0.5A (12W) passive PoE injector supplied with an Australian AU plug power cord. It delivers power and data to compatible Ubiquiti 24V PoE devices over a single Ethernet run, and is a Fast Ethernet (non-Gigabit) unit supporting speeds up to 100 Mbps.

The injector accepts 100-240V AC input and includes surge and clamping protection on both the data and power lines, along with an earth-grounded AC cable. It suits Ubiquiti airMAX, airFiber, UniFi, mFi and airGateway devices that use 24V passive PoE.

Features

- Surge and clamping protection on data and power lines
- Maximum surge discharge and peak pulse current protection
- Earth-grounded AC cable helps protect against ESD
- Compatible with most Ubiquiti 24V passive PoE devices (airMAX, airFiber, UniFi, mFi, airGateway)
- Remote reset capability with reset button
- Australian AU plug power cord included

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output: 24V DC at 0.5A (12W)
- Passive PoE (non-802.3af/at)
- Input: 100-240V AC, 50/60Hz
- Input current: 0.3A at 120V AC, 0.2A at 240V AC
- Data In / PoE: shielded RJ45 socket
- LAN port: Fast Ethernet, up to 100 Mbps (non-Gigabit)
- 2-pair powering on pins 4, 5 (+) and pins 7, 8 (-); 4-pair powering not supported
- AC connector: IEC-320 C6, AU plug power cable included
- Output ripple: 1% max; line regulation 3% or less; load regulation 5% or less
- Surge protection: difference and common mode
- Clamping protection: 11V data, 60V power
- Operating temperature: 0 to 40 C
- Operating humidity: 35 to 95% noncondensing
- Remote reset capable with reset button

FAQs

Q: Is this an 802.3af/at PoE injector?
A: No. It is a passive PoE injector that outputs 24V DC and is intended for Ubiquiti devices that use 24V passive PoE.

Q: Does this injector support Gigabit Ethernet?
A: No. The LAN port is Fast Ethernet and supports speeds up to 100 Mbps.

Q: What Ubiquiti devices is it compatible with?
A: It is compatible with most Ubiquiti 24V passive PoE devices, including airMAX, airFiber, UniFi, mFi and airGateway products.

Q: Is a power cable included?
A: Yes. An Australian AU plug power cable is included and connects via an IEC-320 C6 inlet.

Q: How much power can it supply?
A: It provides 24V DC at 0.5A, for a total output of 12W.

Q: Does it support 4-pair powering?
A: No. It supports 2-pair powering only, with positive on pins 4 and 5 and negative on pins 7 and 8.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
