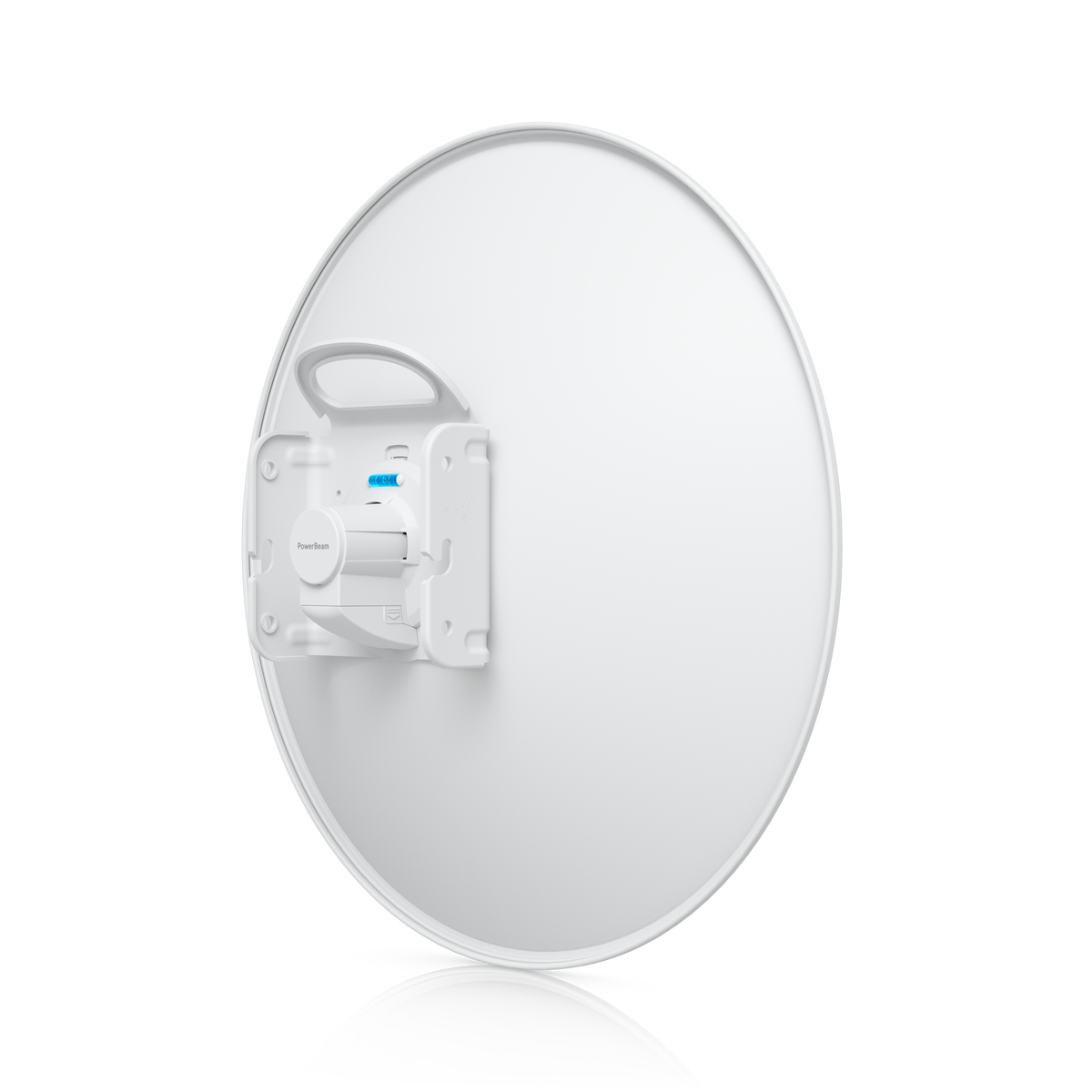

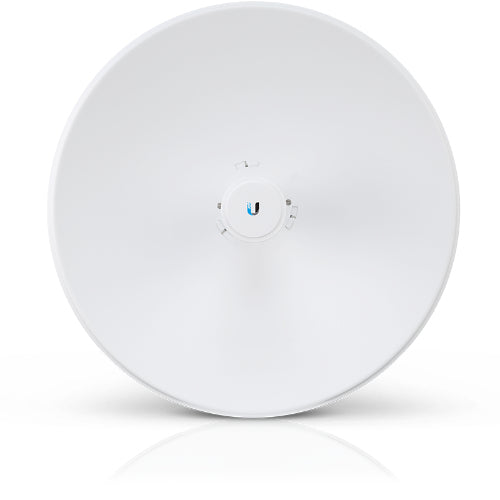

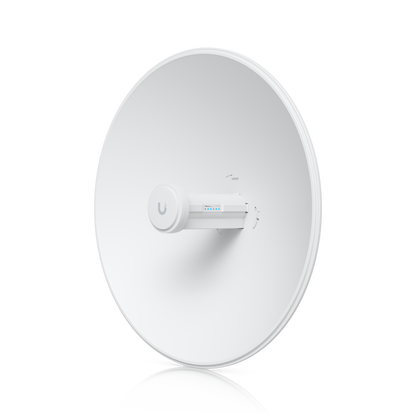

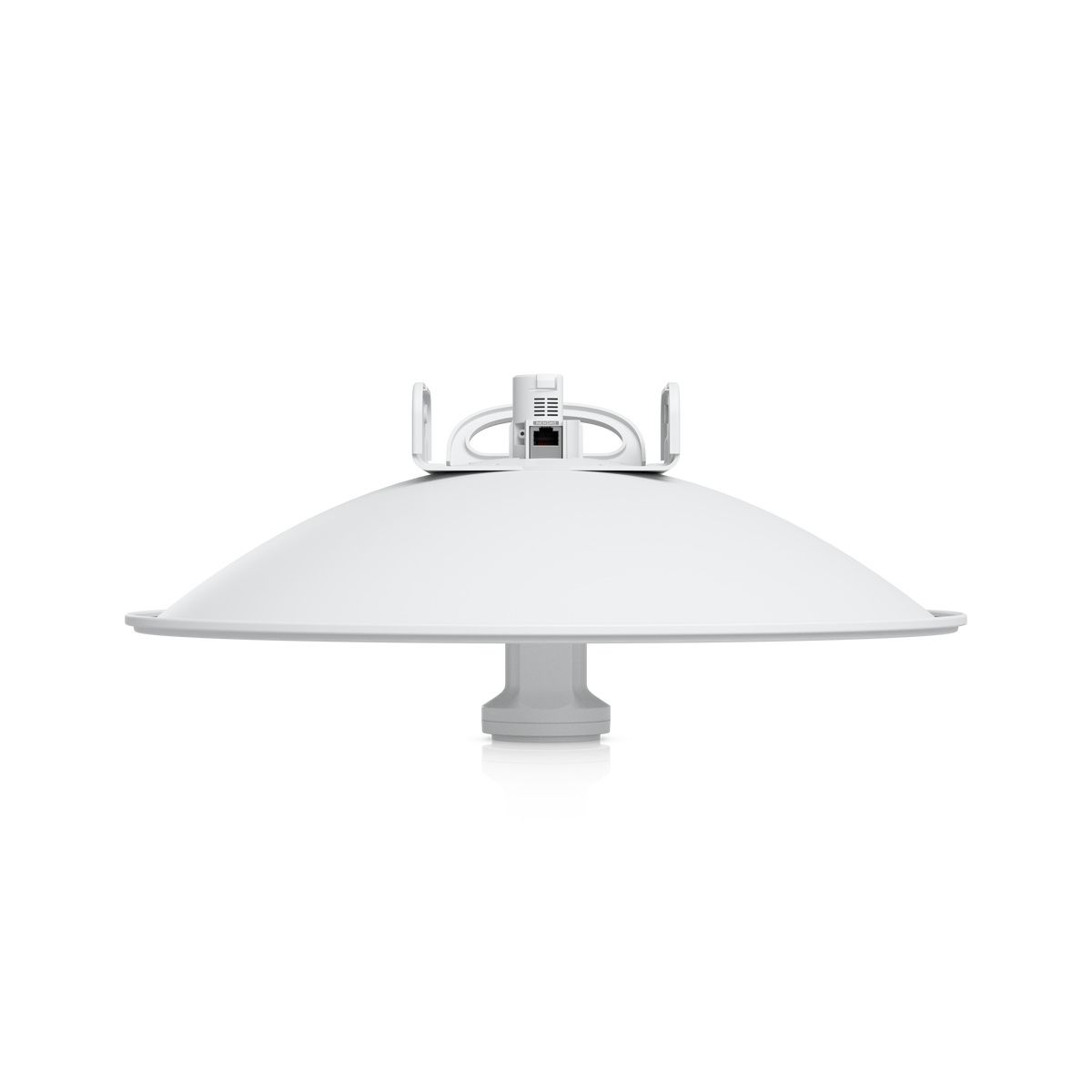

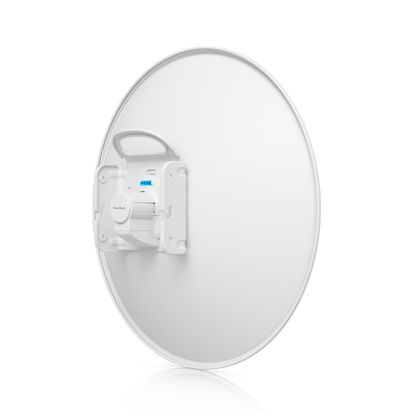

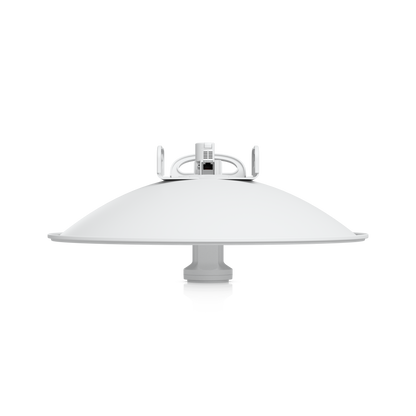

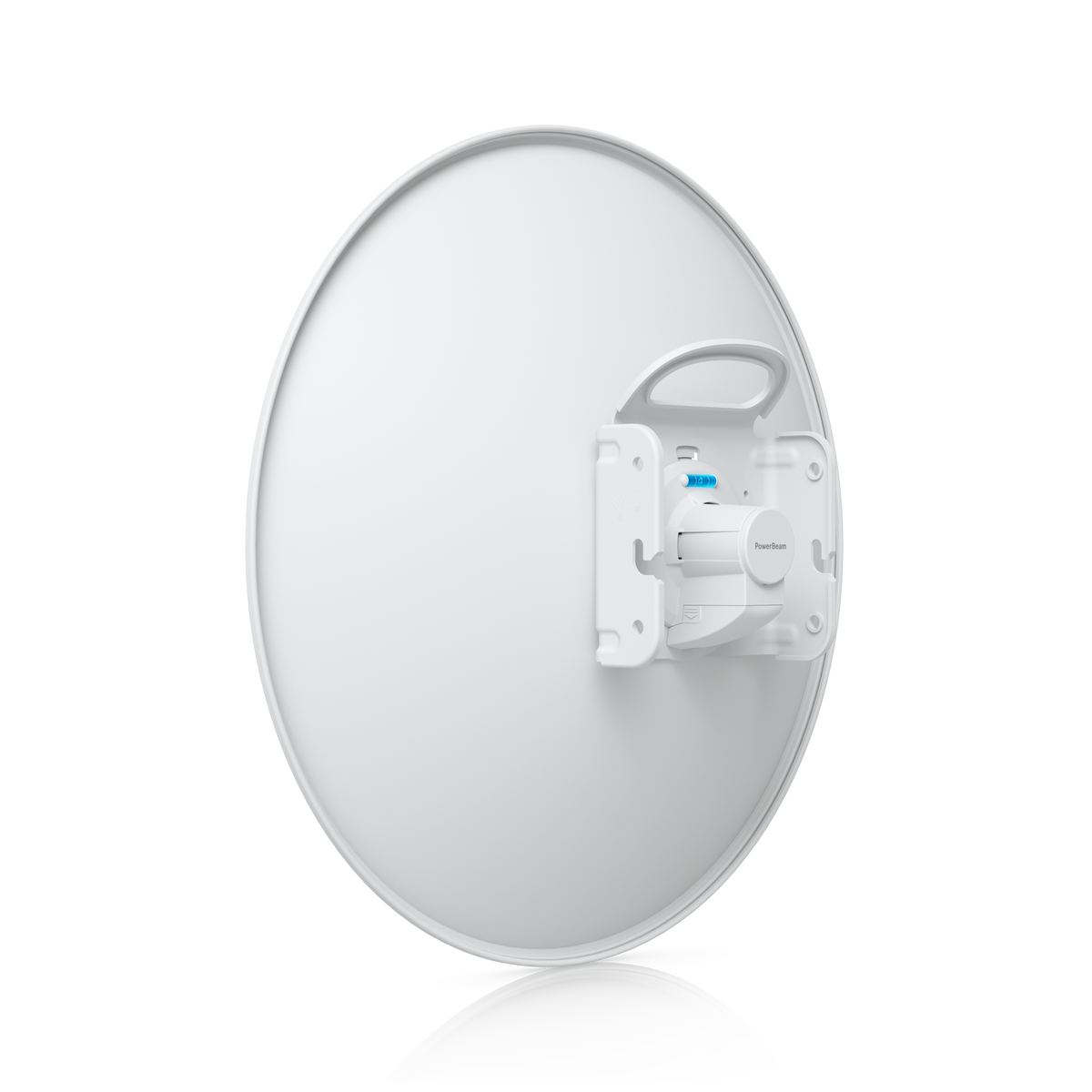

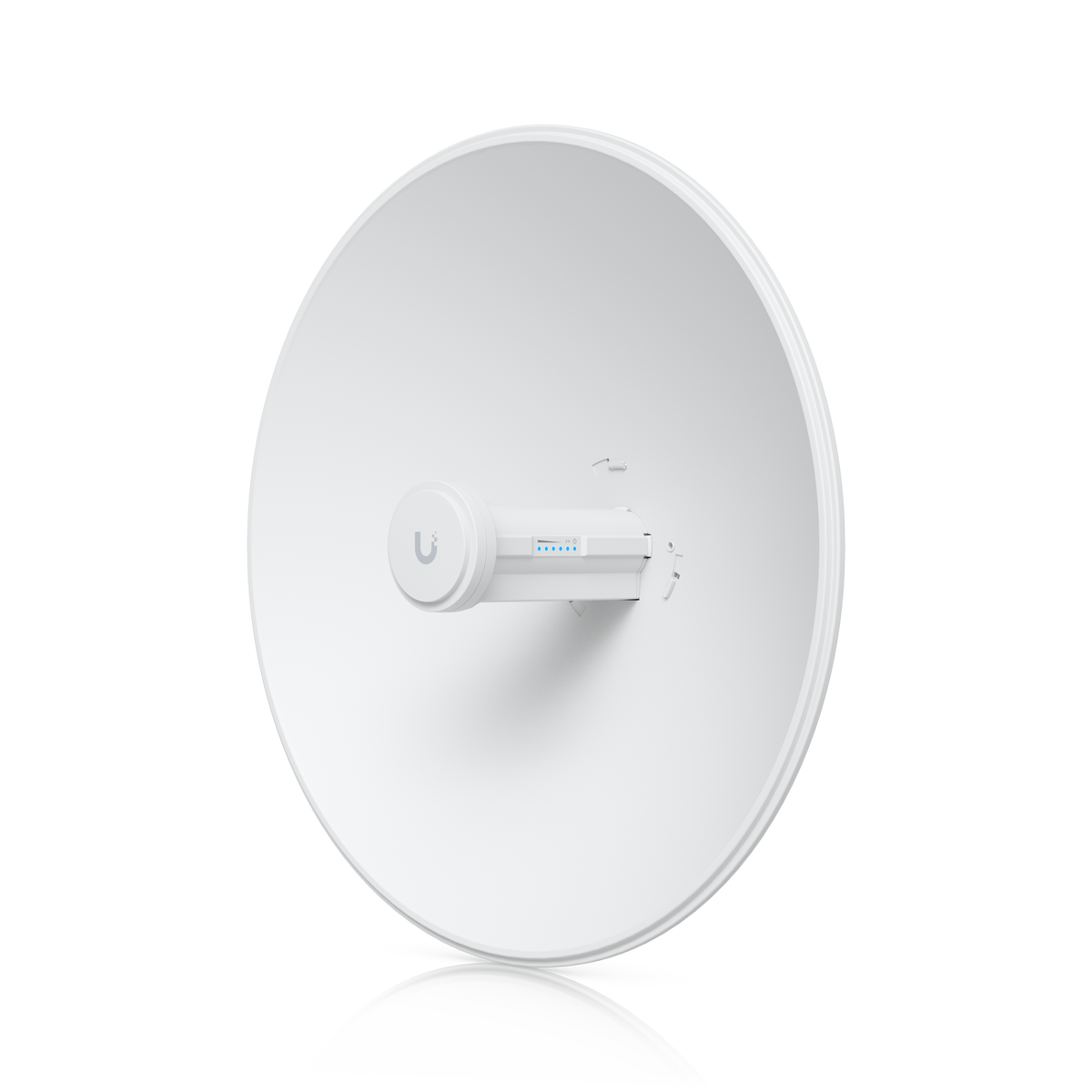

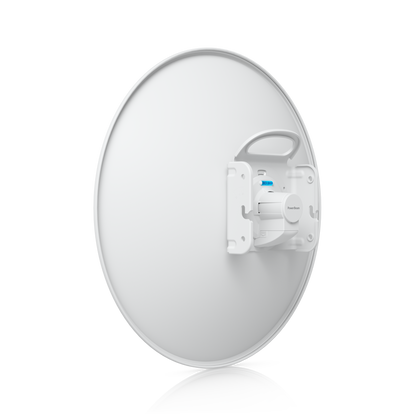

Ubiquiti PBE-5AC-GEN2-5-AU | airMAX PowerBeam ac 5 GHz Wireless Bridge, 5-Pack, AU

Ubiquiti PBE-5AC-GEN2-5-AU | airMAX PowerBeam ac 5 GHz Wireless Bridge, 5-Pack, AU

SKU:PBE-5AC-GEN2-5-AU

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Ubiquiti PBE-5AC-GEN2-5-AU is a 5-pack of airMAX PowerBeam 5AC (Gen2) 5 GHz wireless bridges for the Australian market. Each unit is a high-performance airMAX ac point-to-point bridge with an integrated dish reflector and InnerFeed technology, delivering up to 450+ Mbps real TCP/IP throughput. The 5-pack suits multi-link building-to-building and site connectivity rollouts.

Each PowerBeam integrates the radio into the antenna feedhorn to eliminate cable losses, and a tighter beamwidth improves noise immunity. A dedicated Wi-Fi radio allows setup and management from a mobile device, and units run airOS 8 with RF diagnostics and the airView spectrum analyser. Each bridge includes a gigabit PoE adapter and a pole mount, and is managed through the UISP app.

Available now at iptrading.com.au with competitive pricing and local support.

Features

- InnerFeed technology integrates the radio into the antenna feedhorn, eliminating cable losses
- Dedicated Wi-Fi radio for management and easy setup from a mobile device
- Tighter beamwidth improves noise immunity
- airOS 8 with RF diagnostics and airView spectrum analyser
- Managed via the UISP app
- 5-pack quantity suited to multi-link deployments

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Pack of 5 airMAX PowerBeam 5AC (PBE-5AC-Gen2) bridges, AU variant
- 5 GHz airMAX ac Point-to-Point (PtP) bridge
- Up to 450+ Mbps real TCP/IP throughput
- (1) GbE RJ45 port
- Passive PoE 2-pair (pins 4,5+; 7,8 return)
- 24V, 0.5A gigabit PoE adapter included
- Supported voltage range: 20-27V DC
- Max power consumption: 8.5W
- Dimensions: 420 x 420 x 230 mm
- Weight: 2.2 kg
- Enclosure: UV-stabilised polycarbonate, powder-coated SPCC
- Pole mount included
- Wind loading: 380 N at 200 km/h; wind survivability 200 km/h
- Operating temperature: -40 to 70°C
- Operating humidity: 5 to 95% non-condensing

FAQs

Q: What is included in the PBE-5AC-GEN2-5-AU pack?
A: The pack contains five airMAX PowerBeam 5AC (Gen2) bridges. Each unit includes a 24V, 0.5A gigabit PoE adapter and a pole mount.

Q: How is the PowerBeam 5AC powered?
A: It uses passive PoE (2-pair, pins 4,5+ and 7,8 return) with a supported voltage range of 20-27V DC. A 24V gigabit PoE adapter is supplied with each unit.

Q: What throughput can I expect from each link?
A: Each PowerBeam 5AC delivers up to 450+ Mbps of real TCP/IP throughput in a 5 GHz airMAX ac point-to-point link.

Q: How do I set up and manage the bridges?
A: A dedicated Wi-Fi radio allows setup from a mobile device, and the units run airOS 8. They can also be managed through the UISP app.

Q: Is it suitable for outdoor installation?
A: Yes. It has a UV-stabilised polycarbonate enclosure, an operating range of -40 to 70°C, and is rated for wind survivability of 200 km/h.

Q: How does this differ from the single-unit PowerBeam 5AC?
A: This SKU is a 5-pack of the same PBE-5AC-Gen2 radio in the AU variant, intended for deployments that need several links.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
