Ubiquiti NHU-EFG | UniFi Enterprise Fortress Gateway, 25G, 12.5 Gbps IPS

Ubiquiti NHU-EFG | UniFi Enterprise Fortress Gateway, 25G, 12.5 Gbps IPS

NHU-EFG

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

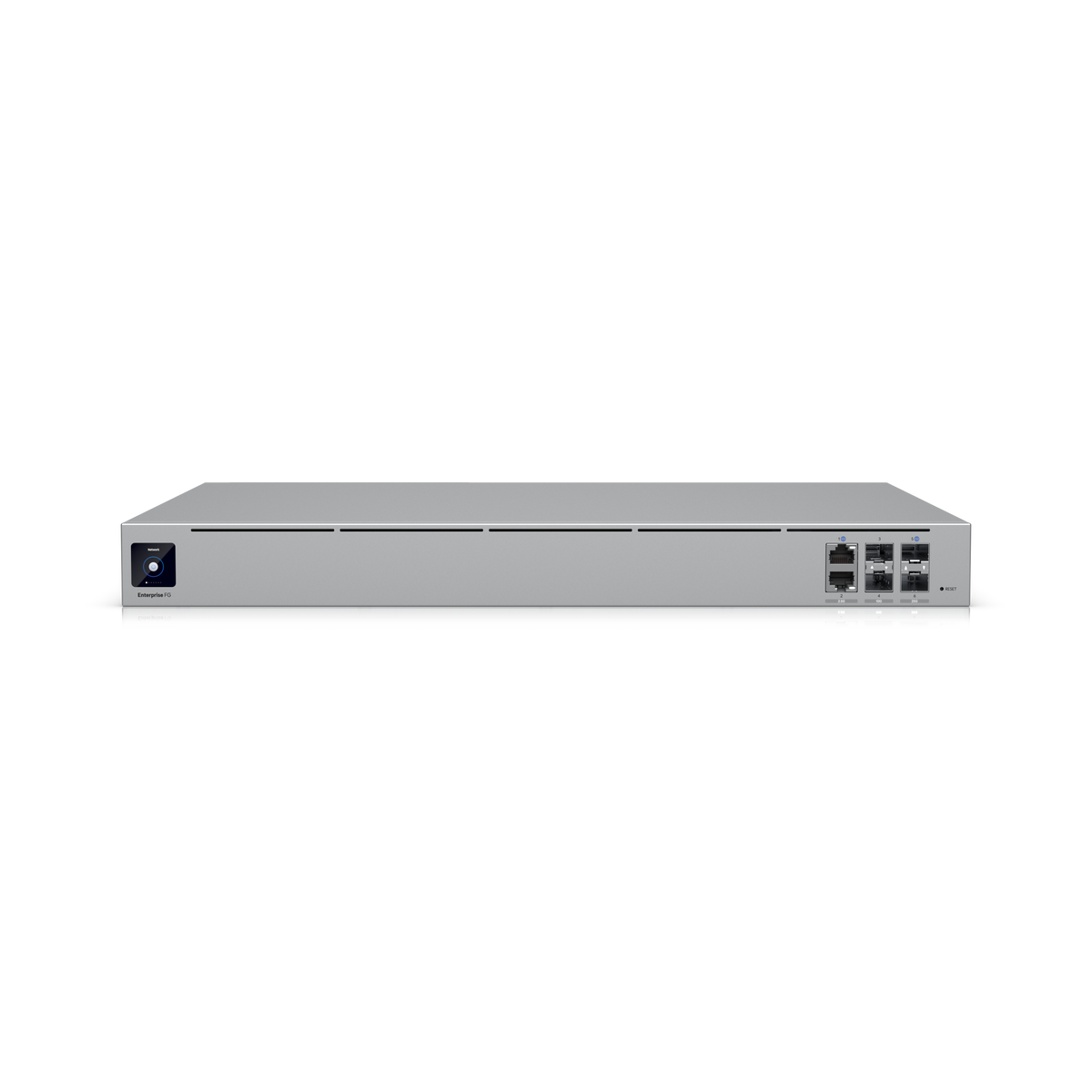

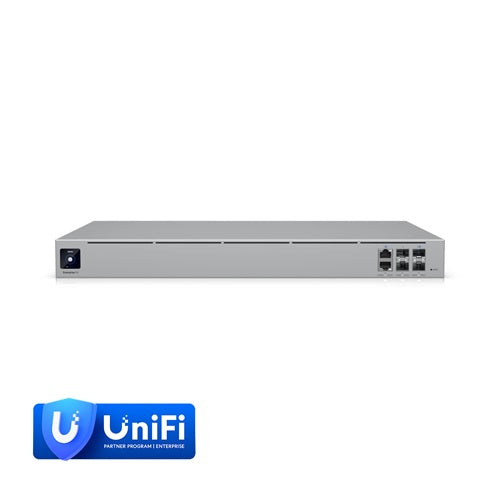

The Ubiquiti NHU-EFG UniFi Enterprise Fortress Gateway is a 1U rack-mount 25G cloud gateway and firewall built for large UniFi deployments. It supports more than 500 managed UniFi devices and over 5,000 simultaneous clients, with 12.5 Gbps IDS/IPS throughput for high-capacity routing and threat prevention.

Resilience is built in, with dual hot-swappable power supplies included and Shadow Mode high availability that provides automatic failover when paired with a second EFG. It runs UniFi Network for full-stack management and includes NeXT AI Inspection for real-time inspection of encrypted traffic, along with site-to-site VPN, One-Click VPN, WireGuard and OpenVPN support.

iptrading.com.au is your local source for enterprise-grade IT hardware.

Features

- Shadow Mode High Availability with automatic failover (VRRP); requires UniFi OS 4.0 or later and must be paired with another EFG

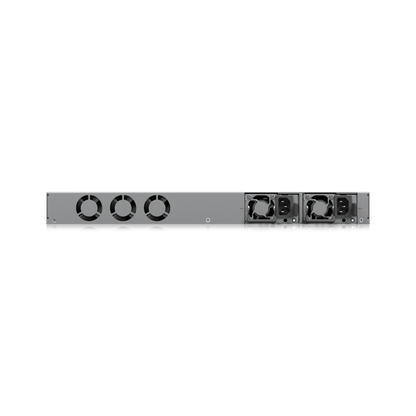

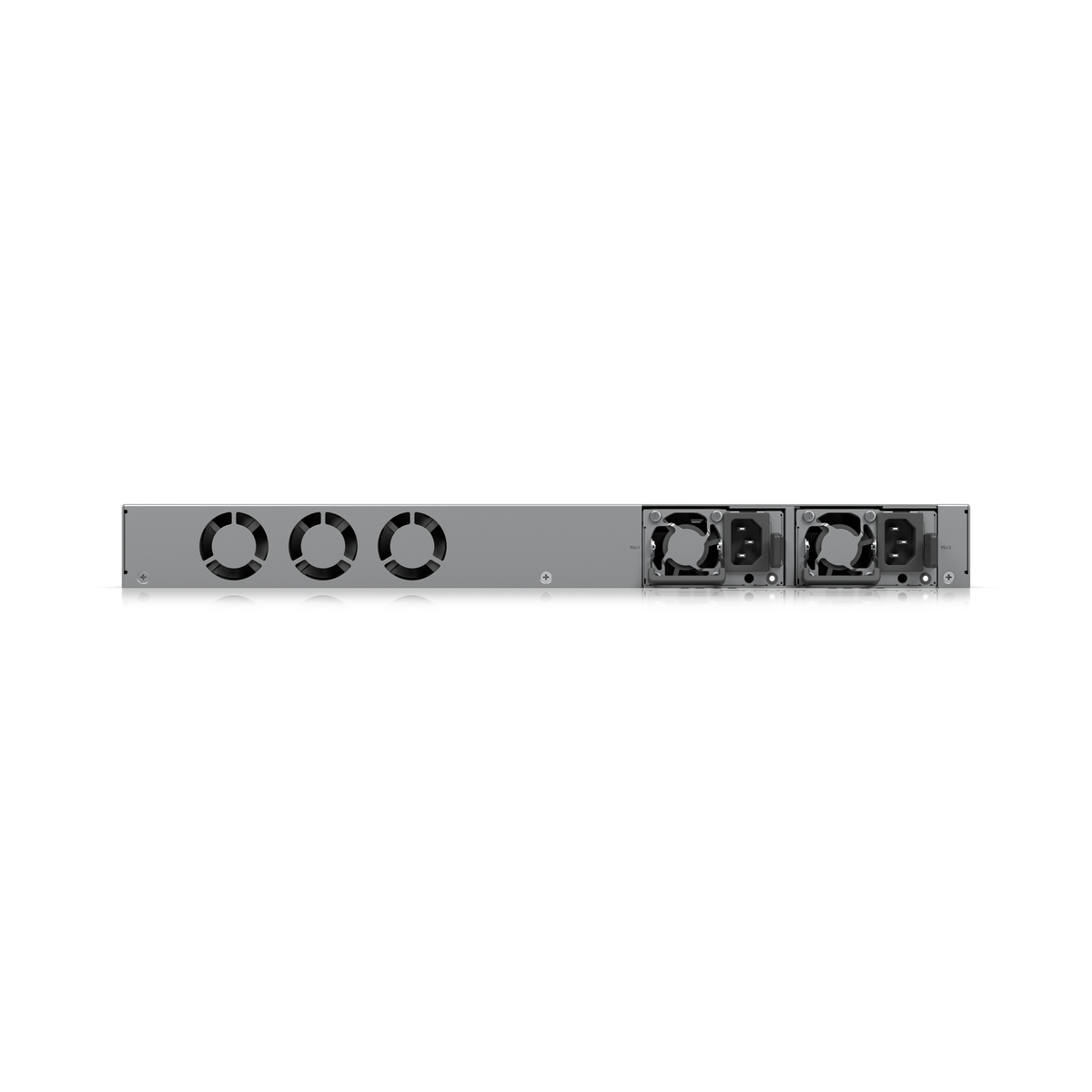

- Dual hot-swappable PSUs for power redundancy
- Runs UniFi Network for full-stack network management
- Licence-free real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption)
- IDS/IPS threat detection and prevention
- Site-to-site VPN via UniFi Site Manager
- One-Click VPN
- WireGuard and OpenVPN VPN server and client support

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x 25G SFP28 ports
- 2 x 10G SFP+ ports
- 2 x 2.5 GbE RJ45 ports
- Default WAN: 1 x 25G SFP28 and 1 x 2.5 GbE RJ45 (ports are LAN/WAN remappable)
- 12.5 Gbps IDS/IPS throughput
- 500+ managed UniFi devices
- 5,000+ simultaneous users/clients
- 71,000 new sessions per second
- 10,000 concurrent SSL/TLS inspection sessions
- Dimensions: 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8 in)
- Form factor: Rack mount (1U)
- 2 x hot-swappable PSUs included
- 1.3 inch touchscreen

FAQs

Q: How many UniFi devices and clients can the NHU-EFG manage?
A: It supports more than 500 managed UniFi devices and over 5,000 simultaneous users or clients.

Q: What is the IDS/IPS throughput of the NHU-EFG?
A: The gateway delivers 12.5 Gbps of IDS/IPS throughput, with 71,000 new sessions per second.

Q: Does the NHU-EFG support high availability?
A: Yes. Shadow Mode high availability provides automatic failover using VRRP. It requires UniFi OS 4.0 or later and must be paired with another EFG.

Q: Are the power supplies redundant?
A: Yes. Two hot-swappable power supplies are included, so one can be replaced without taking the gateway offline.

Q: What network ports does the NHU-EFG provide?
A: It has 2 x 25G SFP28, 2 x 10G SFP+ and 2 x 2.5 GbE RJ45 ports. Ports are LAN/WAN remappable, with a 25G SFP28 and a 2.5 GbE RJ45 as the default WAN.

Q: Can the NHU-EFG inspect encrypted traffic?
A: Yes. NeXT AI Inspection provides real-time SSL/TLS inspection of encrypted packets with no licence required, supporting up to 10,000 concurrent inspection sessions.
