Ubiquiti INS-3AF-O-G | Instant Outdoor Gigabit 802.3af to 24V PoE Adapter
Ubiquiti INS-3AF-O-G | Instant Outdoor Gigabit 802.3af to 24V PoE Adapter
Authorised Ubiquiti Partner
SKU:INS-3AF-O-G
In stock: 437
Couldn't load pickup availability
Description
Description

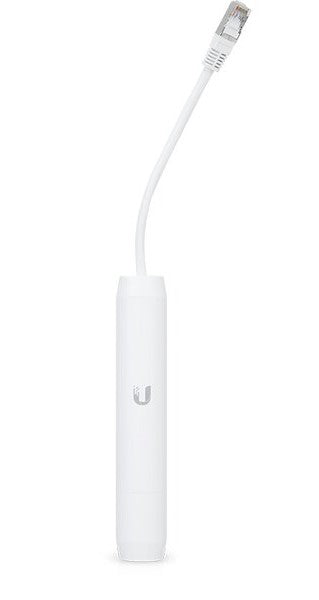

The Ubiquiti INS-3AF-O-G Instant outdoor Gigabit PoE adapter converts a 48V 802.3af PoE input into 24V passive PoE output. It lets compatible Ubiquiti UniFi and airMAX PoE devices run from a standard 802.3af source, with Gigabit RJ45 ports on both the input and output sides.
Built for outdoor deployment, it operates from -30 to 70 °C and provides ±15kV Ethernet ESD and surge protection. A 20 cm GbE RJ45 cable is included, and the compact, lightweight body makes it easy to mount close to the powered device.
Features
Features
- Converts 802.3af PoE into 24V passive PoE output
- Compatible with Ubiquiti UniFi and airMAX PoE devices
- Suitable for outdoor use
- Gigabit data rates on both RJ45 ports
- ±15kV Ethernet ESD and surge protection
- Wide -30 to 70 °C operating temperature range
- Includes 20 cm GbE RJ45 cable
Warranty
Warranty
Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.
Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: INS-3AF-O-G
- 1 x GbE RJ45 port (PoE in)
- 1 x GbE RJ45 port (PoE out)
- Input: PoE, 48V DC, 0.5A (802.3af)
- Output: 24V DC passive PoE, max 0.5A
- Power method: 24V passive PoE (pairs 4, 5+; 7, 8 return)
- Ethernet ESD/surge protection: ±15kV
- Operating temperature: -30 to 70 °C (-22 to 158 °F)
- Dimensions without cable: Ø 30.2 x 166 mm
- Dimensions with cable: Ø 30.2 x 366.6 mm
- Weight: 90 g (3.2 oz)
- Includes 20 cm GbE RJ45 cable
- NDAA compliant
FAQs
Q: What does the INS-3AF-O-G do?
A: It accepts a 48V 802.3af PoE input and outputs 24V passive PoE, so compatible Ubiquiti 24V PoE devices can be powered from a standard 802.3af switch or injector.
Q: Which devices is it compatible with?
A: It is designed for Ubiquiti UniFi and airMAX PoE devices that use 24V passive PoE.
Q: Is it suitable for outdoor installation?
A: Yes. It is built for outdoor use and operates from -30 to 70 °C, with ±15kV Ethernet ESD and surge protection.
Q: Does it support Gigabit speeds?
A: Yes. Both the PoE input and PoE output RJ45 ports are Gigabit Ethernet.
Q: What is the maximum power output?
A: The maximum output is 24V DC at 0.5A.
Q: Is a patch cable included?
A: Yes, a 20 cm GbE RJ45 cable is included in the box.
