Ubiquiti G3-SK-GATE | UniFi Access G3 Gate Starter Kit, Gate Hub, G3 Intercom, PoE++

Ubiquiti G3-SK-GATE | UniFi Access G3 Gate Starter Kit, Gate Hub, G3 Intercom, PoE++

SKU:G3-SK-GATE

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Ubiquiti G3-SK-GATE is a UniFi Access gate starter kit for controlling a single gate plus a side door. The kit bundles a Gate Hub, a G3 Intercom, a PoE++ adapter and two 2-wire Retrofit Extenders, so a complete gate entry point can be deployed from one box. The Gate Hub supports up to 6,000 users and the G3 Intercom adds a 7-inch touch display with an integrated camera and two-way intercom.

The G3 Intercom supports NFC cards and keyfobs, PIN, Apple and Google Wallet, mobile unlock, face unlock and QR code entry, and includes Touch Pass support with 10 free 1-year Touch Passes. The Gate Hub provides dry relay outputs for gate operators, an emergency input and an AUX relay for an external siren, and is DIN-rail mountable. The kit is managed through UniFi Access, with optional licence plate recognition when paired with select UniFi cameras.

Order from iptrading.com.au for fast dispatch Australia-wide.

Features

- Touch Pass support: unlock by tapping a phone or watch on a UniFi reader
- G3 Intercom access methods: NFC card or keyfob, PIN, Apple and Google Wallet, mobile unlock, face unlock, QR code
- Two-way intercom with doorbell and directory
- Gate Hub emergency input and AUX relay for an external siren

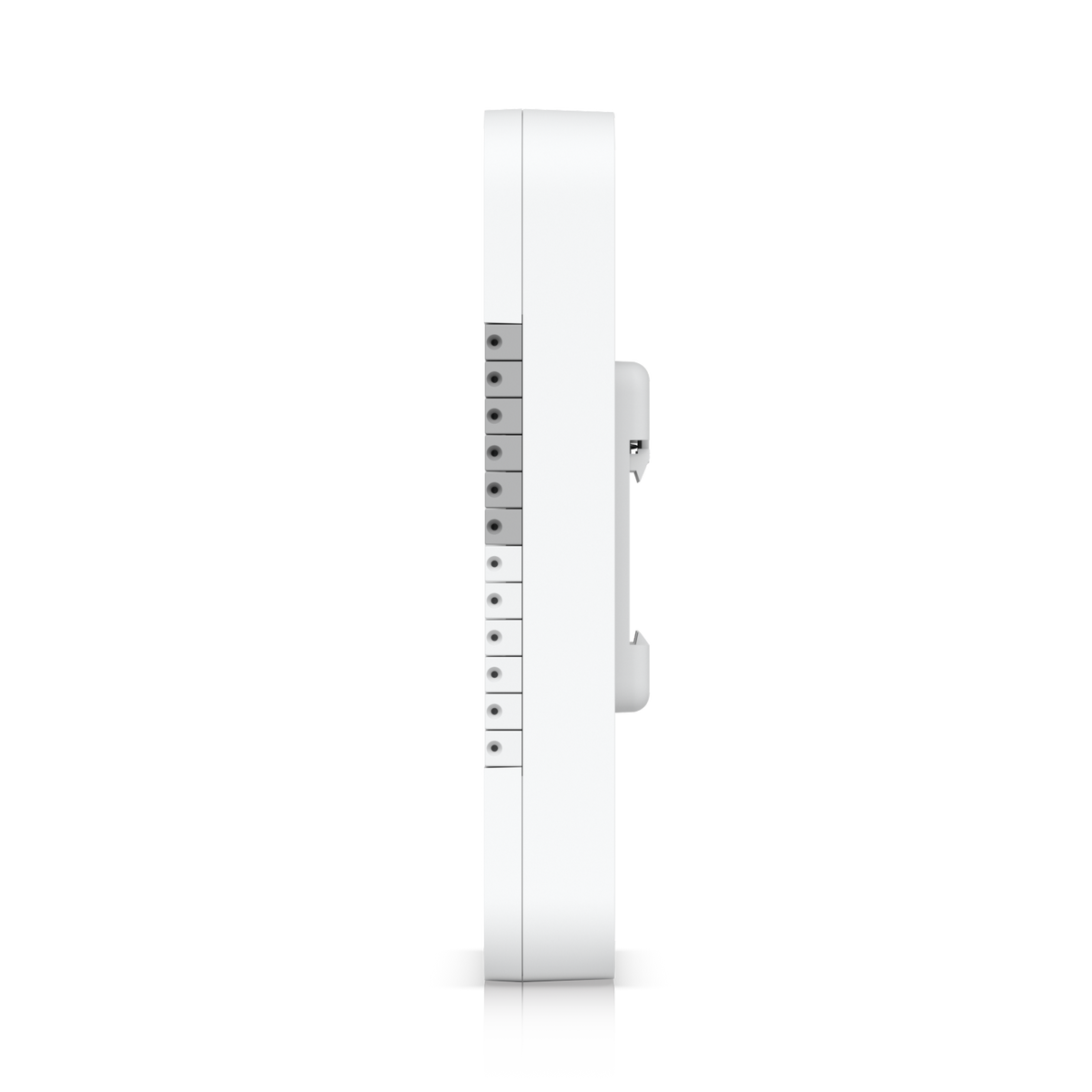

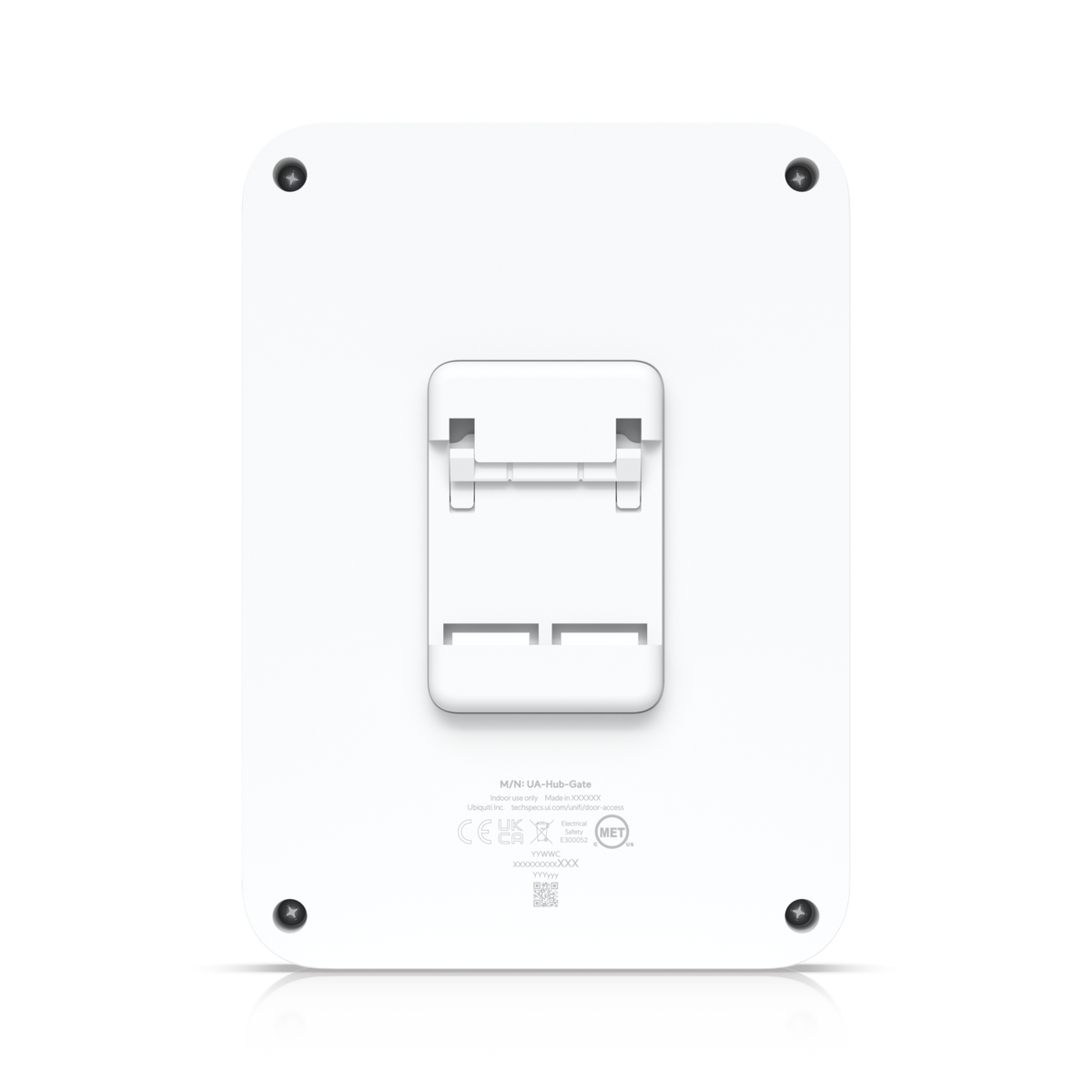

- DIN-rail mountable Gate Hub
- Optional licence plate recognition (LPR) when paired with select UniFi cameras
- Managed through UniFi Access

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

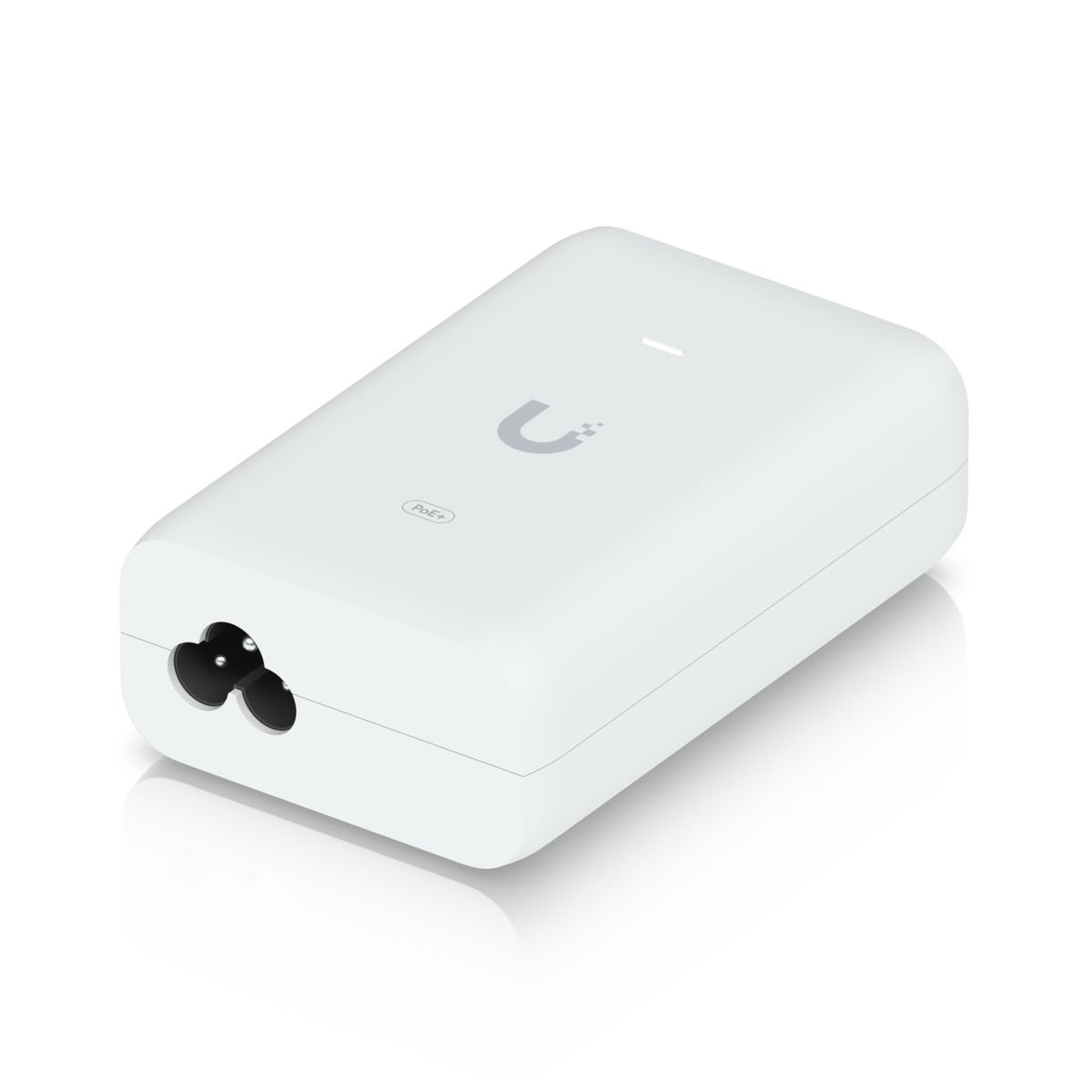

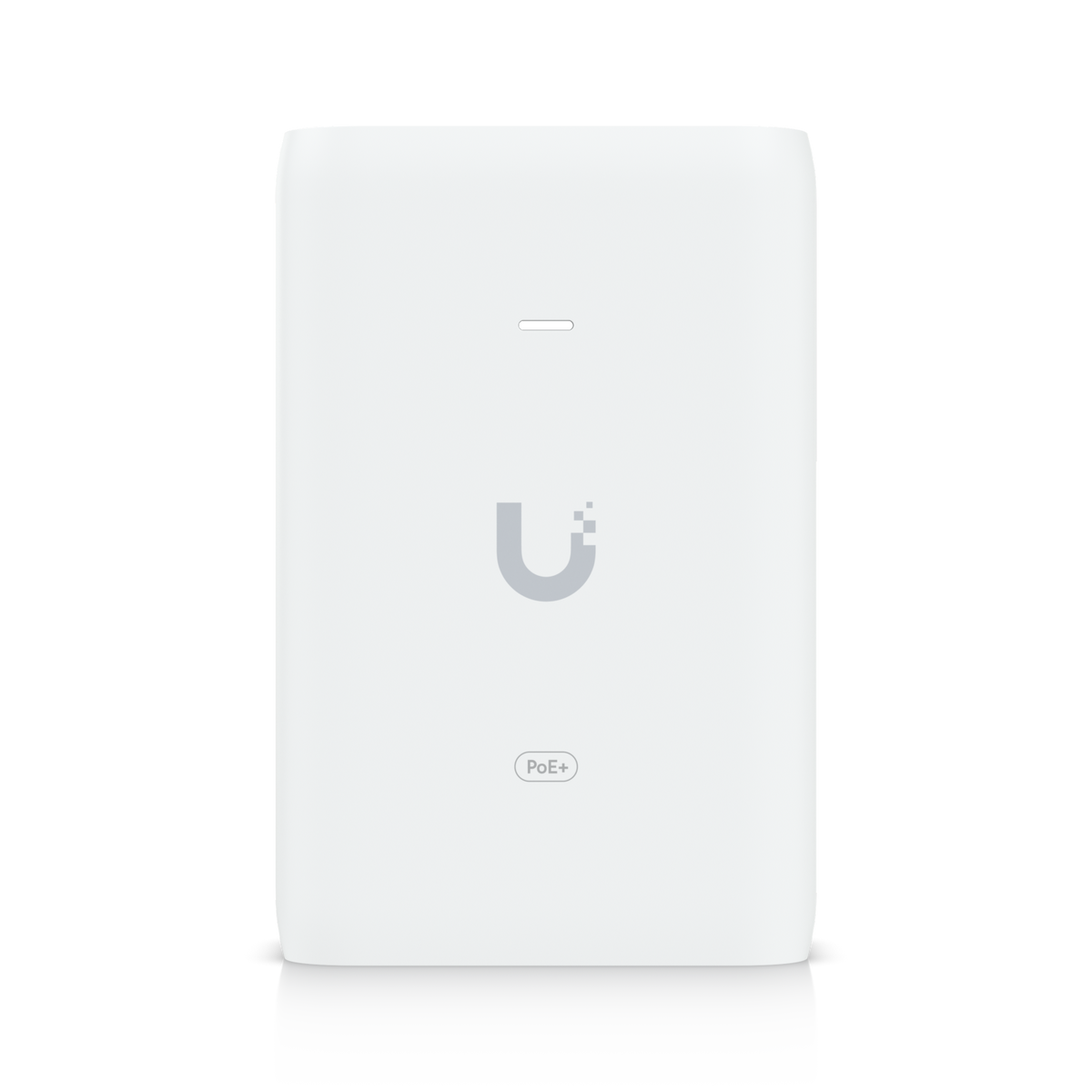

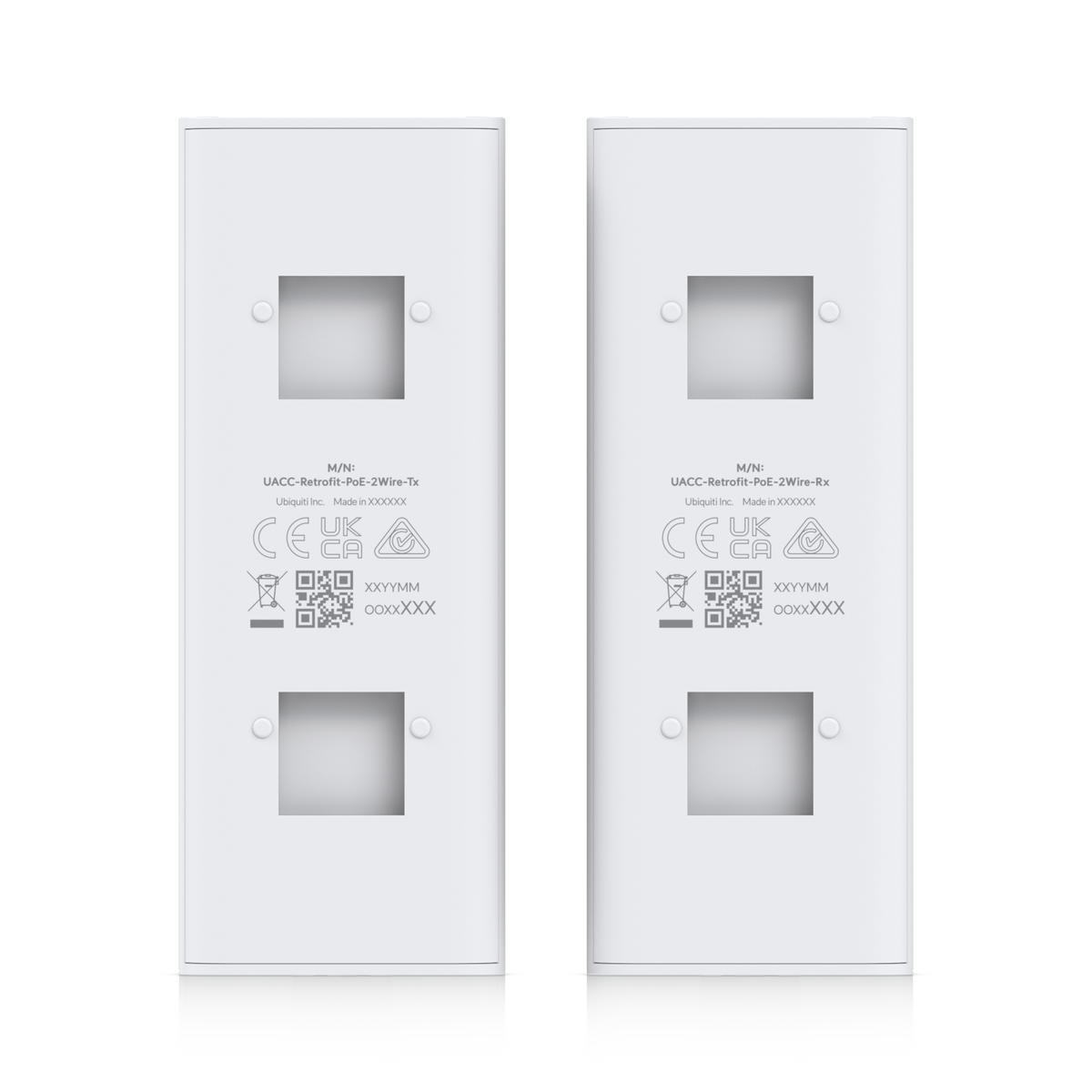

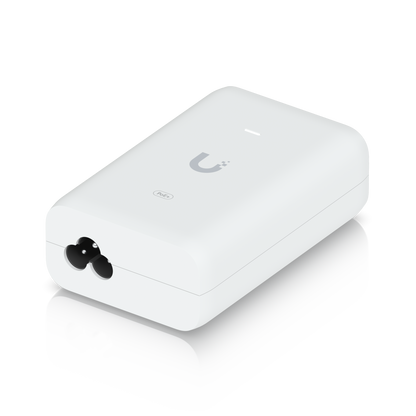

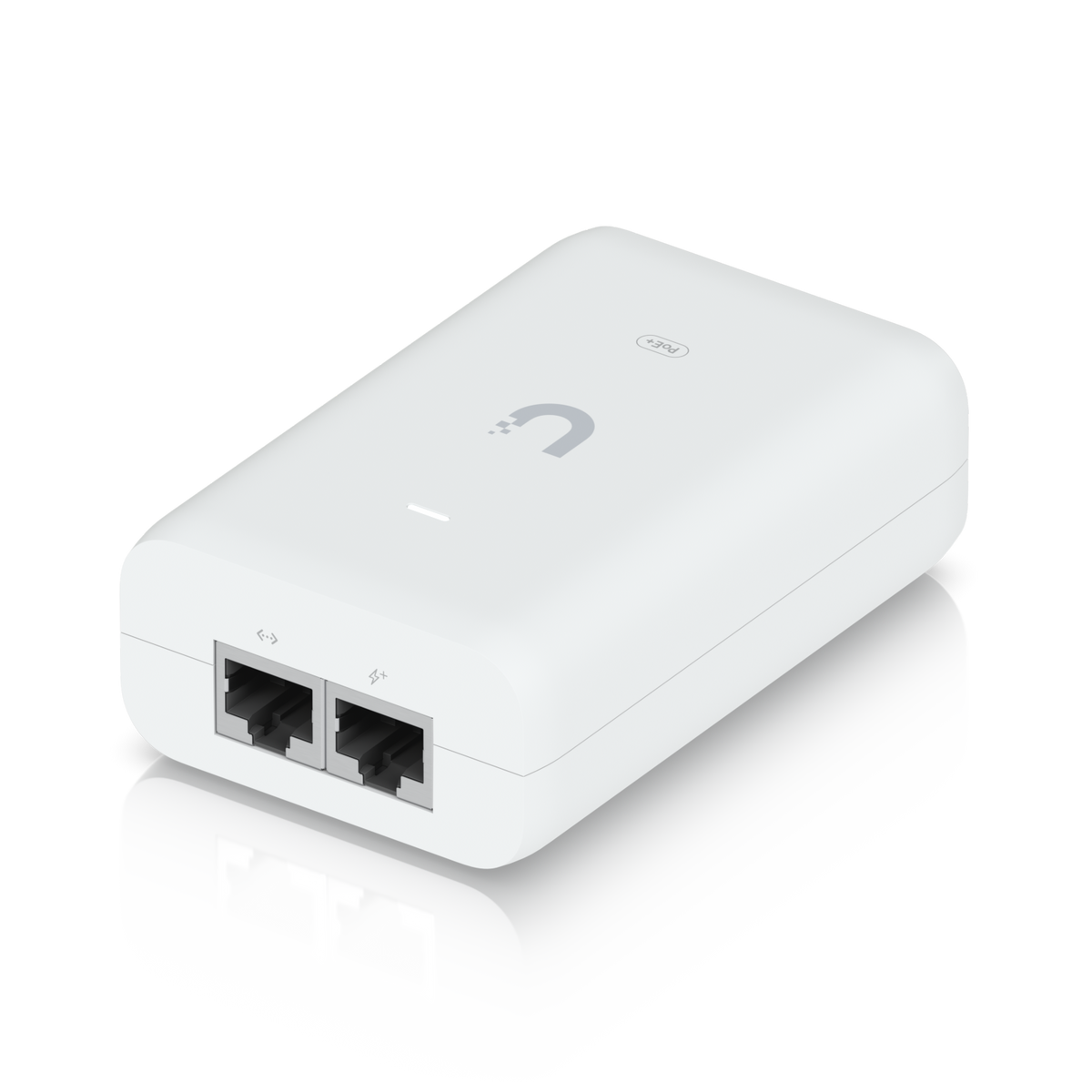

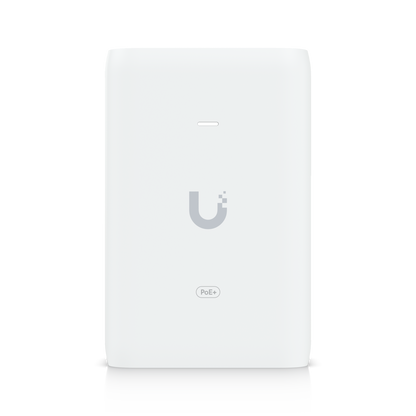

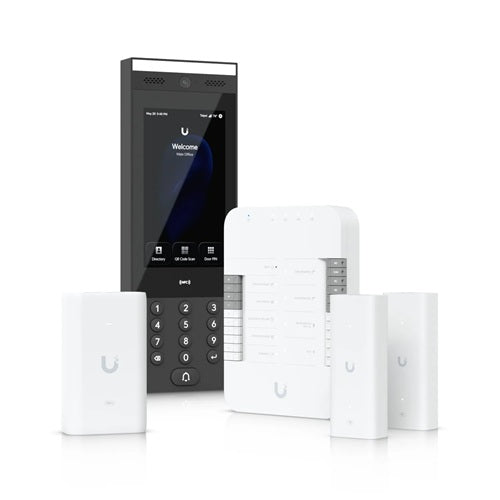

- Kit contents: 1 x Gate Hub, 1 x G3 Intercom, 1 x PoE++ adapter, 2 x 2-wire Retrofit Extenders
- Gate Hub: supports 1 gate and 1 side door, up to 6,000 users
- Gate Hub dimensions: 175 x 126 x 26 mm

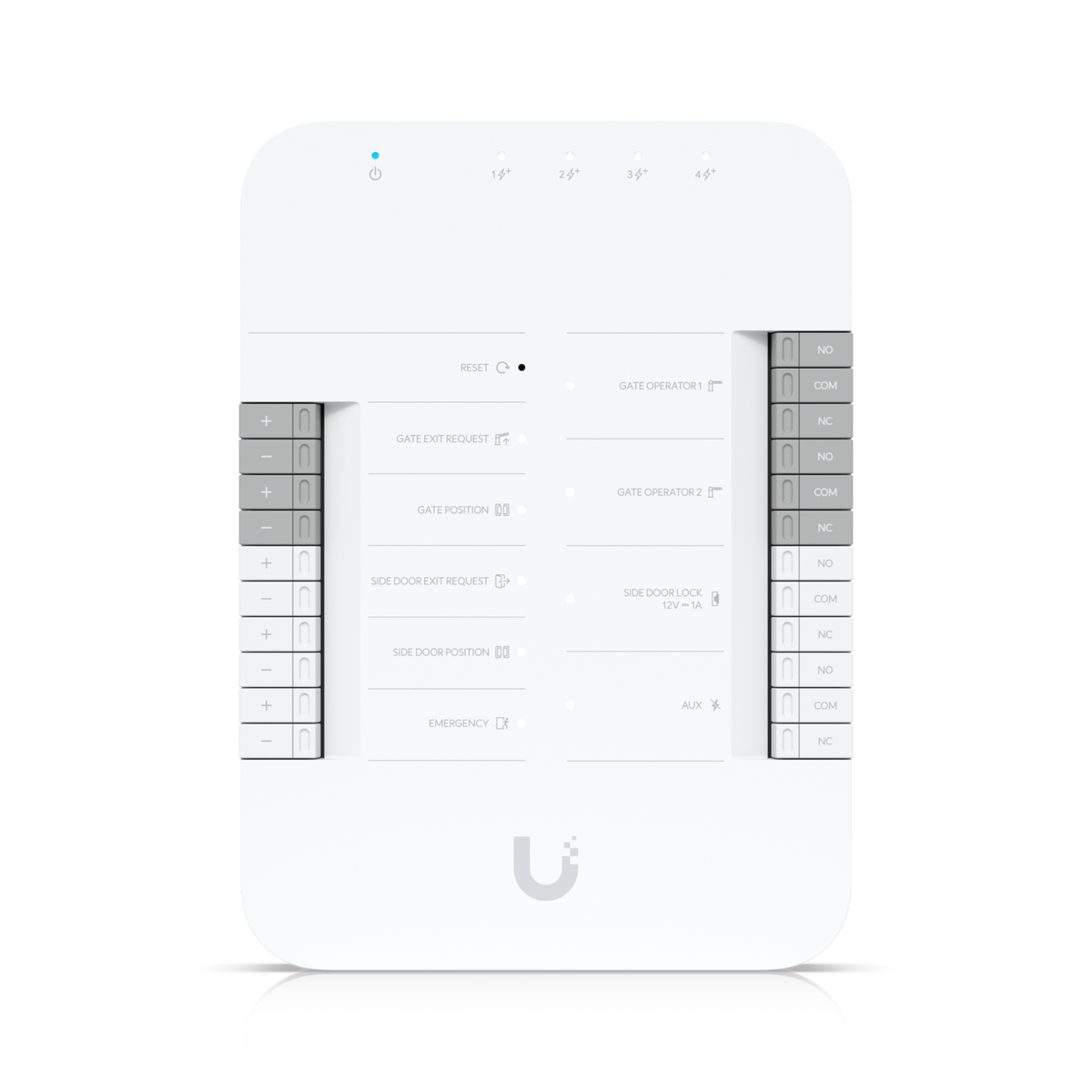

- Gate Hub inputs: gate exit request, gate position, side door exit, side door position, emergency
- Gate Hub outputs: 2 x operator dry relay (30V DC, 1A), 1 x Aux dry relay (30V DC, 1A), side door lock powered relay (12V DC, 1A)

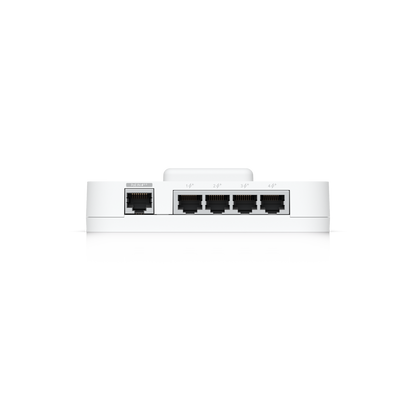

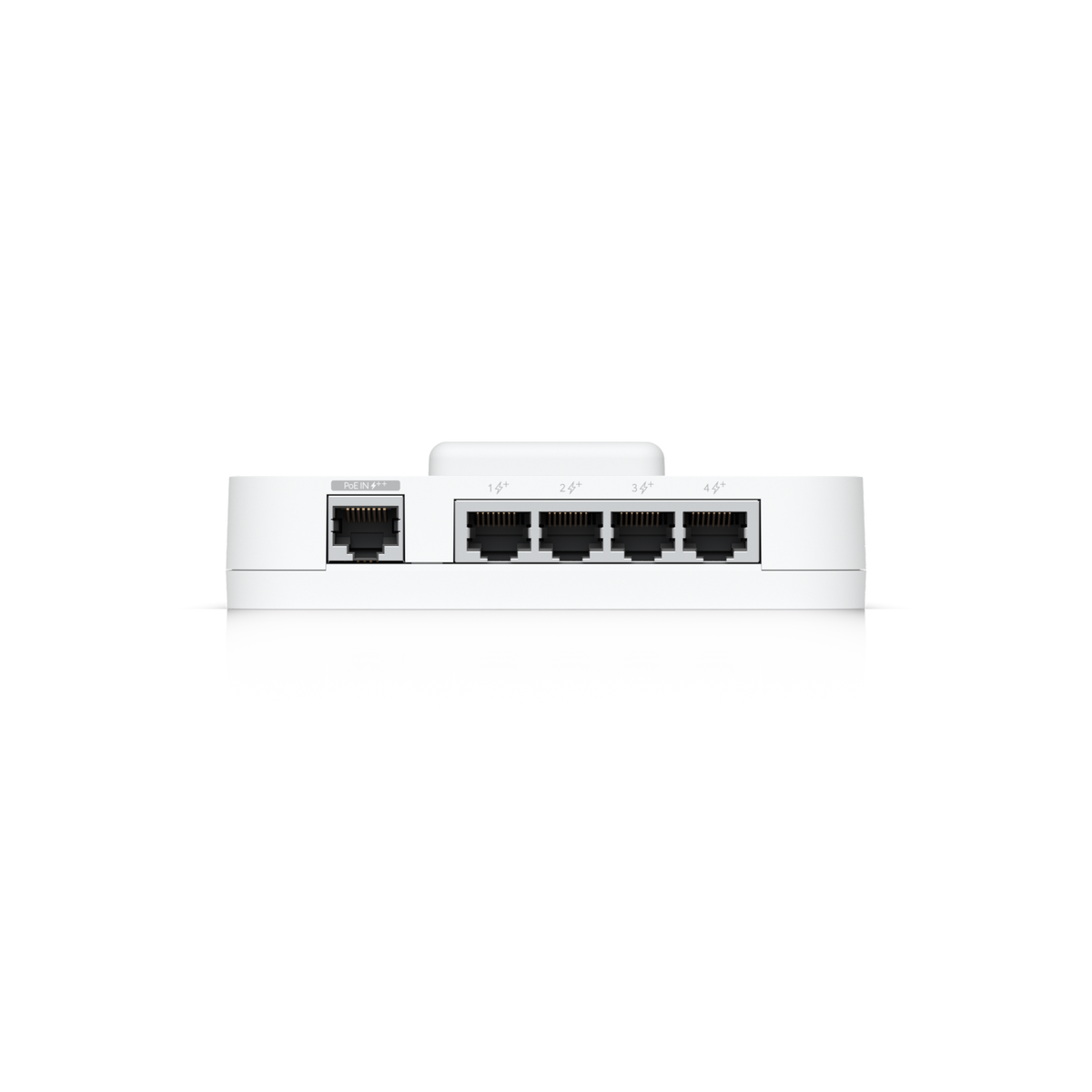

- Gate Hub PoE: 1 x PoE++ input (50V DC, 1A), 4 x PoE outputs (30W per port, 55W max aggregated)
- Gate Hub max power consumption: 22W without PoE output, 60W with PoE output

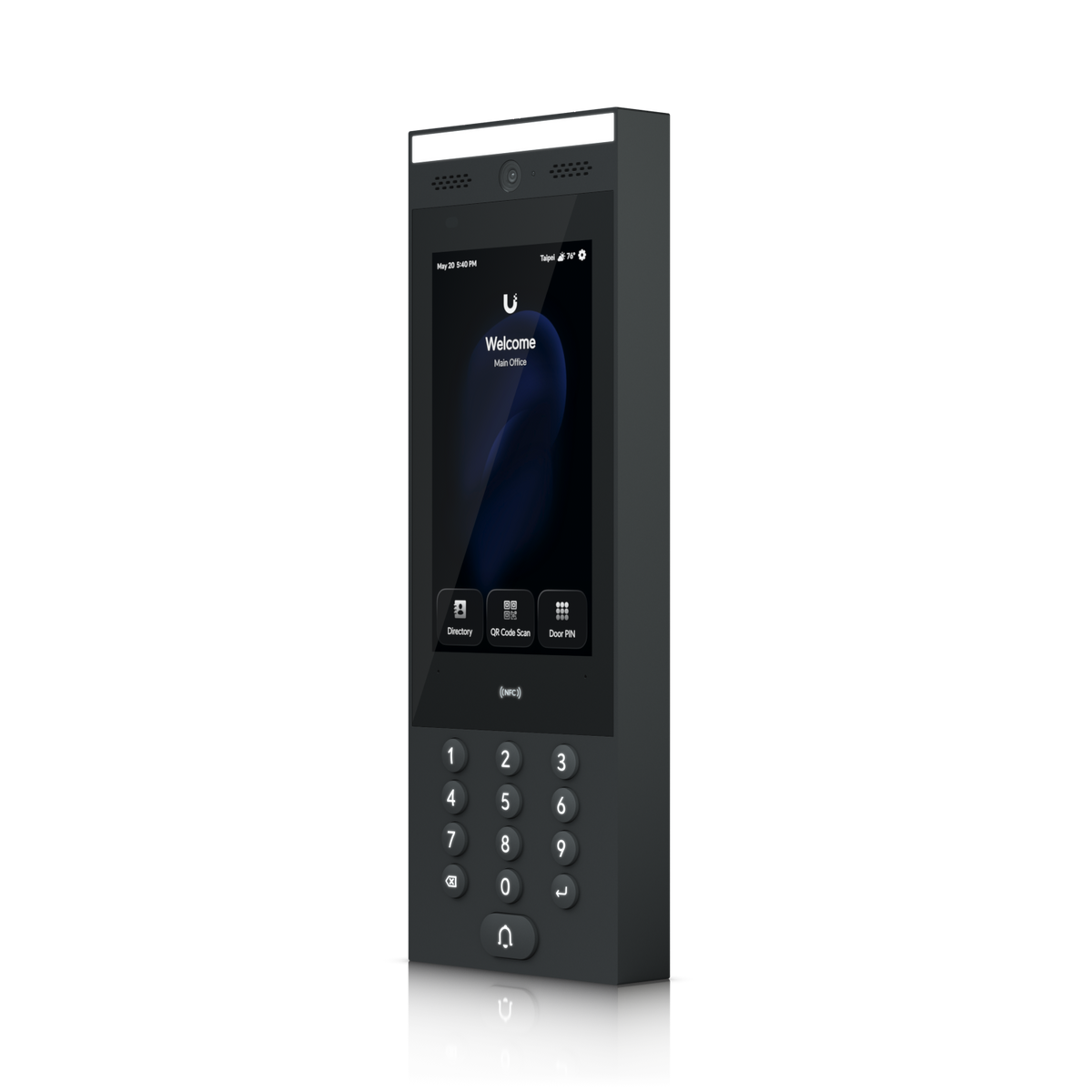

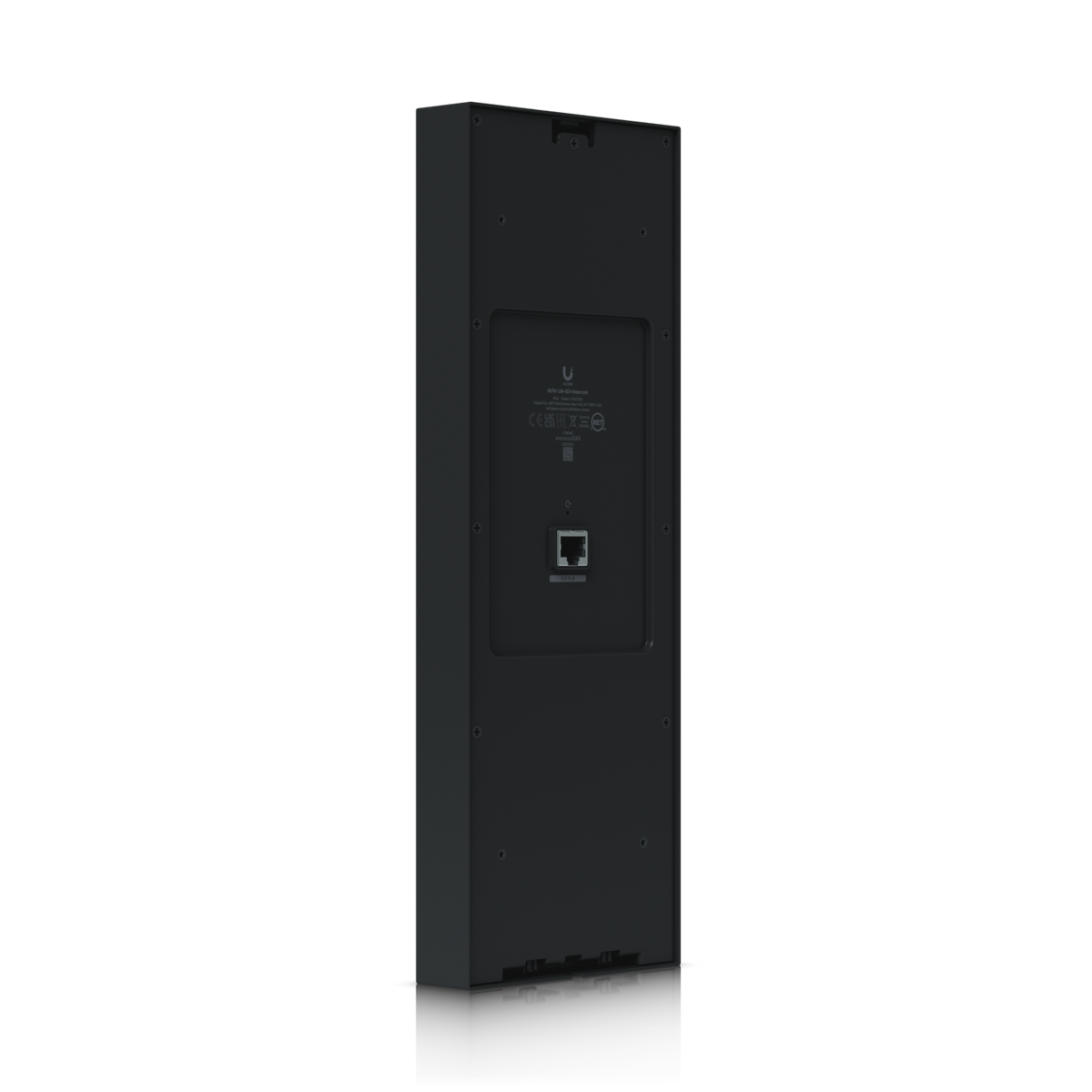

- G3 Intercom display: 7-inch (177 mm) capacitive multi-touch, 1024 x 600 px

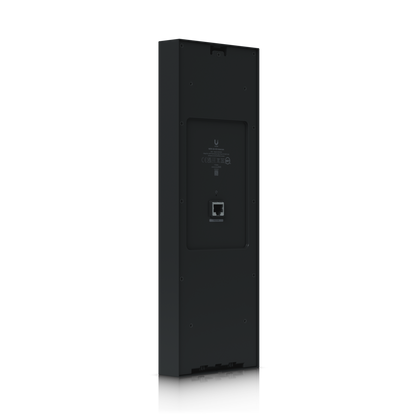

- G3 Intercom dimensions: 324.8 x 113.7 x 28.3 mm
- G3 Intercom connectivity: 1 x GbE RJ45 port, BLE 4.2, NFC, PoE powered, max 13W
- G3 Intercom: integrated camera, IP65 weatherproof, aluminium alloy, UV-stabilised polycarbonate and glass enclosure

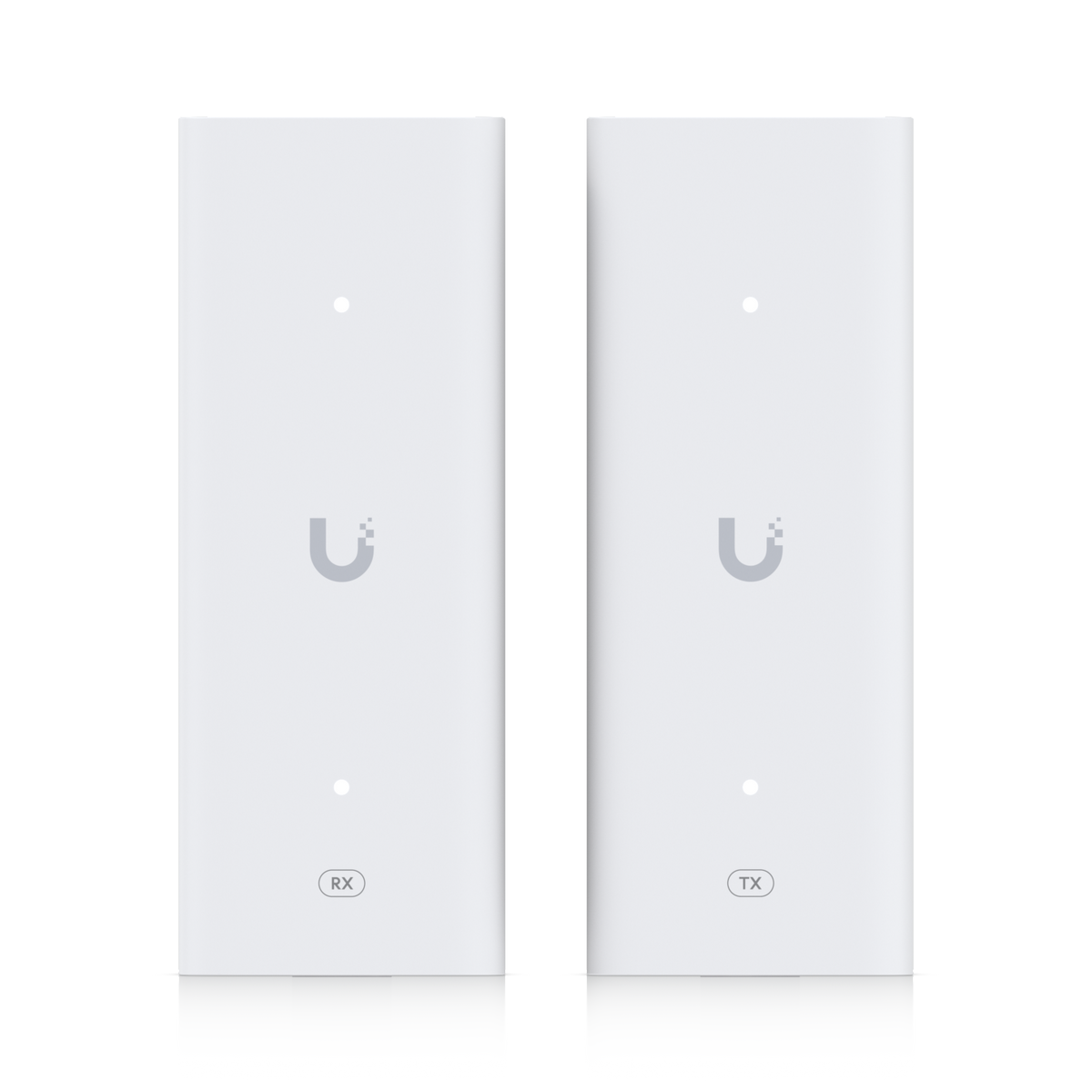

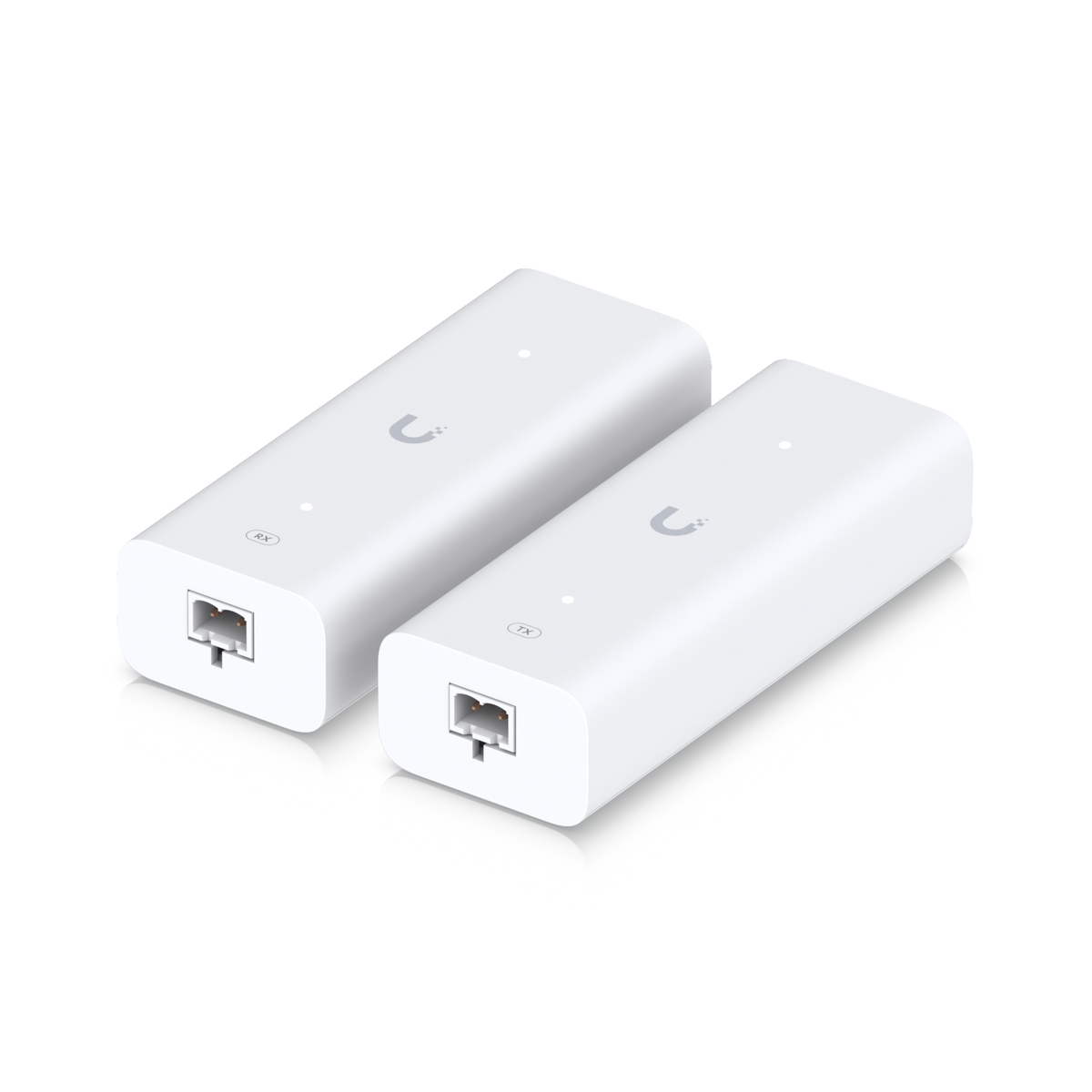

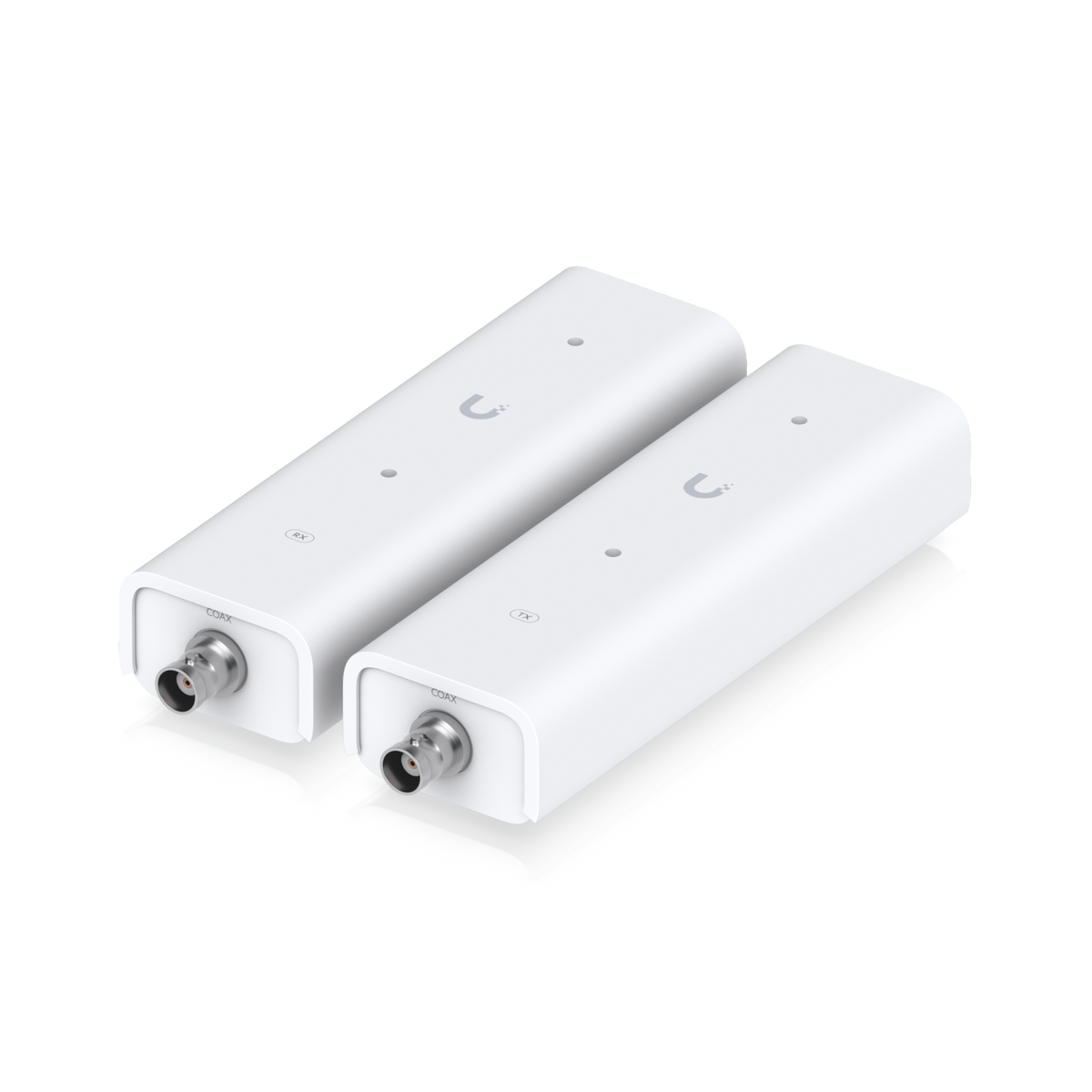

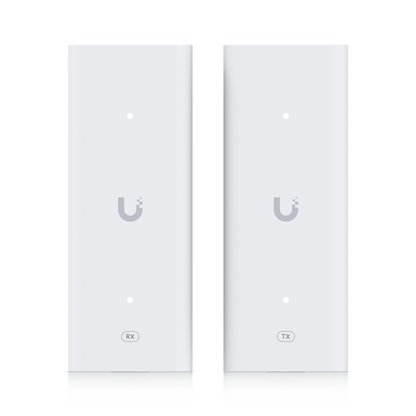

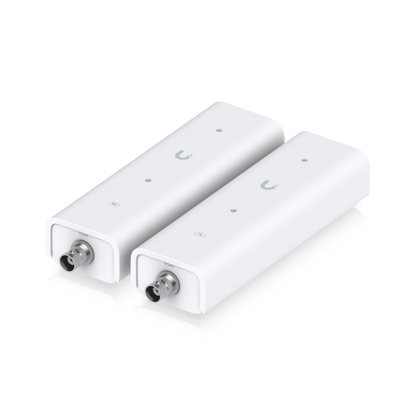

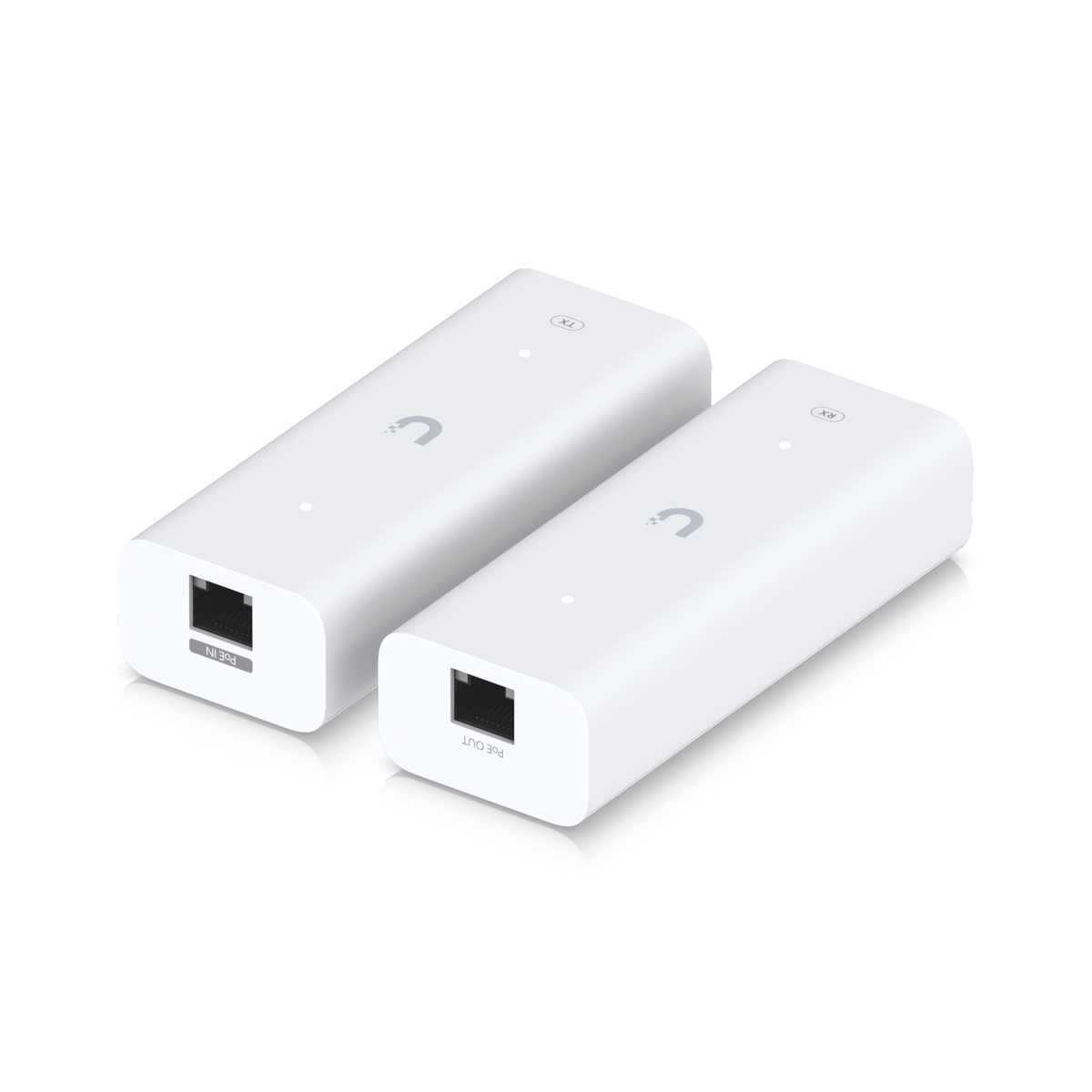

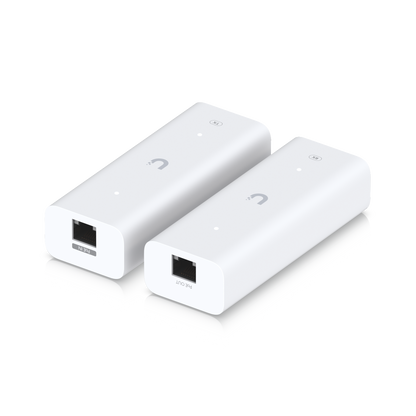

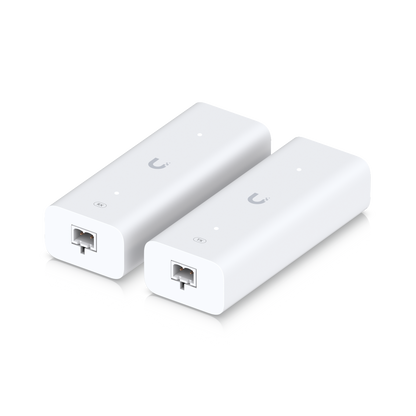

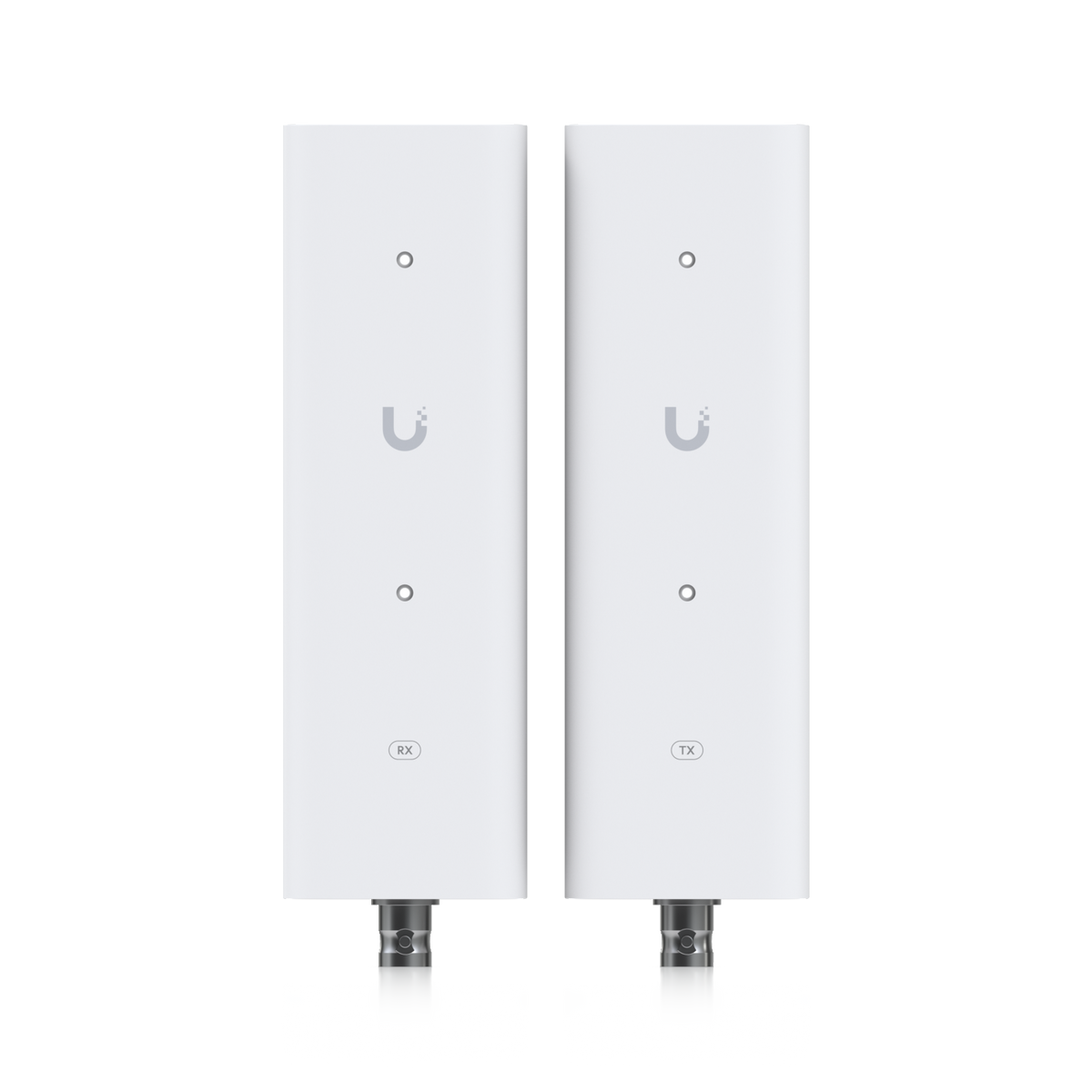

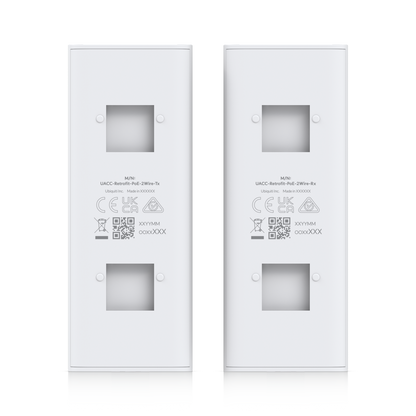

- Retrofit Extender: PoE++ in (50V DC, 1.2A), PoE+ out (48V DC, 0.6A)
- Operating temperature: -30 to 60 °C, humidity 5-90% noncondensing
- Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1, NDAA compliant
- 10 free 1-year Touch Passes included

FAQs

Q: What is included in the G3-SK-GATE kit?
A: The kit includes one Gate Hub, one G3 Intercom, one PoE++ adapter and two 2-wire Retrofit Extenders, plus 10 free 1-year Touch Passes.

Q: How many gates and doors can the Gate Hub control?
A: The Gate Hub supports one gate and one side door, with up to 6,000 users.

Q: How is the kit powered?
A: The Gate Hub takes a PoE++ input (50V DC, 1A) from the included adapter and can supply four PoE outputs at 30W per port, 55W max aggregated. The G3 Intercom is PoE powered at up to 13W.

Q: How can users unlock the gate?
A: The G3 Intercom supports NFC cards and keyfobs, PIN, Apple and Google Wallet, mobile unlock, face unlock and QR code entry, and Touch Pass support lets users tap a phone or watch.

Q: Is the G3 Intercom suitable for outdoor mounting?
A: Yes. The G3 Intercom is IP65 weatherproof and rated for operation from -30 to 60 °C.

Q: Can the kit read licence plates?
A: Licence plate recognition (LPR) is available as an option when the system is paired with select UniFi cameras.
