Ubiquiti ER-X-SFP-AU | EdgeRouter X SFP Router, 5x Gigabit PoE, AU Power Adapter

Ubiquiti ER-X-SFP-AU | EdgeRouter X SFP Router, 5x Gigabit PoE, AU Power Adapter

ER-X-SFP-AU

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

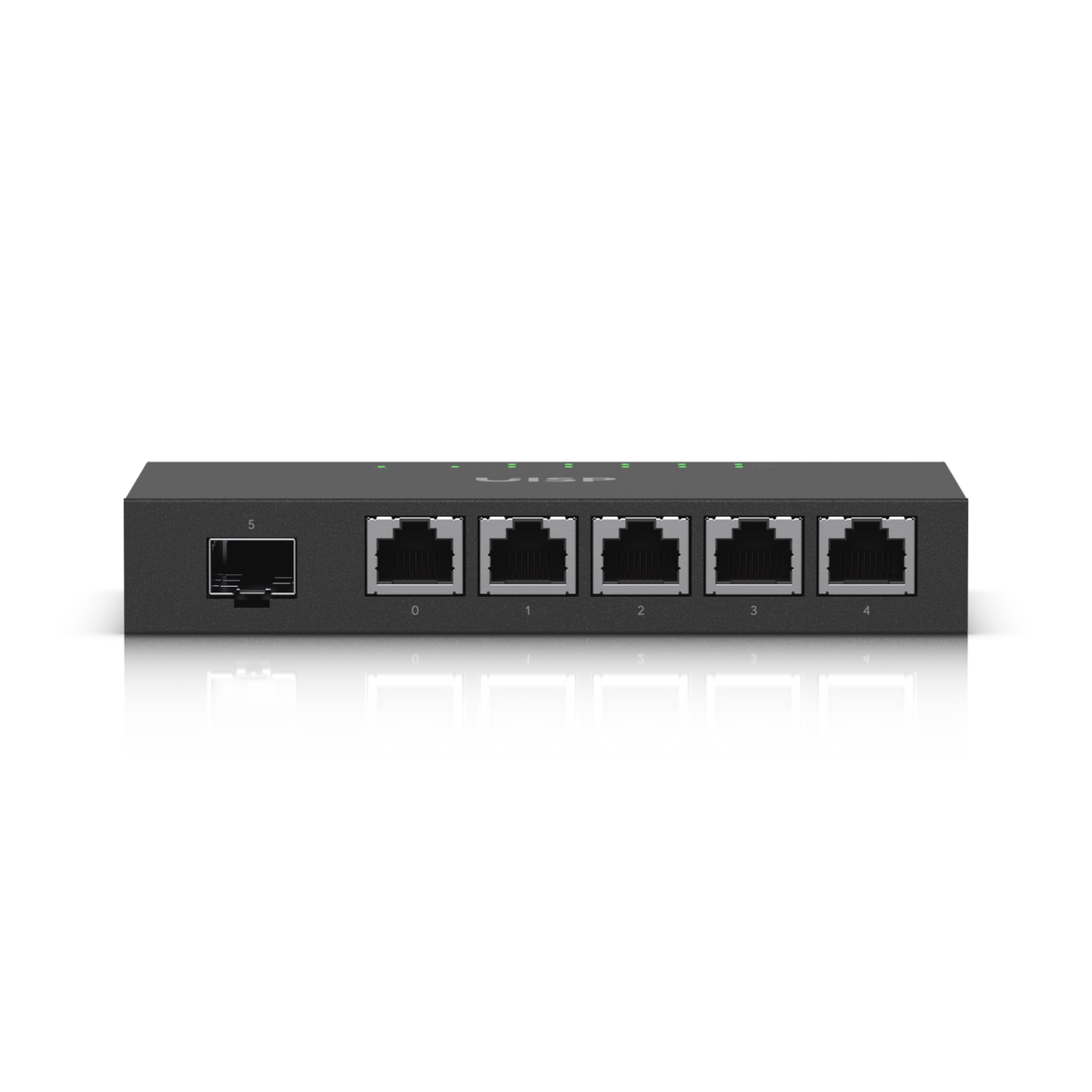

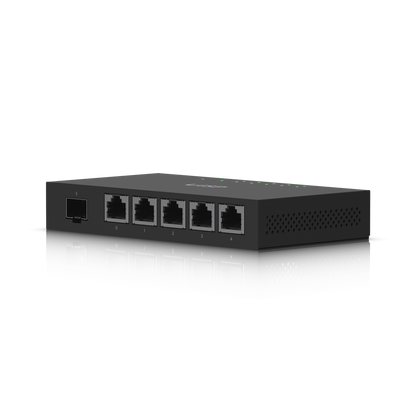

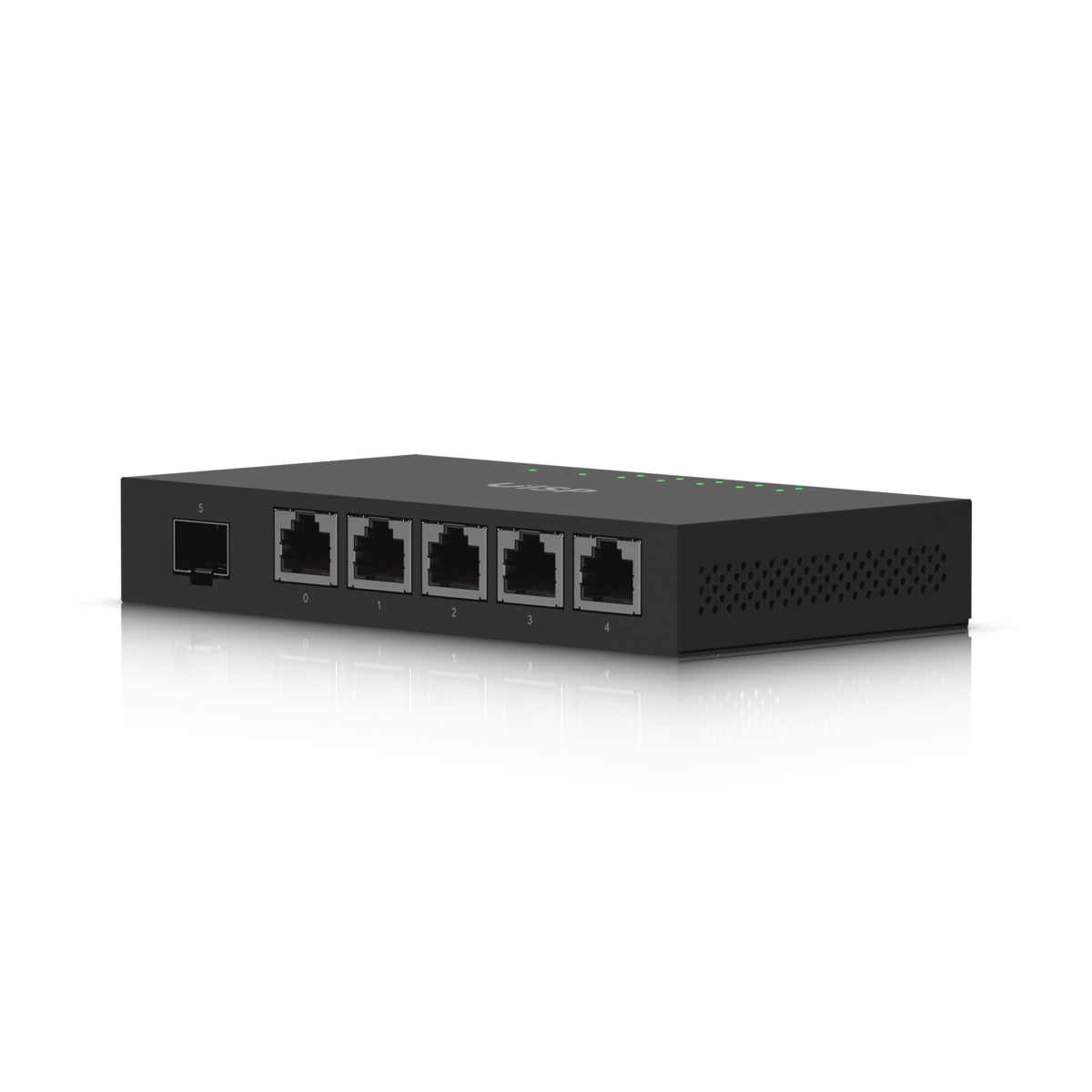

The Ubiquiti ER-X-SFP-AU is a compact EdgeRouter X SFP wired router with five Gigabit RJ45 ports supporting passive PoE and one Gigabit SFP port for fibre connectivity. This AU power adapter variant ships with the Australian-market 24V adapter, making it ready to deploy for small business, branch office and wireless ISP edge networks.

Powered by EdgeOS with a graphical UI and integrated CLI, it delivers VLAN segmentation, OSPF, RIP and BGP routing, firewall policies, NAT, QoS and comprehensive IPv6 support. The 24V passive PoE output can power up to five airMAX devices from a single unit, and the wall-mountable chassis suits tight installations.

Available now at iptrading.com.au with competitive pricing and local support.

Features

- EdgeOS advanced graphical UI with integrated CLI
- VLAN interfaces for network segmentation
- Static routes and routing protocols: OSPF, RIP, BGP
- Firewall policies and NAT rules
- DHCP services and QoS
- Comprehensive IPv6 support
- 24V passive PoE to power up to five airMAX devices
- Gigabit SFP port for fibre backhaul

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

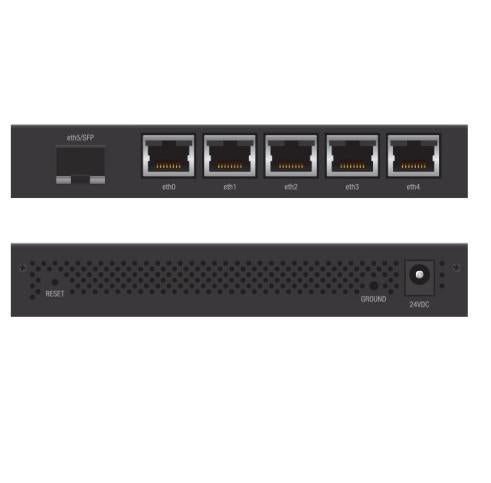

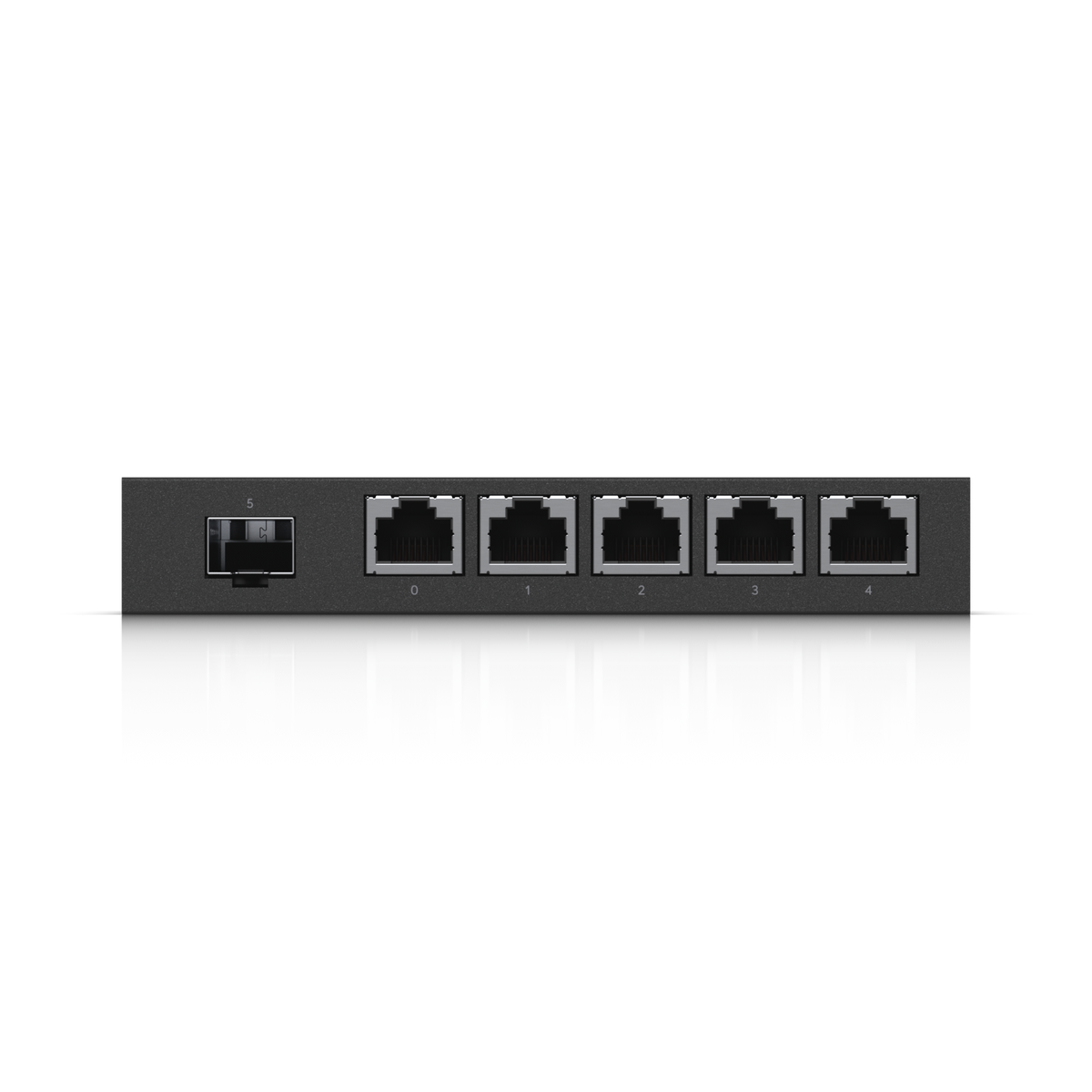

- 5 x Gigabit RJ45 ports (passive PoE capable)
- 1 x Gigabit SFP port
- Dual-core 880 MHz MIPS1004Kc processor
- 256 MB DDR3 RAM
- 256 MB NAND code storage
- 24V passive PoE output, 50W total

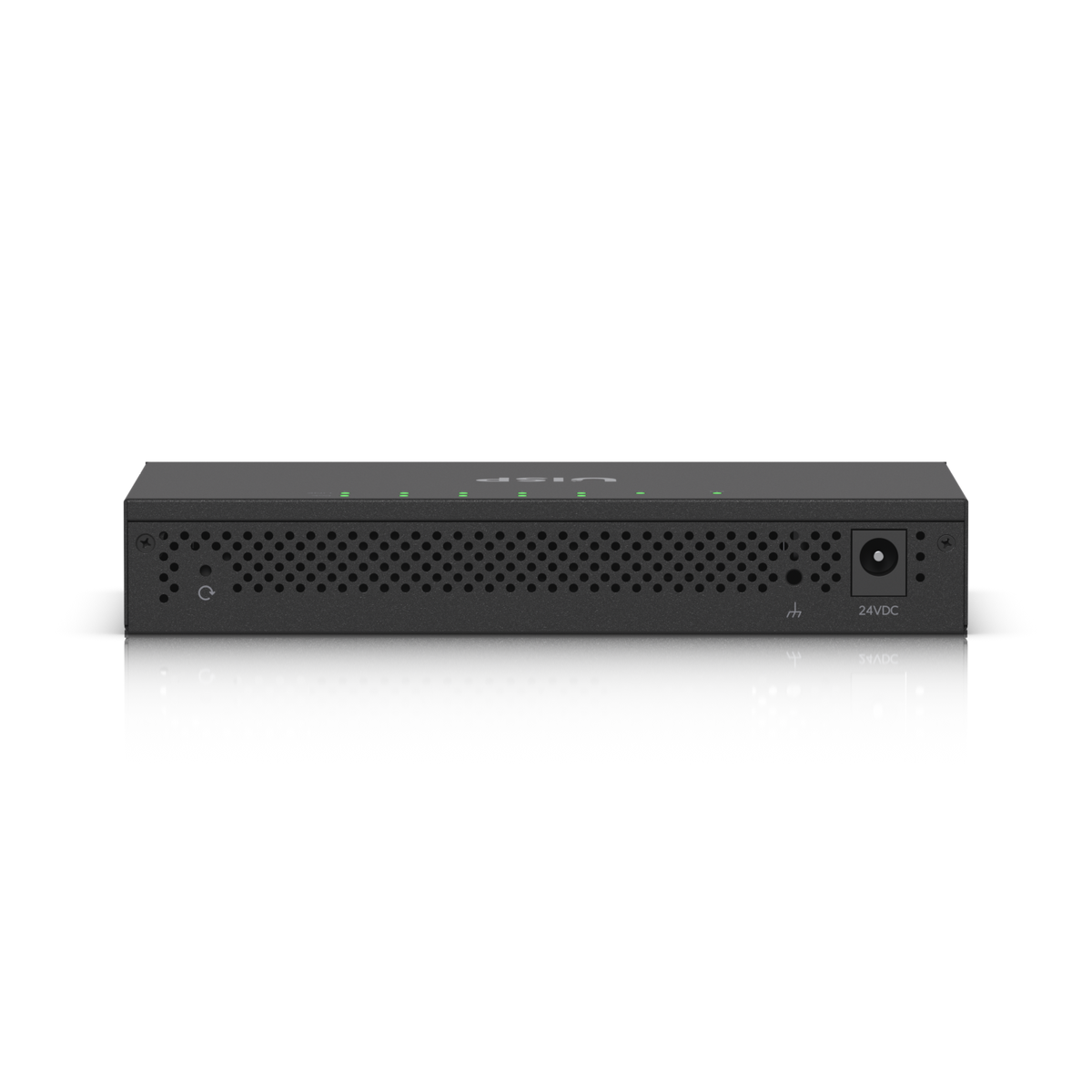

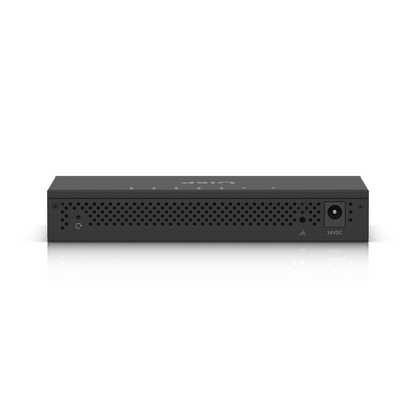

- Power input: 24VDC, 2.5A adapter included (supported range 9-26VDC)
- Max power consumption: 5W
- Dimensions: 142 x 75 x 23 mm
- Weight: 215 g
- Operating temperature: -10 to 45 °C
- Wall-mountable
- Certifications: CE, FCC, IC

FAQs

Q: What does the -AU suffix on the ER-X-SFP-AU mean?
A: It denotes the Australian-market variant, which ships with the regional 24V power adapter. The router hardware is otherwise the EdgeRouter X SFP.

Q: Can the ER-X-SFP-AU power other devices over PoE?
A: Yes. The RJ45 ports support 24V passive PoE output with a 50W total budget, suitable for powering up to five airMAX devices. This is passive PoE, not 802.3af/at.

Q: What is the SFP port used for?
A: The Gigabit SFP port accepts a compatible SFP module for fibre uplinks or backhaul, letting you connect to a fibre WAN or a remote switch over longer distances than copper.

Q: Which routing protocols and network features does it support?
A: EdgeOS provides static routes, OSPF, RIP and BGP, along with VLAN interfaces, firewall policies, NAT, DHCP, QoS and comprehensive IPv6 support.

Q: Can it be wall mounted?
A: Yes. The compact 142 x 75 x 23 mm chassis is wall-mountable and weighs 215 g, making it suitable for tight installations.

Q: What power input does it accept?
A: It runs from 24VDC via the included 2.5A adapter, with a supported input range of 9-26VDC and a maximum consumption of 5W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
