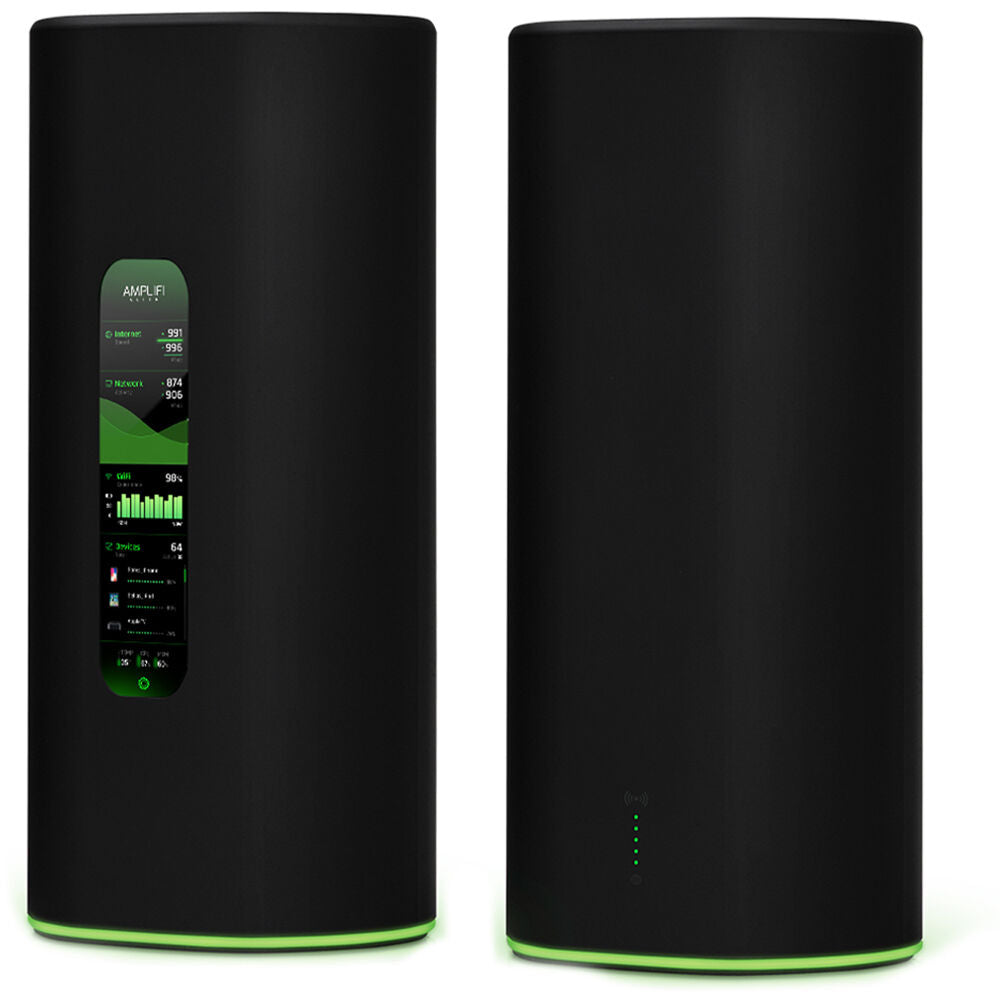

Ubiquiti AFI-ALN-AU | AmpliFi Alien Wi-Fi 6 Router + MeshPoint Kit, AU Plug

Ubiquiti AFI-ALN-AU | AmpliFi Alien Wi-Fi 6 Router + MeshPoint Kit, AU Plug

SKU:AFI-ALN-AU

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Ubiquiti AFI-ALN-AU is an AmpliFi Alien Wi-Fi 6 (802.11ax) router and MeshPoint kit with an AU plug, built for high-capacity home and small office mesh networking. The kit pairs an Alien router with an Alien MeshPoint, delivering 16 spatial streams and 7685 Mbps of total capacity across tri-band radios, with coverage of about 280 m² per unit and support for up to 120 connected devices.

The router includes a 4.7 inch full colour touchscreen and is set up and managed through the AmpliFi mobile app. The router provides 1 x Gigabit WAN and 4 x Gigabit LAN ports, while the MeshPoint adds a Gigabit LAN port. The mesh can be expanded over the air by adding further Alien routers, and a dedicated 5 GHz Wi-Fi 5 radio can be reserved for performance-critical devices.

iptrading.com.au is your local source for enterprise-grade IT hardware.

Features

- Wi-Fi 6 with MU-MIMO and OFDMA
- 8x8 5 GHz super antenna design
- Separate 5 GHz Wi-Fi 5 radio can be dedicated to performance-critical devices
- Mesh expandable over the air; more Alien routers can be added
- Touchscreen with haptics and adjustable LED
- Plug-and-play setup through the AmpliFi mobile app

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Kit contents: AmpliFi Alien router + AmpliFi Alien MeshPoint
- AU plug version
- Wi-Fi 6 (802.11ax) tri-band radios: 2.4/5 GHz Wi-Fi 6 plus a separate 5 GHz Wi-Fi 5 radio
- 16 spatial streams, 7685 Mbps total capacity
- Router: 1 x 10/100/1000 RJ45 WAN, 4 x 10/100/1000 RJ45 LAN
- MeshPoint: 1 x 10/100/1000 RJ45 LAN
- Router display: 4.7 inch touchscreen (274 x 1268, full colour)
- Processor: Quad-Core Cortex A53 at 2.2 GHz, 1 GB memory
- Dimensions (router/MeshPoint): 110 x 110 x 250 mm
- Weight: Router 1.2 kg, MeshPoint 1.09 kg
- Max power consumption: Router 35W, MeshPoint 34W
- Power: Universal AC input 100-240VAC, 50/60 Hz
- Coverage: about 280 m² per unit, up to 120 connected devices
- Management: AmpliFi Wi-Fi app

FAQs

Q: What is included in the AFI-ALN-AU kit?
A: The kit includes one AmpliFi Alien router and one AmpliFi Alien MeshPoint, supplied with the AU plug version.

Q: Does the AFI-ALN-AU support Wi-Fi 6?
A: Yes. It uses tri-band 802.11ax radios with MU-MIMO and OFDMA, plus a separate 5 GHz Wi-Fi 5 radio for performance-critical devices.

Q: How many Ethernet ports does the kit provide?
A: The router has 1 x Gigabit RJ45 WAN and 4 x Gigabit RJ45 LAN ports. The MeshPoint has 1 x Gigabit RJ45 LAN port.

Q: How is the AFI-ALN-AU set up and managed?
A: Setup and management are handled through the AmpliFi Wi-Fi mobile app. The router also has a 4.7 inch touchscreen for on-device control.

Q: How much coverage does the kit provide?
A: Each unit covers about 280 m² and the system supports up to 120 connected devices.

Q: Can I expand the mesh with more units?
A: Yes. The mesh expands over the air and additional Alien routers can be added to extend coverage.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
