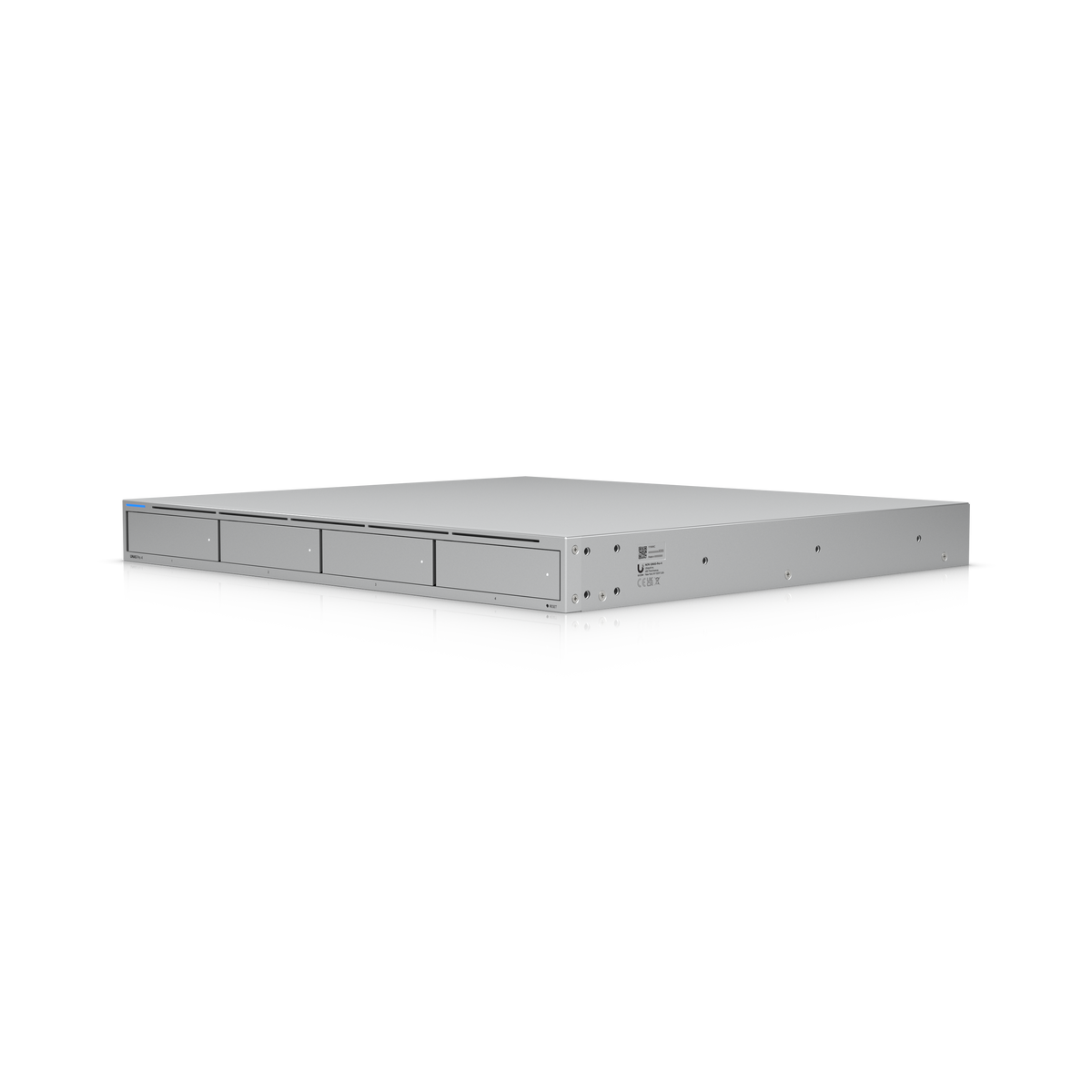

Ubiquiti 1U-RACK-MOUNT-UNAS-PRO-4 | UniFi UNAS Pro 4 1U Rack NAS, 4-Bay, Dual 10G SFP+, Diskless

Ubiquiti 1U-RACK-MOUNT-UNAS-PRO-4 | UniFi UNAS Pro 4 1U Rack NAS, 4-Bay, Dual 10G SFP+, Diskless

SKU:1U-RACK-MOUNT-UNAS-PRO-4

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Ubiquiti UniFi UNAS Pro 4 is a diskless 1U rack-mount NAS with four 2.5/3.5" drive bays and dual 10G SFP+ ports. It suits small businesses, branch offices and network teams that need high-throughput file storage and sharing in a compact rack footprint. Two M.2 NVMe cache slots accelerate random access performance, and RAID 5, RAID 6 and RAID 10 protect data across the drive array.

The UNAS Pro 4 is managed through UniFi Drive, with SMB and NFS file sharing, encryption, snapshots, share links and Time Machine backup, and no per-seat licensing. A separate GbE RJ45 port handles management, and an optional USP-RPS input provides power redundancy. It is powered by a quad-core ARM Cortex-A57 processor with 8GB of memory.

Buy from iptrading.com.au for genuine hardware and reliable service.

Features

- High-availability 10 Gbps networking with dual SFP+ ports
- M.2 NVMe SSD cache accelerates random access performance
- File sharing over SMB and NFS via UniFi Drive
- File encryption, snapshots, share links and Time Machine backup
- Multiple local, remote and cloud backup targets
- Redundant power input option with USP-RPS
- Dedicated 1GbE RJ45 port for management
- No per-seat licensing with UniFi Drive

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack mount

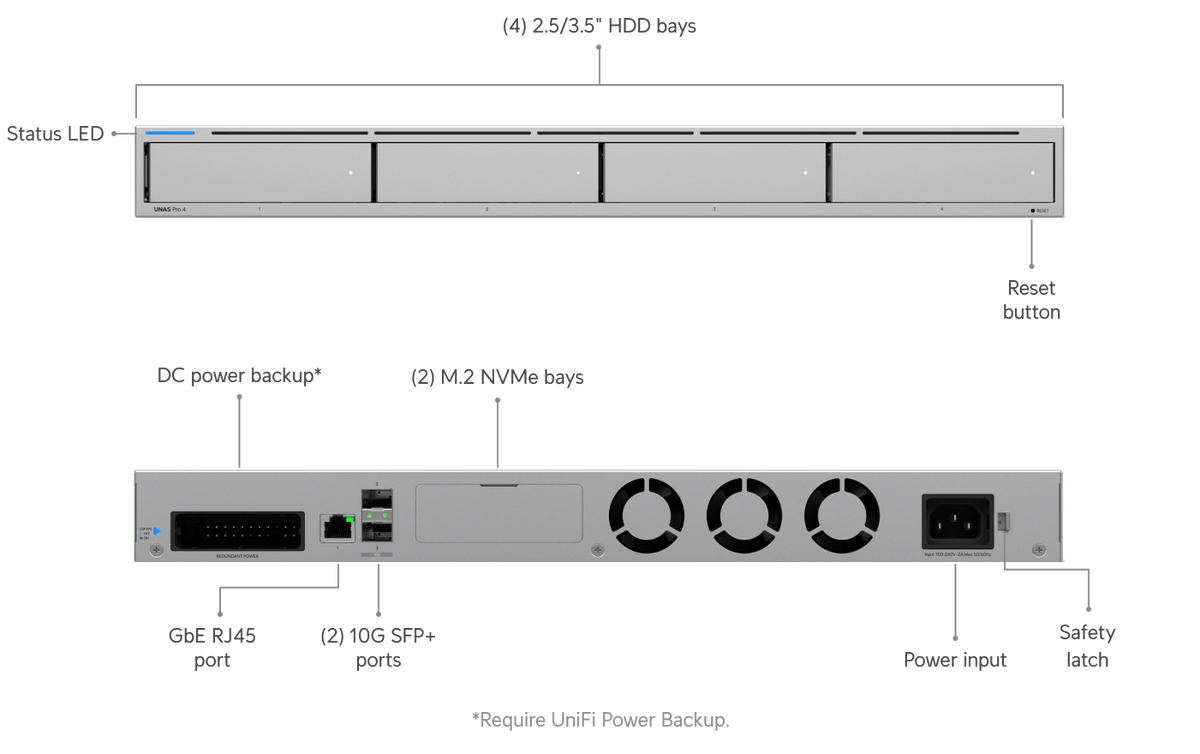

- Drive bays: 4x 2.5/3.5" HDD/SSD
- Cache: 2x M.2 NVMe SSD slots
- Networking: 2x 10G SFP+ (10G only), 1x GbE RJ45 (1G/100M/10M)
- Processor: Quad-core ARM Cortex-A57 at 2.0 GHz
- Memory: 8GB
- RAID support: RAID 5, RAID 6, RAID 10

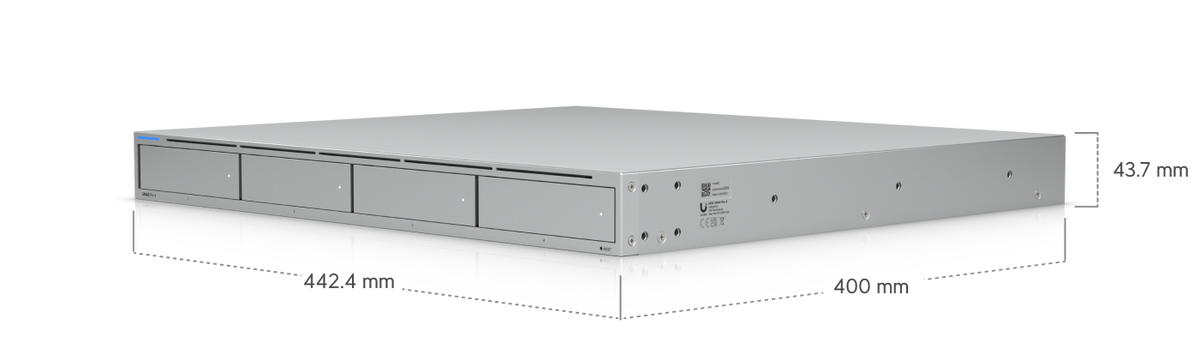

- Dimensions: 442.4 x 400 x 43.7 mm
- Weight: 6.7 kg
- Power: internal 150W AC/DC supply, 100-240V AC, 50/60 Hz
- Redundant power input via USP-RPS 11.5V DC
- Maximum power consumption: 150W, drive power budget: 125W
- Operating temperature: -5 to 40 °C, humidity 5-95% non-condensing

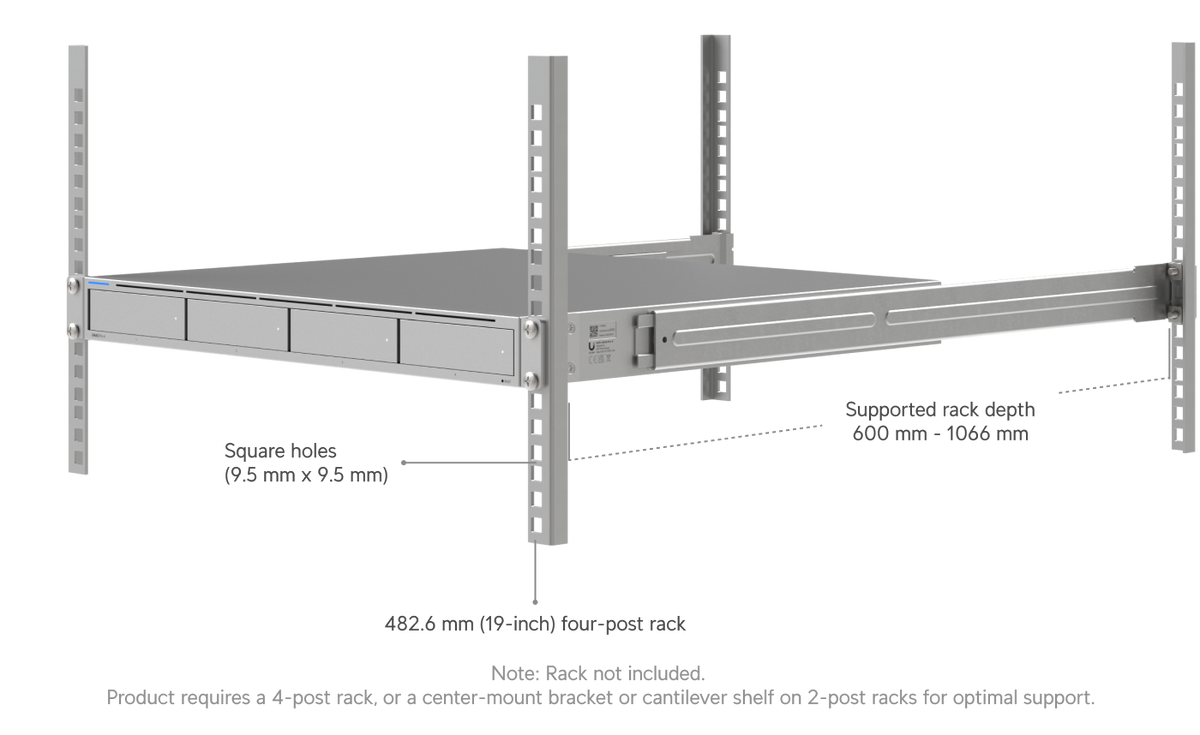

- Rails fit 600 mm four-post racks with 9.5 x 9.5 mm square holes, post depths 600-1066 mm
- Certifications: FCC, CE, IC, NDAA
- Supplied diskless

FAQs

Q: Does the UniFi UNAS Pro 4 include hard drives?
A: No. The UNAS Pro 4 is supplied diskless. It has four 2.5/3.5" bays that accept HDDs or SSDs, plus two M.2 NVMe slots for SSD cache.

Q: Which RAID levels does the UNAS Pro 4 support?
A: It supports RAID 5, RAID 6 and RAID 10 across its four drive bays.

Q: What network ports does it have?
A: Two 10G SFP+ ports (10G only) and one GbE RJ45 port supporting 1G, 100M and 10M. SFP+ modules or DAC cables are needed to use the 10G ports.

Q: Can it be powered redundantly?
A: Yes. It has an internal 150W AC/DC supply and supports redundant power through a USP-RPS unit via the 11.5V DC input.

Q: What racks does the UNAS Pro 4 fit?
A: The included rails fit 600 mm four-post racks with square holes (9.5 x 9.5 mm) and post depths of 600 to 1066 mm.

Q: Are there licensing fees for the software?
A: No. It is managed through UniFi Drive, which has no per-seat licensing.
