Teltonika TSW040 | 8-Port PoE+ Industrial Switch, 240W, DIN Rail, Fast Ethernet

Authorised Teltonika Partner

SKU:TSW040

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

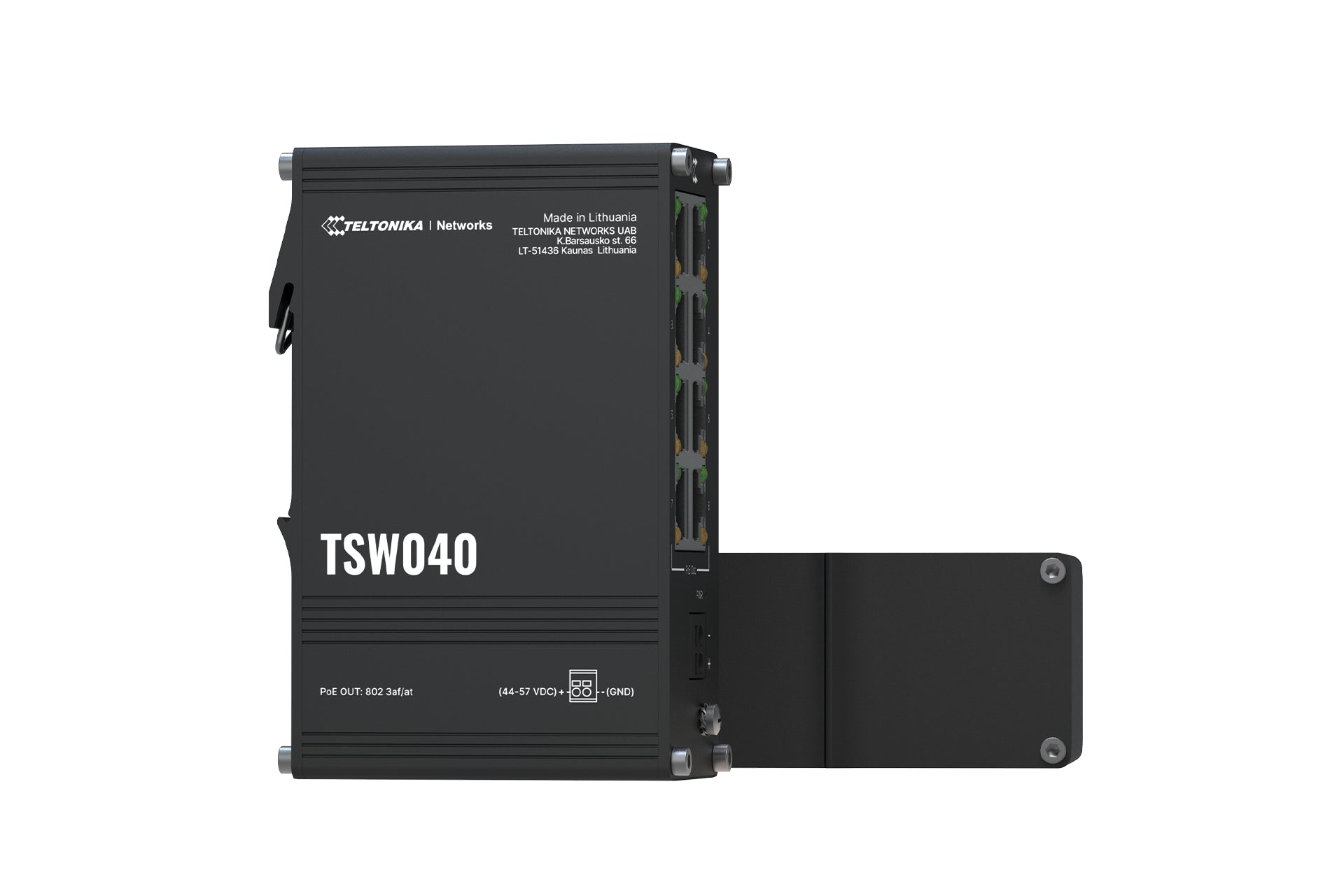

The Teltonika TSW040 is a compact unmanaged industrial PoE+ switch delivering eight Fast Ethernet ports with a 240W total power budget — ideal for powering IP cameras, VoIP phones, and wireless access points in industrial automation, surveillance, and IoT deployments. Built with a rugged anodized aluminium housing and rated IP30, it operates across a wide temperature range of -40°C to 75°C, making it well suited to harsh industrial environments. The integrated DIN rail bracket enables fast and secure cabinet installation with no configuration required.

Supporting IEEE 802.3af/at PoE standards and a broad input voltage range of 7–57 VDC, the TSW040 offers flexible power sourcing from industrial DC supplies. Overvoltage and reverse polarity protection safeguard connected equipment, while optional Profinet Class A compliance extends compatibility with industrial automation networks.

Features

- Unmanaged plug-and-play operation — zero configuration required
- 240W total PoE+ budget powers up to 8 devices simultaneously (up to 30W per port)
- Wide input voltage range (7–57 VDC) for flexible industrial DC power sourcing

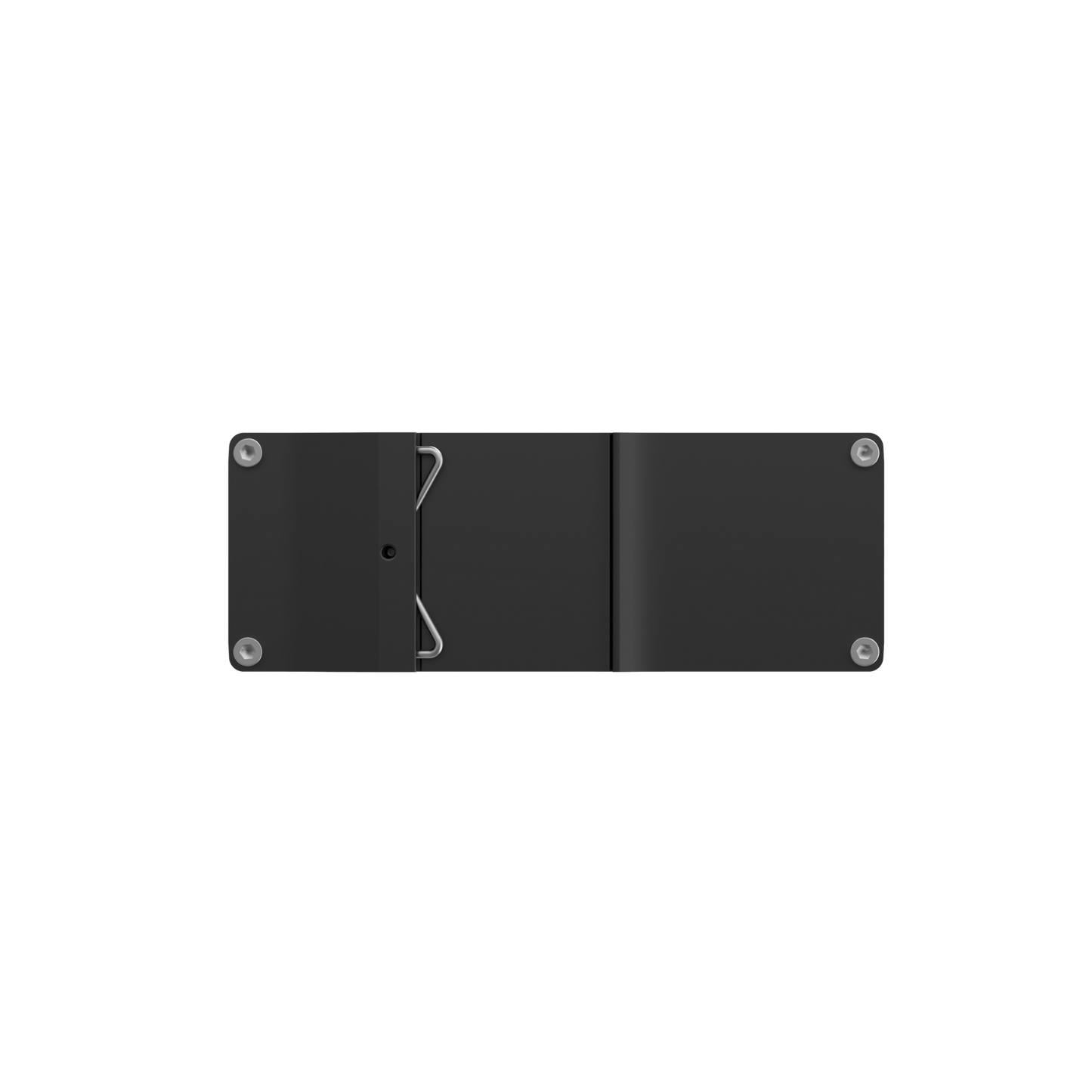

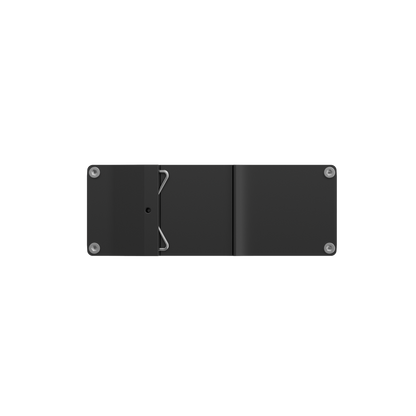

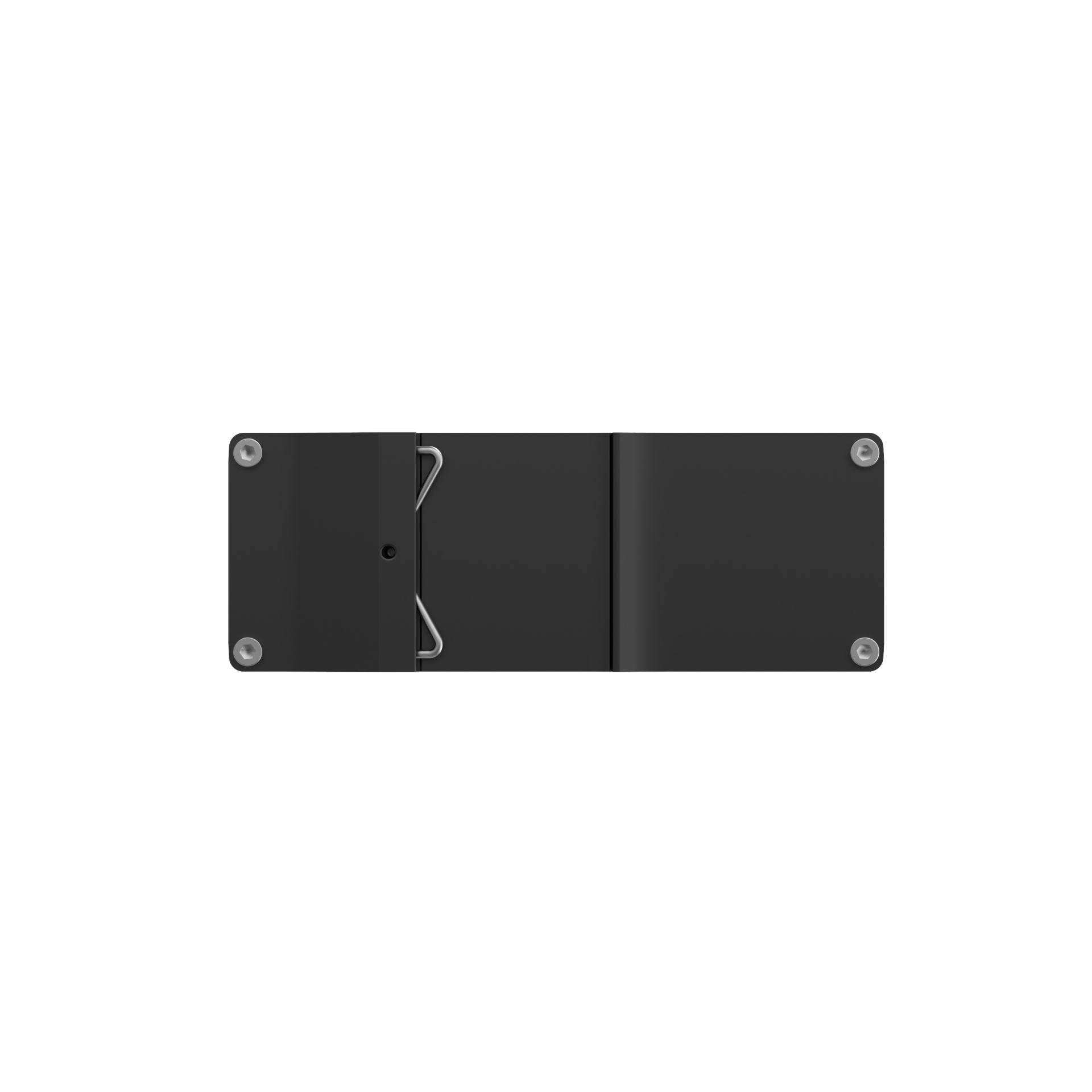

- Integrated DIN rail bracket for fast, secure installation in industrial cabinets
- Optional Profinet Class A compliance for industrial automation compatibility
- Rugged anodized aluminium housing built for demanding industrial environments
- Auto MDI/MDIX crossover eliminates need for crossover cables on all ports
- Overvoltage and reverse polarity protection on DC power input
- IP30 ingress protection rating for industrial cabinet deployments
- Wide operating temperature range: -40°C to 75°C
- Energy-efficient design: as low as 1W idle power consumption
- Suitable for industrial automation, surveillance, IoT, and remote infrastructure

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

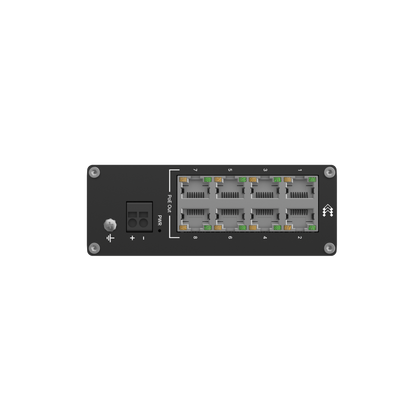

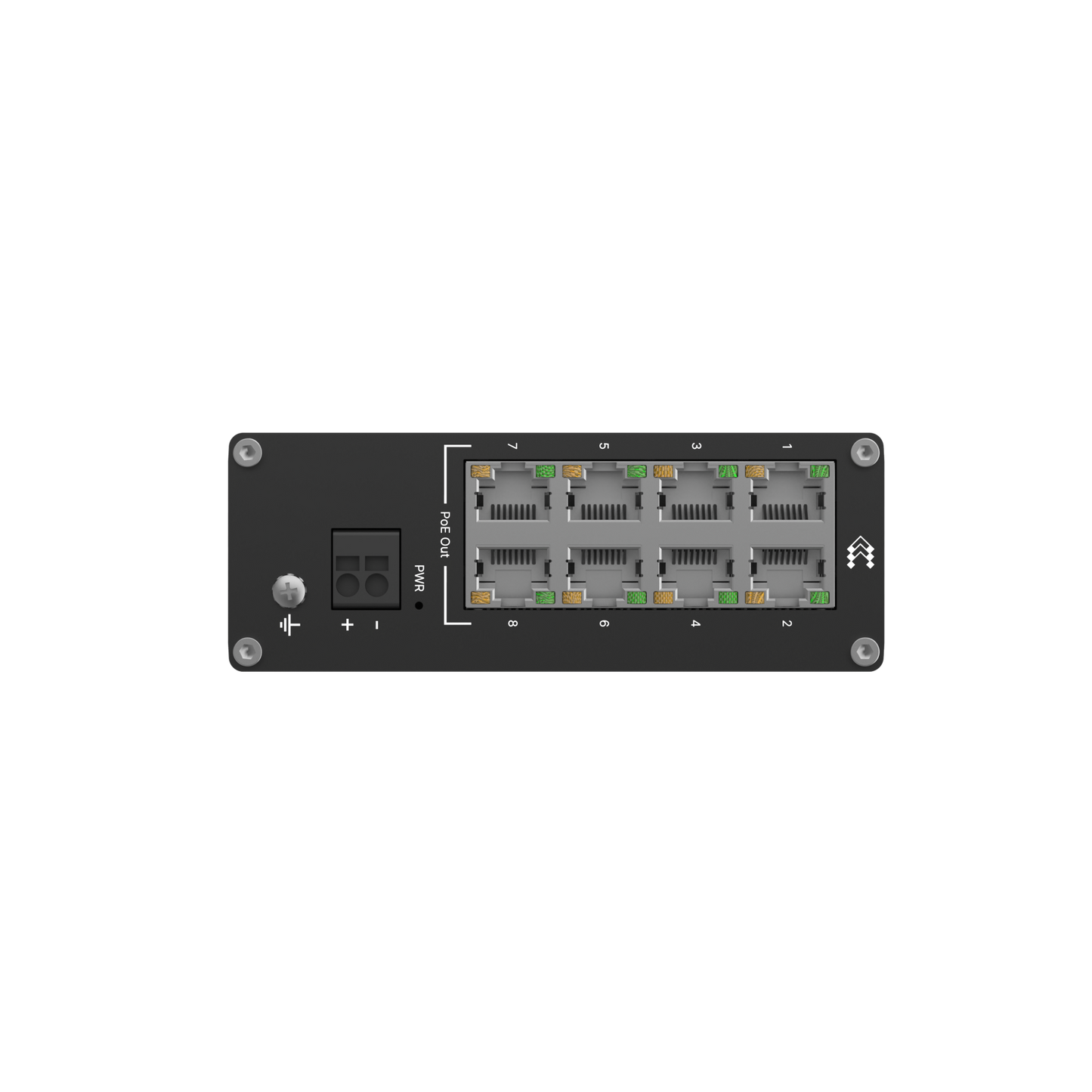

- 8 x RJ45 PoE+ Ports (10/100 Mbps, auto MDI/MDIX)
- Total PoE Power Budget: 240W
- Max PoE Power per Port: 30W (at PSE)
- PoE Standards: IEEE 802.3af and 802.3at (PSE, Mode B, over spare pairs)
- Input Voltage Range: 7–57 VDC
- PoE Output Voltage Range: 44–57 VDC
- Overvoltage Protection: max 60V; Reverse Polarity Protection: max 80V
- Power Consumption: Sleep 1W / Max 2W / PoE Max 246W
- Switching Bandwidth (Non-blocking): 20 Gbps
- Packet Buffer: 128 KB
- MAC Address Table: 2K entries
- Jumbo Frame Support: 9216 bytes

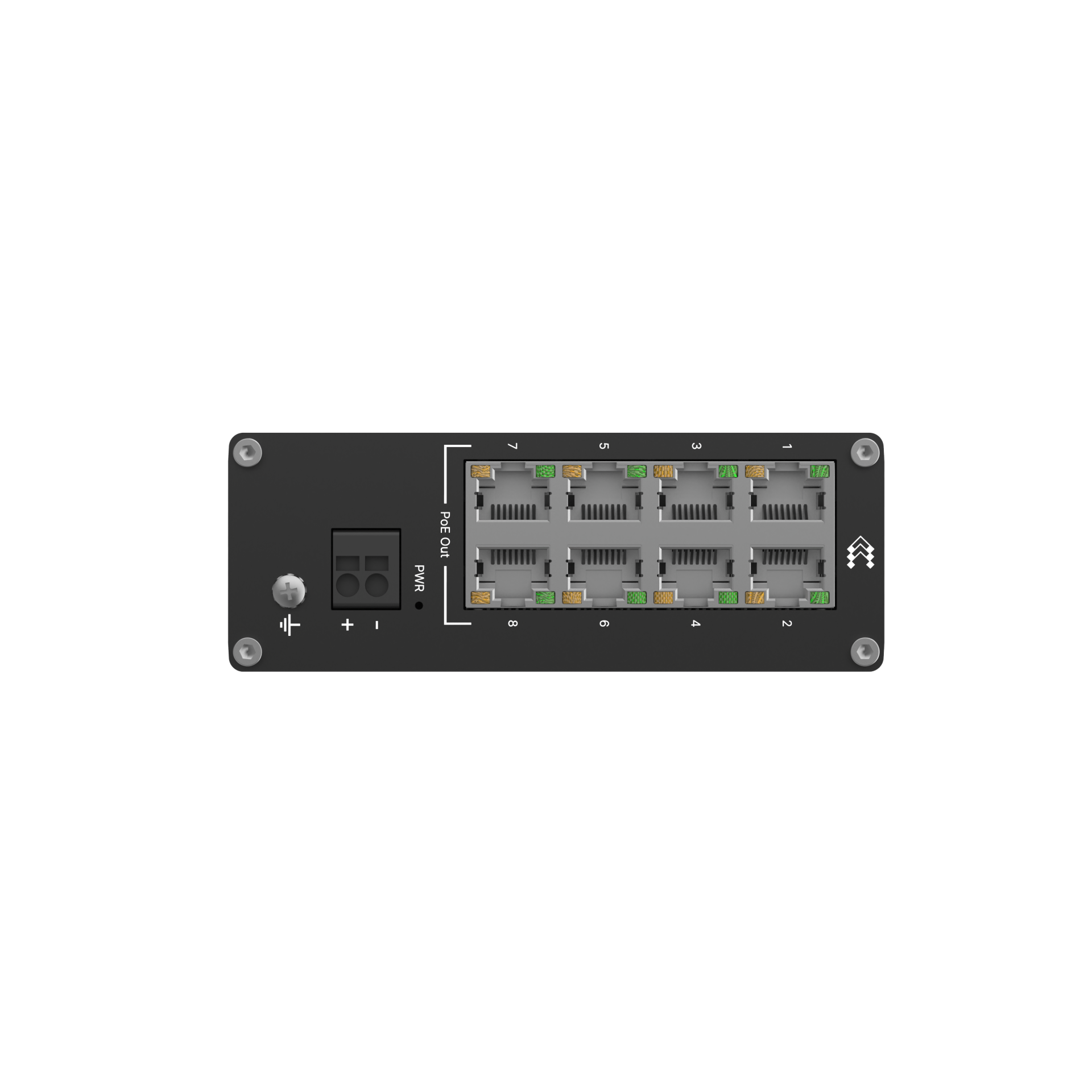

- Interfaces: 1 x 2-pin Industrial DC Power Connector, 1 x Grounding Screw
- Status LEDs: 1 x Power LED, 16 x ETH Status LEDs
- Enclosure: Anodized Aluminium Housing
- Dimensions (W x H x D): 113.1 x 41.2 x 74.6 mm
- Weight: 280 g
- Mounting: Integrated DIN Rail; Wall Mount / Flat Surface (optional kit)
- Operating Temperature: -40°C to 75°C
- Operating Humidity: 5% to 95% non-condensing
- Ingress Protection: IP30
- IEEE Standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

FAQs

Q: What devices can be powered by the TSW040's PoE+ ports?
A: The TSW040 can power any IEEE 802.3af or 802.3at-compliant device, including IP cameras, VoIP phones, wireless access points, and IoT sensors. Each port delivers up to 30W, with a total budget of 240W across all eight ports.

Q: What input voltage does the TSW040 require?
A: The TSW040 accepts a wide DC input voltage range of 7–57 VDC via its 2-pin industrial power connector, making it compatible with a broad range of industrial power supplies. PoE output requires 44–57 VDC input.

Q: Can the TSW040 be used in harsh outdoor or industrial environments?
A: Yes. The TSW040 features an anodized aluminium housing, an IP30 ingress protection rating, and an operating temperature range of -40°C to 75°C, making it well suited to industrial automation, transportation, and remote infrastructure deployments.

Q: Does the TSW040 support Profinet for industrial automation networks?
A: Profinet Class A compliance is available as an optional order code, allowing the TSW040 to integrate directly into industrial automation environments that use Profinet communication protocols.

Q: How is the TSW040 mounted?
A: The TSW040 includes an integrated DIN rail bracket for tool-free installation in industrial enclosures. Wall mount and flat surface mounting are also supported with an optional accessory kit.
