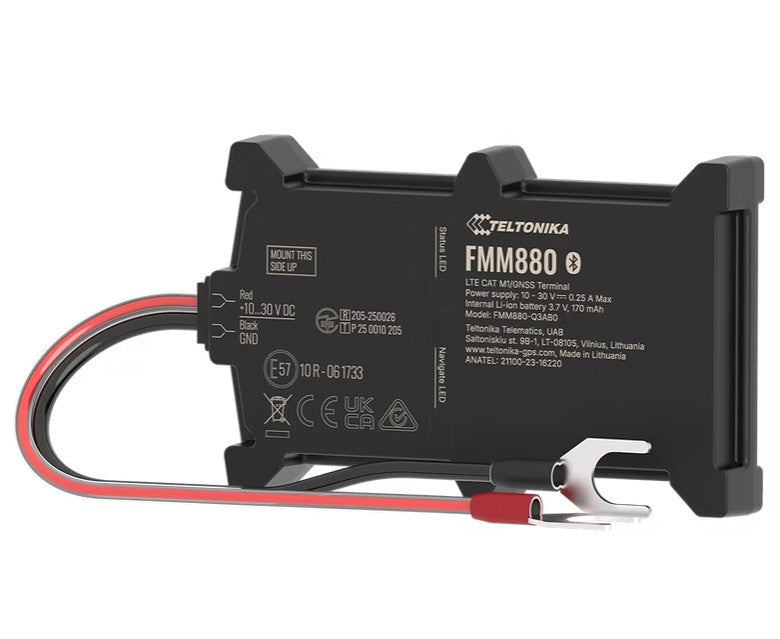

• Black Teltonika FMM880 Bluetooth LTE Cat M1 GNSS terminal with red and black wiring for 4G GPS tracking IP65
1 1

Teltonika

Teltonika FMM8809U9A01 | FMM880 4G LTE Cat M1 Battery-Mount GPS Tracker, IP65, L1+L5 GNSS

Teltonika FMM8809U9A01 | FMM880 4G LTE Cat M1 Battery-Mount GPS Tracker, IP65, L1+L5 GNSS

FMM8809U9A01

Stock Status: Enquire

$159.39 inc. GST
$144.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika FMM880 is a compact IP65-rated battery-mounted GPS tracker designed for fast, tool-free vehicle deployment. Featuring a standalone dual-band L1+L5 GNSS receiver with sub-1.8 m CEP accuracy and 4G LTE Cat M1 / NB-IoT connectivity, it clips directly onto a vehicle battery terminal via U-type cable in under five minutes — no specialist knowledge required. Built-in Bluetooth LE, accelerometer-based crash detection, and multiple smart sleep modes make it ideal for fleet tracking, asset monitoring, and covert vehicle surveillance in Australian commercial environments.

The FMM880 supports GSM/GPRS fallback for reliable connectivity across regional areas, and a 170 mAh Li-Ion backup battery maintains operation if primary power is interrupted. Remote firmware updates via FOTA Web and local configuration through Teltonika Configurator (USB or Bluetooth) simplify large-scale fleet management. Available now at iptrading.com.au — competitive prices and local support.

Features

- Tool-free battery-mount installation in under 5 minutes via U-type cable — no specialist knowledge required
- Dual-band L1+L5 standalone GNSS for improved accuracy (< 1.8 m CEP) and near-instant hot-start fix
- IP65-rated water-resistant enclosure suitable for under-bonnet and exposed vehicle installations
- 4G LTE Cat M1 / NB-IoT primary connectivity with automatic GSM/GPRS fallback
- Bluetooth LE support for wireless pairing with sensors and beacons
- Built-in accelerometer enables crash detection and movement-triggered smart data acquisition
- Smart data acquisition based on time, angle, distance, ignition state, and I/O events
- Multiple sleep modes (GPS Sleep, Online Deep Sleep) for extended standby and low power draw
- 170 mAh Li-Ion backup battery maintains operation when primary vehicle power is unavailable
- Remote firmware and configuration updates via FOTA Web
- Local configuration via Teltonika Configurator over USB or Bluetooth
- Overvoltage protection for reliable operation across 10–30 V vehicle electrical systems

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Connectivity: 4G LTE Cat M1 / NB-IoT / GSM/GPRS (Quectel BG95-M3 module)
- GNSS: Standalone dual-band L1 + L5 receiver (GPS, GLONASS, Galileo, BeiDou)
- GNSS Position Accuracy: < 1.8 m CEP
- GNSS Sensitivity: Up to -165 dBm
- GNSS Hot Start: < 1 s
- LTE Cat M1 Data Rate: Up to 588 kbps DL / 1,119 kbps UL
- Power Supply: 10–30 V DC via U-type battery cable
- Backup Battery: 170 mAh Li-Ion internal
- Standby Time: Up to 7 × 24 hours
- Ingress Protection: IP65
- Bluetooth: Bluetooth LE (sensors and beacons)
- Interface: USB 2.0, U-type cable
- Internal Flash Memory: 128 MB
- Dimensions: 92.5 × 57.6 × 14 mm

FAQs

Q: How is the FMM880 installed in a vehicle?
A: The FMM880 attaches directly to the vehicle's 12 V or 24 V battery via a U-type cable. No specialist tools or automotive expertise are required — installation typically takes under five minutes, making it ideal for rapid fleet deployment.

Q: What GNSS systems does the FMM880 support, and how accurate is it?
A: The FMM880 uses a standalone dual-band L1+L5 GNSS receiver supporting GPS, GLONASS, Galileo, and BeiDou. This delivers position accuracy of less than 1.8 m CEP and a hot-start fix time of under one second, making it suitable for high-precision fleet and asset tracking applications.

Q: Will the FMM880 work in regional and rural Australia where 4G coverage may be limited?
A: Yes. The FMM880 supports 4G LTE Cat M1 and NB-IoT as its primary bearers, and automatically falls back to GSM/GPRS where only 2G coverage is available. This makes it suitable for tracking assets across remote Australian regions.

Q: What happens if the vehicle battery is disconnected or power is lost?
A: The FMM880 includes a 170 mAh Li-Ion backup battery that keeps the device operational if the primary vehicle power supply is interrupted, preventing data gaps during battery swaps or power cuts.

Q: Can the FMM880 be managed and updated remotely?
A: Yes. The FMM880 supports remote firmware and configuration updates via Teltonika's FOTA Web platform. Local configuration is also available through the Teltonika Configurator application over USB or Bluetooth.

Q: Can I purchase the Teltonika FMM880 in Australia with local support?
A: Yes. The FMM880 is available now through iptrading.com.au with competitive pricing and local Australian support. Contact the IP Trading team for volume pricing, fleet deployment assistance, or technical pre-sales queries.
