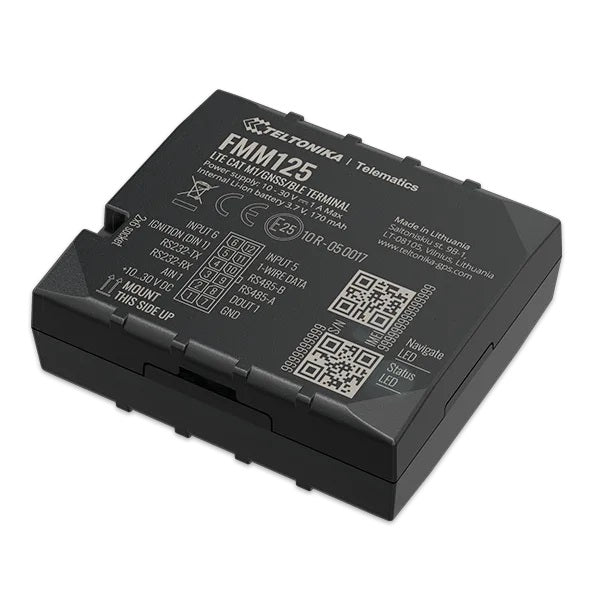

• Black Teltonika FMM125 4G LTE Cat M1 GPS vehicle tracker with matte finish and labeled connectors on the back side
1 1

Teltonika

Teltonika FMM1257VXW01 | FMM125 4G LTE Cat M1 GPS Vehicle Tracker, Dual SIM, Black

Teltonika FMM1257VXW01 | FMM125 4G LTE Cat M1 GPS Vehicle Tracker, Dual SIM, Black

FMM1257VXW01

Stock Status: Enquire

$149.27 inc. GST
$135.70 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika FMM125 is a compact 4G LTE Cat M1 GPS vehicle tracker designed for professional fleet management, logistics, and car telematics. Featuring multi-constellation GNSS (GPS, GLONASS, GALILEO, BEIDOU), Dual SIM support, and automatic 2G fallback, it delivers reliable real-time tracking across global networks. RS232 and RS485 serial interfaces allow connection to external sensors and peripherals, while CAN Adapter input enables direct vehicle data reading.

The FMM125 supports Bluetooth 4.0 + LE for wireless sensor pairing, a 1-Wire interface for temperature monitoring and iButton/RFID tags, and an internal 170 mAh backup battery for power-loss event logging. Advanced features include crash detection, Green Driving monitoring, immobilizer support, Auto Geofencing, and fuel monitoring — all remotely configurable via FOTA Web or Teltonika Configurator. Available now at iptrading.com.au — competitive prices and local support.

Features

- LTE CAT M1 and NB-IoT dual-mode connectivity with automatic 2G GSM fallback for global coverage
- Dual SIM support for network redundancy and reduced international roaming costs
- RS232 and RS485 serial interfaces for connecting external sensors, peripherals, and fleet devices
- 1-Wire interface supports temperature sensors and RFID/iButton driver identification tags
- CAN Adapter input for reading vehicle CAN bus parameters and OEM diagnostics
- Bluetooth 4.0 + LE for wireless pairing with sensors and accessories
- Internal 170 mAh backup battery ensures event logging during power interruptions
- Green Driving detection: monitors speeding, harsh acceleration/braking, and excessive idling
- Crash detection, towing detection, and unauthorised movement alerts
- Immobilizer support and Auto Geofencing for vehicle security
- Fuel monitoring via RS485/RS232 and impulse input for fuel flow meters
- Remote management via FOTA Web, Teltonika Configurator (USB/Bluetooth), and FMBT mobile app
- Suitable for fleet management, car rental, taxi, logistics, and public transport applications

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cellular: LTE CAT M1 / NB-IoT / GSM with automatic 2G fallback
- GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS — sensitivity up to -165 dBm
- LTE Data: Up to 375 Kbps DL / 375 Kbps UL
- GPRS: Up to 85.6 Kbps DL / 85.6 Kbps UL
- SIM: Dual SIM (2x SIM Card)
- Interfaces: 1x RS232, 1x RS485, 1x 1-Wire, 1x CAN Adapter input
- Bluetooth: 4.0 + LE
- Internal Flash Memory: 128 MB
- Backup Battery: 170 mAh Li-ion (3.7 V, 0.63 Wh)
- Power Supply: 10–30 V DC
- Dimensions: 65 x 56.6 x 20.6 mm (L x W x H)
- Weight: 55 g
- Colour: Black
- Module: Quectel BG96 / BG95-M3 + TM2500 quad-band GSM

FAQs

Q: What cellular networks does the FMM125 support?
A: The FMM125 supports LTE CAT M1 and NB-IoT as primary connectivity modes, with automatic fallback to 2G GSM for areas where LTE Cat M1 coverage is unavailable. Dual SIM support further ensures network redundancy and can help reduce roaming costs.

Q: What vehicle data can the FMM125 collect via the CAN bus?
A: The FMM125 includes a CAN Adapter input that allows it to read vehicle CAN bus data such as engine parameters, fuel level, mileage, and other OEM diagnostics — making it suitable for advanced fleet telematics without additional external hardware.

Q: Can the FMM125 be used for fuel monitoring?
A: Yes. The FMM125 supports fuel monitoring via its RS485 and RS232 serial interfaces, which can be connected to fuel level sensors or flow meters. Impulse input support for fuel flow meters is also included.

Q: How is the FMM125 configured and managed remotely?
A: The FMM125 can be configured via Teltonika Configurator (USB or Bluetooth), the FMBT mobile app, or managed remotely via FOTA Web for over-the-air firmware updates. This makes ongoing fleet-wide management simple without physical access to each device.

Q: What safety and driver behaviour features does the FMM125 support?
A: The FMM125 includes Green Driving detection (speeding, harsh braking, excessive idling), crash detection, towing and unauthorised movement detection, immobilizer support, Auto Geofencing, trip detection, and jamming detection.

Q: Can I purchase the Teltonika FMM125 in Australia from IP Trading?
A: Yes. The FMM125 (Black) is available now from iptrading.com.au. IP Trading is an Australian B2B IT hardware reseller offering competitive pricing and local support for Teltonika GPS tracking products.
