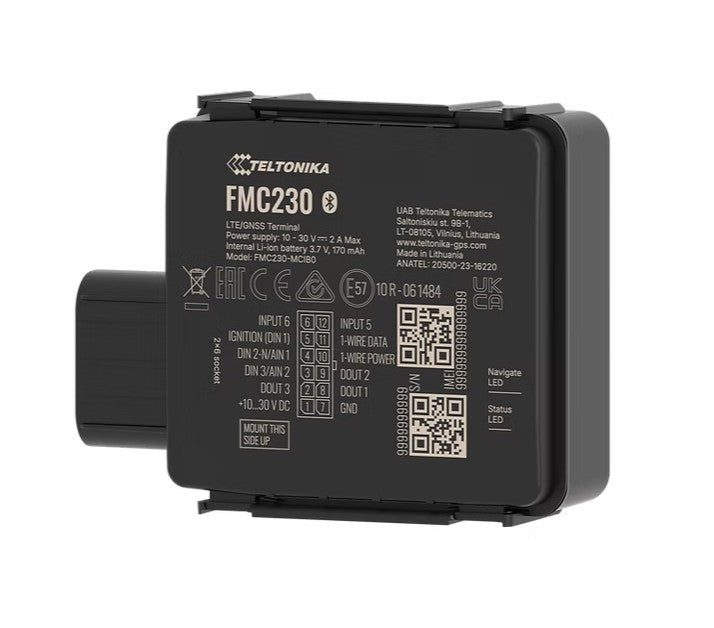

• Black teltonika fmc230 ip67 4g lte cat 1 gps vehicle tracker with matte finish and labeled side ports shown from back
1 1

Teltonika

Teltonika FMC2304O2X01 | FMC230 IP67 4G LTE Cat 1 GPS Vehicle Tracker, Flexible Inputs

Teltonika FMC2304O2X01 | FMC230 IP67 4G LTE Cat 1 GPS Vehicle Tracker, Flexible Inputs

FMC2304O2X01

Stock Status: Enquire

$150.53 inc. GST
$136.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FMC230 is an IP67-rated 4G LTE Cat 1 GPS vehicle tracker engineered for demanding outdoor deployments including agriculture, construction, mining, and fleet management. Featuring multi-constellation GNSS (GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS) with <2.5 m CEP accuracy, 2G GSM fallback for wide network coverage, and configurable digital, analog, negative, and impulse inputs, the FMC230 delivers flexible sensor integration and precise telematics data even in harsh, wet, or dusty conditions.

Three digital outputs (DOUT) enable immobilizer and accessory control, while Bluetooth Low Energy (BLE) supports wireless configuration and BLE sensor/beacon connectivity. An internal 170 mAh backup battery maintains data continuity during power loss, and multiple deep sleep modes ensure minimal current draw when idle. Advanced onboard scenarios — including Crash Detection, Geofencing, Towing Detection, Green Driving, and Jam Detection — combined with FOTA remote update capability make the FMC230 a robust, future-proof tracking solution. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- IP67-rated casing — fully dust tight and waterproof for outdoor and harsh environment mounting
- 4G LTE Cat 1 connectivity with 2G GSM fallback for broad network coverage
- Multi-constellation GNSS (GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS) for accurate global positioning
- Impulse input support for precise fuel flow meter data reading
- Configurable digital, analog, negative, and impulse inputs for flexible sensor integration
- 3 x Digital Outputs (DOUT) for immobilizer and vehicle accessory control
- Bluetooth Low Energy (BLE) for wireless configuration and BLE sensor/beacon connectivity
- Internal 170 mAh backup battery for data continuity during power loss
- Multiple sleep modes (GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep) for low power draw
- Advanced onboard scenarios: Green Driving, Over Speeding, Crash Detection, Towing Detection, Geofencing, Immobilizer, iButton, Jam Detection
- Remote firmware and configuration updates via FOTA Web, FOTA, and FMBT mobile app
- Supports BLE sensors/beacons, 1-Wire temperature sensors, Bluetooth temperature and humidity sensors, and accelerometer
- Dual SIM card slots for network redundancy or roaming flexibility
- RCM certified for Australian market compliance

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Network: 4G LTE Cat 1 with 2G GSM/GPRS fallback
- GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
- GNSS Sensitivity: Up to -165 dBm
- GNSS Position Accuracy: <2.5 m CEP
- IP Rating: IP67 (dust tight; waterproof to 1 m depth for 30 min)
- Input Voltage: 10–30 V DC with overvoltage protection
- Internal Backup Battery: 170 mAh Li-Ion 3.7 V (0.63 Wh)
- Internal Fuse: 3 A, 125 V
- Power Consumption: <3 mA (Ultra Deep Sleep), <5 mA (Deep Sleep), <33 mA (nominal, no load), <2 A peak at 12 V
- Inputs: Configurable digital, analog, negative and impulse inputs
- Outputs: 3 x Digital Outputs (DOUT)
- Bluetooth: Bluetooth Low Energy (BLE)
- Connectivity: Micro-USB (configuration), Bluetooth wireless
- SIM: Dual SIM card slots
- Operating Temperature: -20°C to +60°C (with battery)
- Certifications: CE-RED, E-mark, RCM, Anatel, REACH, RoHS, TRA, CITC

FAQs

Q: Can I purchase the Teltonika FMC230 in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian B2B IT hardware reseller stocking the FMC230. Orders come with expert pre-sales support and local fulfilment.

Q: What makes the FMC230 suitable for outdoor and harsh environment deployments?
A: The FMC230 carries an IP67 rating, meaning it is fully dust tight and waterproof to 1 metre depth for up to 30 minutes. Its operating temperature range of -20°C to +60°C makes it well suited to agriculture, construction, and mining applications.

Q: What GNSS constellations does the FMC230 support, and how accurate is it?
A: The FMC230 supports GPS, GLONASS, GALILEO, BEIDOU, QZSS, and AGPS, achieving a position accuracy of less than 2.5 m CEP with a sensitivity of up to -165 dBm.

Q: What connectivity options are available for configuration and data transfer?
A: The FMC230 uses 4G LTE Cat 1 (with 2G GSM fallback) for cellular data transmission. Configuration is performed via Micro-USB or Bluetooth Low Energy using the Teltonika Configurator or FMBT mobile app. Remote firmware and configuration updates are supported via FOTA Web.

Q: What kinds of inputs and outputs does the FMC230 support?
A: The FMC230 features configurable digital, analog, negative, and impulse inputs — the impulse input is particularly useful for reading fuel flow meters. It also has three digital outputs (DOUT) for controlling immobilizers or vehicle accessories.

Q: Does the FMC230 support advanced telematics scenarios?
A: Yes. The FMC230 supports a wide range of onboard scenarios including Green Driving, Over Speeding, Crash Detection, Towing Detection, Geofencing, Immobilizer, iButton identification, and Jam Detection, making it a comprehensive solution for fleet and asset management.
