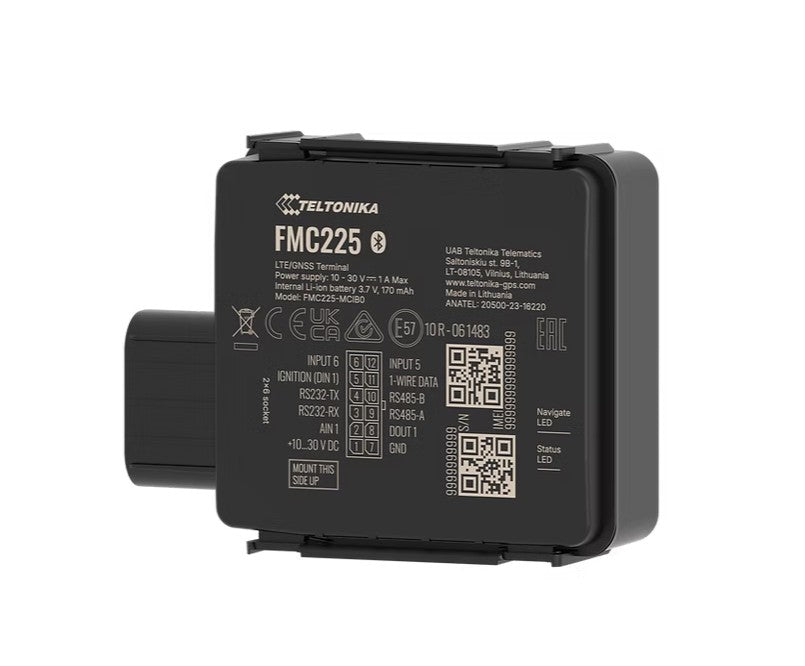

• Black teltonika fmc225 ip67 lte cat 1 gps tracker with matte finish and labeled ports shown from the back side
1 1

Teltonika

Teltonika FMC225F32F01 | FMC225 IP67 4G LTE Cat 1 GPS Tracker, RS485/RS232, Dual SIM, APAC/LATAM, No

Teltonika FMC225F32F01 | FMC225 IP67 4G LTE Cat 1 GPS Tracker, RS485/RS232, Dual SIM, APAC/LATAM, No

FMC225F32F01

Stock Status: Enquire

$166.98 inc. GST
$151.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika FMC225 is an IP67-rated 4G LTE Cat 1 GPS vehicle tracker engineered for demanding environments including agriculture, construction, and mining. Built on the proven FMC125 platform, it adds full dust and water ingress protection while delivering dual SIM failover, RS485/RS232 serial interfaces for digital fuel sensors and RFID readers, and Bluetooth 4.0 + LE for wireless sensor integration. This APAC/LATAM variant ships with the SLM320-LA LTE module and does not include a Micro USB configuration cable.

Supporting 4G LTE Cat 1 with 3G and 2G fallback across APAC/LATAM bands, the FMC225 provides continuous connectivity in remote areas. Advanced telematics features include harsh driving detection, crash detection, geofencing, immobilizer output, GSM jamming detection, and remote FOTA firmware updates. A 170 mAh backup battery ensures position reporting even during power disruptions. Contact iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- IP67-rated waterproof and dustproof housing — suitable for internal or external vehicle mounting in harsh environments
- Dual SIM support for backup connectivity and cost-effective roaming management
- RS232 and RS485 interfaces for integration with fuel sensors, RFID readers, Garmin devices, and tachographs
- Bluetooth 4.0 + BLE for wireless connection to temperature/humidity sensors, barcode scanners, and universal BLE peripherals
- 1-Wire interface for iButton driver identification and temperature monitoring
- 170 mAh Li-Ion backup battery maintains operation during vehicle power loss
- Accelerometer-based harsh driving event detection: harsh braking, acceleration, and cornering
- Crash detection, overspeeding alerts, excessive idling monitoring, and unplug/towing detection
- Auto and manual geofence creation and management
- Immobilizer support via digital output control for theft prevention
- Multiple power-saving sleep modes: GPS sleep, online sleep, deep sleep, ultra deep sleep
- GSM jamming detection for anti-theft and security applications
- CAN bus adapter support for OEM vehicle data integration
- DashCam integration compatible with FMx125/FMx225 series
- Remote firmware updates via FOTA Web — no site visit required

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Connectivity: 4G LTE Cat 1 with 3G (UMTS) and 2G (GSM) fallback
- LTE Module: SLM320-LA (APAC/LATAM variant)
- LTE-FDD Bands: B1, B2, B3, B4, B5, B7, B8, B20, B28; LTE-TDD: B40; GSM: B2/B3/B5/B8
- GNSS: Internal antenna, sensitivity up to -165 dBm
- SIM Slots: Dual SIM (micro SIM)
- Serial Interfaces: RS485 and RS232
- Wireless: Bluetooth 4.0 + BLE
- Additional Interfaces: 1-Wire, digital inputs/outputs, Micro-USB (configuration)
- Internal Flash Memory: 128 MB
- Backup Battery: 170 mAh Li-Ion
- Power Input: 10–30 V DC
- Ingress Protection: IP67 (dust-tight, temporary water immersion)
- Region: APAC / LATAM
- Micro USB Cable: Not included in this package

FAQs

Q: Can I purchase the Teltonika FMC225 in Australia?
A: Yes. IP Trading (iptrading.com.au) stocks and supplies the FMC225 locally in Australia, providing fast fulfilment and local pre-sales support for fleet operators, integrators, and enterprise buyers across the APAC region.

Q: What does the APAC/LATAM variant (FMC225F32F01) mean for Australian deployments?
A: This variant ships with the SLM320-LA LTE module, which supports the LTE-FDD and GSM bands used across Australia, New Zealand, and the broader APAC region, including B28 (700 MHz) critical for regional and rural coverage on Australian carrier networks.

Q: Does the FMC225 come with a Micro USB cable?
A: No. The FMC225F32F01 is sold without a Micro USB cable. A standard Micro USB cable (not included) is required to connect the device to a PC for initial configuration using Teltonika's Configurator software.

Q: What types of peripherals can be connected via the RS485 and RS232 interfaces?
A: The RS485 and RS232 interfaces support a wide range of telematics peripherals including digital fuel level sensors (LLS), Garmin navigation devices, RFID readers, tachographs, and CAN bus adapters for reading vehicle data.

Q: Is the FMC225 suitable for outdoor vehicle mounting?
A: Yes. The IP67 rating means the FMC225 is fully dust-tight and protected against temporary water immersion, making it suitable for external mounting on agricultural machinery, mining vehicles, and construction equipment exposed to harsh conditions.

Q: What telematics and fleet management features does the FMC225 support?
A: The FMC225 supports eco/green driving scoring, overspeeding and excessive idling alerts, crash detection, geofencing, immobilizer output, towing detection, GSM jamming detection, multiple sleep modes, CAN bus adapter integration, dashcam support, and remote firmware updates via FOTA Web.
