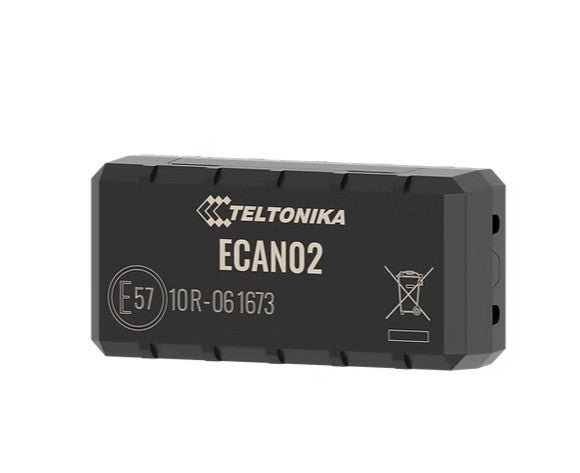

• Black teltonika ecan02 contactless can bus adapter with rugged rectangular design and textured edges for fleet telematics
1 1

Teltonika

Teltonika ECAN02000001 | Contactless CAN Bus Adapter for Fleet Telematics, 1000 kb/s

Teltonika ECAN02000001 | Contactless CAN Bus Adapter for Fleet Telematics, 1000 kb/s

ECAN02000001

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika ECAN02 is a compact, warranty-friendly contactless CAN bus adapter designed for non-intrusive vehicle data acquisition in fleet management and telematics applications. It reads CAN bus signals directly through wire insulation — no cutting, soldering, or crimping required — preserving the vehicle's factory warranty while capturing up to 100% of available CAN data including fuel level, RPM, odometer readings, door status, and diagnostic trouble codes (DTCs). Supporting CAN bus speeds up to 1000 kb/s, the ECAN02 features automatic signal level and speed adjustment alongside an LED indicator to confirm correct installation at a glance.

This new-generation adapter features an upgraded casing with stronger construction and improved wire clamping compared to its predecessor, making installation faster and more reliable in demanding fleet environments. It is compatible with a broad range of Teltonika GPS tracking devices including the FMB140, FMB641, FMX640, FMX650, FMC650, LV-CAN200, ALL-CAN300, and more — integrating seamlessly into existing Teltonika telematics ecosystems. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- Contactless CAN reading — attaches to existing wires with zero cutting, soldering, or crimping
- 100% warranty-friendly — fully non-intrusive installation preserves vehicle manufacturer warranty
- Automatic adjustment to vehicle CAN signal level and bus speed for plug-and-play setup
- LED indicator confirms correct positioning and CAN line readability during installation
- Upgraded new-generation casing with stronger construction and improved wire clamping
- Captures key vehicle data: fuel level, RPM, odometer, door status, DTCs and more
- Supports CAN bus speeds up to 1000 kb/s
- Compatible with a broad range of Teltonika GPS trackers for seamless fleet telematics integration
- Compact and lightweight form factor (39 x 19 x 12 mm, 16.1 g) for discreet vehicle installation

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- CAN data reading method: Contactless — reads through wire insulation, no physical contact required
- CAN bus speed: Up to 1000 kb/s
- Data coverage: Reads up to 100% of available CAN bus data
- Dimensions: 39.0 x 19.0 x 12.0 mm
- Weight: 16.1 g
- Power source: Vehicle on-board power supply
- LED indicator: Yes — confirms CAN line readability and correct installation
- Compatible devices: LV-CAN200, ALL-CAN300, FMX640, FMB641, FMX650, FMB140, FMB240, FMX150, FMB630, FMC650
- EAN: 4779027310558

FAQs

Q: Does the ECAN02 require any wire cutting or modification to the vehicle's wiring harness?
A: No. The ECAN02 uses contactless technology to read CAN bus signals directly through the wire insulation without any cutting, soldering, or crimping. This makes installation entirely non-intrusive and preserves the vehicle's original wiring integrity.

Q: Will fitting the ECAN02 void my vehicle's manufacturer warranty?
A: No. The ECAN02 is specifically designed to be warranty-friendly. Because it attaches externally to existing CAN wires without physically penetrating or modifying them, it does not interfere with the vehicle's factory warranty.

Q: What types of vehicle data can the ECAN02 read?
A: The ECAN02 can read a wide range of vehicle parameters from the CAN bus, including fuel level, engine RPM, odometer readings, door open/close status, and diagnostic trouble codes (DTCs), depending on what the specific vehicle broadcasts on its CAN network.

Q: Which Teltonika GPS tracking devices is the ECAN02 compatible with?
A: The ECAN02 is compatible with a wide range of Teltonika telematics devices including the LV-CAN200, ALL-CAN300, FMX640, FMB641, FMX650, FMB140, FMB240, FMX150, FMB630, and FMC650. Always verify compatibility with your specific device model before deployment.

Q: How does the LED indicator help during installation?
A: The built-in LED indicator lights up to confirm that the ECAN02 has successfully detected readable CAN lines and is correctly positioned. This removes guesswork during installation and speeds up field deployment.

Q: Can I purchase the Teltonika ECAN02 in Australia from IP Trading?
A: Yes. The ECAN02 is available directly from iptrading.com.au, an Australian-owned and operated IT and networking hardware reseller established in 2001. Contact the team for volume pricing, compatibility advice, and fast local fulfilment.
