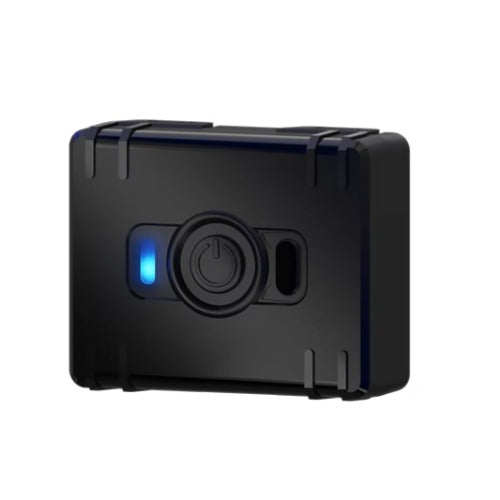

• Black rugged Teltonika ATC700 mini asset tracker with blue power indicator light and circular button design
1 1

Teltonika

Teltonika ATC700AAAA01 | ATC700 Mini Asset Tracker, 4G LTE Cat 1, GNSS, IP65

Teltonika ATC700AAAA01 | ATC700 Mini Asset Tracker, 4G LTE Cat 1, GNSS, IP65

ATC700AAAA01

Stock Status: Enquire

$160.66 inc. GST
$146.05 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika ATC700 is a compact 4G LTE Cat 1 mini asset tracker designed for wire-free, real-time tracking of assets, workforce, parcels, livestock, and mobile equipment. Weighing just 71 g and measuring 62.2 x 54.2 x 20.3 mm, the ATC700 features multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) with sub-2-metre positioning accuracy, an IP65-rated enclosure, and a 1,000 mAh rechargeable Li-Po battery — all charged and managed via USB-C with no vehicle wiring required.

The ATC700 supports configurable tracking modes including movement-based, periodic, and scheduler-driven intervals, alongside geofencing, panic/SOS alerts via multi-action button, and power-off sleep mode to maximise battery life. With 128 MB internal flash, GSM/GPRS fallback, and compatibility with FOTA Web for remote firmware and configuration management, it suits demanding B2B deployment across logistics, field services, and asset management. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- Wire-free setup — no vehicle wiring required for rapid, flexible deployment
- Multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) for precise global positioning
- 1,000 mAh rechargeable Li-Po battery with USB-C charging and power bank support
- Configurable multi-action button for tracking activation, panic/SOS alerts, or interval switching
- Movement-based, periodic, and scheduler-driven tracking modes
- Time-based and standard geofencing support
- Power-off sleep mode to maximise battery runtime between charges
- 128 MB internal flash memory for on-device data storage
- Internal high-gain antennas for both GNSS and cellular
- GSM/GPRS fallback for connectivity in areas with limited LTE coverage
- IP65-rated compact enclosure (71 g) — easily attachable to tools, cargo, or personnel
- FOTA Web compatible for remote firmware updates and parameter management

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Connectivity: 4G LTE Cat 1, max 10 Mbps (DL) / 5 Mbps (UL)
- GSM/GPRS Fallback: max 85.6 Kbps (DL/UL)
- LTE FDD Bands (ATC700-QKAE0): B2/B3/B4/B5/B7/B8/B28/B66
- LTE FDD Bands (ATC700-QJAE0): B1/B3/B5/B7/B8/B20/B28
- GSM Bands: B2/B3/B5/B8
- GNSS: GPS, GLONASS, Galileo, BeiDou — 135 acquisition/tracking channels
- GNSS Positioning Accuracy: < 1.8 m CEP
- GNSS Tracking Sensitivity: -165 dBm
- Battery: 1,000 mAh Li-Po, 3.7V (3.7 Wh), rechargeable
- Interface: USB Type-C (charging and data)
- SIM: Nano-SIM
- Internal Flash Memory: 128 MB
- Transmit Power: Class 3 LTE-FDD (23±2 dBm); Class 4 GSM850/900 (33±4 dBm)
- Data Protocols: SMS (TEXT, PDU), TCP, UDP
- IP Rating: IP65 (internally tested); IP68 in development
- Dimensions: 62.2 x 54.2 x 20.3 mm (L x W x H)
- Weight: 71 g

FAQs

Q: What types of assets can the Teltonika ATC700 be used to track?
A: The ATC700 is designed for versatile tracking across many B2B applications, including industrial equipment, tools, cargo and parcels, fleet assets, workforce personnel, livestock, and even artwork or high-value items. Its compact size and wire-free setup make it easy to attach to virtually any object.

Q: How long does the battery last on the ATC700?
A: Battery life depends on tracking interval and configuration. The 1,000 mAh Li-Po battery supports extended autonomous operation through power-off sleep mode and configurable tracking schedules. For long-duration deployments, the ATC700 also supports power bank operation via its USB-C port.

Q: Does the ATC700 require professional installation or vehicle wiring?
A: No. The ATC700 is completely wire-free and requires no vehicle wiring or professional installation. It can be attached to assets manually and configured remotely, making it ideal for rapid, large-scale deployment.

Q: What GNSS systems does the ATC700 support, and how accurate is positioning?
A: The ATC700 supports multi-constellation GNSS — GPS, GLONASS, Galileo, and BeiDou — across 135 acquisition and tracking channels, delivering positioning accuracy of less than 1.8 m CEP and a tracking sensitivity of -165 dBm for reliable coverage even in challenging environments.

Q: Can the ATC700 firmware and settings be updated remotely?
A: Yes. The ATC700 is compatible with Teltonika's FOTA Web platform, which allows remote firmware-over-the-air (FOTA) updates and parameter configuration without physical access to the device.

Q: Can I purchase the Teltonika ATC700 in Australia through IP Trading?
A: Yes. The ATC700 is available now from iptrading.com.au. IP Trading is an Australian B2B IT hardware reseller supplying authentic Teltonika products with reliable local service and support.
