Sophos MC510-55-SOPHOS | MC510-55 Edge Computer, Core i5-13500TE, 16GB, 2TB SSD

Authorised Sophos Partner

SKU:MC510-55-SOPHOS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

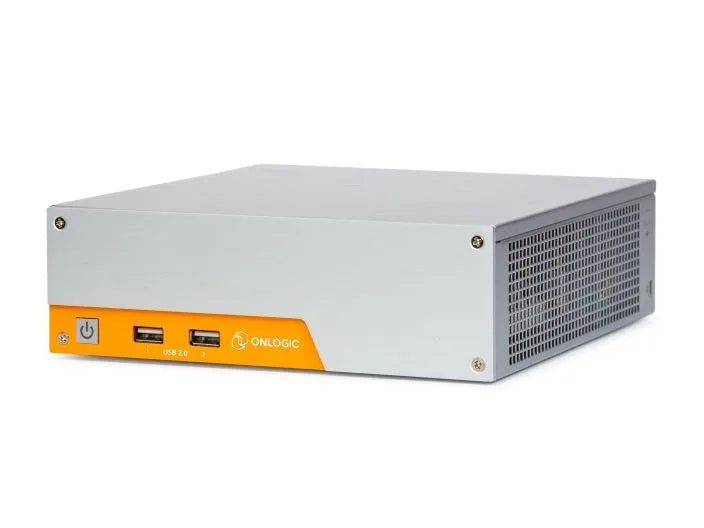

The MC510-55 is an industrial edge computer built around an Intel Core i5-13500TE (Raptor Lake) processor, supplied here with 16GB of DDR4 3200 memory and a Transcend 2TB M.2 NVMe SSD. It suits network detection and response deployments and other always-on edge workloads, with an all-metal enclosure and cross-case ventilation designed for low-noise 24/7 operation.

Connectivity includes dual 2.5 Gigabit LAN, four COM ports, six USB ports and triple display output via HDMI and two DisplayPort connectors. M.2 Key E and Key B slots allow wireless and 4G/5G cellular expansion, and the unit can be mounted on a wall, VESA bracket or DIN rail with a lockable 12-28V DC input.

Features

- Intel 12th/13th Gen hybrid architecture with Performance and Efficiency cores
- All-metal enclosure with cross-case ventilation for low-noise 24/7 operation
- Triple independent display support via HDMI and 2x DisplayPort
- Wireless and cellular expansion through M.2 Key E and Key B with SIM support
- Up to four simultaneous serial connections for legacy and industrial devices
- Lockable DC jack for secure power connection
- Flexible wall, VESA and DIN rail mounting options

Warranty

Standard Hardware Warranty:
• Coverage Duration: Sophos hardware products come with a 12-month base warranty from the date Sophos processes the order from its channel partner.
• Scope: The warranty covers defects in materials and workmanship under normal use, ensuring the hardware performs substantially in accordance with the provided documentation.
Extended Warranty Options:
Sophos offers extended warranty periods for specific products:
• SD-RED and APX Series: Eligible for a 5-year extended warranty, valid up to the product's End-of-Life (EoL) date
• Sophos Switch and AP6 Series: Covered by a Limited Lifetime Warranty, which extends until the product's EoL date.
IP Trading offers tailored extended warranty solutions and support packages for Sophos products, ensuring your network security infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organization's needs.
https://www.sophos.com/en-us/legal/hardware-warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: Intel Core i5-13500TE (Raptor Lake)
- Memory: 16GB SO-DIMM DDR4 3200 MT/s, 2 slots, up to 64GB
- Storage: Transcend 2TB M.2 2280 PCIe Gen4 x4 SSD, plus 2x SATA3 (6Gb/s)
- Chipset: Intel H610
- Graphics: Intel Iris Xe (requires dual channel memory)
- Ethernet: 2x 2.5 Gigabit LAN (Intel i225-LM/i225V)
- Serial: 4x COM (2x RS-232, 2x RS-232/422/485)
- Display outputs: 1x HDMI 2.0b, 2x DisplayPort 1.4a
- USB: 2x USB 3.2 Gen2, 4x USB 2.0
- Expansion: M.2 Key E (2230) and M.2 Key B (3042/3052) with SIM
- Audio: Mic-in and line-out jacks
- Power input: 12-28V DC, lockable screw-type DC jack
- Dimensions (W x H x D): 192.6 x 199.6 x 59.3 mm
- Operating temperature: 0 - 40°C
- Cooling: Actively cooled (fanned)
- Mounting: Wall, VESA, DIN

FAQs

Q: What processor and memory does this MC510-55 configuration include?
A: This SKU has an Intel Core i5-13500TE processor, 16GB of SO-DIMM DDR4 3200 MT/s memory and a Transcend 2TB M.2 2280 PCIe Gen4 x4 NVMe SSD.

Q: How many network and serial ports are provided?
A: There are two 2.5 Gigabit LAN ports (Intel i225-LM/i225V) and four COM ports, made up of 2x RS-232 and 2x RS-232/422/485.

Q: Can I add Wi-Fi or a 4G/5G modem?
A: Yes. The M.2 Key E (2230) slot supports wireless modules with CNVi, and the M.2 Key B (3042/3052) slot supports 4G/5G modems with a SIM.

Q: How many displays can it drive?
A: It supports three independent displays using the HDMI 2.0b port and the two DisplayPort 1.4a outputs.

Q: How is it powered and mounted?
A: It runs from a 12-28V DC input via a lockable DC jack and can be mounted on a wall, VESA bracket or DIN rail.

Q: Is it passively or actively cooled?
A: It is actively cooled with a fan and uses cross-case ventilation within an all-metal enclosure, designed for 24/7 operation at 0 - 40°C.
