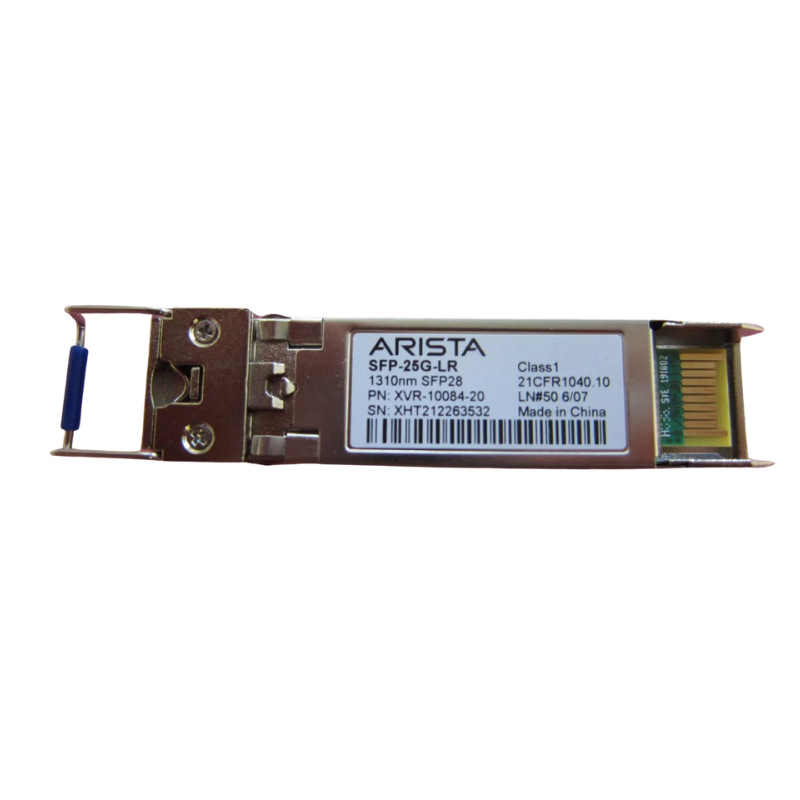

SFP-25G-LR-BCC | Arista Compatible 25GB Single-Mode 10km (25GBASE-LR)

SFP-25G-LR-BCC | Arista Compatible 25GB Single-Mode 10km (25GBASE-LR)

SFP-25G-LR-BCC

In stock:3

$320.10 AUD
$320.10 AUD
$320.10 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SFP-25G-LR-BCC is a drop-in compatible replacement for the Arista SFP-25G-LR. This SFP28 transceiver delivers plug-and-play 25GBASE-LR connectivity for Arista platforms requiring 25.78 Gbps over single-mode fiber. - IEEE 802.3cc compliance guarantees interoperability with any standards-compliant 25GBASE-LR interface - SFP28 form factor supporting 25.78 Gbps data rate over duplex single-mode fiber at 1310nm wavelength - 10km reach over 9/125µm SMF G.652 fiber with duplex LC connectors - Digital Diagnostic Monitoring (DDM) via SFF-8472 interface provides real-time optical power, temperature, voltage, and bias current visibility - Hot-swappable design supports installation and removal without service interruption - Operating temperature range 0°C to +70°C for commercial data center and enterprise deployments

Features

• IEEE 802.3cc 25GBASE-LR compliance ensures optical interoperability with any standards-compliant 25G single-mode transceiver at 10km distances, enabling multi-vendor deployments without vendor lock-in
• 1310nm DFB laser transmitter and PIN photodetector receiver deliver reliable long-reach transmission over standard G.652 single-mode fiber with sufficient link budget for typical data center and campus deployments
• SFF-8472 DDM interface exposes five diagnostic parameters in real-time: transmit optical power, receive optical power, module temperature, laser bias current, and supply voltage for proactive link monitoring and troubleshooting
• Hot-swappable SFP28 form factor allows field installation and replacement without powering down the host platform, maintaining service continuity during maintenance windows
• Single-lane 25.78 Gbps architecture provides 2.5x throughput improvement over legacy 10GBASE-LR infrastructure using the same duplex fiber plant and LC connector ecosystem
• Commercial temperature range (0°C to +70°C) and low power consumption (<1.5W typical) suit controlled-environment data center and telecom applications with standard cooling infrastructure

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-25G-LR-BCC
Compatible Replacement For: SFP-25G-LR
Compatibility: Arista compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP28
Data Rate: 25.78 Gbps
Standard: 25GBASE-LR (IEEE 802.3cc)
Wavelength: 1310nm (DFB laser transmitter, PIN photodetector)
Fibre Type: Single-Mode (9/125µm SMF G.652)
Connector Type: Duplex LC
Max Reach: 10km over duplex single-mode fiber
DOM Support: Yes (SFF-8472 compliant)
Operating Temperature: 0°C to +70°C (commercial)
Power Consumption: <1.5W typical
Power Supply: 3.3V single supply
Compliance: SFP28 MSA, SFF-8431, SFF-8472, IEEE 802.3cc, RoHS

FAQs

Q: Will this work in place of the Arista SFP-25G-LR?
A: Yes. The SFP-25G-LR-BCC provides direct drop-in compatibility with the Arista SFP-25G-LR. Both transceivers share identical form factor (SFP28), data rate (25.78 Gbps), wavelength (1310nm), reach (10km), and IEEE 802.3cc compliance. This module is plug-and-play compatible with Arista platforms that specify the SFP-25G-LR.

Q: Which Arista platforms support this transceiver?
A: This transceiver works in any Arista switch or router with SFP28 ports that support 25GBASE-LR optics. The requirement is an SFP28 interface compliant with IEEE 802.3cc at 25.78 Gbps over single-mode fiber. Consult your platform documentation or Arista's transceiver compatibility matrix for confirmation on specific model numbers.

Q: What fiber type and patch cable specification do I need for 10km reach?
A: This transceiver requires 9/125µm single-mode fiber (SMF) conforming to ITU-T G.652 specification with duplex LC/UPC connectors. The 10km reach assumes fiber attenuation of approximately 0.4 dB/km at 1310nm plus connector and splice losses. Multimode fiber is not supported. Using OM3 or OM4 multimode will result in link failure.

Q: Does this transceiver require Forward Error Correction (FEC) to be enabled?
A: No. IEEE 802.3cc 25GBASE-LR is designed to operate without mandatory FEC over the specified 10km reach on compliant G.652 single-mode fiber. The optical link budget and receiver sensitivity are sufficient for error-free operation under standard conditions. FEC may be negotiated by the host platform but is not required by the 25GBASE-LR specification.

Q: Can I monitor link quality and optical power levels in real time?
A: Yes. This module implements SFF-8472 Digital Diagnostic Monitoring (DDM), exposing five parameters via the two-wire serial interface: transmit optical power (dBm), receive optical power (dBm), module temperature (°C), laser bias current (mA), and supply voltage (V). These values are readable through your NOS or management software to detect degrading fiber, connector contamination, or approaching end-of-life conditions before link failure occurs.
