Q: Will this work in place of the Moxa SFP-1GSXLC-T?

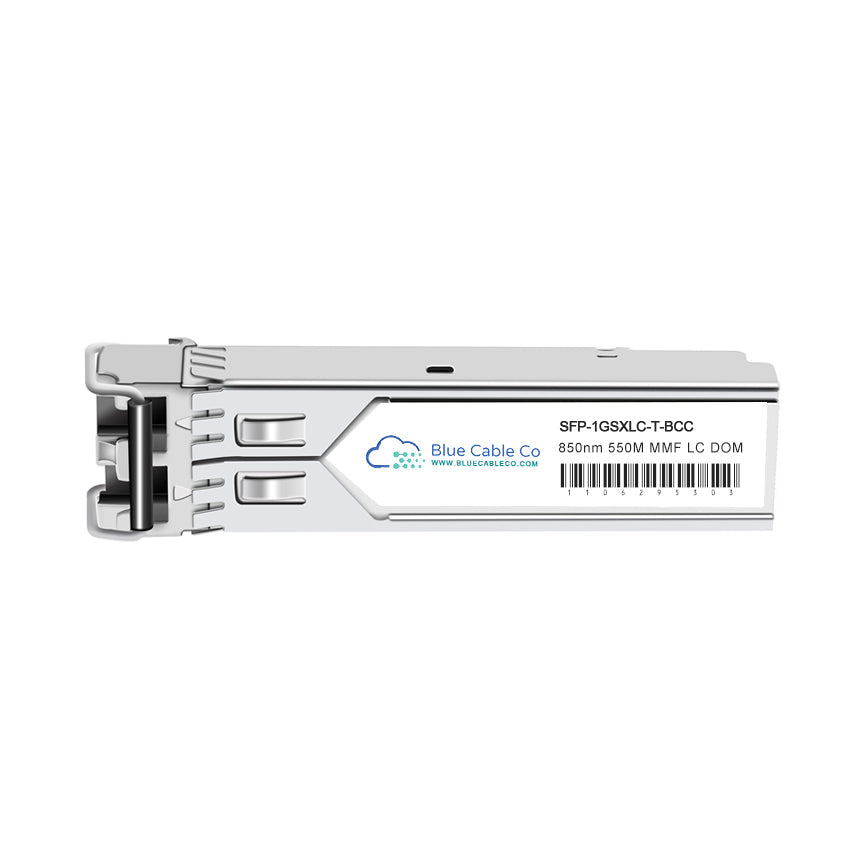

A: Yes. The SFP-1GSXLC-T-BCC is electrically and optically identical to the Moxa SFP-1GSXLC-T. It conforms to the same IEEE 802.3z 1000BASE-SX standard, uses the same SFP mechanical form factor, operates at the same 850nm wavelength over multi-mode fibre, and supports the same -40 to 85°C industrial temperature range. It is plug-and-play compatible with any Moxa equipment that specifies the SFP-1GSXLC-T as a supported transceiver.

Q: Which Moxa switches and devices support this transceiver?
A: This transceiver is compatible with any Moxa Ethernet switch, router, media converter, or embedded module that includes SFP ports and lists the SFP-1GSXLC-T on its compatibility matrix. This includes the SFP-1G Series compatible devices across the EDS, IKS, MDS, SDS, PT, and TN industrial switch families, as well as IM-series interface modules and industrial media converters with Gigabit SFP slots.

Q: What fibre type and modal bandwidth do I need to reach 550m?
A: To achieve the full 550m transmission distance, you must use 50µm multi-mode fibre with OM2 modal bandwidth specification (500 MHz·km at 850nm) or better. If you are using older 62.5µm OM1 fibre (200 MHz·km at 850nm), the maximum reliable reach drops to 300m due to higher modal dispersion. For distances beyond 550m, consider upgrading to a 1000BASE-LX single-mode transceiver such as the SFP-1GLXLC-T compatible replacement.

Q: Can I access DDM parameters on this transceiver, and what do they tell me?
A: Yes. This transceiver implements the SFF-8472 Digital Diagnostic Monitoring specification, exposing real-time temperature, supply voltage, laser bias current, transmit optical power, and receive optical power via the I2C management interface. Most managed Moxa switches surface these parameters in their CLI or web interface. Monitoring receive power lets you detect marginal fibre connections or dirty connectors before they cause packet loss, while tracking temperature helps confirm the module stays within rated limits in hot enclosures.

Q: Does this industrial-grade transceiver require different handling or cooling compared to commercial SFPs?
A: The industrial temperature rating (-40 to 85°C ambient) means the transceiver uses hardened laser diodes, photodetectors, and IC components that tolerate wider thermal swings without calibration drift. You do not need additional cooling beyond what the host device provides. However, ensure adequate chassis ventilation in high-density deployments and avoid blocking SFP vents, as even industrial transceivers have internal thermal limits. The module draws a maximum of 1W and is safe to hot-swap during operation without powering down the host device.
