• Silver SFP-1FESLC-T-BCC transceiver with blue connector and Blue Cable Co label
1 1

Blue Cable Co

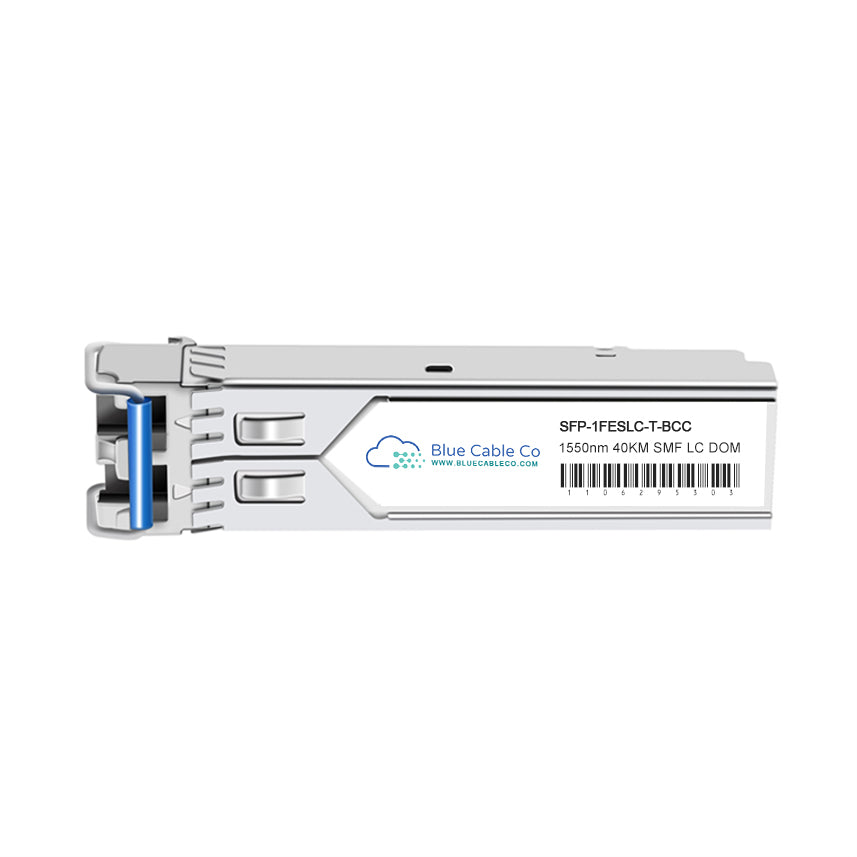

SFP-1FESLC-T-BCC | Moxa Compatible 100MB Single-Mode 40km (100BASE-EX)

SFP-1FESLC-T-BCC | Moxa Compatible 100MB Single-Mode 40km (100BASE-EX)

SFP-1FESLC-T-BCC

Stock Status: Enquire

$60.50 AUD
$60.50 AUD
$60.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SFP-1FESLC-T-BCC is a drop-in compatible replacement for the Moxa SFP-1FESLC-T. This transceiver is plug-and-play compatible with Moxa industrial Ethernet switches, routers, and media converters that accept SFP-1FE series modules. - IEEE 802.3u compliant for 100BASE-EX standard, ensuring compatibility with Fast Ethernet infrastructure - SFP form factor, 100 Mbps data rate, single-mode fibre, 1310nm wavelength, 40km maximum reach over 9/125µm SMF - Digital Diagnostic Monitoring (DDM) support compliant with SFF-8472 for real-time optical parameter access - Industrial temperature range of -40 to 85°C for deployment in harsh environments - Hot-pluggable LC duplex connector with Class 1 laser safety compliance - Low power consumption (maximum 1W) with differential PECL inputs and outputs

Features

• IEEE 802.3u and SFP MSA SFF-8074i compliance guarantees interoperability with standards-based Fast Ethernet infrastructure and MSA-compliant platforms
• 1310nm FP laser transmitter with InGaAs PIN photodiode receiver, enabling 40km reach over 9/125µm single-mode fibre
• Digital Diagnostic Monitoring via SFF-8472 provides access to temperature, voltage, bias current, transmit power, and receive power for proactive link management
• Industrial-grade thermal design supports -40 to 85°C continuous operation in outdoor cabinets, railway installations, and factory automation environments
• Hot-pluggable design with TTL signal detect indicator enables in-service insertion and removal without disrupting adjacent ports
• Differential PECL inputs and outputs with low EMI metal enclosure minimise signal integrity issues in electrically noisy industrial settings
• Single 3.3V supply with max 1W power consumption reduces thermal load in densely populated switch chassis

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-1FESLC-T-BCC
Compatible Replacement For: SFP-1FESLC-T
Compatibility: Moxa compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 100 Mbps (100BASE-EX)
Wavelength: 1310nm
Fibre Type: Single-Mode (9/125µm SMF)
Connector Type: LC Duplex
DOM Support: Yes (SFF-8472 compliant)
Standards: IEEE 802.3u, SFP MSA SFF-8074i
Max Reach: Up to 40km (per datasheet, subject to fibre and link conditions)
Operating Temperature: -40 to 85°C (industrial range)
Power Consumption: Max. 1W
Laser Safety: Class 1 laser product, compliant with EN 60825-1

FAQs

Q: Will this work in place of the Moxa SFP-1FESLC-T?
A: Yes. This transceiver is fully compatible with the Moxa SFP-1FESLC-T based on the same IEEE 802.3u 100BASE-EX standard, SFP form factor, 1310nm wavelength, and 40km single-mode reach. It is plug-and-play in all Moxa platforms that support the SFP-1FESLC-T reference module.

Q: Which Moxa platforms support this transceiver?
A: This module works in any Moxa industrial Ethernet switch, router, NIC, or media converter with SFP slots compliant with the SFP MSA standard. It is designed for the SFP-1FE series slot specification used across Moxa's ICS, IKS, EDS, IM, PM, PT, and EDR product lines that accept 100 Mbps SFP modules.

Q: What fibre type and quality is required to achieve 40km reach?
A: This transceiver requires 9/125µm single-mode fibre (SMF) and has a minimum optical budget of 25 dB. Actual reach depends on fibre attenuation, splice loss, connector quality, and any inline passive devices. Use low-loss connectors and verify total link loss is within the power budget for reliable 40km operation.

Q: Can I access diagnostic parameters on this module?
A: Yes. This module supports Digital Diagnostic Monitoring (DDM) per SFF-8472, providing real-time access to temperature, supply voltage, laser bias current, transmit optical power, and receive optical power. These parameters are accessible via compatible network management software or CLI on Moxa platforms that support DDM readout.

Q: Is this transceiver suitable for outdoor or railway applications?
A: Yes. The industrial temperature range of -40 to 85°C makes this module suitable for deployment in outdoor cabinets, trackside installations, and other harsh environments where standard commercial-grade (0 to 70°C) transceivers would fail. The module meets Class 1 laser safety and RoHS compliance for railway and transportation network applications.
