• Arista Compatible SFP-10G-ZR-BCC 10G 1550nm 80km SMF LC transceiver module
1 1

Blue Cable Co

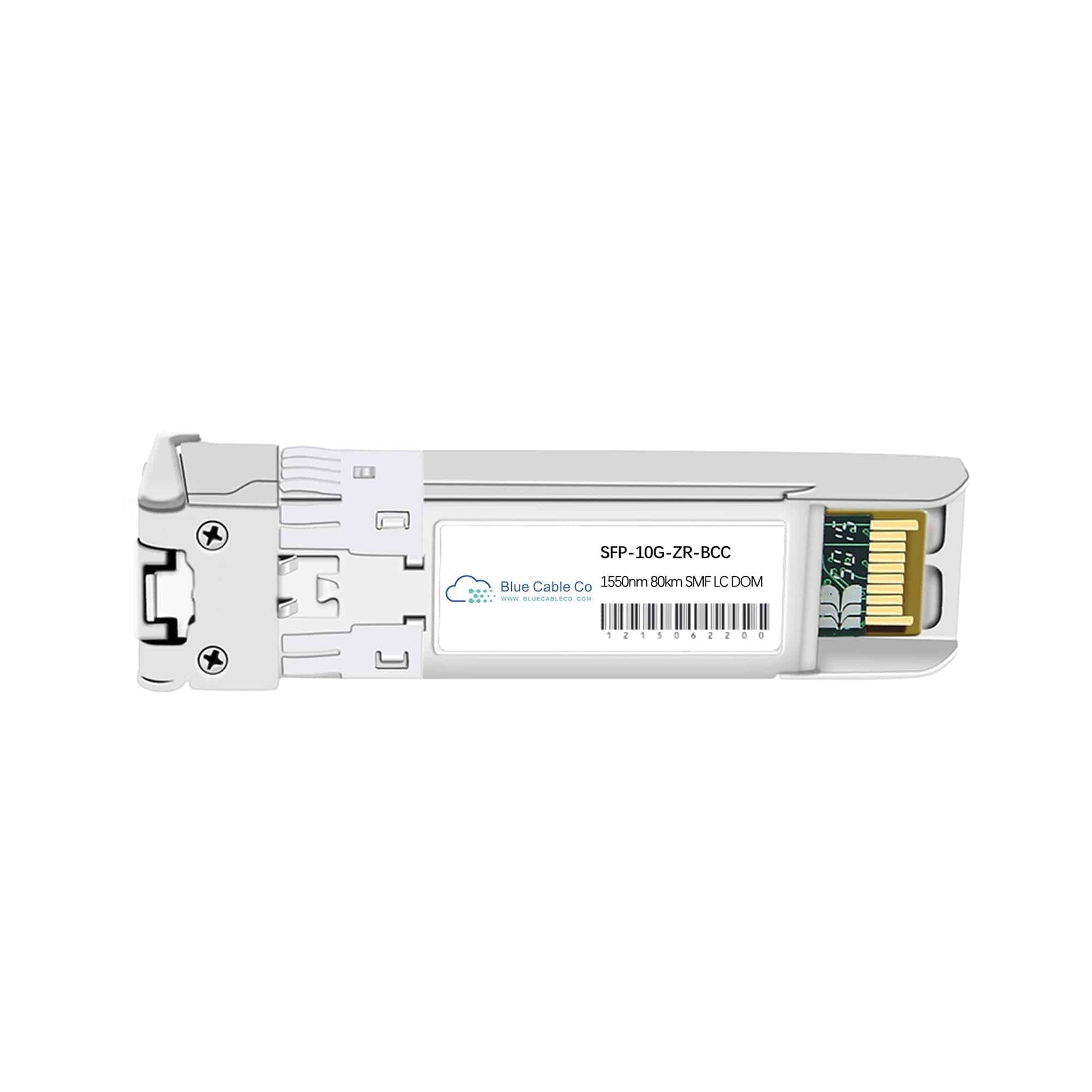

SFP-10G-ZR-Arista-BCC | Arista Compatible 10GB Single-Mode ZR - 80km (10GBASE-ZR)

SFP-10G-ZR-Arista-BCC | Arista Compatible 10GB Single-Mode ZR - 80km (10GBASE-ZR)

SFP-10G-ZR-ARISTA-BCC

In stock:5

$1,131.90 AUD
$1,131.90 AUD
$1,131.90 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SFP-10G-ZR-Arista-BCC is a drop-in compatible replacement for the Arista SFP-10G-ZR-ARISTA. This transceiver provides plug-and-play compatibility with Arista switches and routers equipped with SFP+ ports. - Compliant with IEEE 802.3ae 10GBASE-ZR and SFP+ MSA, ensuring broad interoperability with standards-based SFP+ platforms - SFP+ form factor, 10 Gbps data rate, 1550nm wavelength, up to 80km reach over OS2 single-mode fibre via duplex LC connector - Digital Diagnostics Monitoring (DOM) support via SFF-8472 interface for real-time monitoring of optical power, temperature, voltage, and bias current - Typical power consumption under 1.5W, supporting low-power deployment in high-density environments - Hot-swappable installation with operating temperature range of 0 to 70 degrees Celsius - Cooled EML laser transmitter paired with APD photodiode for stable long-haul transmission

Features

• IEEE 802.3ae 10GBASE-ZR compliance ensures transparent interoperability with any standards-compliant SFP+ host platform without vendor lock-in
• 1550nm wavelength operation provides low attenuation and high dispersion tolerance for reliable 80km transmission over G.652 single-mode fibre
• Cooled EML laser transmitter and APD photodiode design delivers stable optical output and high receiver sensitivity across the full operating temperature range
• SFF-8472 DDM implementation grants real-time access to TX/RX optical power, module temperature, supply voltage, and laser bias current for predictive maintenance
• Hot-swappable SFP+ form factor allows non-disruptive installation and removal during live network operation in any MSA-compliant SFP+ slot
• Low power consumption (typically under 1.5W) reduces thermal load per port and enables dense 10G deployments without additional cooling infrastructure
• Optical attenuation required for links shorter than 40km to prevent receiver overload, ensuring safe operation across a wide range of deployment scenarios

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-10G-ZR-Arista-BCC
Compatible Replacement For: SFP-10G-ZR-ARISTA
Compatibility: Arista compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10 Gbps (10GBASE-ZR)
Wavelength: 1550nm
Fibre Type: Single-Mode Fibre (SMF)
Connector Type: Duplex LC
DOM Support: Yes (SFF-8472)
Standards: IEEE 802.3ae, SFP+ MSA, SFF-8431, SFF-8432
Max Reach: Up to 80km over OS2 SMF (G.652 fibre, per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70°C (commercial)
Power Consumption: Typically less than 1.5W

FAQs

Q: Will this work in place of the Arista SFP-10G-ZR-ARISTA?
A: Yes. This transceiver is a plug-and-play replacement for the Arista SFP-10G-ZR-ARISTA. It conforms to IEEE 802.3ae 10GBASE-ZR, SFP+ MSA, and SFF-8472 standards, matching the form factor, 10 Gbps data rate, 1550nm wavelength, and 80km reach specification of the Arista original.

Q: Which Arista platforms support this transceiver?
A: This transceiver is compatible with Arista switches and routers that feature standards-compliant SFP+ slots and list 10GBASE-ZR support in their transceiver compatibility documentation. Consult the Arista Transceiver and Cable Guide for your specific platform model to confirm SFP-10G-ZR support.

Q: What fibre type and maximum dispersion does this transceiver support?
A: This module is designed for G.652 OS2 single-mode fibre and supports chromatic dispersion up to 1600 ps/nm. The 1550nm wavelength minimizes attenuation over the 80km span. Use duplex LC connectors and ensure fibre cleanliness and proper termination for optimal link performance.

Q: Why is optical attenuation required for shorter links?
A: The high transmit power optimized for 80km links can overload the APD receiver at shorter distances, potentially causing permanent damage. For links under 40km, an inline LC fibre attenuator (typically 12 dB or greater) must be inserted to reduce the received optical power into the safe operating range specified by the receiver sensitivity.

Q: Can this transceiver be used for 10G Fibre Channel applications?
A: Yes. This SFP+ transceiver supports both 10G Ethernet (10.3125 Gbps line rate per 10GBASE-ZR) and 10G Fibre Channel at similar data rates over single-mode fibre. Confirm that your host platform and NOS support the intended protocol mode and that link budget calculations account for the 80km reach and any inline attenuation.
