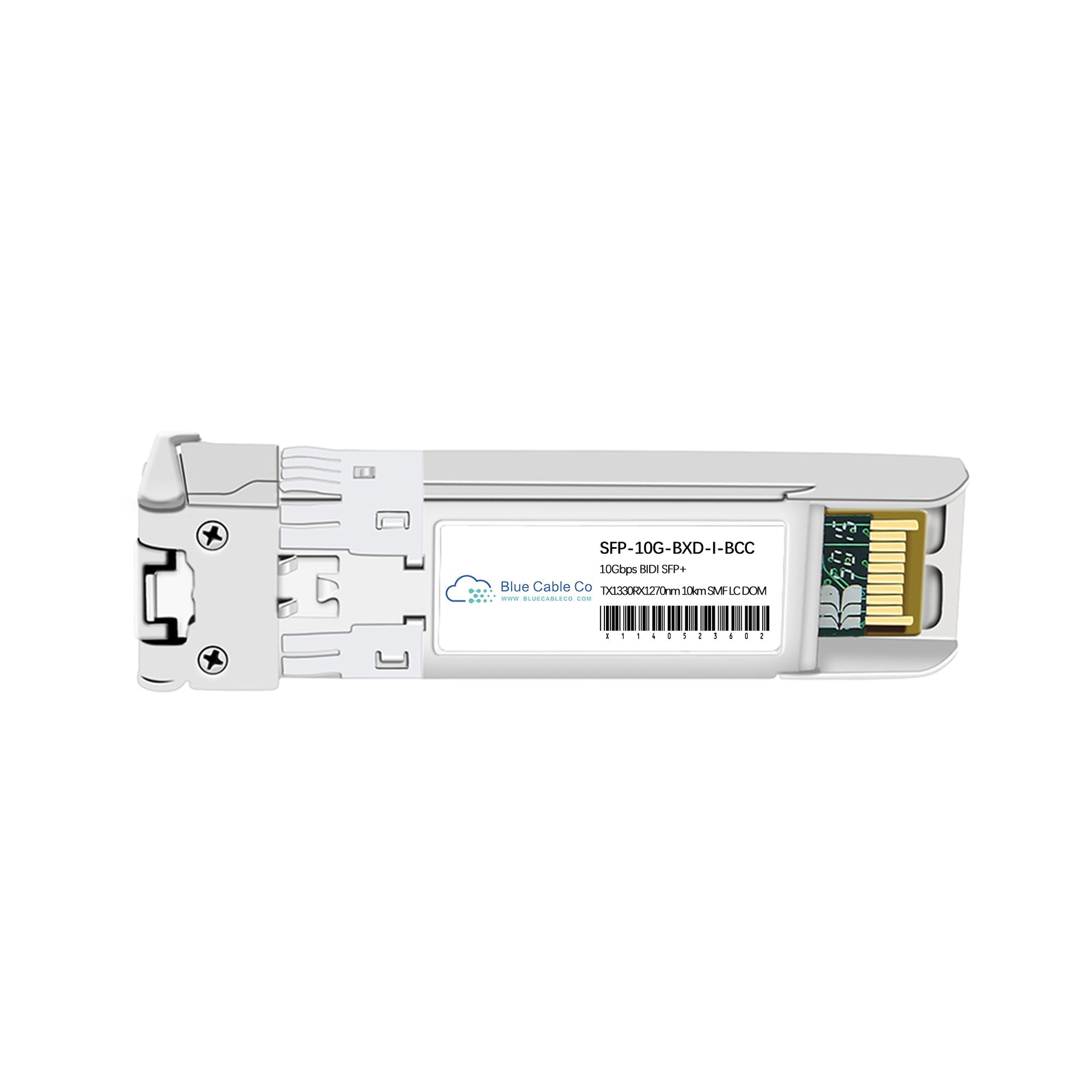

SFP-10G-BXD-I-BCC | Cisco Compatible 10GB BiDi Transceiver - 10km (10GBASE-BX-D)

SFP-10G-BXD-I-BCC | Cisco Compatible 10GB BiDi Transceiver - 10km (10GBASE-BX-D)

SFP-10G-BXD-I-BCC

In stock:5

$89.10 AUD
$89.10 AUD
$89.10 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SFP-10G-BXD-I-BCC is a drop-in compatible replacement for the Cisco SFP-10G-BXD-I. This industrial-grade BiDi transceiver operates over a single strand of single-mode fibre and is plug-and-play compatible with Cisco 10G SFP+ platforms. - IEEE 802.3ae 10GBASE-BX10-D compliance guarantees interoperability with any standards-compliant BiDi upstream device - SFP+ form factor, 10.3125 Gbps data rate, single-mode fibre, 10km maximum reach, 1330nm transmit / 1270nm receive wavelengths - Digital Optical Monitoring (DOM) support via SFF-8472 provides real-time access to temperature, bias current, optical power, and supply voltage - Industrial operating temperature range of -40 to 85 degrees Celsius for harsh environments - Simplex LC connector with integrated WDM splitter enables bidirectional transmission on a single fibre strand - Must be deployed in pairs with a complementary 10GBASE-BX10-U transceiver (1270nm TX / 1330nm RX)

Features

• IEEE 802.3ae 10GBASE-BX10-D standard compliance ensures transparent interoperability with any vendor's BX10-U upstream optics, eliminating vendor lock-in for single-fibre bidirectional links
• Bidirectional operation uses integrated WDM splitter to separate 1270nm and 1330nm wavelength channels on the same fibre strand, halving fibre infrastructure cost compared to duplex optics
• Industrial temperature rating (-40 to 85 degrees Celsius) supports deployment in outdoor cabinets, railside equipment, industrial automation, and remote cell sites without environmental conditioning
• SFF-8472 DOM capability exposes real-time optical power (transmit and receive), temperature, laser bias current, and supply voltage over I2C for proactive link margin monitoring and troubleshooting
• Hot-swappable SFP+ form factor delivers 10G throughput in high-density configurations, with optical budget of 6.2 dB supporting links up to 10km over OS2 single-mode fibre
• Downstream (BXD) role transmits 1330nm and receives 1270nm, pairing exclusively with upstream (BXU) optics that transmit 1270nm and receive 1330nm for full-duplex bidirectional communication

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-10G-BXD-I-BCC
Compatible Replacement For: SFP-10G-BXD-I
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10.3125 Gbps
Wavelength: 1330nm TX / 1270nm RX
Fibre Type: Single-mode (SMF, G.652)
Connector Type: Simplex LC
DOM Support: Yes (SFF-8472)
Standards: IEEE 802.3ae 10GBASE-BX10-D, SFF-8431, SFF-8432
Max Reach: Up to 10km (per datasheet, subject to fibre and link conditions)
Operating Temperature: -40 to 85 degrees Celsius (industrial)
Power Consumption: Less than 1.5W

Alternate Part Codes

SFP-10G-BXD-I-RF, SFP-10G-BXD-I=

FAQs

Q: Will this work in place of the Cisco SFP-10G-BXD-I?
A: Yes. The SFP-10G-BXD-I-BCC is form-factor, data-rate, and wavelength-matched to the Cisco SFP-10G-BXD-I and complies with the same IEEE 802.3ae 10GBASE-BX10-D standard. It is plug-and-play compatible with Cisco 10G SFP+ ports and will interoperate with any standards-compliant upstream BiDi transceiver.

Q: Which Cisco platforms support this transceiver?
A: This transceiver is compatible with Cisco switches, routers, and media converters that feature 10G SFP+ slots and support 10GBASE-BX operation. Compatibility depends on the SFP+ port specification, not a specific platform model. Consult your device datasheet to confirm 10GBASE-BX support.

Q: What is the difference between BXD-I and BXU-I, and why does it matter?
A: BXD-I is the downstream variant (1330nm TX / 1270nm RX) and BXU-I is the upstream variant (1270nm TX / 1330nm RX). These wavelengths are deliberately reversed to enable full-duplex communication over a single fibre strand. You must always pair a BXD with a BXU device. Connecting two BXD or two BXU transceivers will not establish a link.

Q: Can I use this transceiver over OM3 or OM4 multi-mode fibre?
A: No. This transceiver operates at 1330nm and 1270nm wavelengths and requires OS2 single-mode fibre (G.652). Multi-mode fibre (OM3, OM4) is designed for 850nm or 1300nm VCSEL sources and will not support the reach or wavelength plan of this BiDi optic. Use only single-mode fibre.

Q: Does this module support CPRI for fronthaul applications?
A: Version -02 of the Cisco SFP-10G-BXD-I supports CPRI datarate options 3, 4, 5, 6, 7, 7a, and 8. The SFP-10G-BXD-I-BCC is designed for 10G Ethernet applications and standard 10.3125 Gbps serial data. If CPRI support is required for radio or baseband units, confirm your specific CPRI line rate requirement before ordering.
