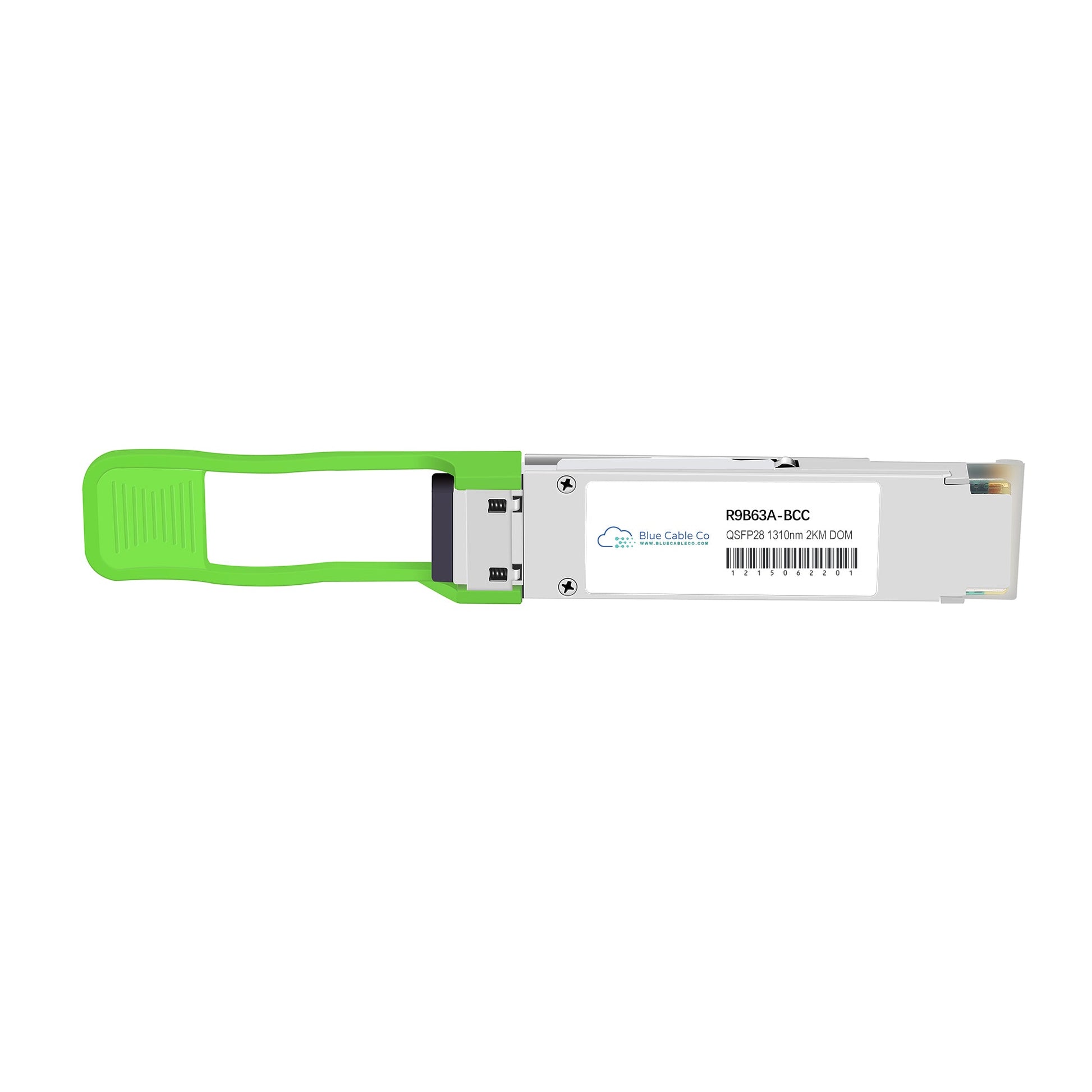

• Aruba R9B63A-BCC compatible green QSFP28 1310nm 2km transceiver
1 1

Blue Cable Co

R9B63A-BCC | Aruba Compatible 100G Single-Mode 2km (100GBASE-FR)

R9B63A-BCC | Aruba Compatible 100G Single-Mode 2km (100GBASE-FR)

R9B63A-BCC

Stock Status: Enquire

$1,072.50 AUD
$1,072.50 AUD
$1,072.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The R9B63A-BCC is a drop-in compatible replacement for the Aruba R9B63A. This QSFP28 transceiver delivers plug-and-play compatibility with Aruba networking platforms requiring 100GBASE-FR connectivity. - Compliant with IEEE 802.3cd 100GBASE-FR1, QSFP28 MSA, and 100G Lambda MSA standards, ensuring interoperability with standards-based networking equipment - QSFP28 form factor with 103.125Gbps data rate over single-mode fibre, using 1310nm wavelength and duplex LC connector for 2km reach - Single-lambda PAM4 modulation transmits 100G over a single wavelength, enabling compatibility with 400GBASE-DR4 breakout applications - Digital diagnostic monitoring (DOM) support via I2C interface provides real-time access to optical power, temperature, voltage, and bias current parameters - 4x25G NRZ electrical interface (OIF CEI-28G-VSR) with onboard Broadcom chipset converting electrical signals to 1x100G PAM4 optical signal - Hot-swappable design with 0 to 70C operating temperature range for standard commercial environments

Features

• IEEE 802.3cd 100GBASE-FR1 compliance guarantees interoperability with standards-based 100G equipment and ensures compatibility with IEEE 400GBASE-DR4 systems via fibre breakout cables
• Single-wavelength PAM4 architecture transmits the full 100G signal over one 1310nm optical lane at 53.125Gbaud, eliminating the need for WDM multiplexing and simplifying fibre infrastructure
• Onboard FEC is required for reliable 2km transmission, correcting bit errors introduced over the fibre span and ensuring BER performance better than 10^-12
• EML laser transmitter with integrated cooler maintains stable wavelength and optical power across the 0 to 70C operating range, supporting consistent performance in commercial data centre environments
• 4dB minimum optical budget accommodates typical single-mode patch panel losses and splice attenuation, with actual reach dependent on installed fibre quality and connector condition
• Hot-swappable QSFP28 module installs without powering down the host platform, enabling live port upgrades and minimising network downtime during deployment or maintenance

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: R9B63A-BCC
Compatible Replacement For: R9B63A
Compatibility: Aruba compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP28
Data Rate: 103.125Gbps (4x 25.78Gbps electrical)
Wavelength: 1310nm (1304.5-1317.5nm nominal)
Fibre Type: Single-mode (SMF)
Connector Type: Duplex LC/UPC
DOM Support: Yes (DDM/DOM via I2C)
Standards: IEEE 802.3cd 100GBASE-FR1, QSFP28 MSA, 100G Lambda MSA
Max Reach: Up to 2km over G.652 single-mode fibre with FEC
Operating Temperature: 0C to 70C (commercial)
Optical Budget: 4dB minimum
Power Consumption: Maximum 4.5W

FAQs

Q: Will this work in place of the Aruba R9B63A?
A: Yes. The R9B63A-BCC is a plug-and-play replacement for the Aruba R9B63A, matching the QSFP28 form factor, 103.125Gbps data rate, 1310nm wavelength, and 2km single-mode reach specified by IEEE 802.3cd 100GBASE-FR1.

Q: Which Aruba platforms support this transceiver?
A: This module works in any Aruba platform with QSFP28 ports that support 100GBASE-FR1 operation, including HPE Aruba CX and FlexFabric switches. Confirm your platform supports 100G single-lambda operation and FEC capability for 2km reach.

Q: What fibre type and FEC settings are required for 2km reach?
A: This module requires G.652 standard single-mode fibre (9/125um) and FEC must be enabled on the host platform. The 4dB optical budget supports 2km over clean, low-loss fibre with quality LC/UPC connectors. Without FEC, reach and reliability will be significantly reduced.

Q: Can this transceiver connect to a 400G DR4 port using a breakout cable?
A: Yes. The 100GBASE-FR1 standard is designed for compatibility with IEEE 400GBASE-DR4 via fibre breakout cables. One lane of a 400G DR4 transceiver operating at 100G PAM4 will interoperate with this FR1 module, enabling incremental migration from 100G to 400G infrastructure.

Q: How does PAM4 modulation in this transceiver differ from NRZ used in older 100G optics?
A: PAM4 encodes 2 bits per symbol using 4 amplitude levels, doubling spectral efficiency compared to NRZ at the same baud rate. This module runs at 53.125Gbaud PAM4 to achieve 106.25Gbps line rate. The electrical interface to the host is still 4x25G NRZ, with PAM4 conversion handled by the onboard Broadcom DSP.
