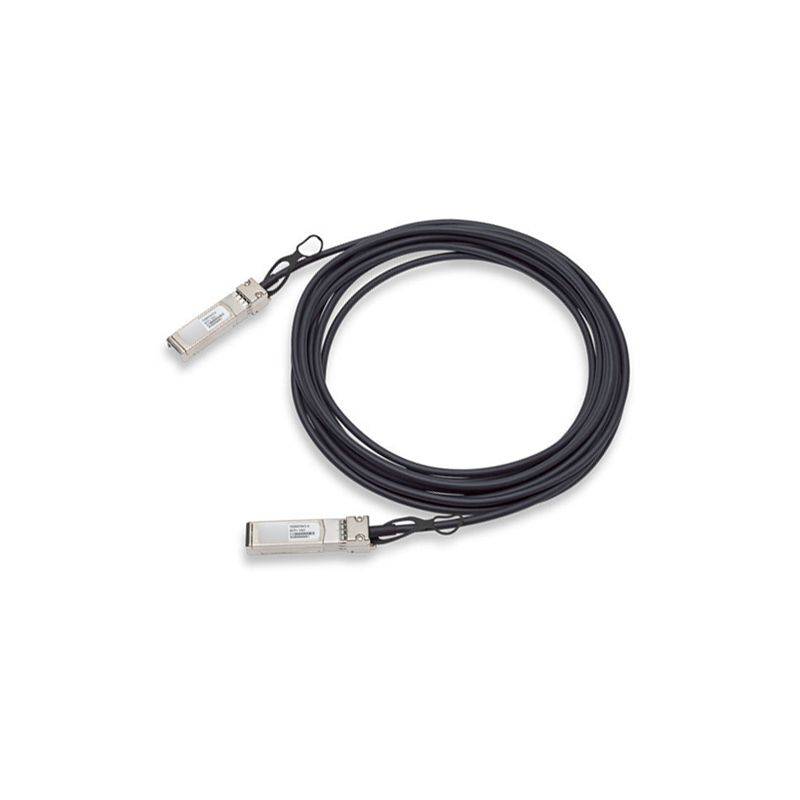

• Aruba compatible QSFP to QSFP 100GBASE-CR4 copper DAC cable with silver SFP+ connectors
1 1

Blue Cable Co

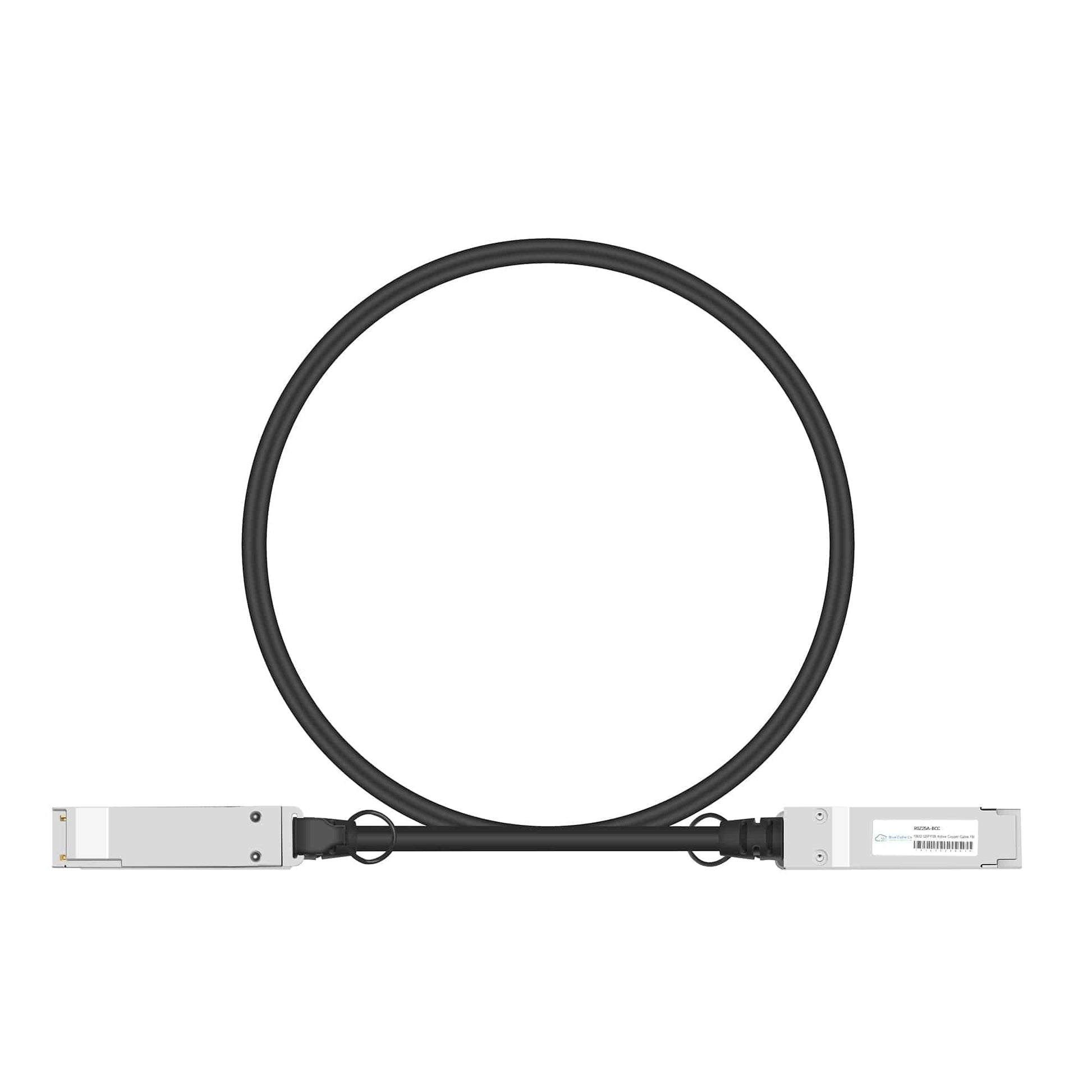

QSFP to QSFP Copper Direct-Attach 100GBASE-CR4 Cable-BCC | Aruba Compatible 1 to 5 Meter

QSFP to QSFP Copper Direct-Attach 100GBASE-CR4 Cable-BCC | Aruba Compatible 1 to 5 Meter

R0Z25A-BCC

Stock Status: Enquire

$126.50 AUD
$126.50 AUD
$126.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The R0Z25A-BCC is a drop-in compatible replacement for the Aruba R0Z25A. This passive copper direct-attach cable connects Aruba switches equipped with 100G QSFP28 ports for short-reach interconnects within and across racks. - 100GBASE-CR4 compliance ensures interoperability with Aruba networking equipment using QSFP28 interfaces - QSFP28 to QSFP28 passive twinax copper cable, 100 Gbps aggregate data rate across four 25 Gbps lanes - Passive copper design requires no external power, reducing operating cost and heat output compared to active solutions - Available in 1 meter, 3 meter, and 5 meter lengths to suit different rack configurations and spacing requirements - SFF-8665 and SFF-8636 compliant form factor and management interface for seamless integration

Features

• Four-lane architecture operating at 25 Gbps per lane to deliver 100 Gbps aggregate throughput over passive copper pairs
• 100GBASE-CR4 and IEEE 802.3bm compliance guarantees electrical interoperability with Aruba QSFP28 ports and other vendor platforms supporting the standard
• SFF-8665 mechanical specification and SFF-8636 management interface ensure form factor compatibility and host system identification via EEPROM product data
• Passive copper construction eliminates active signal conditioning, reducing power draw to approximately 1.5W per connector end and minimizing thermal load in high-density environments
• Suitable for short-reach data center interconnects up to 5 meters, offering cost-effective alternative to optical modules for same-rack or adjacent-rack switch fabric connections
• Hot-swappable design supports installation and removal without disrupting adjacent ports or powering down the host switch
• Commercial temperature range (0°C to 70°C) suitable for typical controlled data center environments

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: R0Z25A-xM
Compatible Replacement For: R0Z25A
Compatibility: Aruba compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP28 to QSFP28
Data Rate: 100 Gbps
Cable Type: Passive copper twinax
Standards: 100GBASE-CR4, SFF-8665, SFF-8636
Connector Type: QSFP28
Available Lengths: 1m, 3m, 5m
Power Consumption: Max 1.5W per end (passive)
Operating Temperature: 0°C to 70°C

Alternate Part Codes

R9F74A, R9F77A, R9F78A

FAQs

Q: Will this work in place of the Aruba R0Z25A?
A: Yes. This cable is electrically and mechanically compatible with the Aruba R0Z25A based on the 100GBASE-CR4 standard, QSFP28 form factor, and 100 Gbps data rate. It is a plug-and-play replacement requiring no configuration changes.

Q: Which Aruba platforms support this cable?
A: This cable works with any Aruba switch equipped with 100G QSFP28 ports that support 100GBASE-CR4, including the Aruba 8325-32C and 8325-48Y8C switch series. Verify your platform has QSFP28 ports rated for 100G operation.

Q: Can I mix different cable lengths in the same switch fabric?
A: Yes. Each cable operates independently, so you can use 1m, 3m, and 5m variants within the same switch or across different switches without performance impact. Signal integrity is maintained across all passive copper lengths up to 5 meters.

Q: Does this cable support Infiniband EDR in addition to Ethernet?
A: Yes. The same QSFP28 passive copper assembly supports both 100 Gigabit Ethernet (100GBASE-CR4) and Infiniband EDR (Enhanced Data Rate) at 100 Gbps, as both protocols share the same physical layer signaling and QSFP28 connector standard.

Q: What is the maximum reach limitation for passive copper at 100G?
A: Passive copper cables at 100 Gbps are typically limited to 5 meters due to signal attenuation and timing constraints across four parallel lanes. Beyond 5 meters, active copper (with signal conditioning) or optical solutions are required to maintain link integrity.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers
