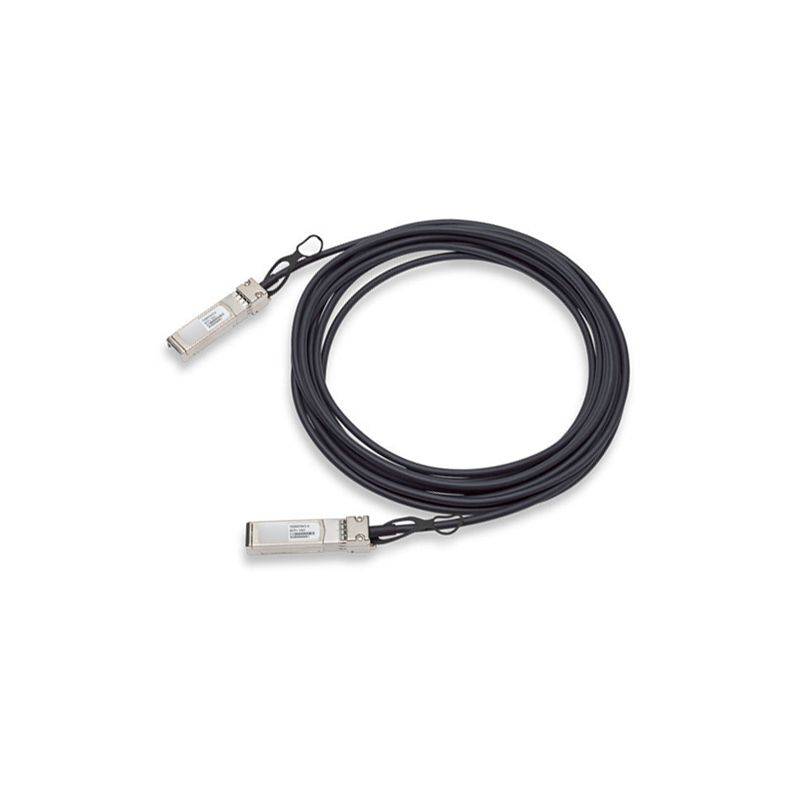

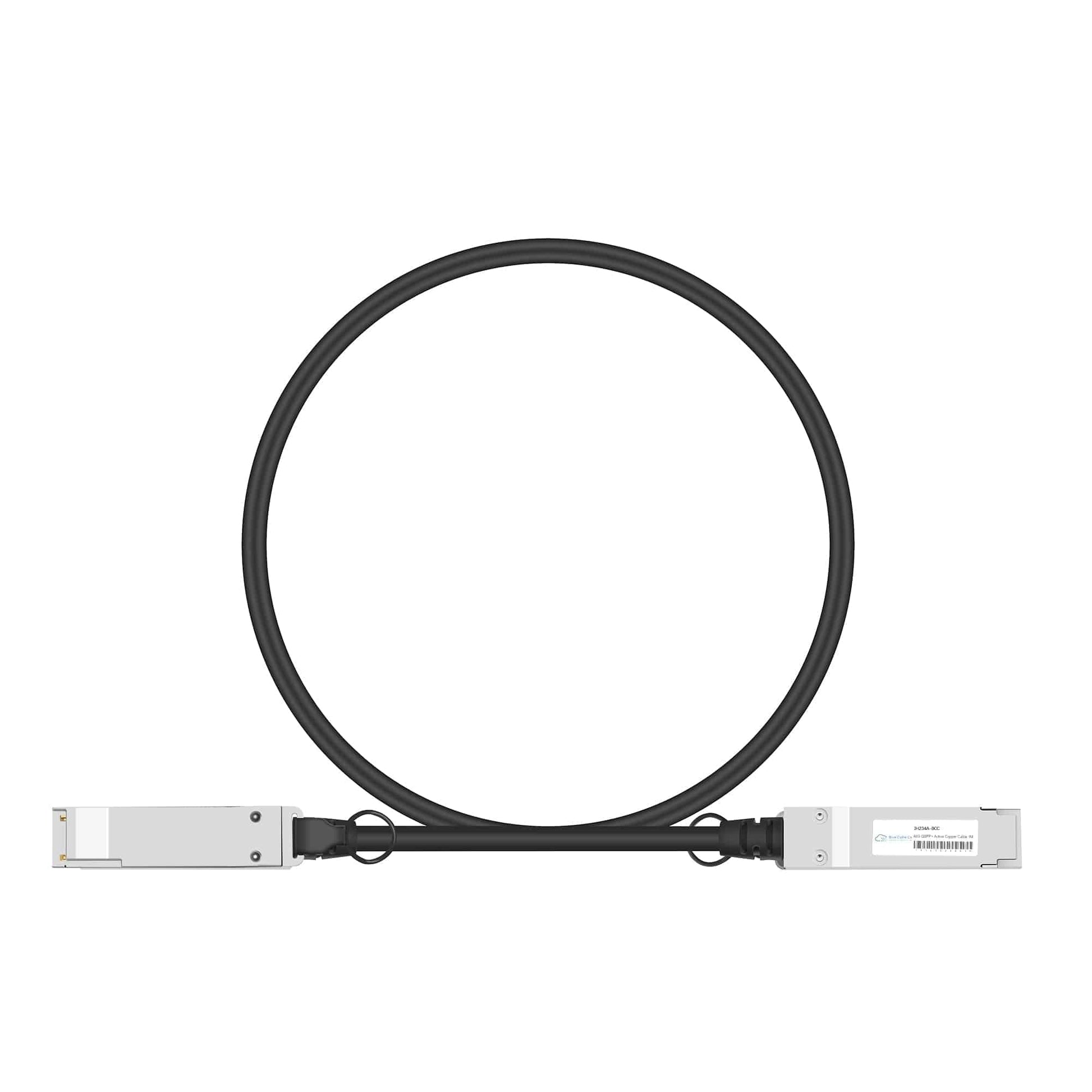

• Aruba compatible 40G QSFP to QSFP copper DAC cable with silver connectors
1 1

Blue Cable Co

QSFP to QSFP Copper DAC Cable, 40GB, 40GBASE-CR4-BCC | Aruba Compatible 1 to 5M

QSFP to QSFP Copper DAC Cable, 40GB, 40GBASE-CR4-BCC | Aruba Compatible 1 to 5M

JH234A-BCC

Stock Status: Enquire

$93.50 AUD
$93.50 AUD
$93.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The JH234A-BCC is a drop-in compatible replacement for the Aruba JH234A. This passive twinax copper cable provides plug-and-play 40G connectivity for Aruba switches with QSFP+ ports. - Complies with SFF-8436 QSFP+ MSA and 40GBASE-CR4 standards, ensuring seamless operation in Aruba platforms - 40 Gigabit Ethernet data rate over passive copper twinax with QSFP+ connectors on both ends - Available in three lengths: 1 meter, 3 meters, and 5 meters for flexible rack-to-rack and in-rack deployments - Operates in standard temperature environments (0 to 70 degrees C) without external power requirements - Lower latency and power consumption compared to active optical solutions for short-reach connections

Features

• 40GBASE-CR4 compliance guarantees four parallel 10G electrical lanes over copper, enabling native 40G Ethernet without protocol conversion
• Passive copper design eliminates external power draw beyond host port supply, reducing data center power and cooling overhead
• SFF-8436 MSA conformance ensures mechanical and electrical interoperability across multi-vendor QSFP+ ecosystems
• Twinax construction delivers sub-microsecond latency for latency-sensitive workloads including storage replication and server clustering
• Three length options (1m, 3m, 5m) accommodate top-of-rack, middle-of-row, and end-of-row topologies without cable slack
• Hot-swappable assembly allows insertion and removal under power without disrupting adjacent ports or requiring host reboot

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: JH234A-xM-BCC
Compatible Replacement For: JH234A
Compatibility: Aruba compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP+ to QSFP+
Data Rate: 40 Gbps
Cable Type: Passive Direct Attach Copper (Twinax)
Standards: 40GBASE-CR4, SFF-8436 QSFP+ MSA
Available Lengths: 1m, 3m, 5m
Connector Type: QSFP+ (both ends)
Operating Temperature: 0 to 70 degrees C
Power Supply: +3.3V

FAQs

Q: Will this work in place of the Aruba JH234A?
A: Yes. This cable is a direct replacement for the Aruba JH234A. It conforms to the same SFF-8436 QSFP+ MSA form factor and 40GBASE-CR4 electrical standard, providing plug-and-play compatibility with Aruba switches that specify the JH234A for 40G copper connectivity.

Q: Which Aruba switches support this cable?
A: This cable works in any Aruba switch with QSFP+ ports that support 40GBASE-CR4. Confirmed compatible models include the 2930M, 8325-32C, 8325-48Y8C, and CX 6400 series. Any Aruba platform listing JH234A, JH235A, or JH236A in its transceiver compatibility matrix will support this cable.

Q: What is the maximum reach for passive copper at 40G, and why does length matter?
A: Passive copper DAC cables are limited to approximately 5 meters at 40G due to signal attenuation and insertion loss over twinax. Beyond this distance, active copper or optical transceivers are required. Shorter cables (1m, 3m) exhibit lower attenuation and are preferred for high-density racks where signal integrity margins are tighter.

Q: Can I mix different cable lengths in the same switch without configuration changes?
A: Yes. Each QSFP+ port negotiates the link independently. You can use 1m cables for adjacent rack connections and 5m cables for cross-row links on the same switch without any software configuration. The 40GBASE-CR4 auto-negotiation handles electrical parameter adjustments per port.

Q: Does this cable support breakout to four 10G lanes?
A: No. This is a standard 40G QSFP+ to QSFP+ cable, not a breakout cable. It presents as a single 40G interface to the host. For 4x10G breakout, you need a QSFP+ to 4xSFP+ DAC breakout cable, which uses different pinout mapping and connector configuration at one end.
