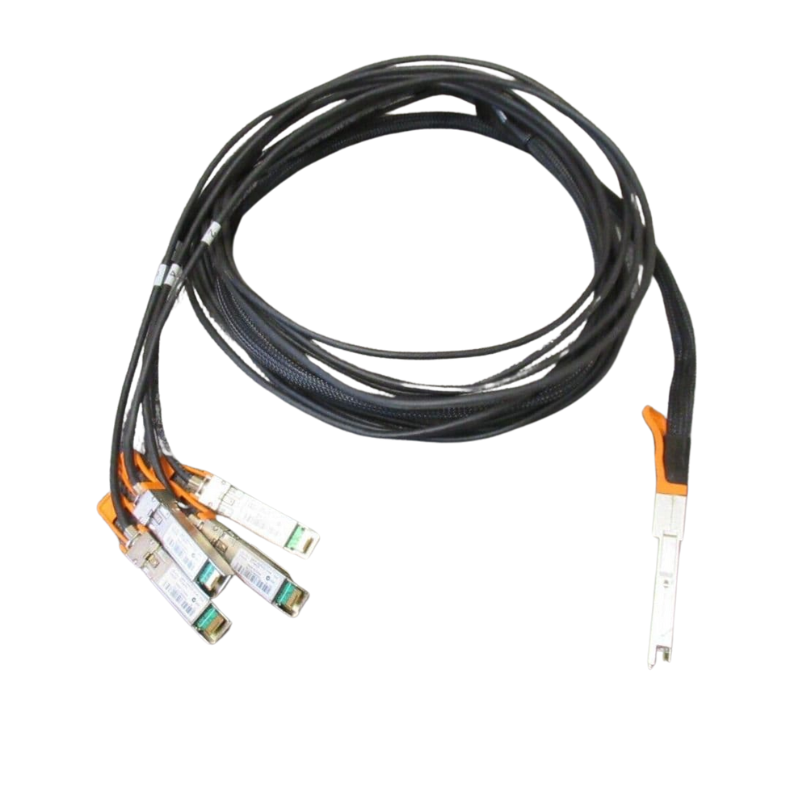

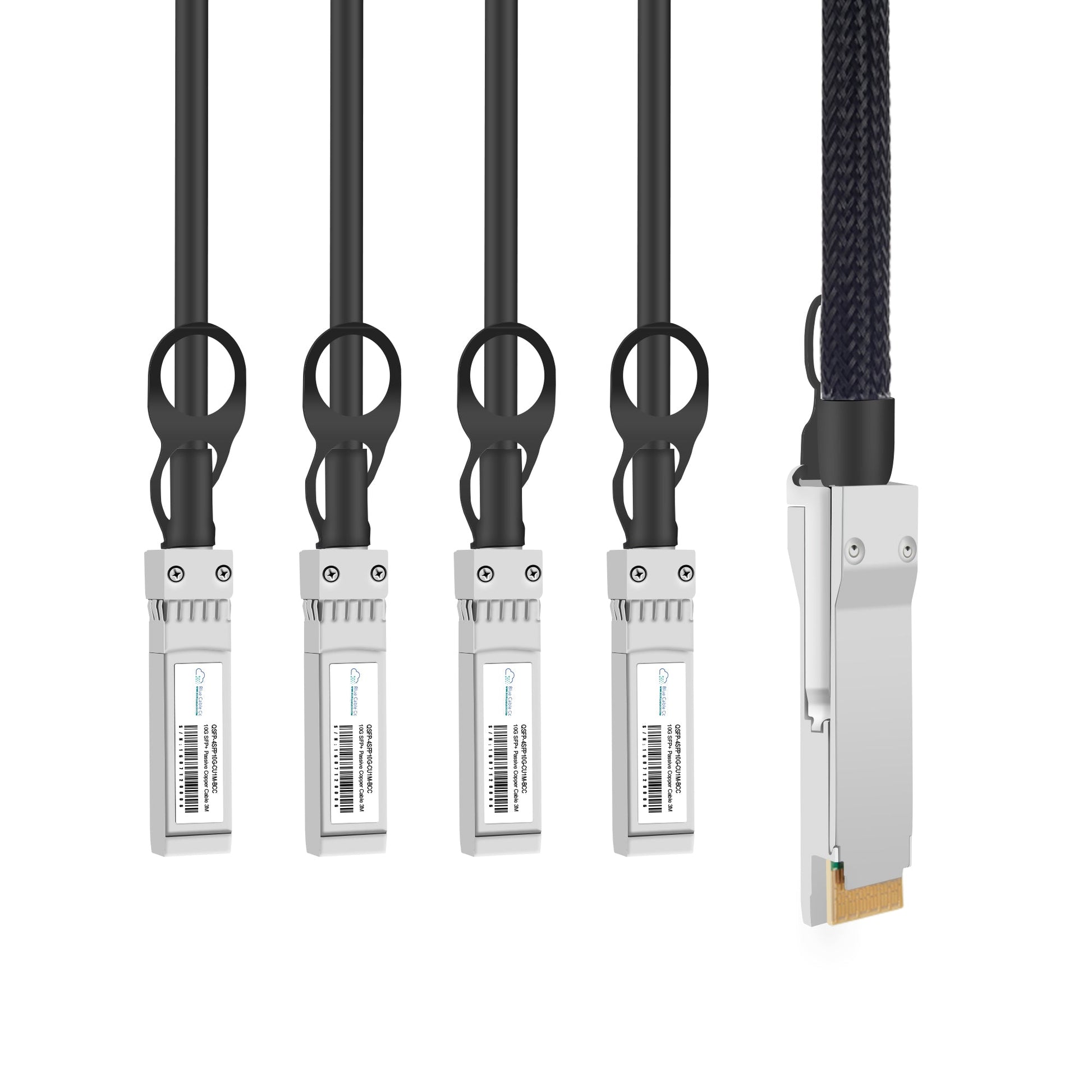

• Cisco QSFP to 4x10G SFP+ breakout cable with 4 black cables, silver connectors, 1 braided, 1-5m

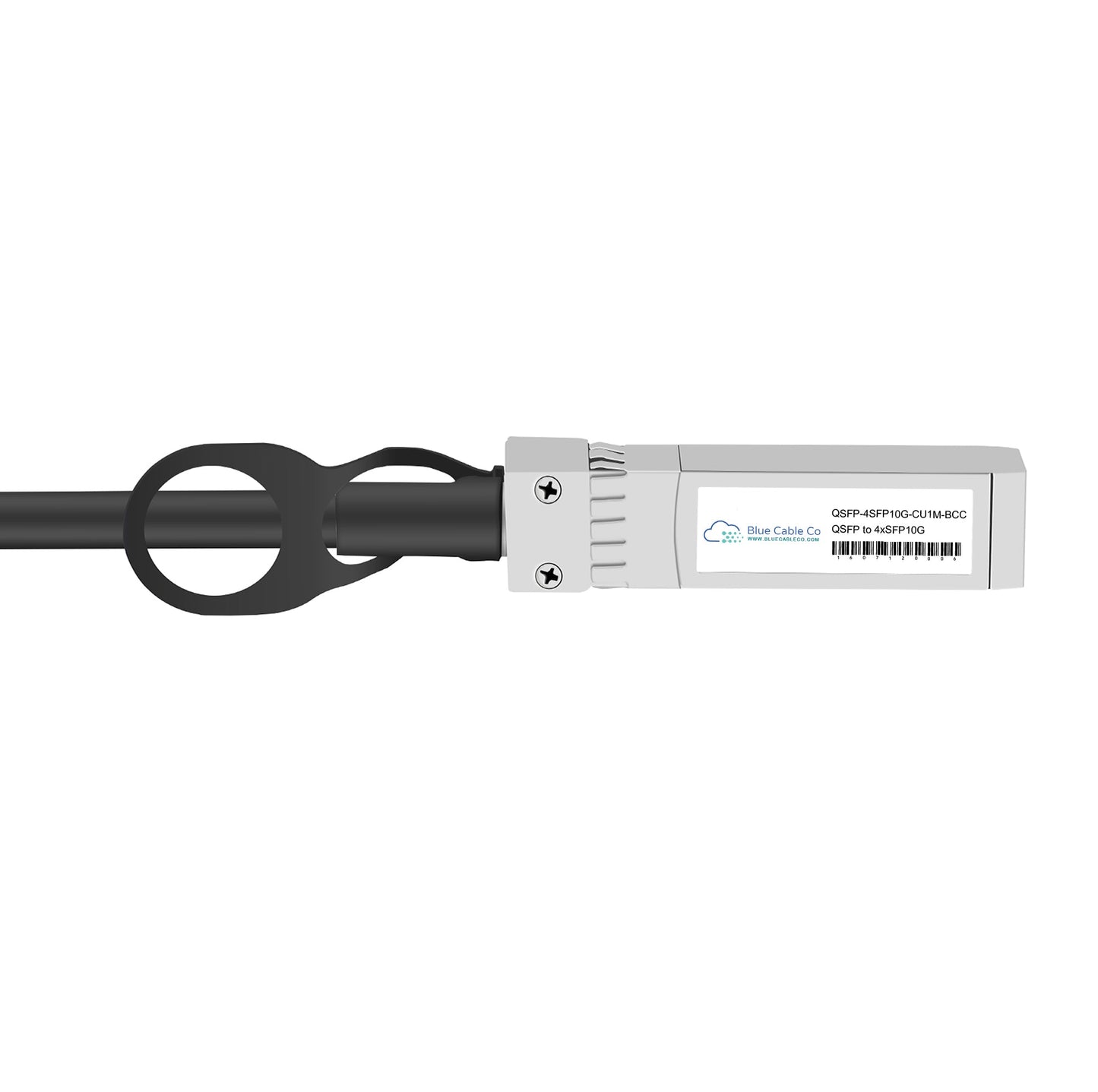

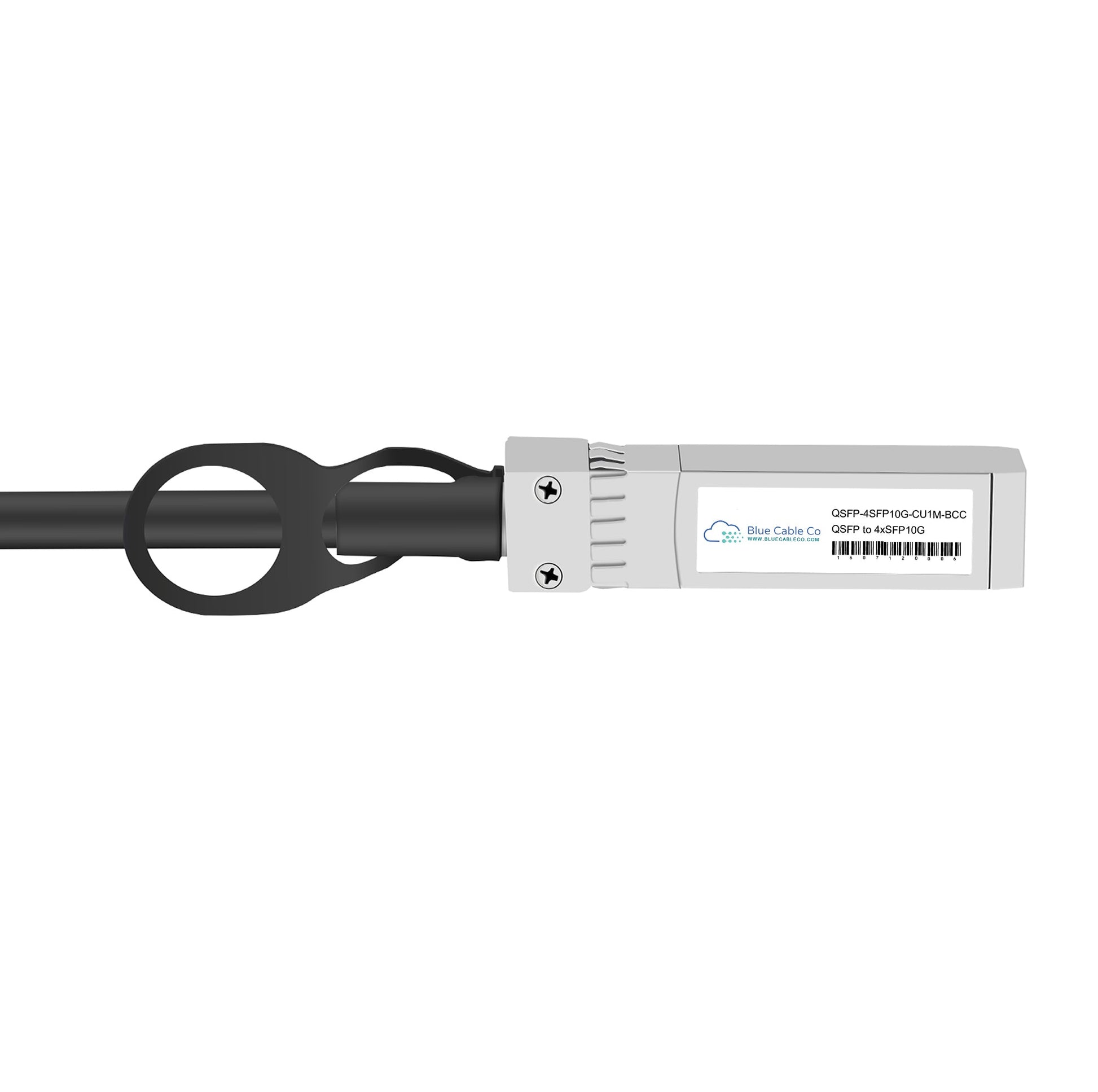

  • Cisco compatible 40G QSFP+ to 4x10G SFP+ breakout cable, silver module 1-5m
1 2

Blue Cable Co

QSFP-4SFP10G-CUxM-BCC | Cisco Compatible 40GB QSFP to 4 x 10GB SFP+ Direct Attach Breakout Cable | 1M to 5M

QSFP-4SFP10G-CUxM-BCC | Cisco Compatible 40GB QSFP to 4 x 10GB SFP+ Direct Attach Breakout Cable | 1M to 5M

QSFP-4SFP10G-CU1M-BCC

Stock Status: Enquire

$160.60 AUD
$160.60 AUD
$160.60 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The QSFP-4SFP10G-CUxM-BCC is a drop-in compatible replacement for the Cisco QSFP-4SFP10G-CU1M series. This passive copper breakout cable operates over twinaxial cable and requires no additional power, connecting a single 40GB QSFP+ port to four independent 10GB SFP+ ports with plug-and-play compatibility on Cisco platforms. - Compliant with SFF-8436 (QSFP+) and SFF-8431 (SFP+) MSA standards, ensuring interoperability with Cisco equipment and other MSA-compliant hosts - 40GBASE-CR4 to 4x 10GBASE-CU architecture: each SFP+ lane delivers up to 10.3125 Gbps for a total aggregate bandwidth of 41.25 Gbps - Passive copper construction eliminates the need for external power, reducing power consumption and heat generation compared to active solutions - Hot-swappable connectors with latch-release mechanisms enable seamless installation and removal without network downtime - Available in five lengths (1M, 2M, 3M, 4M, 5M) to support flexible rack-to-rack and intra-rack deployments - Protocol-agnostic design supports 40 Gigabit Ethernet, QDR InfiniBand, and Fibre Channel applications

Features

• SFF-8436 and SFF-8431 compliance guarantees MSA-standard electrical interface and mechanical fit across Cisco and third-party platforms with QSFP+ and SFP+ ports
• Four independent 10.3125 Gbps SFP+ lanes from a single 40 Gbps QSFP+ port enable flexible breakout topologies for connecting 40GB uplinks to multiple 10GB devices
• Passive copper design operates without power or active electronics, delivering ultra-low latency and simplified thermal management in dense rack environments
• Twinaxial 30AWG construction with robust zinc die-cast housings and latch mechanisms provides superior EMI shielding and secure connector retention under repeated insertion cycles
• Hot-swappable operation supports in-service installation and removal with no risk to adjacent ports or active traffic flows
• Protocol-agnostic architecture supports 40 Gigabit Ethernet, QDR InfiniBand, SAS, and Fibre Channel over the same physical layer, maximizing deployment flexibility across mixed-protocol fabrics

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: QSFP-4SFP10G-CUxM-BCC
Compatible Replacement For: QSFP-4SFP10G-CU1M
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP+ to 4x SFP+ breakout
Data Rate: 40GBASE-CR4 to 4x 10GBASE-CU (up to 10.3125 Gbps per lane, 41.25 Gbps aggregate)
Cable Type: Passive copper twinaxial (30AWG)
Connector Type: QSFP+ (SFF-8436) to 4x SFP+ (SFF-8431)
Standards: SFF-8436, SFF-8431, QSFP+ MSA, SFP+ MSA
Max Reach: 1M, 2M, 3M, 4M, or 5M per variant (passive copper, equipment room only)
Available Lengths: 1M, 2M, 3M, 4M, 5M
Power Consumption: Passive (no power required)
Operating Temperature: 0°C to 70°C (commercial grade)

FAQs

Q: Will this work in place of the Cisco QSFP-4SFP10G-CU1M?
A: Yes. The QSFP-4SFP10G-CUxM-BCC is designed as a drop-in replacement for the Cisco QSFP-4SFP10G-CU1M series. It conforms to the same SFF-8436 and SFF-8431 standards, matches the 40GBASE-CR4 to 4x 10GBASE-CU electrical specification, and supports the same data rates and passive copper architecture. It is plug-and-play compatible with Cisco platforms.

Q: Which Cisco platforms support this breakout cable?
A: This cable is compatible with Cisco platforms that feature QSFP+ ports and support 40GBASE-CR4 passive copper breakout mode. Compatibility is determined by the host switch or router having standards-compliant QSFP+ and SFP+ ports per SFF-8436 and SFF-8431, not by specific model restrictions. Verify that your platform supports passive copper breakout cables in its transceiver compatibility matrix.

Q: Can I use different length SFP+ ends or mix active and passive cables on the same QSFP+ port?
A: No. This is a fixed-length breakout cable with all four SFP+ connectors factory-terminated at the same distance from the QSFP+ host connector. All four lanes are passive copper, and each lane operates independently at 10.3125 Gbps. You cannot mix this passive cable with active optical breakout cables on the same QSFP+ port.

Q: What is the maximum distance for passive copper breakout cables and why is it limited?
A: Passive copper breakout cables are limited to 5 meters maximum due to signal attenuation and crosstalk in the twinaxial medium at 10+ Gbps data rates. Beyond 5M, passive copper cannot reliably maintain the signal integrity required for 10.3125 Gbps per lane without bit errors. For distances beyond 5M, use active optical cables (AOC) or optical transceivers with fibre, which Cisco offers in lengths up to 30M for breakout applications.

Q: Does this cable support Forward Error Correction (FEC) or require specific host configuration?
A: No FEC is required or applicable. Passive copper direct attach cables operate at the physical layer with no encoding or FEC overhead. The cable itself is transparent to the data stream. Host configuration is typically automatic: when the cable is inserted, the QSFP+ and SFP+ ports should auto-negotiate or be manually configured for the appropriate 40GB and 10GB interfaces. No special driver or firmware is needed beyond MSA-compliant QSFP+ and SFP+ support.
