• Arista Compatible QSFP-40G-LR4-BCC 40GB LR4 Blue Cable Co. module
1 1

Blue Cable Co

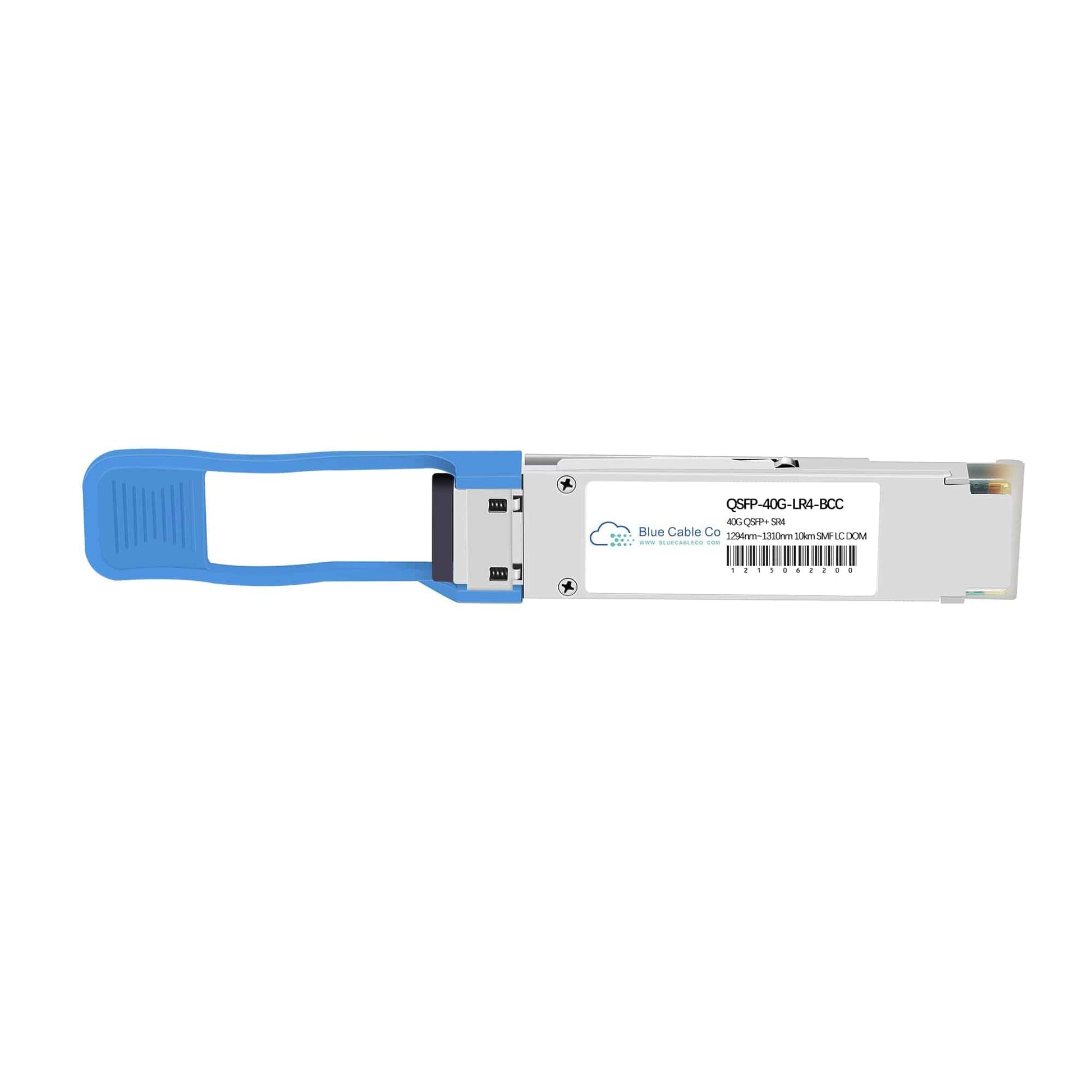

QSFP-40G-LR4-Arista-BCC | Arista Compatible 40GB Single-Mode 10km (40GBASE-LR4)

QSFP-40G-LR4-Arista-BCC | Arista Compatible 40GB Single-Mode 10km (40GBASE-LR4)

QSFP-40G-LR4-ARISTA-BCC

In stock:3

$1,064.80 AUD
$1,064.80 AUD
$1,064.80 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The QSFP-40G-LR4-ARISTA-BCC is a drop-in compatible replacement for the Arista QSFP-40G-LR4. This QSFP+ transceiver delivers plug-and-play 40GBASE-LR4 performance on Arista platforms with QSFP+ ports. - IEEE 802.3ba 40GBASE-LR4 compliance ensures interoperability with any standards-compliant 40G interface - QSFP+ form factor with duplex LC connector supporting 40Gb/s over single-mode fibre to 10km - Four CWDM wavelengths (1271nm, 1291nm, 1311nm, 1331nm) multiplexed internally for transmission over a single fibre pair - Digital Diagnostic Monitoring (DOM) support via I2C interface for real-time parameter access - Hot-swappable design compliant with QSFP MSA for installation without service interruption - Commercial temperature range (0 to 70°C) suitable for data centre and enterprise deployments

Features

• IEEE 802.3ba 40GBASE-LR4 standard guarantees optical interoperability with any compliant 40G interface regardless of vendor or form factor
• Four-lane CWDM architecture multiplexes 4 x 10Gb/s NRZ electrical signals onto four optical wavelengths, demultiplexed internally at each end
• Duplex LC connector allows migration from 10G infrastructure using existing single-mode patch panels and structured cabling without parallel fibre deployment
• Digital Diagnostic Monitoring exposes real-time transmit/receive optical power, temperature, bias current, and supply voltage for proactive link health monitoring
• Hot-pluggable QSFP MSA mechanical compliance enables field installation and replacement without powering down the host platform
• G.652 single-mode fibre compatibility with 10km reach budget designed to support typical data centre and campus backbone distances
• Commercial temperature range (0 to 70°C) covers controlled-environment deployments in enterprise cores and colocation facilities

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: QSFP-40G-LR4-ARISTA-BCC
Compatible Replacement For: QSFP-40G-LR4-ARISTA
Compatibility: Arista compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP+
Data Rate: 40Gb/s (4 x 10Gb/s lanes)
Wavelength: 1271nm, 1291nm, 1311nm, 1331nm (CWDM4)
Fibre Type: Single-Mode (SMF)
Connector Type: Duplex LC
DOM Support: Yes (DDM via I2C)
Standards: IEEE 802.3ba 40GBASE-LR4, QSFP MSA, OTU3 C4S1-2D1
Max Reach: Up to 10km over OS2 single-mode fibre
Operating Temperature: 0°C to 70°C (commercial)
Power Consumption: 3.5W maximum

FAQs

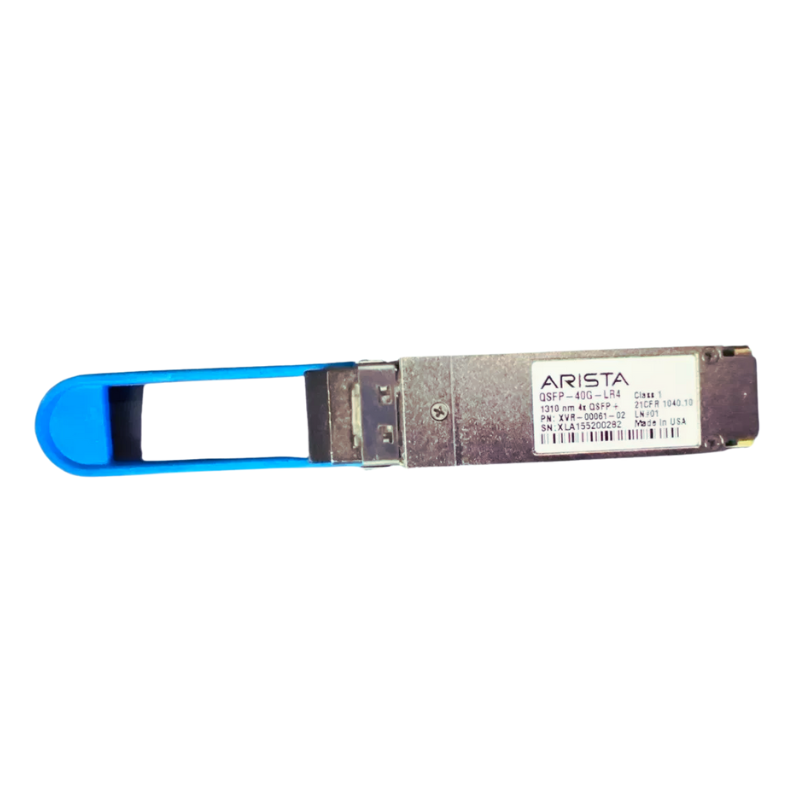

Q: Will this work in place of the Arista QSFP-40G-LR4?
A: Yes. This transceiver is electrically and optically compliant with IEEE 802.3ba 40GBASE-LR4, operates at the same CWDM wavelengths (1271/1291/1311/1331nm), uses the same duplex LC connector, and supports the same 10km reach over single-mode fibre. It is plug-and-play compatible with Arista platforms that specify the QSFP-40G-LR4.

Q: Which Arista platforms support this transceiver?
A: This transceiver works in any Arista switch with QSFP+ ports that support 40GBASE-LR4 optics. Compatibility is determined by the presence of a QSFP+ port operating at 40G and support for the 40GBASE-LR4 standard. Consult the Arista Transceiver and Cable Guide for your specific platform model to confirm 40GBASE-LR4 support.

Q: Can I breakout this LR4 transceiver to 4 x 10G links?
A: No. The 40GBASE-LR4 standard uses four wavelengths multiplexed onto a single duplex fibre pair. The wavelengths cannot be split into separate 10G links without substantial optical demultiplexing equipment. For 4 x 10G breakout over single-mode fibre you need a parallel optic like a QSFP-40G-PLR4 with an MPO connector and breakout cabling.

Q: What fibre type and grade is required for the full 10km reach?
A: This transceiver requires OS2 single-mode fibre (G.652 specification). The 10km distance assumes a maximum link loss budget that includes fibre attenuation, connector loss, and any splices. Using higher-loss fibre grades or additional connectors in the link path will reduce the supported distance. OM3 or OM4 multi-mode fibre is not compatible with this module.

Q: Does this transceiver support forward error correction (FEC)?
A: The IEEE 40GBASE-LR4 standard does not require FEC at the physical layer for 10km links over single-mode fibre, and this transceiver operates per that specification. FEC configuration, if available, is determined by the host platform. For OTN applications (OTU3), FEC is typically implemented at higher protocol layers by the host system rather than within the transceiver itself.
