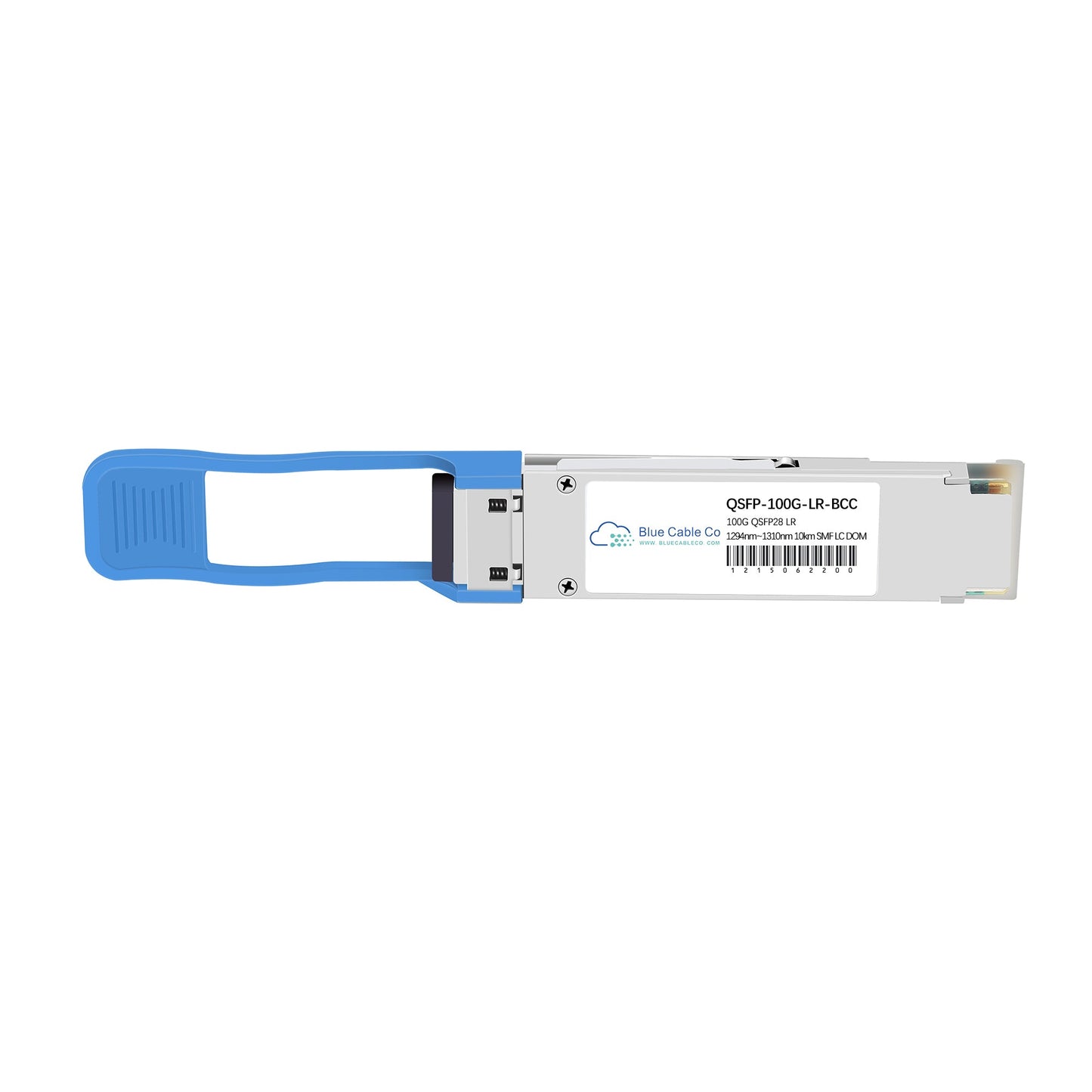

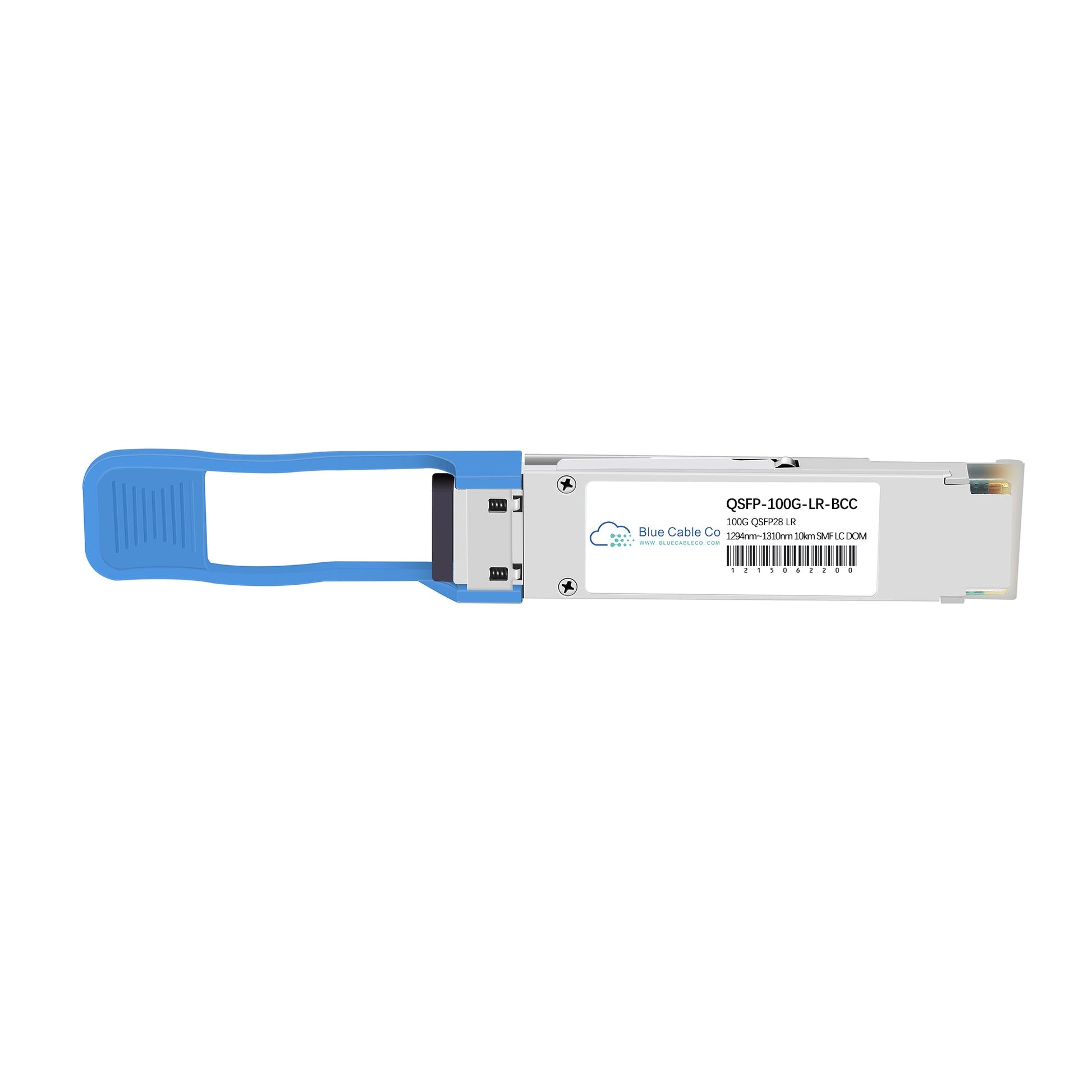

• QSFP-100G-LR-BCC Juniper Compatible 100GBASE-LR Blue Cable Co. label
1 1

Blue Cable Co

QSFP-100G-LR-BCC | Juniper Compatible 100G Single-Mode 10km (100GBASE-LR)

QSFP-100G-LR-BCC | Juniper Compatible 100G Single-Mode 10km (100GBASE-LR)

QSFP-100G-LR-BCC

Stock Status: Enquire

$1,017.50 AUD
$1,017.50 AUD
$1,017.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The QSFP-100G-LR-BCC is a drop-in compatible replacement for the Juniper QSFP-100G-LR. This QSFP28 transceiver provides plug-and-play compatibility with Juniper platforms requiring 100GBASE-LR connectivity. - Compliant with IEEE 802.3cd 100GBASE-LR1 and QSFP28 MSA, guaranteeing interoperability with Juniper QSFP28 ports - QSFP28 form factor, 100 Gbps data rate, single-mode fibre, up to 10km reach over standard OS2 SMF - Single lambda 1310nm transmission using PAM4 modulation with integrated media-side RS(544,514) FEC - Duplex LC connector, operating temperature 0 to 70 degrees C, hot-swappable installation - Digital diagnostic monitoring (DOM) provides real-time access to optical power, temperature, bias current, and voltage parameters - EML transmitter with cooled laser and PIN receiver for reliable 50 Gbaud PAM4 signal transmission

Features

• IEEE 802.3cd and 100G Lambda MSA compliance ensures compatibility with QSFP28 ports expecting 100GBASE-LR1 signalling
• Single lambda PAM4 architecture converts 4x25G NRZ electrical signals to 1x100G PAM4 optical signal at 1310nm, eliminating the LAN-WDM multiplexers required by 100GBASE-LR4
• Integrated media-side RS(544,514) FEC corrects transmission errors over the optical link, while host-side CAUI-4 interface runs without FEC
• EML (electro-absorption modulated laser) transmitter with cooled laser operates at 50 Gbaud PAM4, delivering higher spectral efficiency than 4-lane NRZ solutions
• Hot-swappable QSFP28 module installs into compliant ports without disrupting adjacent interfaces or requiring host reboot
• Real-time DOM parameters accessible via I2C interface allow monitoring of transmit and receive optical power, module temperature, laser bias current, and supply voltage for proactive link health management
• 6.3 dB optical link budget accommodates standard single-mode OS2 fibre runs up to 10km with margin for connectors, splices, and fibre plant variation

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Alternate Part Codes

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: QSFP-100G-LR-BCC
Compatible Replacement For: QSFP-100G-LR
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP28
Data Rate: 103.125 Gbps (100G Ethernet)
Wavelength: 1310nm (single lambda)
Fibre Type: Single-mode (SMF)
Connector Type: Duplex LC
DOM Support: Yes, digital diagnostics via I2C interface
Standards: IEEE 802.3cd 100GBASE-LR1, QSFP28 MSA, 100G Lambda MSA
Max Reach: Up to 10km (per datasheet, subject to fibre and link conditions)
Modulation: PAM4 (4-level pulse amplitude modulation)
FEC: Media-side RS(544,514) FEC enabled, host-side CAUI-4 no FEC
Operating Temperature: 0 to 70 degrees C (standard temperature range)

Alternate Part Codes

740-096178

FAQs

Q: Will this work in place of the Juniper QSFP-100G-LR?
A: Yes. The QSFP-100G-LR-BCC is a direct replacement for the Juniper QSFP-100G-LR, matching the QSFP28 form factor, 100 Gbps data rate, and 100GBASE-LR1 standard with single lambda 1310nm PAM4 transmission. It provides plug-and-play operation in Juniper platforms.

Q: Which Juniper platforms support this transceiver?
A: This transceiver works in Juniper platforms with QSFP28 ports that support 100GBASE-LR1 signalling with media-side FEC and CAUI-4 host interface. Verify your platform supports the QSFP-100G-LR SKU in the Juniper hardware compatibility tool, as some earlier platforms may only support 100GBASE-LR4 (four-wavelength) modules.

Q: What is the difference between 100GBASE-LR1 and 100GBASE-LR4?
A: 100GBASE-LR1 transmits a single 100G PAM4 optical signal at 1310nm, while 100GBASE-LR4 uses four multiplexed 25G NRZ signals across LAN-WDM wavelengths (1295.56, 1300.05, 1304.58, 1309.14nm). The receivers are not compatible. LR1 achieves the same 10km reach with simpler optics by using PAM4 modulation and RS FEC on a single wavelength.

Q: Does this module require FEC to be enabled on the switch?
A: The module has integrated media-side RS(544,514) FEC that operates automatically on the optical link to achieve 10km reach with PAM4 signalling. The host-side CAUI-4 interface between the module and switch does not use FEC. No manual FEC configuration is required on the switch for optical link operation.

Q: Can I use this transceiver to connect a Juniper switch to a 400G QSFP-DD breakout port?
A: Yes. The single lambda 100G architecture allows efficient breakout from 400G QSFP-DD ports using 4x100G single lambda optics. Each 100G lane on the QSFP-DD side maps to a full 100G QSFP28 port, avoiding the wavelength mismatch issues that occur when breaking out LR4 modules. Confirm your 400G platform supports 100GBASE-LR1 breakout mode.
