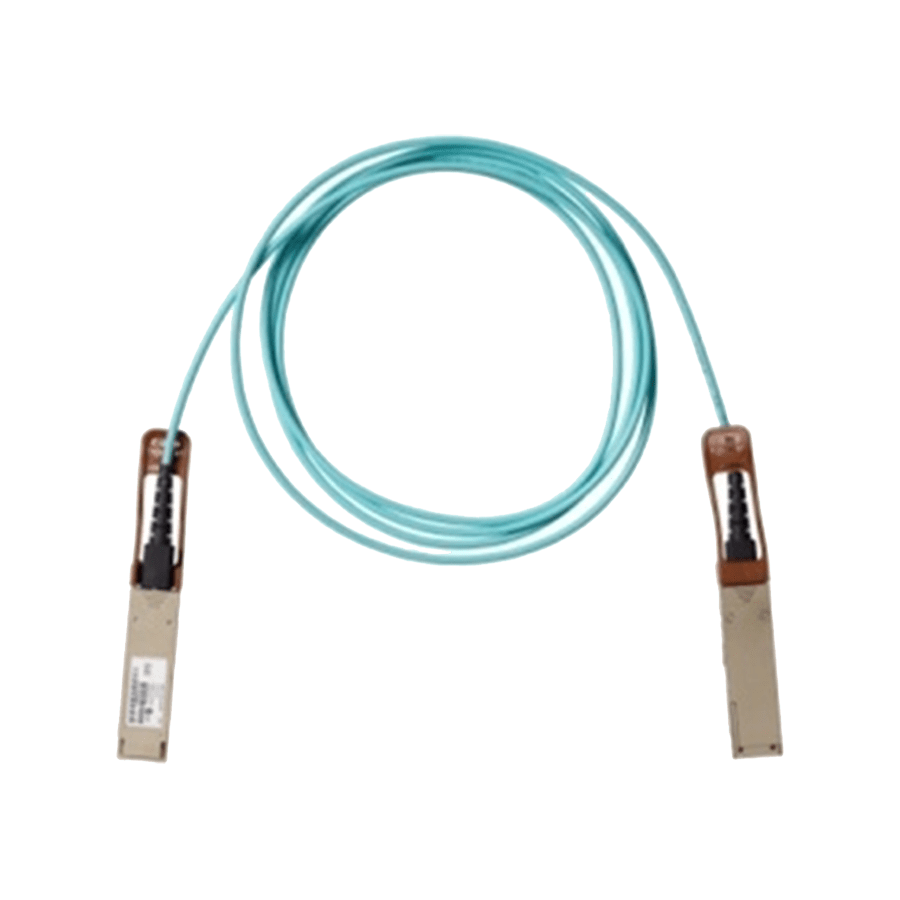

• Cisco compatible QSFP-100G AOC light blue fiber optic cable with gold connectors

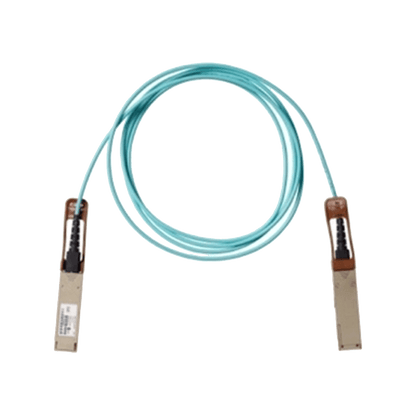

  • Cisco QSFP-100G-AOC light blue fiber optic cable with metallic connectors
1 2

Blue Cable Co

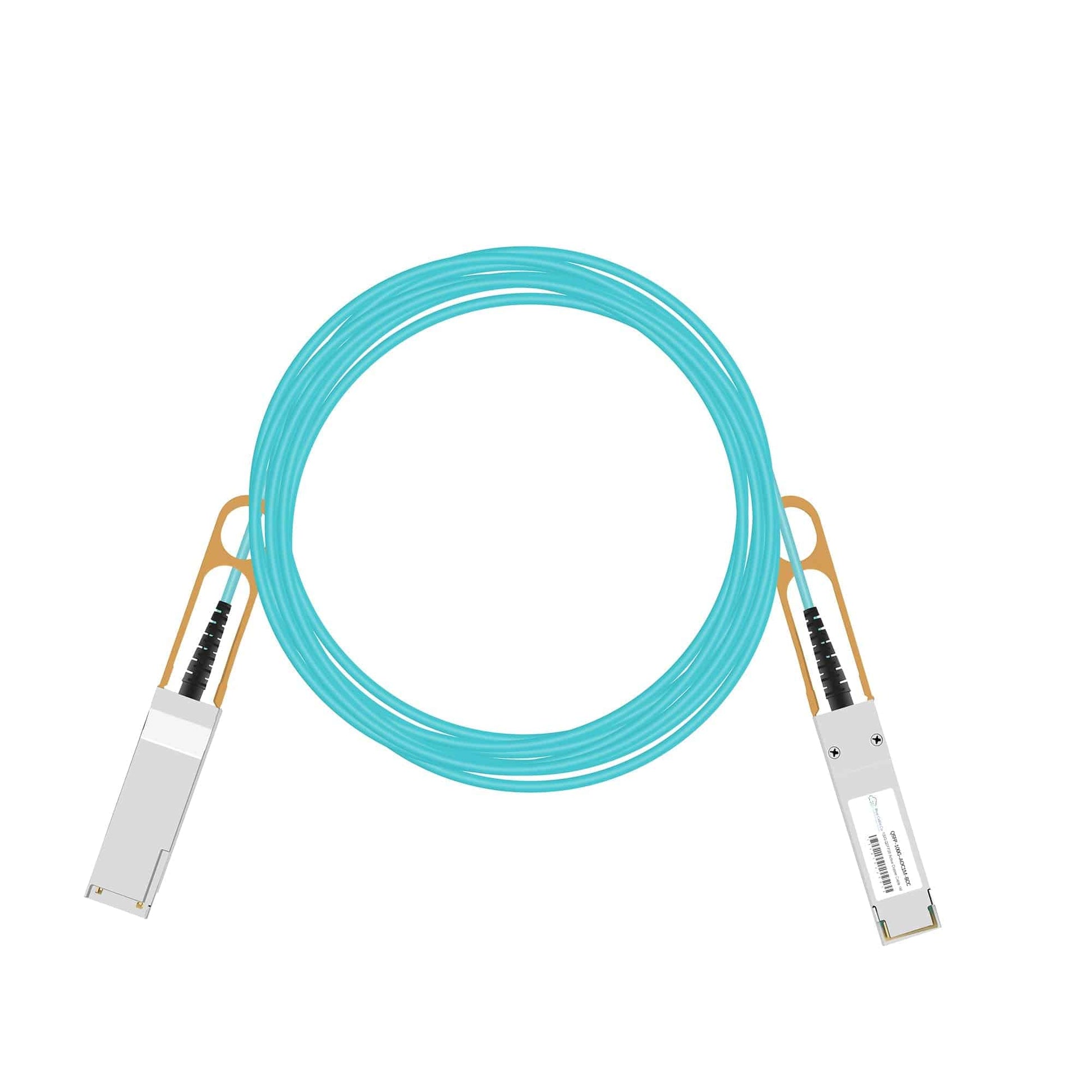

QSFP-100G-AOCxM-BCC | Cisco Compatible QSFP to QSFP Active Optical Cable, 100GBASE-AOC | 1 to 30M

QSFP-100G-AOCxM-BCC | Cisco Compatible QSFP to QSFP Active Optical Cable, 100GBASE-AOC | 1 to 30M

QSFP-100G-AOC1M-BCC

In stock:8

$291.50 AUD
$291.50 AUD
$291.50 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The QSFP-100G-AOCxM-BCC is a drop-in compatible replacement for the Cisco QSFP-100G-AOC1M series. This active optical cable assembly plugs directly into Cisco QSFP28 100G ports and operates over multi-mode fibre with integrated transceivers at each end. - Complies with IEEE 802.3bm 100GBASE-SR4 and SFF-8665 QSFP28 MSA, ensuring interoperability with vendor platforms supporting 100G QSFP28 AOC cables - Four independent 25 Gb/s lanes using 850 nm VCSEL technology, providing 100 Gb/s aggregate data rate over internal multi-mode ribbon fibre - Available in ten cable lengths: 1M, 2M, 3M, 5M, 7M, 10M, 15M, 20M, 25M, and 30M - Maximum power consumption 3.5W per terminal, compliant with SFF-8636 digital diagnostic monitoring interface - Operating case temperature range 0 to 70 degrees C, hot-pluggable electrical interface for simplified deployment and cable management in high-density rack environments

Features

• IEEE 802.3bm 100GBASE-SR4 compliance guarantees electrical and optical interoperability with Cisco QSFP28 100G ports and other vendor platforms supporting the standard
• Four independent full-duplex lanes operating at up to 25.78 Gb/s each, using 850 nm VCSEL transmitter arrays and PIN receiver arrays for parallel optical signal conversion
• Hot-pluggable QSFP28 form factor with integrated electro-optical and opto-electrical conversion within the cable assembly, eliminating the need for separate transceiver modules
• SFF-8636 digital diagnostic monitoring provides real-time access to operating parameters including transmit and receive power per lane, temperature, and voltage
• Maximum 3.5W power consumption per terminal enables deployment in high-density environments without exceeding thermal budgets typical of multi-port 100G line cards
• Thin, lightweight fibre construction compared to copper direct-attach cables improves airflow in densely populated racks and simplifies cable routing across and between adjacent racks

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: QSFP-100G-AOCxM-BCC
Compatible Replacement For: QSFP-100G-AOC1M
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP28 to QSFP28 active optical cable assembly
Data Rate: 100 Gb/s (4 x 25 Gb/s per lane)
Wavelength: 850 nm
Fibre Type: Multi-mode (internal ribbon fibre)
Standards: IEEE 802.3bm (100GBASE-SR4), SFF-8665 (QSFP28), SFF-8636 (Management Interface)
Available Lengths: 1M, 2M, 3M, 5M, 7M, 10M, 15M, 20M, 25M, 30M
Power Consumption: Max 3.5W per terminal
Operating Temperature: 0 to 70 degrees C (case temperature)
DDM Support: Yes (SFF-8636 compliant)

FAQs

Q: Will this work in place of the Cisco QSFP-100G-AOC1M?
A: Yes. The QSFP-100G-AOCxM-BCC is designed as a direct plug-and-play replacement for the Cisco QSFP-100G-AOC1M series. It matches the QSFP28 form factor, 100 Gb/s data rate, and IEEE 802.3bm 100GBASE-SR4 electrical interface, ensuring compatibility with Cisco switches and routers that accept the original part.

Q: Which Cisco platforms support this cable?
A: This cable works with any Cisco switch or router that has QSFP28 100G ports supporting active optical cables per the 100GBASE-SR4 standard and SFF-8665 specification. Consult the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your specific platform model to confirm QSFP-100G-AOC support.

Q: Why does this cable not require external fibre infrastructure?
A: Active optical cables integrate the multi-mode ribbon fibre and VCSEL/PIN transceiver assemblies directly into the cable assembly at the factory. The QSFP28 connectors contain the electro-optical and opto-electrical conversion circuits, so you simply plug the cable ends into two QSFP28 ports without separate transceivers or fibre patch panels.

Q: Can I hot-swap this cable without disrupting adjacent ports?
A: Yes. The QSFP28 interface supports hot-plug insertion and removal during system operation. The cable draws power only when seated and initializes within 2 seconds per SFF-8665. Adjacent ports remain unaffected as long as you observe normal ESD precautions and do not exceed the mechanical stress limits of the host cage during insertion.

Q: What is the bend radius limit for the internal fibre?
A: Active optical cables typically specify a minimum bend radius to prevent signal degradation or physical damage to the internal multi-mode fibre ribbon. While the QSFP-100G-AOCxM-BCC uses a flexible 3 mm round cable jacket, avoid bends tighter than approximately 30 mm during installation and route the cable to minimize sharp corners in rack pathways.
