• Palo Alto compatible PAN-SFP28-25GBASE-SR-BCC 25G SFP28 SR module 850nm 100m
1 1

Blue Cable Co

PAN-SFP28-25GBASE-SR-BCC | Palo Alto Compatible 25GB Multi-Mode 100m (25GBASE-SR)

PAN-SFP28-25GBASE-SR-BCC | Palo Alto Compatible 25GB Multi-Mode 100m (25GBASE-SR)

PAN-SFP28-25GBASE-SR-BCC

Stock Status: Enquire

$184.80 AUD
$184.80 AUD
$184.80 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

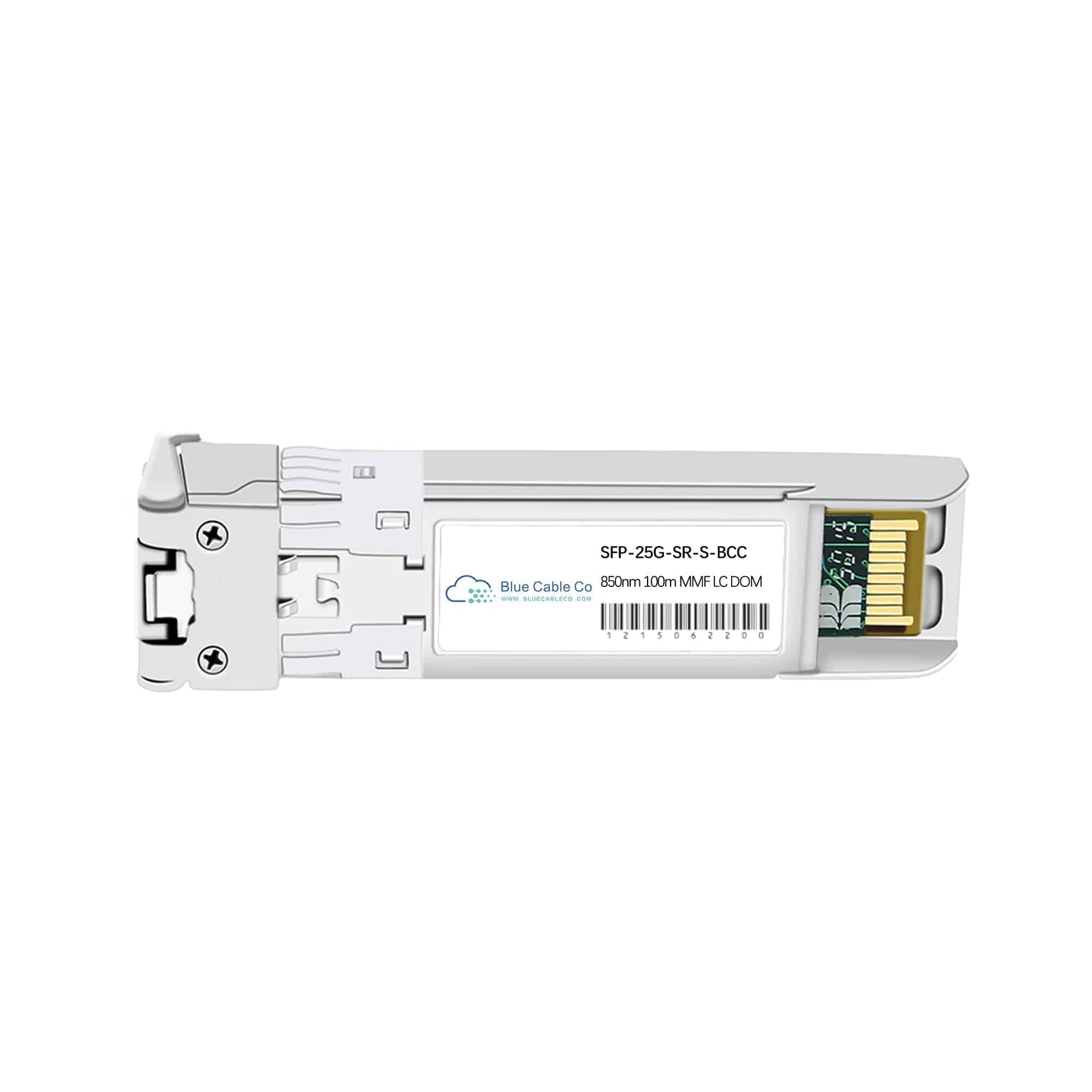

The PAN-SFP28-25GBASE-SR-BCC is a drop-in compatible replacement for the Palo Alto PAN-SFP28-25GBASE-SR. This SFP28 transceiver provides plug-and-play 25 Gigabit Ethernet connectivity on Palo Alto firewall platforms with SFP28 interface support. - IEEE 802.3 25GBASE-SR compliance guarantees interoperability with standards-compliant 25GbE infrastructure - SFP28 form factor, 25.78 Gbps data rate, 850nm wavelength, multi-mode fibre with LC duplex connector - 100m maximum reach over OM4 fibre, 70m over OM3 fibre - Digital Optical Monitoring (DOM) support for real-time transceiver diagnostics including temperature, optical power levels, and bias current - VCSEL-based transmitter and PIN photodiode receiver, commercial temperature range 0 to 70 degrees Celsius - Hot-swappable installation without network downtime

Features

• IEEE 802.3 25GBASE-SR standard compliance ensures interoperability with any standards-compliant 25GbE switch, router, or firewall port, eliminating vendor lock-in
• Single-lane 25G architecture delivers full 25.78 Gbps throughput per transceiver, replacing four 10G links with one cleaner signal path and lower latency
• VCSEL laser technology at 850nm wavelength optimises power efficiency and thermal profile for dense firewall deployments, typically under 1W power consumption
• OM3 and OM4 fibre compatibility allows deployment on existing multi-mode infrastructure, with OM4 reaching full 100m distance and OM3 supporting 70m
• DOM diagnostics expose real-time optical transmit and receive power, module temperature, laser bias current, and supply voltage via standards-based interface accessible through firewall CLI or management plane
• Hot-swappable design permits field installation and replacement in live Palo Alto firewalls without disrupting adjacent interfaces or requiring chassis power-down
• Commercial temperature rating 0 to 70 degrees Celsius suits controlled data centre and network operations centre environments with standard HVAC

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: PAN-SFP28-25GBASE-SR-BCC
Compatible Replacement For: PAN-SFP28-25GBASE-SR
Compatibility: Palo Alto compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP28
Data Rate: 25.78 Gbps
Wavelength: 850nm
Fibre Type: Multi-mode (MMF)
Connector Type: LC duplex
DOM Support: Yes
Standards: IEEE 802.3 25GBASE-SR
Max Reach: 100m on OM4, 70m on OM3
Operating Temperature: 0 to 70 degrees Celsius (commercial)

FAQs

Q: Will this work in place of the PAN-SFP28-25GBASE-SR?
A: Yes. This transceiver is fully compatible with the Palo Alto PAN-SFP28-25GBASE-SR based on IEEE 802.3 25GBASE-SR standard compliance, matching form factor, data rate, wavelength, and fibre type. It is plug-and-play in Palo Alto firewall platforms with SFP28 interface support.

Q: Which Palo Alto firewall platforms support this SFP28 transceiver?
A: This transceiver is compatible with Palo Alto platforms featuring SFP28 interfaces, including PA-5200 Series (PA-5250, PA-5260, PA-5280), PA-5400 Series (PA-5410, PA-5420, PA-5430), PA-3430, PA-3440, and PA-7000 Series with applicable line cards. Confirm your specific model and interface card support SFP28 before deployment.

Q: What is the reach difference between OM3 and OM4 fibre for 25GBASE-SR?
A: OM4 fibre supports 100m at 25 Gbps due to its lower modal dispersion and higher effective modal bandwidth, while OM3 fibre is limited to 70m at 25 Gbps. Both use 850nm wavelength. For new installations or maximum flexibility, OM4 provides the full IEEE-specified reach and headroom for future higher-speed migration.

Q: Does this transceiver require Forward Error Correction on the firewall port?
A: 25GBASE-SR over short-reach multi-mode fibre typically does not require FEC for distances within the 70m or 100m specification, as the optical link budget is sufficient. However, some Palo Alto platforms may enable FEC by default or require it for certain configurations. Consult your firewall's interface settings and verify link stability after installation.

Q: Can I use this 25G SFP28 transceiver in a 10G SFP+ port?
A: No. SFP28 transceivers are not mechanically or electrically compatible with SFP+ ports. The SFP28 form factor requires a native SFP28 port to operate at 25 Gbps. Some dual-rate SFP28 transceivers can negotiate 10G speeds in an SFP28 port, but this specific module is designed for 25GBASE-SR operation only.
