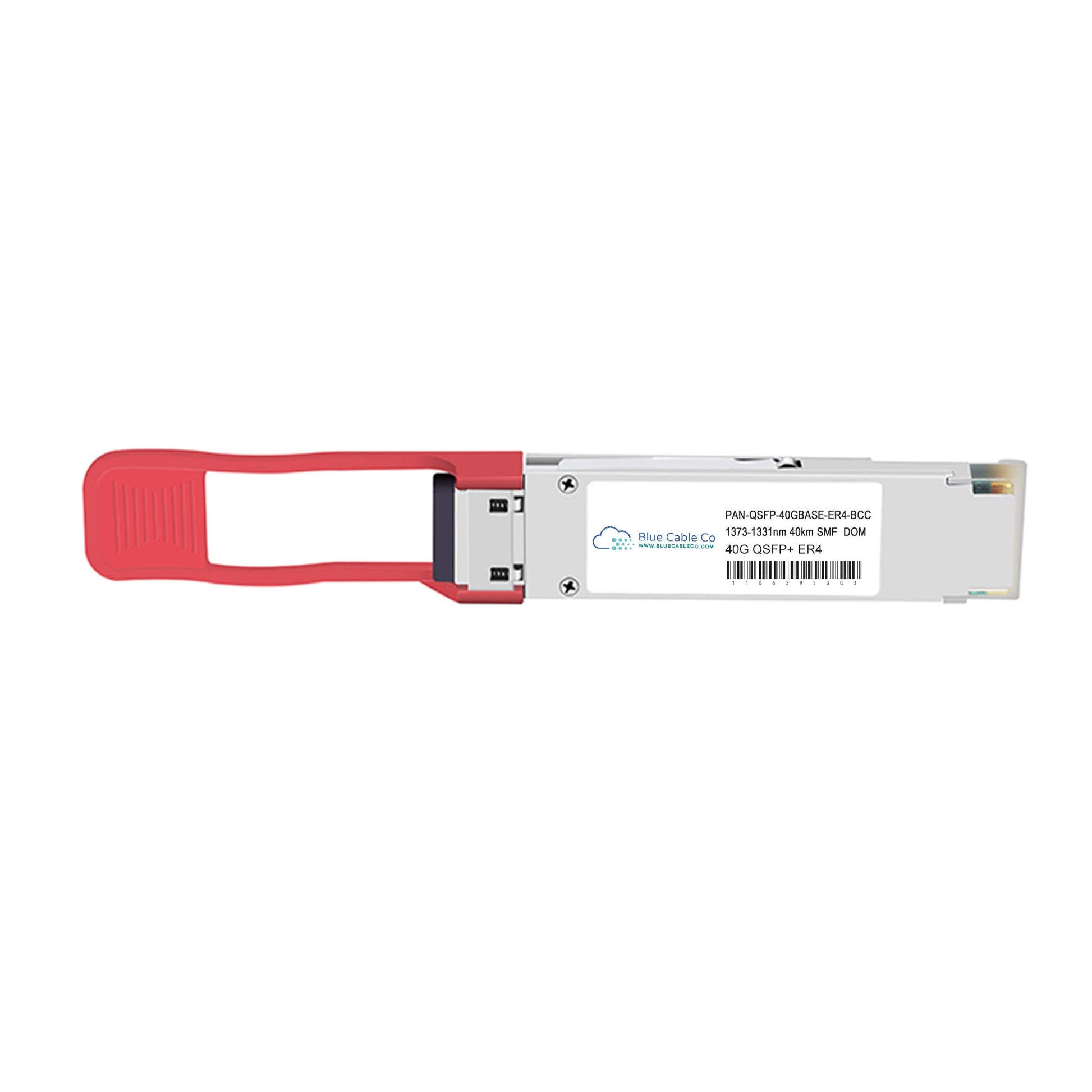

PAN-QSFP-40GBASE-ER4-BCC | Palo Alto Compatible 40GB Single-Mode ER4 Transceiver - 40km (40GBASE-ER4)

Q: Will this work in place of the PAN-QSFP-40GBASE-ER4?
A: Yes. This transceiver is designed as a plug-and-play replacement for the Palo Alto PAN-QSFP-40GBASE-ER4. It matches the IEEE 802.3ba 40GBASE-ER4 specification, QSFP+ form factor, and CWDM wavelength plan (1271/1291/1311/1331 nm), ensuring full functional equivalence in Palo Alto QSFP+ ports. The module has been tested in Sydney and programmed for compatibility with Palo Alto Networks platforms.

Q: Which Palo Alto firewall models support this transceiver?
A: This transceiver is compatible with Palo Alto firewall platforms that include QSFP+ interfaces supporting 40GBASE-ER4, such as PA-5200 series HSCI and standard QSFP+ ports, and PA-7000 series. Confirm your specific model includes QSFP+ ports rated for 40G operation; the module conforms to QSFP+ MSA standards and IEEE 802.3ba, so any Palo Alto platform listing PAN-QSFP-40GBASE-ER4 support will accept this replacement.

Q: What single-mode fiber type and patch cord quality is required for 40km reach?
A: Use OS2 single-mode fiber (G.652 standard) with duplex LC connectors. The 40km distance specification assumes 19 dB total link budget, which accommodates approximately 0.4 dB/km fiber attenuation plus connector and splice losses. For links approaching 40km, verify fiber quality, use low-loss LC connectors (under 0.3 dB insertion loss per mated pair), ensure clean end-faces, and avoid excessive bend radius violations. Links beyond 30km may require engineered link analysis to confirm power budget.

Q: Can I monitor the health of individual CWDM lanes via DOM?
A: Yes. The module provides per-channel DOM data accessible via the I2C interface as specified by QSFP+ MSA. You can independently monitor transmitted optical power, received optical power, and laser bias current for each of the four CWDM wavelengths, plus module-wide temperature and supply voltage. On Palo Alto firewalls, use CLI commands such as 'show transceiver-detail' to access these parameters for diagnosing wavelength-specific issues like imbalanced channel power or receiver sensitivity degradation.

Q: Does this module support OTU3 rates for optical transport network applications?
A: Yes. The transceiver supports data rates up to 44.8 Gbps, which includes OTU3 (43.01 Gbps) and OTU3e2 (44.58 Gbps) for optical transport networks, and STM-256 (39.81 Gbps) for SONET/SDH applications, in addition to 40 Gigabit Ethernet (41.25 Gbps). The four-lane CWDM architecture accommodates these protocol variations. Note that application support depends on the host platform capabilities; confirm your Palo Alto firewall port configuration supports the intended protocol mode beyond standard Ethernet.
