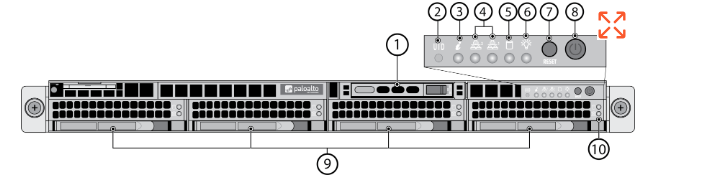

• Palo Alto PAN-M-300 16TB rack mount with silver server rack ports

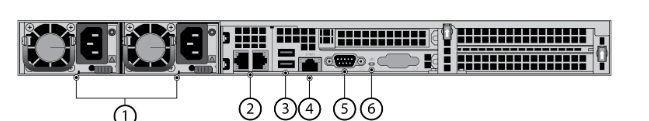

  • Rear view of Palo Alto PAN-M-300 16TB rack mount with fans and ports
1 2

Palo Alto

Palo Alto PAN-M-300 | Panorama M-300 Management Appliance, 16TB RAID, Dual PSU

Palo Alto PAN-M-300 | Panorama M-300 Management Appliance, 16TB RAID, Dual PSU

PAN-M-300

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Palo Alto Networks PAN-M-300 is a 1U rack mount Panorama management appliance for centrally managing Palo Alto Networks firewalls. This 16TB RAID configuration (4 x 8TB) with dual hot-swap power supplies can be deployed as a Panorama manager, a management-only server or a dedicated Log Collector, and supports management of up to 1,000 firewalls.

Running PAN-OS and Panorama, the M-300 provides centralised policy, device provisioning and log management from a single platform. Two 100/1000/10000 Ethernet ports, a DB9 console port and a USB port cover network and local management access, while active/passive high availability supports resilient deployments.

Features

- Configurable as Panorama management mode, management-only mode, Log Collector mode or PAN-DB private cloud server
- High availability (active/passive) support
- Centralised policy, device provisioning and log management
- JSON and XML REST APIs, web GUI and CLI management
- Authentication via RADIUS, SAML, LDAP, TACACS+ and a local database
- Zero-touch provisioning (ZTP) support
- Dual hot-swap redundant power supplies for resilient operation

Warranty

Palo Alto Networks offers standard warranty coverage for both its hardware and software products to ensure reliability and peace of mind.
• Hardware Warranty: All Palo Alto Networks hardware is covered by a 12-month warranty from the date of shipment. This warranty follows a return-and-repair service model. If a hardware issue occurs within this period, a Return Merchandise Authorization (RMA) will be issued to facilitate the repair or replacement process.
• Software Warranty: Palo Alto Networks software carries a 90-day warranty, which includes access to all applicable updates, bug fixes, and feature upgrades during that time. Updates can be downloaded through the device interface or via the secure support portal, accessible upon account creation and device registration.
These warranties provide baseline protection and access to critical updates but do not include advanced support or next-business-day hardware replacement.
Extended Warranty Options:
IP Trading offers extended warranty and premium support services for Palo Alto Networks solutions, including options for next-day hardware replacement and 24/7 technical assistance. Contact us to customise a service plan for your organisation.
https://www.paloaltonetworks.com.au/services/support/product-warranty

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U, 19-inch rack mount (1.7in H x 29in D x 17.2in W)
- I/O: 2 x 100/1000/10000 Ethernet ports, 1 x DB9 console serial port, 1 x USB port
- Storage: 4 x 8TB RAID-certified HDD, 16TB RAID storage (maximum 16TB), RAID 1 pairs
- System drive: 480GB SSD
- Power: dual hot-swap redundant power supplies, 100-240 VAC (50/60Hz)
- Manages up to 1,000 firewalls
- Operating temperature: 41 to 104 F (5 to 40 C)
- Weight: approx. 26 lbs
- Operating system: PAN-OS / Panorama

FAQs

Q: What can the PAN-M-300 be used for?
A: It can run as a Panorama manager, a management-only server, a dedicated Log Collector or a PAN-DB private cloud server, giving centralised control of Palo Alto Networks firewalls.

Q: How much log storage does this model include?
A: This SKU includes 16TB of RAID storage using four 8TB drives in RAID 1 pairs, plus a 480GB SSD system drive.

Q: How many firewalls can the M-300 manage?
A: The M-300 can manage up to 1,000 firewalls.

Q: Does the M-300 have redundant power?
A: Yes. It includes dual hot-swap redundant power supplies that accept 100-240 VAC at 50/60Hz.

Q: Does the M-300 support high availability?
A: Yes. It supports active/passive high availability for resilient central management.

Q: What network and management ports does it have?
A: It has two 100/1000/10000 Ethernet ports, one DB9 console serial port and one USB port. It can also be managed through the web GUI, CLI and REST APIs.
