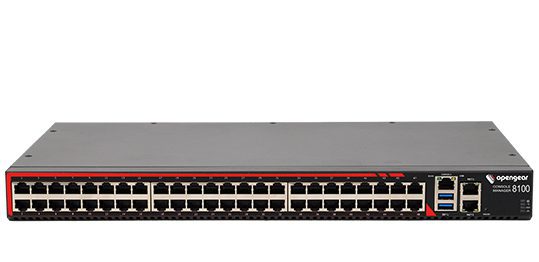

OPENGEAR CM8148 | 48-Port Console Manager, 2x 10GbE SFP+, 1U Rack, 1 Yr Foundation Support

OPENGEAR CM8148 | 48-Port Console Manager, 2x 10GbE SFP+, 1U Rack, 1 Yr Foundation Support

CM8148

Stock Status: Enquire

$8,661.94 AUD
$8,661.94 AUD
$8,661.94 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Opengear CM8148-10G is a high-density 1U rack-mount console manager delivering Smart Out-of-Band (OOB) management for enterprise data centres and large-scale network deployments. It features 48 selectable RS-232 serial ports, 2x 10GbE SFP+ uplinks, 2x 1GbE RJ45 ports, an ARM dual-core 1.6GHz processor, 2GB RAM, 32GB flash storage, TPM 2.0 hardware security, Docker and Python automation support, and dual power supplies with passive cooling — all in a resilient, energy-efficient platform.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. Order now at iptrading.com.au — trusted by Australian IT professionals.

Features

- 48 selectable RS-232 serial ports with straight-through cabling — no adapters required
- 2x 10GbE SFP+ uplinks for direct integration into high-speed data centre networks
- Smart Out-of-Band (OOB) management ensures resilient remote access even during primary network outages
- TPM 2.0 hardware security module for encrypted storage and secure boot
- Docker container and Python/REST API support for advanced data centre automation
- Dual power supplies with independent monitoring and automatic failover
- Passive cooling design reduces energy consumption and lowers total cost of ownership
- Managed at scale via Opengear Lighthouse Service Portal with auto-port discovery
- Supports cellular failover with optional 5G modem for maximum OOB resilience
- TAA compliant — suitable for government and regulated enterprise deployments
- 4-year hardware warranty included for long-term investment protection
- Includes 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR): 8x5 regional assistance, NBD RMA in Australia, and firmware updates throughout the support term

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 48 selectable RS-232 ports, software-selectable pinout X1 or X2
- Serial Port Speeds: 50 to 230,400 bps
- Network Uplinks: 2x 10GbE SFP+ (NET1, NET2)
- Network Ports: 2x 1GbE RJ45 (NET3, NET4)
- USB: 2x USB 3.0 host ports
- CPU: ARM dual-core 1.6GHz
- RAM: 2GB
- Flash Storage: 32GB
- Security: TPM 2.0 hardware security module
- Automation: Docker container support; Python scripting and REST API
- Power: Dual power supply (AC or DC options); <25W typical power draw
- Cooling: Passive cooling design
- Form Factor: 1U rack-mount
- Operating Temperature: 5–50°C
- Relative Humidity: 5–90% non-condensing
- Management: Opengear Lighthouse Service Portal enabled
- Compliance: TAA compliant
- Hardware Warranty: 4 years
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR) — 8x5 regional, phone/email/portal, NBD RMA (AU), firmware updates included

FAQs

Q: What is included in the 1 Year Opengear Foundation Support bundled with this listing?
A: This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR). Entitlements cover 8x5 regional business-hours assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and 30 minutes via email. Priority 1 (Critical) issues — such as severe outages or DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are also included throughout the support term, with a 95% SLA compliance target.

Q: Can I extend support beyond the included 1 year?
A: Yes. Opengear Foundation Support is available in 1, 3, and 5-year terms, with maximum coverage of up to 7 years. Co-terming with Lighthouse subscriptions and hardware warranties is also supported. Contact IP Trading to discuss extended support options.

Q: What are the 10GbE SFP+ uplinks used for on the CM8148-10G?
A: The two 10GbE SFP+ uplinks (NET1 and NET2) allow the CM8148-10G to connect directly into high-speed data centre network fabric, providing fast, resilient out-of-band management access even under primary network failure conditions. The additional 2x 1GbE RJ45 ports (NET3, NET4) offer further connectivity flexibility.

Q: Does the CM8148-10G support automation and scripting?
A: Yes. The CM8148-10G supports Docker containers for hosting automation tools and custom applications, Python scripting, and a REST API — making it well-suited for data centre automation, NetOps workflows, and infrastructure-as-code environments.

Q: Can I purchase the CM8148-10G in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian reseller of Opengear products. You can purchase the CM8148-10G with bundled Foundation Support directly through our online store or by contacting our sales team for volume pricing, freight, and deployment enquiries.

Q: What serial port cabling does the CM8148-10G require?
A: The 48 serial ports use a straight-through cabling design — no adapters or crossover cables are required. The pinout is software-selectable (X1 or X2), simplifying deployment and reducing cabling complexity in large data centre environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
