OPENGEAR

OPENGEAR ACM7004-2-L | ACM7000 4-Port Serial Resilience Gateway, Global 4G LTE-A Pro, Dual SIM, 2x GbE, 1 Yr Foundation Support

OPENGEAR ACM7004-2-L | ACM7000 4-Port Serial Resilience Gateway, Global 4G LTE-A Pro, Dual SIM, 2x GbE, 1 Yr Foundation Support

SKU:ACM7004-2-L

Stock Status: Enquire

Regular price $2,486.02 AUD
Regular price
$2,486.02 AUD
$2,486.02 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

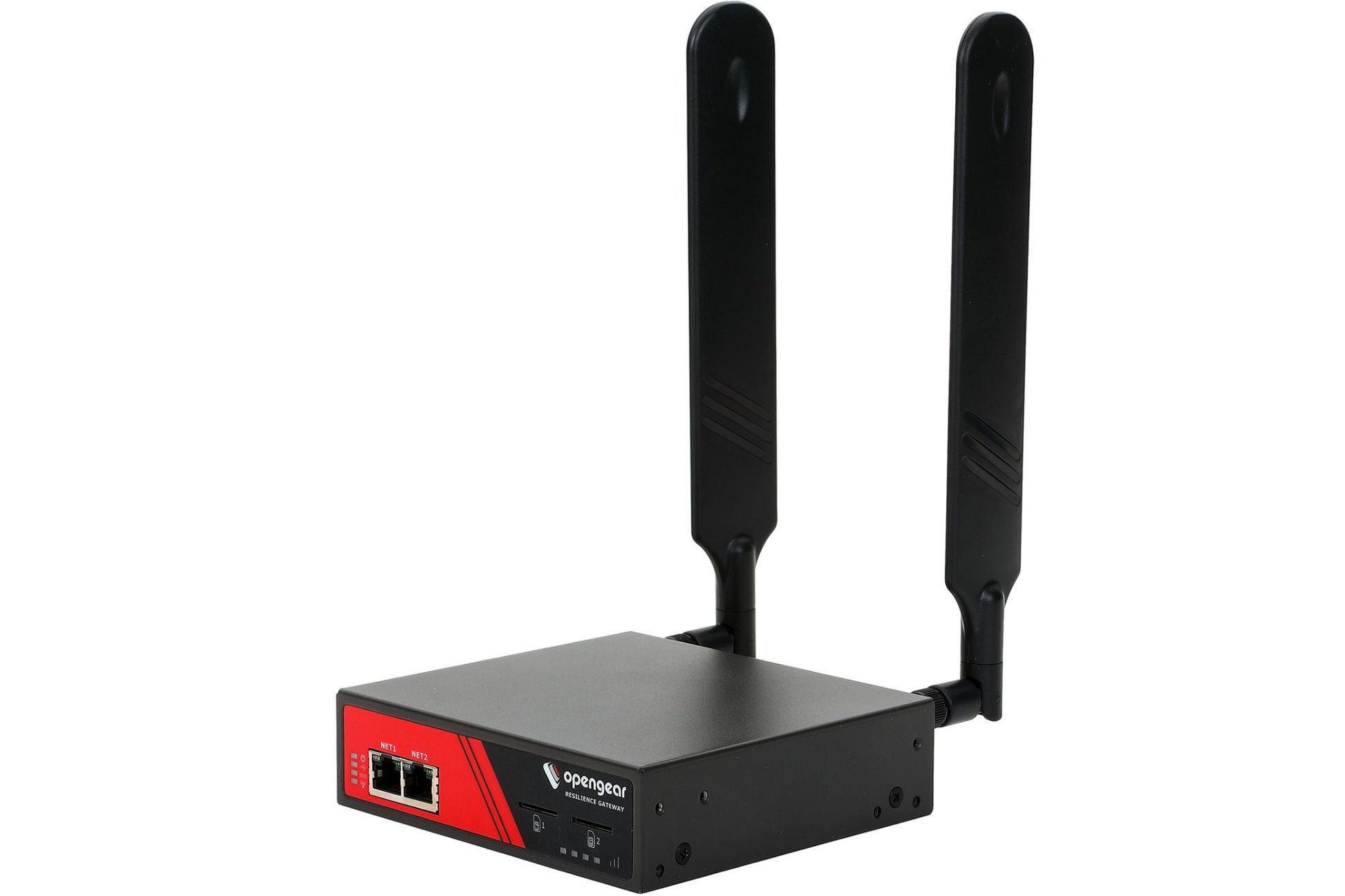

The Opengear ACM7004-2-L is a compact Smart Out-of-Band Resilience Gateway purpose-built for secure remote management at edge and branch locations. It delivers 4 x RJ45 RS-232 serial console ports (Cisco Straight pinout), 2 x GbE Ethernet, an embedded Global 4G LTE-A Pro cellular modem with dual SIM, 2 x DIO ports, and 2 x High Voltage Digital Output ports — all in a desktop or rack-mountable form factor. The unit runs Linux with Opengear's Custom Development Kit (CDK) and integrates with Opengear Lighthouse for centralised management. FIPS 140-2 validated and NERC CIP-capable, it automatically fails over to cellular when the primary network fails, keeping remote infrastructure accessible at all times.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-ACM7000-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. Order now at iptrading.com.au — trusted by Australian IT professionals.

Features

- Smart Out-of-Band (OOB) management for secure remote access to critical network infrastructure
- Automatic failover to embedded Global 4G LTE-A Pro cellular when primary Ethernet fails
- Dual SIM support for multi-carrier cellular resilience and continuity
- 4 x Cisco Straight pinout serial console ports for direct device management
- IP Passthrough maintains broader network connectivity during outages
- FIPS 140-2 validated security module with NERC CIP compliance support
- Centralised multi-site management via Opengear Lighthouse software
- 2 x DIO and 2 x High Voltage Digital Output ports for environmental and automation integration
- Internal temperature sensor with support for external EMD5000 environmental sensors
- Linux OS with Custom Development Kit (CDK) for custom scripting and automation
- Compact desktop or rack-mountable form factor — ideal for retail, branch, and edge deployments
- 5-year hardware warranty standard, extendable to 7 years
- Includes 1 Year Opengear Foundation Support (OG-FNTS-ACM7000-1YR) — 8x5 live assistance, next-business-day RMA in Australia, and firmware updates included

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Serial Ports: 4 x RJ45 RS-232 (Cisco Straight pinout, 50–230,400 bps)
- Ethernet Ports: 2 x RJ45 10/100/1000 Mbps (primary and failover)
- USB Ports: 4 x USB 2.0 console ports
- Cellular: Embedded Global 4G LTE-A Pro modem with dual SIM support
- CPU: 800 MHz 1-Core ARMv7 (Marvell 88F6W11 Armada 370 SoC)
- RAM: 256 MB DDR3 SDRAM
- Storage: 32 MB embedded flash + 4 GB internal NAND flash
- Digital I/O: 2 x TTL level DIO ports (5V DC max @ 20 mA)
- Digital Output: 2 x High Voltage Digital Output ports (5–30V DC @ 100 mA)
- Power: External 12V DC global power supply (110–240V AC, 11.5W total)
- Operating System: Linux with CDK (Custom Development Kit) and source code access
- Dimensions: 5.13" H x 4.75" W x 1.38" D
- Form Factor: Desktop or rack-mountable (external rack mount tabs)
- Compliance: TAA Compliant; CE, UL 1950, TUV, C-Tick, RoHS, FIPS 140-2 validated, NERC CIP support
- Hardware Warranty: 5 years standard (extendable to 7 years)
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-ACM7000-1YR) included

FAQs

Q: What is included in this listing?
A: This listing includes the Opengear ACM7004-2-L Resilience Gateway hardware plus 1 Year of Opengear Foundation Support (OG-FNTS-ACM7000-1YR), sold together as a single SKU. Foundation Support is mandatory with every new Opengear appliance and covers technical assistance, RMA replacement, and firmware updates for the duration of the support term.

Q: What does Opengear Foundation Support cover?
A: Foundation Support provides 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and up to 30 minutes via email. Critical (Priority 1) issues — such as severe outages or DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are included throughout the term, with a 95% SLA compliance target.

Q: Can I extend Foundation Support beyond 1 year?
A: Yes. Opengear Foundation Support is available in 1, 3, and 5-year terms, with coverage extendable up to 7 years maximum. Co-terming with Opengear Lighthouse subscriptions and hardware warranties is also supported for simplified contract management.

Q: How does cellular failover work on the ACM7004-2-L?
A: The ACM7004-2-L features an embedded Global 4G LTE-A Pro modem with dual SIM support. When the primary wired Ethernet connection fails, the device automatically fails over to the cellular network, maintaining out-of-band management access to connected infrastructure. IP Passthrough is also supported to preserve broader network connectivity during a failure event.

Q: Can I manage multiple ACM7004-2-L units centrally?
A: Yes. The ACM7004-2-L integrates with Opengear Lighthouse, a centralised management platform that allows IT teams to monitor, configure, and troubleshoot multiple resilience gateways across distributed sites from a single interface. Call Home and VPN support enable secure outbound tunnel management without requiring inbound firewall rules.

Q: Can I purchase the ACM7004-2-L in Australia from IP Trading?
A: Absolutely. IP Trading (iptrading.com.au) is a trusted Australian B2B IT hardware reseller supplying Opengear products to enterprise, government, and critical infrastructure customers across Australia. The ACM7004-2-L is available with Australian-compliant power supply and next-business-day RMA support within Australia under Foundation Support. Contact us or order directly at iptrading.com.au.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
