Moxa V3408-TL7-W-CT-T | V3400 Series Industrial PC, Core i7, 16GB, 5G, Wi-Fi 6, 8x GbE

Authorised Moxa Partner

SKU:V3408-TL7-W-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

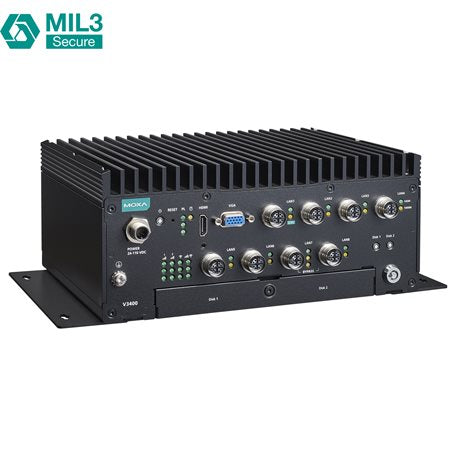

The Moxa V3408-TL7-W-CT-T is a fanless x86 industrial PC built on an 11th gen Intel Core i7-1185G7E, designed for onboard and wayside railway systems. It provides 8 Gigabit Ethernet ports, 16GB DDR4 RAM and a 128GB M.2 SSD, with Wi-Fi 6 and 5G modules preinstalled and a -T wide operating temperature rating.

Serial, DI/DO, USB 3.0, HDMI and VGA connections sit alongside two hot-swappable 2.5-inch SSD slots and additional M.2 and mPCIe expansion for wireless modules. A wide-range 24 to 110 VDC isolated power input suits rolling stock power environments, and the unit supports Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021 and Moxa Industrial Linux 3.

Features

- One-pair LAN bypass function for uninterrupted data transmission
- Fanless design with wide operating temperature range (-T model)
- Two hot-swappable HDD/SSD slots
- Multiple expansion slots for wireless modules (5G, 4G, Wi-Fi 6)
- Wide-range 24 to 110 VDC isolated power input
- Linux drivers supported for Debian 12 and Ubuntu 22.04 LTS (HWE)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 11th gen Intel Core i7-1185G7E (4C/8T, 12M cache, 1.8 GHz)
- Memory: 2 x SODIMM DDR4 slots (64 GB max), 16 GB preinstalled
- Storage: 2 x 2.5-inch SSD slots (hot-swappable) plus 1 x M.2 M key 2280 (NVMe), 128 GB M.2 SSD preinstalled
- Ethernet: 7 x 10/100/1000 Mbps plus 1 x 1000/2500 Mbps (8 ports total)
- Serial: 2 x RS-232/422/485 (software-selectable, DB9 male)
- I/O: 2 x DI, 2 x DO
- USB: 2 x USB 3.0 Type-A
- Video: 1 x HDMI, 1 x VGA
- Expansion: 2 x M.2 B key 3052 (5G, 1 module preinstalled), 1 x M.2 E key (Wi-Fi 6, 1 module preinstalled), 1 x mPCIe (4G or Wi-Fi 5)
- Power input: 24 to 110 VDC with isolation
- Buttons: disk hot-swap, reset, power
- OS support: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Moxa Industrial Linux 3 (Debian 11)

FAQs

Q: Which processor does the Moxa V3408-TL7-W-CT-T use?
A: It uses an 11th gen Intel Core i7-1185G7E processor with 4 cores, 8 threads and 12M cache.

Q: How much memory and storage come preinstalled?
A: The unit ships with 16 GB of DDR4 RAM and a 128 GB M.2 SSD. It has two SODIMM slots supporting up to 64 GB.

Q: Does it include wireless connectivity?
A: Yes. A 5G module and a Wi-Fi 6 module are preinstalled, and an additional mPCIe slot supports a 4G or Wi-Fi 5 module.

Q: What power input does it accept?
A: It accepts an isolated 24 to 110 VDC input, which suits railway and other industrial power environments.

Q: What does the -T suffix mean?
A: The -T suffix denotes the wide operating temperature version of the V3408 model.

Q: Which operating systems are supported?
A: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021 and Moxa Industrial Linux 3 (Debian 11) are supported, with Linux drivers also available for Debian 12 and Ubuntu 22.04 LTS.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
