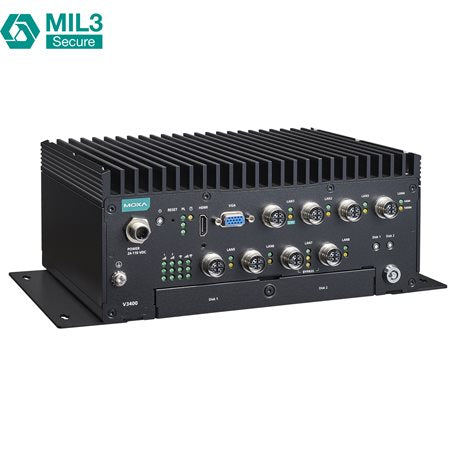

Moxa V3408-TL5-W-CT-T | V3408 Fanless Industrial PC, Core i5-1145G7E, 24-110 VDC, 8x GbE

Authorised Moxa Partner

SKU:V3408-TL5-W-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The V3408 fanless industrial PC is a railway-grade x86 embedded computer built around an 11th Gen Intel Core i5-1145G7E processor, with 8 Gigabit Ethernet ports and an isolated 24-110 VDC power input. It is designed for EN 50155 rolling-stock and wayside applications, including onboard secure-gateway deployments, and operates from -40 to 70 C when cellular and Wi-Fi modules are enabled.

This model combines two RS-232/422/485 serial ports, two digital inputs, two digital outputs, two USB 3.0 ports and HDMI and VGA video outputs in an IP30 aluminium housing. Storage is flexible, with two hot-swappable 2.5-inch drive slots plus an M.2 NVMe slot, and an onboard TPM module supports enhanced cybersecurity. Wireless expansion options include up to two 5G modules and Wi-Fi 6.

Features

- Intel Core embedded computer for in-vehicle applications
- Multiple wireless options: up to two 5G, one Wi-Fi 6, and one 4G or Wi-Fi 5
- Up to 8 Ethernet ports, suitable for onboard secure-gateway applications
- Two hot-swappable HDD/SSD slots with locks for enhanced security
- Onboard TPM module for enhanced cybersecurity
- Low voltage monitoring support of RTC battery
- Isolated 24 to 110 VDC power input for rolling-stock applications
- Complies with EN 50155 and EN 50121-4
- Complies with IEC 61373 shock and vibration requirements

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 11th Gen Intel Core i5-1145G7E
- Ethernet: 8 x GbE (7 x 10/100/1000 Mbps + 1 x 1000/2500 Mbps) with one-pair LAN bypass
- Serial: 2 x RS-232/422/485, DB9 male, 2 kV isolation
- Digital I/O: 2 x DI, 2 x DO (sink type, 200 mA per channel, 0 to 30 VDC)
- USB: 2 x USB 3.0
- Video: 1 x HDMI, 1 x VGA
- Memory: 2 x DDR4 SODIMM slots, 64 GB maximum
- Storage: 2 x hot-swappable 2.5-inch HDD/SSD slots, 1 x M.2 M-key 2280 (NVMe) slot
- Power input: 24 to 110 VDC, isolated
- Operating temperature: -40 to 70 C (with cellular and Wi-Fi modules enabled)
- Housing: aluminium, IP30
- Dimensions (without ears): 106 x 250 x 180 mm
- Weight: 5.2 kg (product only)
- Mounting: wall mounting
- MTBF: 654,694 hrs (Telcordia)

FAQs

Q: What power input does the V3408 accept?
A: It has an isolated 24 to 110 VDC power input, suited to rolling-stock and wayside power systems.

Q: How many Ethernet ports does it have?
A: It has 8 Gigabit Ethernet ports: 7 auto-sensing 10/100/1000 Mbps ports and 1 auto-sensing 1000/2500 Mbps port, with one pair of LAN bypass.

Q: What storage options are supported?
A: It provides two hot-swappable 2.5-inch HDD/SSD slots with locks and one M.2 M-key 2280 NVMe slot.

Q: Which railway standards does it comply with?
A: It complies with EN 50155 and EN 50121-4, and meets IEC 61373 shock and vibration requirements.

Q: Can it support wireless connectivity?
A: Yes. The platform supports up to two 5G modules, one Wi-Fi 6 module, and one 4G or Wi-Fi 5 module.

Q: What is the operating temperature range?
A: It operates from -40 to 70 C when cellular and Wi-Fi modules are enabled.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
