Moxa V3408-TL3-W-CT-T | V3400 Railway Fanless Computer, Core i3, Wi-Fi 6, -40 to 70°C, 8x GbE

Authorised Moxa Partner

SKU:V3408-TL3-W-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

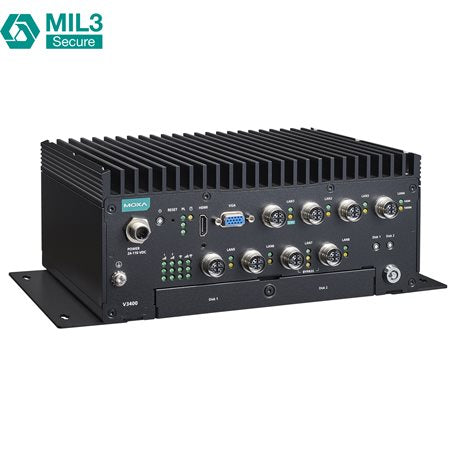

The Moxa V3408-TL3-W-CT-T is a fanless EN 50155 railway industrial computer built on an 11th Gen Intel Core i3-1115G4E processor with 8 Gigabit Ethernet ports. This variant ships with 16 GB of DDR4 memory, a 128 GB M.2 NVMe SSD, pre-installed Wi-Fi 6 and a conformal coating, and it is rated for -40 to 70°C operation. It suits onboard secure-gateway, data logging and connectivity applications in rolling stock and other in-vehicle deployments.

Two hot-swappable 2.5-inch drive bays, an isolated 24 to 110 VDC M12 power input, dual RS-232/422/485 serial ports, digital I/O and HDMI and VGA video outputs give integrators flexible expansion. Wireless options include 5G, 4G LTE and Wi-Fi 5 modules, and onboard TPM 2.0 supports a stronger cybersecurity posture. It runs Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Moxa Industrial Linux 3, Debian 12 or Ubuntu 22.04 LTS.

Features

- Intel Core i3 embedded computer for in-vehicle applications
- Up to two 5G, one Wi-Fi 6, and one 4G or Wi-Fi 5 connectivity options
- Up to 8 Ethernet ports, suitable for onboard secure-gateway applications
- Two hot-swappable HDD/SSD slots with locks for enhanced security
- Onboard TPM module for enhanced cybersecurity
- Low voltage monitoring support for RTC battery
- Complies with EN 50121-4
- Complies with IEC 61373 shock and vibration requirements
- Meets EN 50155 mandatory test items

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 11th Gen Intel Core i3-1115G4E (2C/4T, 6M cache, 2.2 GHz)
- Memory: 2 x DDR4 SODIMM slots (64 GB max), 16 GB pre-installed
- Storage: M.2 M-key 2280 NVMe slot with 128 GB SSD pre-installed
- 2 x hot-swappable 2.5-inch SSD/HDD slots (drives optional)
- Ethernet: 8 ports (7 x 10/100/1000 Mbps and 1 x 1000/2500 Mbps)
- 2 x RS-232/422/485 serial ports (software-selectable, DB9 male)
- 2 x digital inputs, 2 x digital outputs
- 2 x USB 3.0 Type-A hosts
- Video: 1 x HDMI, 1 x VGA
- Wireless: Wi-Fi 6 pre-installed; 1 x 5G pre-installed and 1 optional; optional LTE/Wi-Fi 5
- Power input: 24 to 110 VDC isolated, M12 A-coded connector
- Operating temperature: -40 to 70°C (EN 50155 OT4) with cellular and Wi-Fi modules enabled
- Onboard TPM 2.0
- Conformal coating (CT)

FAQs

Q: What processor does the Moxa V3408-TL3-W-CT-T use?
A: It uses an 11th Gen Intel Core i3-1115G4E processor (2 cores, 4 threads, 6M cache, 2.2 GHz).

Q: How much memory and storage is pre-installed?
A: This model includes 16 GB of DDR4 memory and a 128 GB M.2 NVMe SSD. The two SODIMM slots support up to 64 GB, and two hot-swappable 2.5-inch bays accept additional drives.

Q: What wireless connectivity does it support?
A: Wi-Fi 6 and one 5G module are pre-installed. A second 5G module is optional, along with optional LTE or Wi-Fi 5 modules.

Q: What operating systems are supported?
A: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Moxa Industrial Linux 3, Debian 12 and Ubuntu 22.04 LTS are supported.

Q: What power input does it require?
A: It accepts an isolated 24 to 110 VDC input through an M12 A-coded connector.

Q: What does the CT suffix mean in this part number?
A: CT indicates a conformal coating, which helps protect the circuitry in harsh railway and in-vehicle environments. This model is also rated for -40 to 70°C operation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
