Moxa V3408-TL1-W-CT-T | V3400 Fanless Industrial PC, Celeron 6305E, 5G, Wi-Fi 6, 8x GbE

Authorised Moxa Partner

SKU:V3408-TL1-W-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

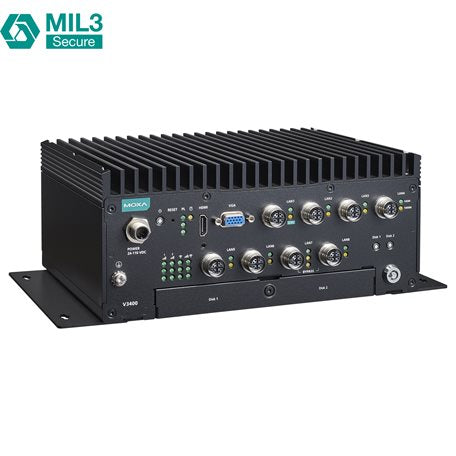

The Moxa V3408-TL1-W-CT-T is a fanless x86 industrial PC from the V3400 series, built around an Intel Celeron 6305E processor with 8 x GbE ports on M12 X-coded connectors. This SKU ships with 5G and Wi-Fi 6 modules preinstalled, 16 GB DDR4 and a 128 GB M.2 NVMe SSD, and runs from a 24 to 110 VDC input across a -40 to 70°C operating range, making it well suited to rail and other demanding field deployments.

For connectivity and expansion, it offers 2 x RS-232/422/485 serial ports, 2 digital inputs, 2 digital outputs, 2 x USB 3.0, HDMI and VGA video, and two hot-swappable 2.5-inch SSD slots. The wall-mount aluminium housing is rated IP30, with EN 50155 railway certification, TPM v2.0 for platform security and a LAN bypass pair on LAN7 and LAN8.

Features

- Fanless aluminium wall-mount housing rated IP30
- Wide 24 to 110 VDC isolated power input
- 40 to 70°C wide-temperature operation
- Railway certifications including EN 50155, EN 50121-4 and EN 45545-2
- M12 X-coded Ethernet and M12 A-coded power connectors for rugged connections
- 5G and Wi-Fi 6 modules preinstalled for wireless connectivity
- Two hot-swappable 2.5-inch SSD slots plus M.2 NVMe storage
- LAN bypass pair on LAN7 and LAN8
- TPM v2.0 for platform security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Celeron 6305E
- Memory: 16 GB DDR4 preinstalled, 2 x SODIMM slots, 64 GB maximum
- Storage: 128 GB M.2 NVMe SSD preinstalled, plus 2 x hot-swappable 2.5-inch SSD slots
- Ethernet: 8 x GbE (7 x 10/100/1000 Mbps and 1 x 1000/2500 Mbps), M12 X-coded
- Serial: 2 x RS-232/422/485 (DB9), 2 kV isolation
- I/O: 2 x DI, 2 x DO, 2 x USB 3.0
- Video: 1 x HDMI, 1 x VGA
- Wireless: 5G and Wi-Fi 6 modules preinstalled, 6 x Nano SIM slots
- Expansion: 2 x M.2 B key (5G), 1 x M.2 E key (Wi-Fi 6), 1 x mPCIe
- Power input: 24 to 110 VDC, M12 A-coded connector, 76.8 W maximum
- Operating temperature: -40 to 70°C
- Housing: aluminium, IP30, wall mounting
- Dimensions: 106 x 250 x 180 mm (without ears), 5.2 kg
- Security: TPM v2.0
- Supported OS: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Moxa Industrial Linux 3
- Certifications: EN 50155:2017, EN 50121-4, EN 45545-2:2020

FAQs

Q: Does this model include wireless modules?
A: Yes. The V3408-TL1-W-CT-T ships with a 5G module and a Wi-Fi 6 module preinstalled. It also has an mPCIe slot for 4G or Wi-Fi 5 expansion.

Q: What power supply does the V3408-TL1-W-CT-T need?
A: It runs from a 24 to 110 VDC isolated input through an M12 A-coded connector, with a maximum consumption of 76.8 W.

Q: Which operating systems are supported?
A: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021 and Moxa Industrial Linux 3 (Debian 11) are supported. Linux drivers are also available for Debian 12 and Ubuntu 22.04 LTS.

Q: Is it suitable for railway installations?
A: Yes. It carries EN 50155:2017, EN 50121-4, EN 50121-3-2 and EN 45545-2:2020 certifications and is tested to IEC 61373 for shock and vibration.

Q: How much storage and memory can be installed?
A: It ships with 16 GB DDR4 and a 128 GB M.2 NVMe SSD. Memory expands to 64 GB across two SODIMM slots, and two hot-swappable 2.5-inch SSD slots add further storage.

Q: What network ports does it provide?
A: It has 8 x GbE on M12 X-coded connectors: seven auto-sensing 10/100/1000 Mbps ports and one 1000/2500 Mbps port. LAN7 and LAN8 form a LAN bypass pair.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
