Moxa V3404-TL7-W-CT-T | V3400 Fanless Industrial Computer, Core i7-1185G7E, 4 GbE, -40 to 70°C

Authorised Moxa Partner

SKU:V3404-TL7-W-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

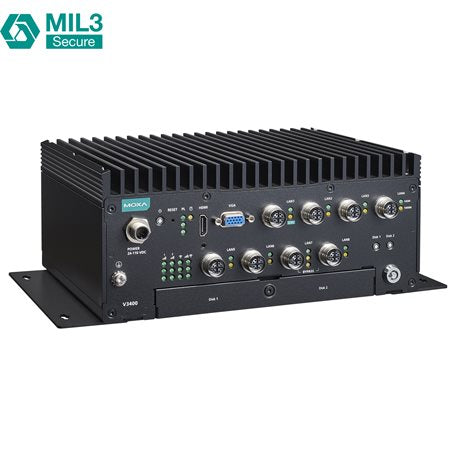

The Moxa V3404-TL7-W-CT-T is a fanless x86 industrial computer built around an 11th gen Intel Core i7-1185G7E processor, with 4 GbE ports, 2 serial ports and 2 DI/2 DO. It features dual hot-swappable drive bays, an isolated 24 to 110 VDC power input and a wide operating temperature range of -40 to 70°C, making it suited to rail, energy, transportation and factory automation deployments.

Wireless expansion slots support 5G, 4G and Wi-Fi modules for remote connectivity, while 16 GB of DDR4 memory and a pre-installed 128 GB NVMe SSD provide a ready-to-deploy platform. It supports Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Moxa Industrial Linux 3, Debian 12 and Ubuntu 22.04 LTS.

Features

- Dual hot-swappable HDD/SSD slots with a disk hot-swap button
- Multiple expansion slots for wireless modules (5G/4G/Wi-Fi)
- Fanless design for wide-temperature operation
- Isolated wide-range DC power input
- Supports Windows and Moxa Industrial Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 11th gen Intel Core i7-1185G7E (4C/8T, 12M cache, 1.8 GHz)
- Memory: 2 x SODIMM DDR4 slots (64 GB max), 16 GB DDR4 pre-installed
- Storage: 2 x 2.5-inch SSD slots (hot-swappable) plus 1 x M.2 M key 2280 NVMe slot with 128 GB SSD pre-installed
- Ethernet: 3 x 10/100/1000 Mbps and 1 x 1000/2500 Mbps (M12 X-coded connectors)
- Serial: 2 x RS-232/422/485 (software-selectable, DB9 male)
- Digital I/O: 2 DIs and 2 DOs
- USB: 2 x USB 3.0 type-A
- Video: 1 x HDMI and 1 x VGA
- Expansion: 2 x M.2 B key 3052 (5G), 1 x M.2 E key (Wi-Fi 6), 1 x mPCIe (4G or Wi-Fi 5)
- Power input: 24 to 110 VDC with isolation
- Operating temperature: -40 to 70°C
- OS support: Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Moxa Industrial Linux 3 (Debian 11), Debian 12, Ubuntu 22.04 LTS

FAQs

Q: What operating systems does the Moxa V3404-TL7-W-CT-T support?
A: It supports Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021, Moxa Industrial Linux 3 (Debian 11), Debian 12 and Ubuntu 22.04 LTS.

Q: Can the drives be replaced without powering down the system?
A: Yes. It has two 2.5-inch drive bays that are hot-swappable, with a disk hot-swap button, plus an M.2 NVMe slot with a 128 GB SSD pre-installed.

Q: What wireless expansion options are available?
A: It has two M.2 B key slots for 5G, one M.2 E key slot for Wi-Fi 6 and one mPCIe slot for 4G or Wi-Fi 5 modules.

Q: What power input does it accept?
A: It accepts an isolated 24 to 110 VDC input, suited to industrial and transportation power environments.

Q: What temperature range can it operate in?
A: It is fanless and rated for operation from -40 to 70°C.

Q: How much memory is included and how far can it be expanded?
A: It ships with 16 GB DDR4 pre-installed and has two SODIMM slots supporting up to 64 GB.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
