Moxa V3404-TL5-W-CT-T | V3400 Series Fanless Railway Computer, Core i5, 24-110 VDC, 5G, 4x GbE

Authorised Moxa Partner

SKU:V3404-TL5-W-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

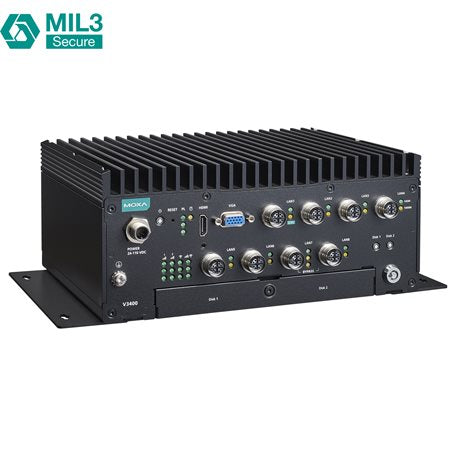

The Moxa V3404-TL5-W-CT-T is a fanless EN 50155 railway computer from the V3400 series, built on an Intel Core i5-1145G7E processor. It combines four M12 X-coded Ethernet ports (V3404), an isolated 24 to 110 VDC input, preinstalled Wi-Fi 6 and 5G modules, and a -40 to 70°C operating range, making it well suited to in-vehicle and rolling-stock deployments.

Expansion and storage are covered by two SODIMM DDR4 slots (64 GB maximum), two hot-swappable 2.5-inch SSD slots and an M.2 NVMe slot. Six Nano SIM slots support redundant 5G or LTE connections, while two RS-232/422/485 serial ports, digital I/O, USB 3.0 and VGA plus HDMI video outputs allow integration with onboard equipment. An onboard TPM 2.0 module and lockable drive cover add security.

Features

- Fanless 11th Gen Intel Core design for in-vehicle applications
- Isolated 24 to 110 VDC input for rolling-stock power systems
- EN 50155 OT4 operating temperature with cellular and Wi-Fi modules enabled
- Complies with EN 50121-4 and IEC 61373 shock and vibration requirements
- Two hot-swappable SSD slots with lockable cover
- Onboard TPM 2.0 for enhanced cybersecurity
- Preinstalled 5G and Wi-Fi 6 with six SIM slots for redundant connectivity
- M12 connectors for secure, vibration-resistant Ethernet and power

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-1145G7E
- Memory: 2 x SODIMM DDR4 slots, 64 GB maximum
- Storage: 2 x hot-swappable 2.5-inch SSD slots, 1 x M.2 M key 2280 NVMe slot
- Ethernet: 3 x 10/100/1000 Mbps and 1 x 1000/2500 Mbps, M12 X-coded
- Serial: 2 x RS-232/422/485 (DB9 male), 2 kV isolation
- Digital I/O: 2 x DI, 2 x DO
- USB: 2 x USB 3.0 type-A
- Video output: 1 x VGA, 1 x HDMI
- Wireless: preinstalled 5G module and Wi-Fi 6 module, 6 Nano SIM slots
- Security: TPM v2.0
- Power input: isolated 24 to 110 VDC, M12 A-coded connector
- Power consumption: 74.4 W maximum
- Operating temperature: -40 to 70°C (EN 50155 OT4)
- Housing: aluminium, IP30
- Dimensions: 106 x 250 x 180 mm (without ears)
- Weight: 5.2 kg
- Standards: EN 50155:2017, EN 50121-4, EN 45545-2:2020, IEC 61373

FAQs

Q: What operating systems does the Moxa V3404-TL5-W-CT-T support?
A: The V3400 series supports Windows 11 IoT Enterprise LTSC 2024, Windows 10 IoT Enterprise LTSC 2021 and Moxa Industrial Linux 3 (Debian 11). Linux drivers are also available for Debian 12 and Ubuntu 22.04 LTS (HWE).

Q: Is this computer suitable for railway installations?
A: Yes. It is designed to EN 50155:2017, EN 50121-4 and EN 45545-2:2020, with IEC 61373 shock and vibration compliance and an isolated 24 to 110 VDC input.

Q: What wireless connectivity is included?
A: This model has a preinstalled 5G module and a Wi-Fi 6 module, with six Nano SIM slots in total for redundant cellular connections.

Q: How many network ports does it have?
A: The V3404 models provide four M12 X-coded Ethernet ports: three 10/100/1000 Mbps and one 1000/2500 Mbps.

Q: What storage options are available?
A: It has two hot-swappable 2.5-inch SSD slots behind a lockable cover plus one M.2 M key 2280 NVMe slot.

Q: What is the operating temperature range?
A: It operates from -40 to 70°C, meeting EN 50155 OT4, with the 5G and Wi-Fi 6 modules installed.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
