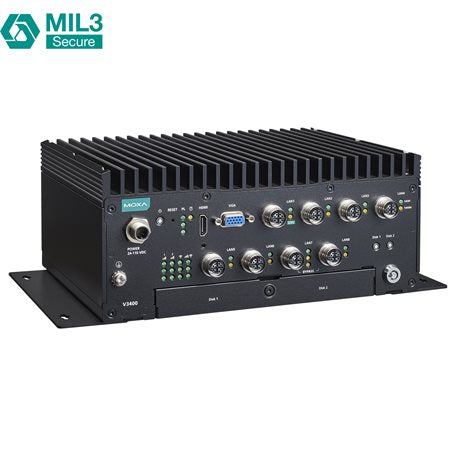

Moxa V3404-TL1-W-CT-T | V3400 Railway Embedded Computer, Celeron 6305E, 4 GbE, 24-110 VDC

Authorised Moxa Partner

SKU:V3404-TL1-W-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa V3404-TL1-W-CT-T is a fanless x86 railway embedded computer from the V3400 Series, built on an Intel Celeron 6305E processor. It provides 4 Ethernet ports on M12 X-coded connectors, 2 DB9 serial ports and an isolated 24 to 110 VDC power input, making it well suited to onboard rolling-stock computing, data acquisition and communications gateways.

The V3404 is designed for rail environments, meeting the EN 50155 OT4 temperature range of -40 to 70 C with cellular and Wi-Fi modules enabled, and complying with EN 50121-4 and IEC 61373 shock and vibration requirements. Storage can be expanded through two hot-swappable 2.5-inch HDD/SSD slots and an M.2 NVMe slot, with up to 64 GB of DDR4 memory across two SODIMM slots.

Features

- Isolated 24 to 110 VDC power input for rolling-stock applications
- Meets EN 50155 OT4 operating temperature range
- Complies with EN 50121-4 and IEC 61373 shock and vibration requirements
- Complies with all EN 50155 mandatory test items
- Two hot-swappable HDD/SSD slots plus an M.2 slot for storage expansion
- Multiple expansion slots for wireless modules
- Fanless design with M12 connectors for vibration-prone rail environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Celeron 6305E
- Ethernet: 3 x 10/100/1000 Mbps + 1 x 1000/2500 Mbps, M12 X-coded push-pull (female)
- Serial: 2 x DB9 male, 50 bps to 115.2 kbps, 2 kV isolation
- Digital I/O: 2 x DI, 2 x DO (screw-fastened Euroblock terminal, 3 kVDC isolation)
- USB: 2 x USB 3.0
- Video: 1 x HDMI, 1 x VGA
- Memory: 2 x SODIMM DDR4 slots, 64 GB maximum
- Storage: 2 x 2.5-inch SSD slots (hot-swappable), 1 x M.2 M key 2280 (NVMe)
- Power input: 24 to 110 VDC, M12 A-coded male connector
- Power consumption: 74.4 W maximum
- Operating temperature: -40 to 70 C (EN 50155 OT4, with cellular and Wi-Fi modules enabled)
- MTBF: 764,543 hours (Telcordia)
- Compliance: EN 50155, EN 50121-4, IEC 61373, RoHS, CRoHS, WEEE

FAQs

Q: What processor does the V3404-TL1-W-CT-T use?
A: It is built on an Intel Celeron 6305E processor.

Q: What network ports are provided?
A: Four Ethernet ports on M12 X-coded push-pull connectors: three auto-sensing 10/100/1000 Mbps ports and one auto-sensing 1000/2500 Mbps port.

Q: What power input does it support?
A: An isolated 24 to 110 VDC input via an M12 A-coded male connector, with a maximum power consumption of 74.4 W.

Q: Is it suitable for railway use?
A: Yes. It complies with EN 50155 (including the OT4 temperature range with cellular and Wi-Fi modules enabled), EN 50121-4 and IEC 61373 shock and vibration requirements.

Q: What storage and memory options are available?
A: Two hot-swappable 2.5-inch HDD/SSD slots, one M.2 M key 2280 NVMe slot, and two DDR4 SODIMM slots supporting up to 64 GB.

Q: What serial and I/O interfaces are included?
A: Two DB9 male serial ports with 2 kV isolation, plus 2 digital inputs and 2 digital outputs on a screw-fastened Euroblock terminal.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
