Moxa V3210-TL7-8L-T | V3210 Embedded Computer, i7-1185GRE, 16GB, 8 LAN, -40 to 70°C

Authorised Moxa Partner

SKU:V3210-TL7-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

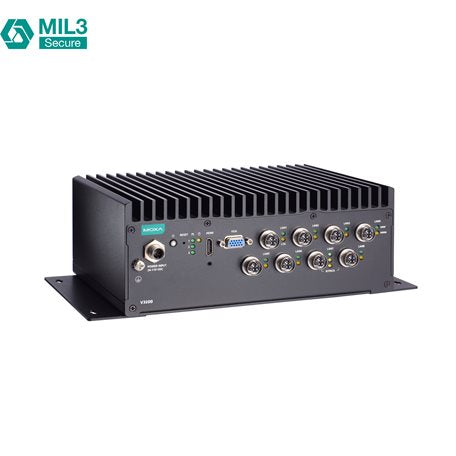

The Moxa V3210-TL7-8L-T is a fanless x86 industrial embedded computer built around an Intel Core i7-1185GRE processor, with 16 GB DDR4 and a 128 GB NVMe drive pre-installed. It provides 8 LAN ports, accepts a 24 to 110 VDC supply and operates across a -40 to 70°C temperature range, making it suited to rail, transport and harsh-environment edge computing deployments.

I/O includes two software-selectable RS-232/422/485 serial ports, 2 digital inputs, 2 digital outputs, 2 USB 3.0 ports, HDMI and VGA. M.2 B key, M.2 E key and mPCIe slots allow expansion for LTE, Wi-Fi 6 and additional I/O, while a built-in TPM v2.0 module supports secure deployments. It supports Windows 10 IoT Enterprise LTSC 2021 and Moxa Industrial Linux 3.

Features

- Fanless, wide-temperature design for operation from -40 to 70°C
- Built-in TPM v2.0 module for hardware-based security
- Intel AMT support on LAN1 for remote management
- Railway certifications including EN 50121-4 and EN 50155:2017
- Expansion via M.2 B key, M.2 E key and mPCIe slots for LTE, Wi-Fi 6 and I/O
- LAN bypass pair on LAN7 and LAN8
- Wide 24 to 110 VDC power input
- PCB conformal coating available on request

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i7-1185GRE processor (4C/8T, 12M cache, 1.8 GHz)
- Intel Iris Xe Graphics
- 16 GB DDR4 pre-installed, 2 x SODIMM slots, 64 GB maximum
- 2 x 2.5-inch SSD slots and 1 x M.2 M key 2280 NVMe slot, 128 GB NVMe preinstalled
- Ethernet: 8 LAN ports, including 1 x auto-sensing 1000/2500 Mbps (LAN1, Intel I225 with Intel AMT support) and up to 7 x 10/100/1000 Mbps
- 2 x RS-232/422/485 serial ports (DB9 male, software-selectable, 2 kV isolation)
- 2 x digital inputs and 2 x digital outputs (Euroblock terminal, 3k VDC isolation)
- 2 x USB 3.0 type-A, 1 x HDMI, 1 x VGA
- Expansion: 2 x M.2 B key, 1 x M.2 E key (Wi-Fi 6), 1 x mPCIe (LTE with 2 Micro SIMs, Wi-Fi 5 or I/O expansion)
- TPM v2.0
- Input voltage: 24 to 110 VDC via M12 A-coded connector, 100 W maximum
- Operating temperature: -40 to 70°C, 5 to 95% non-condensing humidity
- Aluminium housing, IP30, wall mounting
- Dimensions: 250 x 96.7 x 180 mm (without ears)
- Weight: 3.86 kg
- Certifications: EN 50121-4, EN 50121-3-2, EN 50155:2017, EN 45545-2:2020, EN 62368-1, IEC 61373
- Supported OS: Windows 10 IoT Enterprise LTSC 2021 64-bit, Moxa Industrial Linux 3 (Debian 11)

FAQs

Q: What operating temperature range does the V3210-TL7-8L-T support?
A: It operates from -40 to 70°C using a fanless design, suited to harsh industrial and transport environments.

Q: What power input does this embedded computer use?
A: It accepts a 24 to 110 VDC input through an M12 A-coded male connector, with a maximum power consumption of 100 W.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021 64-bit and Moxa Industrial Linux 3 (Debian 11, kernel 5.10) are supported. Linux drivers are also available for Debian 12 and Ubuntu 22.04 LTS (HWE).

Q: Can I add wireless or cellular connectivity?
A: Yes. The M.2 E key slot supports Wi-Fi 6, and the mPCIe slot supports LTE with 2 Micro SIMs, Wi-Fi 5 or I/O expansion. An optional accessory kit provides QMA antenna connectors.

Q: What storage and memory are included and can they be expanded?
A: It ships with 16 GB DDR4 and a 128 GB NVMe drive. There are 2 SODIMM slots supporting up to 64 GB, plus 2 x 2.5-inch SSD slots for additional storage.

Q: Does it include a TPM for secure deployments?
A: Yes. A TPM v2.0 module is built in.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
