Moxa V3210-TL7-4L-TSN-CT-T | V3200 Fanless Railway Computer, Core i7, 16GB, 128GB, TSN

Authorised Moxa Partner

SKU:V3210-TL7-4L-TSN-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

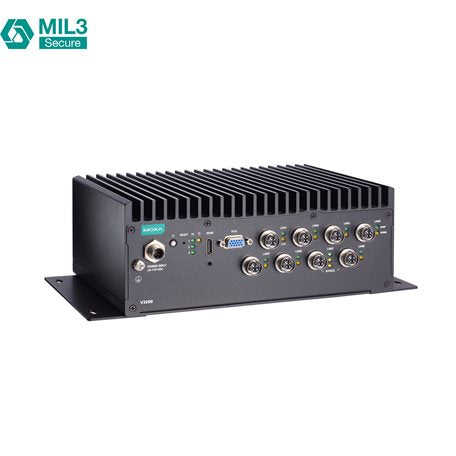

The Moxa V3210-TL7-4L-TSN-CT-T is a fanless V3200 Series railway computer built around an 11th Gen Intel Core i7-1185GRE processor (4C/8T, 1.8 GHz) with 16 GB DDR4 and a 128 GB M.2 NVMe drive pre-installed. This variant offers 4 Ethernet ports (1 x 2.5 GbE and 3 x GbE) with native TSN support, PCB conformal coating, an isolated 24-110 VDC power input and an operating range of -40 to 70°C, making it suited to onboard rail applications that need deterministic networking.

It complies with EN 50155 and EN 50121-4 and carries railway fire protection to EN 45545-2. Expansion options include M.2 slots for 5G and Wi-Fi 6, an mPCIe slot and two 2.5-inch SSD bays, alongside 2 x RS-232/422/485 serial ports, 2 digital inputs, 2 digital outputs, VGA and HDMI outputs and TPM 2.0 for platform security.

Features

- Native TSN support for deterministic Ethernet networking
- 11th Gen Intel Core i7 processor with Iris Xe graphics in a fanless design
- Isolated 24-110 VDC power input with M12 A-coded connector
- Complies with all EN 50155 mandatory test items and EN 50121-4
- PCB conformal coating for added protection in harsh environments
- Onboard TPM 2.0 for cybersecurity
- Dual independent displays via VGA and HDMI with 4K support
- Wireless expansion with 5G (M.2 B key), Wi-Fi 6 (M.2 E key) and Wi-Fi 5/4G (mPCIe)
- Wide -40 to 70°C operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-1185GRE (4C/8T, 12M cache, 1.8 GHz)
- Memory: 16 GB DDR4 pre-installed, 2 x SODIMM slots, 64 GB max
- Storage: 128 GB M.2 NVMe (M key 2280) pre-installed, 2 x 2.5-inch SSD slots
- Graphics: Intel Iris Xe Graphics, VGA (DB15) and HDMI (type A) outputs
- Ethernet: 4 ports (1 x 2.5 GbE and 3 x GbE), native TSN, LAN1 Intel I225 with Intel AMT support
- Serial: 2 x RS-232/422/485 software selectable (DB9 male), 2 kV isolation
- I/O: 2 x DI (3k VDC isolation), 2 x DO (200 mA per channel, sink, 0 to 30 VDC, 3k VDC isolation)
- USB: 2 x USB 3.0 type-A
- Expansion: 2 x M.2 B key (5G), 1 x M.2 E key (Wi-Fi 6), 1 x mPCIe, up to 6 Micro SIMs
- Power: 24 to 110 VDC input, M12 A-coded male connector, 100 W max
- Security: TPM v2.0
- Housing: aluminium, IP30, wall mounting, PCB conformal coating
- Dimensions: 249 x 88.9 x 180 mm (without ears), weight 3.86 kg
- Operating temperature: -40 to 70°C, 5 to 95% non-condensing humidity
- Certifications: EN 50155:2017, EN 50121-4, EN 50121-3-2, EN 45545-2:2020, IEC 61373
- MTBF: 382,624 hours

FAQs

Q: Does the V3210-TL7-4L-TSN-CT-T support Time-Sensitive Networking?
A: Yes. This Core i7-1185GRE model has native TSN support across its 4 Ethernet ports, which suits deterministic, time-critical network traffic.

Q: What power input does it accept?
A: It accepts an isolated 24 to 110 VDC input through an M12 A-coded male connector, with a maximum power consumption of 100 W.

Q: Is it certified for railway use?
A: Yes. It complies with EN 50155:2017, EN 50121-4 and EN 50121-3-2, and meets railway fire protection standard EN 45545-2:2020. It also meets IEC 61373 shock and vibration requirements.

Q: Can I add cellular or Wi-Fi connectivity?
A: Yes. Two M.2 B key slots support 5G with up to 4 Micro SIMs, an M.2 E key slot supports Wi-Fi 6, and the mPCIe slot supports cellular with 2 Micro SIMs, Wi-Fi 5 or I/O expansion. Wi-Fi antenna connectors are available with an optional accessory kit.

Q: What memory and storage come installed?
A: It ships with 16 GB DDR4 and a 128 GB M.2 NVMe drive. There are 2 SODIMM slots supporting up to 64 GB and 2 additional 2.5-inch SSD slots for more storage.

Q: Which operating systems are supported?
A: Windows 10 Embedded IoT Enterprise 2021 LTSC 64-bit is supported, along with Linux (Debian 11, Ubuntu 20.04 and CentOS 7.9) via drivers.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
