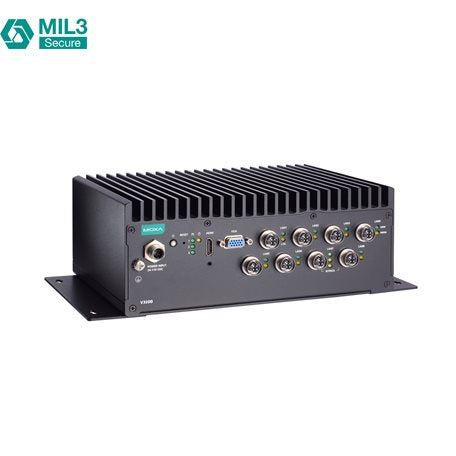

Moxa V3210-TL7-4L-CT-T | V3210 Railway Embedded Computer, Core i7, 4 GbE, 16GB, CT

Authorised Moxa Partner

SKU:V3210-TL7-4L-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The V3210-TL7-4L-CT-T is a fanless, railway-grade x86 embedded computer from the V3200 Series, built on an 11th Gen Intel Core i7 processor with 16 GB DDR4 and 128 GB NVMe storage pre-installed. It provides 4 Ethernet ports (1 x 2.5 GbE and 3 x GbE) with LAN bypass, PCB conformal coating, a 24 to 110 VDC input and a -40 to 70°C operating range, making it well suited to rolling stock and other harsh in-vehicle deployments.

Serial connectivity covers 2 software-selectable RS-232/422/485 ports, alongside 2 digital inputs, 2 digital outputs and 2 USB 3.0 ports. Dual independent display outputs (VGA and HDMI), TPM 2.0 and expansion slots for wireless, LTE and I/O modules let the unit adapt to demanding onboard computing, data acquisition and connectivity roles. It complies with EN 50155 and EN 50121-4 and is IEC 61373 certified for shock and vibration, and it runs Windows 10 IoT Enterprise LTSC or Moxa Industrial Linux 3.

Features

- 11th Gen Intel Core embedded computer designed for in-vehicle applications
- Fanless aluminium housing with a -40 to 70°C operating range
- PCB conformal coating for added protection in harsh environments
- One-pair LAN bypass for uninterrupted data transmission
- Dual independent displays via VGA and HDMI
- Onboard TPM 2.0 module for cybersecurity
- Expansion slots for Wi-Fi 6, LTE and I/O modules
- Complies with EN 50155 and EN 50121-4, IEC 61373 certified for shock and vibration
- Moxa Industrial Linux with 10-year long-term support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: 11th Gen Intel Core i7 (4C/8T)
- Memory: 16 GB DDR4 pre-installed, 2 x SODIMM slots, 64 GB maximum
- Storage: 128 GB NVMe M.2 M-key 2280 pre-installed, 2 x 2.5-inch SSD slots
- Ethernet: 4 ports (1 x 2.5 GbE and 3 x GbE), one-pair LAN bypass
- Serial: 2 x RS-232/422/485 (software-selectable, DB9 male), 2 kV isolation
- Digital I/O: 2 x DI, 2 x DO (3k VDC isolation)
- USB: 2 x USB 3.0 type-A
- Video: 1 x VGA (15-pin D-sub), 1 x HDMI (type A)
- Expansion: 2 x M.2 B key, 1 x M.2 E key (Wi-Fi 6), 1 x mPCIe
- Security: TPM v2.0
- Power input: 24 to 110 VDC, M12 A-coded connector, 100 W maximum
- Operating temperature: -40 to 70°C
- Protection: PCB conformal coating, aluminium housing, IP30
- Dimensions: 250 x 96.7 x 180 mm (without ears)
- Weight: 3.86 kg
- Standards: EN 50155:2017, EN 50121-4, EN 50121-3-2, EN 45545-2:2020, IEC 61373
- Supported OS: Windows 10 IoT Enterprise LTSC 2021 64-bit, Moxa Industrial Linux 3 (Debian 11)

FAQs

Q: What operating systems does the V3210-TL7-4L-CT-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021 (64-bit) and Moxa Industrial Linux 3 (Debian 11, kernel 5.10). Linux drivers are also available for Debian 12 and Ubuntu 22.04 LTS (HWE).

Q: What power input does this model use?
A: It runs from a 24 to 110 VDC supply through an M12 A-coded male power connector, with a maximum power consumption of 100 W.

Q: What does the CT suffix mean in the part number?
A: CT denotes PCB conformal coating, which adds protection against moisture, dust and contaminants in demanding onboard environments.

Q: Can the memory and storage be upgraded?
A: Yes. It ships with 16 GB DDR4 and 128 GB NVMe, and has 2 x SODIMM slots supporting up to 64 GB, plus 2 x 2.5-inch SSD slots for additional storage.

Q: Can I add wireless connectivity?
A: Yes. The unit has an M.2 E key slot for Wi-Fi 6, an mPCIe slot for LTE, Wi-Fi 5 or I/O expansion, and M.2 B key slots for further expansion.

Q: Which railway standards does it meet?
A: It complies with EN 50155:2017, EN 50121-4, EN 50121-3-2 and EN 45545-2:2020, and is certified to IEC 61373 for shock and vibration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
