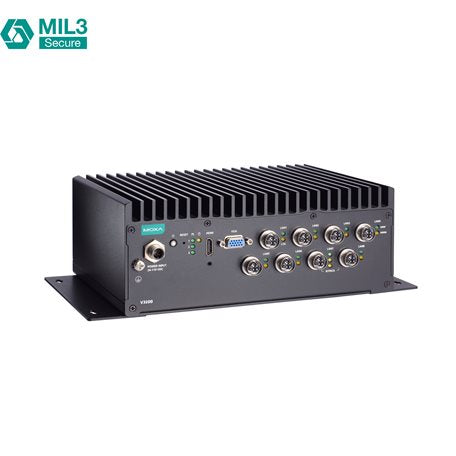

Moxa V3210-TL5-8L-T | V3200 Fanless Railway Industrial PC, Core i5, 16GB, 128GB, 8x GbE

Authorised Moxa Partner

SKU:V3210-TL5-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa V3210-TL5-8L-T is a fanless V3200 Series industrial PC built for in-vehicle and railway applications. It is powered by an Intel Core i5-1145G7E processor with 16 GB DDR4 and a preinstalled 128 GB NVMe M.2 drive, and provides 8 x GbE ports, 2 x RS-232/422/485 serial ports, 2 x DI, 2 x DO and 2 x USB 3.0. The -T variant operates from -40 to 70°C and does not include conformal coating.

The V3210-TL5-8L-T accepts a 24 to 110 VDC input and supports dual independent displays through VGA and 4K HDMI. Built-in TPM 2.0 supports hardware-based platform security, while the mPCIe and M.2 E-key slots allow wireless expansion. Memory scales to 64 GB and storage can be expanded with two 2.5-inch SSD slots.

Features

- Compliant with EN 50155:2017 and EN 50121-4 for railway onboard and wayside use
- Fanless design with a wide -40 to 70°C operating range
- Dual independent display support via VGA and 4K HDMI
- Built-in TPM 2.0 for platform integrity and hardware-based security
- Expansion via mPCIe slot for wireless (Wi-Fi 5 or 4G) and M.2 E-key for Wi-Fi 6
- Up to 64 GB RAM, with M.2 NVMe and 2.5-inch SSD storage expansion

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i5-1145G7E processor (4C/8T, 8M cache, 1.5 GHz)
- Intel Iris Xe Graphics
- 16 GB DDR4 pre-installed, 2 x SODIMM slots, 64 GB maximum
- 128 GB NVMe M.2 M-key 2280 preinstalled
- 2 x 2.5-inch SSD slots
- 8 x GbE ports
- 2 x RS-232/422/485 serial ports, DB9 male
- 2 x digital inputs, 2 x digital outputs
- 2 x USB 3.0
- VGA and HDMI (4K) dual independent displays
- TPM v2.0
- Power input: 24 to 110 VDC
- Operating temperature: -40 to 70°C
- Vibration: IEC 60068-2-64, IEC 61373
- No conformal coating
- MTBF: 305,836 hrs
- RoHS, CRoHS and WEEE compliant

FAQs

Q: Is the Moxa V3210-TL5-8L-T suitable for railway use?
A: Yes. It is compliant with EN 50155:2017 and EN 50121-4 for railway onboard and wayside applications, and it is tested to IEC 61373 for vibration.

Q: What operating temperature range does it support?
A: The -T variant operates from -40 to 70°C in a fanless design.

Q: Does this model have conformal coating?
A: No. This SKU is not conformal coated. Only the -CT-T variants in the series include conformal coating.

Q: How much memory and storage does it include, and can it be expanded?
A: It ships with 16 GB DDR4 and a 128 GB NVMe M.2 drive. Memory can be expanded to 64 GB across two SODIMM slots, and two 2.5-inch SSD slots are available for additional storage.

Q: What power input does it accept?
A: It accepts a wide 24 to 110 VDC input.

Q: Can I add wireless connectivity?
A: Yes. The mPCIe slot supports Wi-Fi 5 or 4G modules and the M.2 E-key slot supports Wi-Fi 6.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
