Moxa V3210-TL5-4L-T | V3200 Series Fanless Railway Computer, Core i5, 4 GbE

Authorised Moxa Partner

SKU:V3210-TL5-4L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

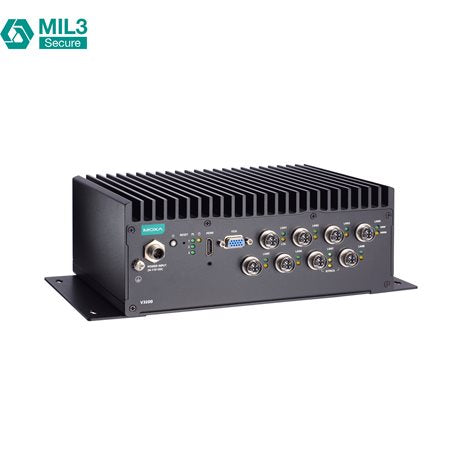

The Moxa V3210-TL5-4L-T is a fanless x86 railway embedded computer from the V3200 Series, built around an Intel Core i5-1145G7E processor with four Gigabit Ethernet ports. It is designed for onboard and wayside railway applications, with EN 50155 and EN 50121-4 compliance and IEC 61373 shock and vibration certification, and an operating range of -40 to 70°C.

This 4L variant has no conformal coating and offers multiple storage and expansion options, including two 2.5-inch drive slots, an M.2 2280 M-key slot and wireless expansion slots for 5G, Wi-Fi 6, Wi-Fi 5 or 4G. An onboard TPM 2.0 module supports enhanced cybersecurity, and a one-pair LAN bypass function helps maintain network continuity.

Features

- Fanless design for in-vehicle and railway applications
- Compliant with all mandatory EN 50155 test items and EN 50121-4
- IEC 61373 certified for shock and vibration resistance
- Multiple wireless expansion slots (5G, Wi-Fi 6, Wi-Fi 5 or 4G)
- Onboard TPM module for enhanced cybersecurity
- Up to 64 GB RAM supported by the V3200 family

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-1145G7E (4C/8T, 8M cache, 1.5 GHz)
- 4 x GbE LAN ports (1 x 10/100/1000/2500 Mbps and 3 x 10/100/1000 Mbps RJ45), with a one-pair LAN bypass function
- 2 x DI, 2 x DO, 2 x USB 3.0 Type-A
- Display: 1 x HDMI and 1 x VGA
- Storage: 2 x 2.5-inch SSD/HDD slots and 1 x M.2 2280 M-key slot
- Expansion: 2 x M.2 B-key, 1 x Mini PCIe and 1 x M.2 E-key for wireless
- Onboard TPM 2.0
- Power input: 24 to 110 VDC (M12 A-coded connector), isolated
- Operating temperature: -40 to 70°C
- Compliance: EN 50155, EN 50121-4, IEC 61373 shock/vibration

FAQs

Q: What processor does the Moxa V3210-TL5-4L-T use?
A: It uses an Intel Core i5-1145G7E processor with 4 cores, 8 threads, 8M cache and a 1.5 GHz base frequency.

Q: What railway standards does this computer meet?
A: It complies with all mandatory EN 50155 test items and EN 50121-4, and is certified to IEC 61373 for shock and vibration resistance.

Q: What is the operating temperature range?
A: The V3210-TL5-4L-T operates from -40 to 70°C.

Q: What does the 4L in the model number mean?
A: The 4L denotes the four Gigabit Ethernet LAN port configuration, including a one-pair LAN bypass function.

Q: Can this computer add wireless connectivity?
A: Yes. It has M.2 B-key, M.2 E-key and Mini PCIe expansion slots that support 5G, Wi-Fi 6, Wi-Fi 5 or 4G wireless modules.

Q: What power input does it accept?
A: It accepts an isolated 24 to 110 VDC input through an M12 A-coded connector.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
