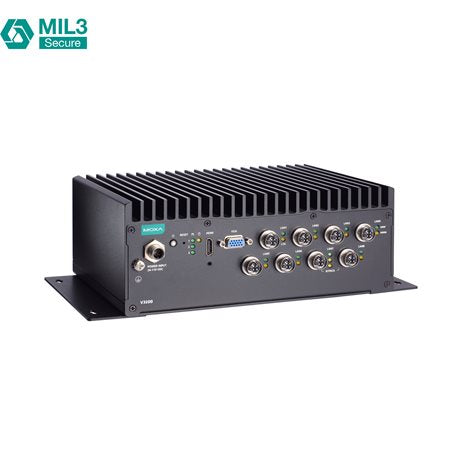

Moxa V3210-TL5-4L-CT-T | V3200 Railway Fanless PC, Core i5, 16GB, 128GB SSD, 4x GbE

Authorised Moxa Partner

SKU:V3210-TL5-4L-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa V3210-TL5-4L-CT-T is a fanless railway-grade industrial computer built on an 11th Gen Intel Core i5-1145G7E processor. This model is configured with 16 GB DDR4 memory, a 128 GB NVMe SSD, four Ethernet ports (one 2.5 GbE and three GbE) and PCB conformal coating, and it operates across a -40 to 70°C temperature range, making it well suited to in-vehicle and rolling stock deployments.

It complies with EN 50155 and EN 50121-4 railway standards and is certified to IEC 61373 for shock and vibration. Two software-selectable RS-232/422/485 serial ports, digital I/O, dual VGA and HDMI display output, TPM 2.0 and wireless expansion slots allow it to serve as a rugged data acquisition, passenger information or onboard networking platform. It supports Windows 10 IoT Enterprise LTSC and Moxa Industrial Linux 3.

Features

- 11th Gen Intel Core embedded computer for in-vehicle and railway applications
- Complies with all EN 50155 mandatory test items and EN 50121-4
- IEC 61373 certified for shock and vibration resistance
- Fanless design with PCB conformal coating for harsh environments
- Dual independent displays via VGA and HDMI with 4K resolution
- Onboard TPM 2.0 module for enhanced cybersecurity
- One pair of LAN bypass ports for uninterrupted data transmission
- Expansion slots for Wi-Fi 5, Wi-Fi 6 and LTE wireless modules
- Supports Moxa Industrial Linux with 10-year long-term support and Windows 10 IoT Enterprise

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Core i5-1145G7E processor (4C/8T, 8M cache, 1.5 GHz)
- 16 GB DDR4 pre-installed, 2 x SODIMM slots, 64 GB maximum
- 128 GB NVMe M.2 2280 SSD pre-installed, plus 2 x 2.5-inch SSD slots
- Intel Iris Xe Graphics, VGA and HDMI dual display output
- 4 x LAN: 1 x 2.5 GbE and 3 x GbE, with LAN bypass; LAN1 Intel I225 with Intel AMT support
- 2 x RS-232/422/485 serial ports (DB9 male, software-selectable, 2 kV isolation)
- 2 x digital input, 2 x digital output (3k VDC isolation)
- 2 x USB 3.0 type-A hosts
- Expansion: 2 x M.2 B key, 1 x M.2 E key, 1 x mPCIe, 6 SIM support
- TPM v2.0
- 24 to 110 VDC input, M12 A-coded male power connector, 100 W maximum
- Aluminium housing, IP30, wall mounting
- PCB conformal coating
- Operating temperature -40 to 70°C, 5 to 95% non-condensing humidity
- EN 50155:2017, EN 50121-4, EN 50121-3-2, EN 45545-2:2020, IEC 61373
- Dimensions 250 x 96.7 x 180 mm (without ears), weight 3.86 kg
- MTBF 382,624 hours (Telcordia)

FAQs

Q: Is the V3210-TL5-4L-CT-T suitable for railway applications?
A: Yes. It complies with EN 50155:2017 and EN 50121-4, is certified to IEC 61373 for shock and vibration, and meets EN 45545-2:2020 for fire protection.

Q: What operating temperature range does it support?
A: It operates from -40 to 70°C, and the PCB conformal coating adds protection in harsh environments.

Q: What memory and storage are included?
A: This model ships with 16 GB DDR4 memory and a 128 GB NVMe M.2 SSD pre-installed. Memory expands to 64 GB across two SODIMM slots, and two 2.5-inch SSD slots are available for extra storage.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021 64-bit and Moxa Industrial Linux 3 (Debian 11, kernel 5.10) are supported. Linux drivers are also available for Debian 12 and Ubuntu 22.04 LTS (HWE).

Q: Can I add wireless connectivity?
A: Yes. The computer has an M.2 E key slot for Wi-Fi 6 and an mPCIe slot for LTE, Wi-Fi 5 or I/O expansion, plus M.2 B key slots and support for 6 SIMs. Antenna connectors are available with the optional accessory kit.

Q: What power input does it accept?
A: It accepts 24 to 110 VDC through an M12 A-coded male power connector, with a maximum power consumption of 100 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
