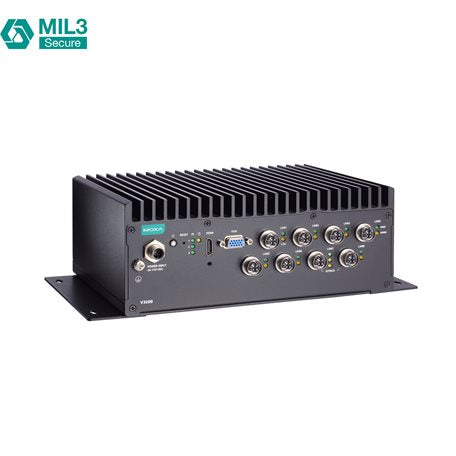

Moxa V3210-TL3-8L-T | V3200 Fanless Railway Computer, Core i3, 16GB, 128GB, 8 GbE

Authorised Moxa Partner

SKU:V3210-TL3-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa V3210-TL3-8L-T is a fanless EN 50155 railway embedded computer built around an 11th Gen Intel Core i3-1115G4E processor, with 16GB DDR4 and a 128GB NVMe M.2 drive pre-installed. It provides 8 GbE ports, including a LAN bypass pair, and operates across -40 to 70°C from a 24 to 110 VDC input, making it suited to onboard and wayside rail applications. This variant does not include conformal coating.

I/O includes 2 software-selectable RS-232/422/485 serial ports, 2 digital inputs, 2 digital outputs, 2 USB 3.0 ports and dual VGA and HDMI display outputs. Onboard TPM 2.0 supports cybersecurity requirements, and M.2 B key, M.2 E key and mPCIe slots allow 5G, Wi-Fi 6 and 4G expansion. The aluminium housing is wall mounted and certified to IEC 61373 for shock and vibration.

Features

- Fanless Intel Core i3 embedded computer for in-vehicle applications
- Up to 8 GbE, 2 serial, 2 USB, 2 DI and 2 DO ports
- Dual independent display support with VGA and HDMI 4K
- Onboard TPM 2.0 module for cybersecurity
- Complies with all EN 50155 mandatory test items and EN 50121-4
- IEC 61373 certified for shock and vibration resistance
- M.2 B key slots for 5G, mPCIe for Wi-Fi or 4G, M.2 E key for Wi-Fi 6
- LAN bypass function on the LAN7-LAN8 port pair

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-1115G4E (2C/4T, 6M cache, 2.2 GHz)
- Memory: 16 GB DDR4 pre-installed, 2 x SODIMM slots, 64 GB maximum
- Storage: 128 GB NVMe M.2 pre-installed, plus 2 x 2.5-inch SSD slots
- Ethernet: 8 ports, 1 x 2.5 GbE and up to 7 x GbE, LAN7-LAN8 bypass pair
- LAN1: Intel I225 Ethernet adapter with Intel AMT support
- Serial: 2 x RS-232/422/485 (DB9 male), software selectable, 2 kV isolation
- Digital I/O: 2 DI (dry/wet contact) and 2 DO (sink, 200 mA per channel)
- USB: 2 x USB 3.0 type-A
- Video: 1 x VGA and 1 x HDMI
- Expansion: 2 x M.2 B key (5G), 1 x M.2 E key (Wi-Fi 6), 1 x mPCIe
- Security: TPM 2.0
- Power input: 24 to 110 VDC, M12 A-coded connector, 100 W maximum
- Operating temperature: -40 to 70°C
- Housing: aluminium, IP30, wall mounting
- Dimensions: 249 x 88.9 x 180 mm (without ears)
- Weight: 3.86 kg
- Certifications: EN 50155:2017, EN 50121-4, EN 50121-3-2, EN 45545-2:2020, IEC 61373
- Supported OS: Windows 10 IoT Enterprise 2021 LTSC 64-bit, Debian 11, Ubuntu 20.04, CentOS 7.9

FAQs

Q: What power input does the V3210-TL3-8L-T accept?
A: It accepts a wide 24 to 110 VDC input through an M12 A-coded power connector, with a maximum consumption of 100 W.

Q: Does this model include conformal coating?
A: No. This variant does not include conformal coating. The -CT variants of the V3200 range add it.

Q: How many Ethernet ports does it have?
A: The 8L model has 8 Ethernet ports: one auto-sensing 2.5 GbE port and up to seven 10/100/1000 Mbps ports, with a LAN bypass function on LAN7-LAN8.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise 2021 LTSC 64-bit is supported, along with Linux through drivers for Debian 11, Ubuntu 20.04 and CentOS 7.9.

Q: Can it be expanded with wireless or cellular connectivity?
A: Yes. It has two M.2 B key slots for 5G, an M.2 E key slot for Wi-Fi 6 and an mPCIe slot, with 6 Micro SIM slots and QMA antenna connectors available with the accessory kit.

Q: What rail standards does it meet?
A: It complies with EN 50155:2017, EN 50121-4, EN 50121-3-2 and EN 45545-2:2020, and is IEC 61373 certified for shock and vibration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
