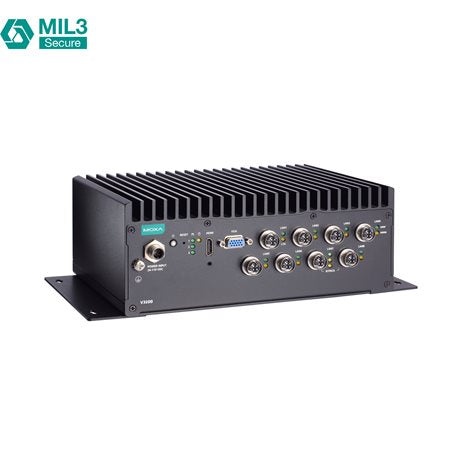

Moxa V3210-TL3-8L-CT-T | V3200 Rail Embedded PC, Core i3, 16GB, 128GB, 8x GbE

Authorised Moxa Partner

SKU:V3210-TL3-8L-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The V3200 Series fanless EN 50155 railway embedded computer is built around an Intel Core i3-1115G4E processor, with 16 GB DDR4 and a 128 GB NVMe M.2 drive pre-installed. This 8-GbE-port model has PCB conformal coating, a 24 to 110 VDC input and a -40 to 70°C operating range, making it a dependable choice for onboard and wayside rail applications.

Connectivity includes two RS-232/422/485 serial ports, two digital inputs, two digital outputs, two USB 3.0 ports and dual display output over VGA and HDMI. Onboard TPM 2.0 supports a secure platform, a one-pair LAN bypass function adds network resilience, and the expansion slots cater for Wi-Fi 6, LTE or I/O modules. It runs Windows 10 IoT Enterprise LTSC 2021 or Moxa Industrial Linux 3.

Features

- Intel Core i3 embedded computer for in-vehicle applications
- Up to 8 GbE ports, 2 serial ports, 2 USB ports, 2 DIs and 2 DOs
- M.2 E key slot for Wi-Fi 6 and mPCIe slot for LTE or I/O expansion
- Dual independent displays over VGA and HDMI 4K
- Onboard TPM 2.0 for enhanced cybersecurity
- Complies with all EN 50155 mandatory test items and EN 50121-4
- IEC 61373 certified for shock and vibration resistance
- One-pair LAN bypass function (LAN7-LAN8)
- PCB conformal coating for harsh environments
- Moxa Industrial Linux with 10-year long-term support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-1115G4E (2C/4T, 6M cache, 2.2 GHz)
- Graphics: Intel UHD Graphics
- Memory: 16 GB DDR4 pre-installed, 2 x SODIMM slots, 64 GB maximum
- Storage: 128 GB NVMe M.2 pre-installed (M.2 M key 2280), 2 x 2.5-inch SSD slots
- Ethernet: 8 ports (1 x 1000/2500 Mbps, up to 7 x 10/100/1000 Mbps), LAN1 Intel I225 with Intel AMT support
- Serial: 2 x RS-232/422/485 (DB9 male), software-selectable, 2 kV isolation
- Digital I/O: 2 x DI, 2 x DO (3k VDC isolation)
- USB: 2 x USB 3.0 type-A
- Video: VGA (15-pin D-sub) and HDMI (type A)
- Expansion: 2 x M.2 B key 3052/3050, 1 x M.2 E key (Wi-Fi 6), 1 x mPCIe (LTE, Wi-Fi 5 or I/O expansion)
- Security: TPM v2.0
- Power input: 24 to 110 VDC, M12 A-coded connector, 100 W maximum
- Housing: Aluminium, IP30, wall mounting
- Dimensions: 250 x 96.7 x 180 mm (without ears), 3.86 kg
- Protection: PCB conformal coating
- Operating temperature: -40 to 70°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Standards: EN 50155:2017, EN 50121-4, EN 50121-3-2, EN 45545-2:2020, IEC 61373
- MTBF: 305,836 hours

FAQs

Q: What operating systems does the V3210-TL3-8L-CT-T support?
A: It supports Windows 10 IoT Enterprise LTSC 2021 64-bit and Moxa Industrial Linux 3 (Debian 11). Linux drivers are also available for Debian 12 and Ubuntu 22.04 LTS.

Q: Which railway standards does this computer meet?
A: It complies with EN 50155:2017, EN 50121-4, EN 50121-3-2 and EN 45545-2:2020, and is IEC 61373 certified for shock and vibration.

Q: What does the CT suffix mean?
A: CT models have PCB conformal coating applied, which helps protect the board in humid, dusty or otherwise harsh environments.

Q: What power input does it accept?
A: It accepts a 24 to 110 VDC input through an M12 A-coded connector, with a maximum power consumption of 100 W.

Q: Can I add wireless connectivity?
A: Yes. The M.2 E key slot supports Wi-Fi 6, and the mPCIe slot supports LTE, Wi-Fi 5 or I/O expansion. The unit has six Micro SIM slots and QMA antenna connectors are available with an optional accessory kit.

Q: How many Ethernet ports does it have and is there bypass?
A: This 8L model provides eight Ethernet ports, one at 2.5 GbE and up to seven at GbE. LAN7 and LAN8 form a pair with a LAN bypass function.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
