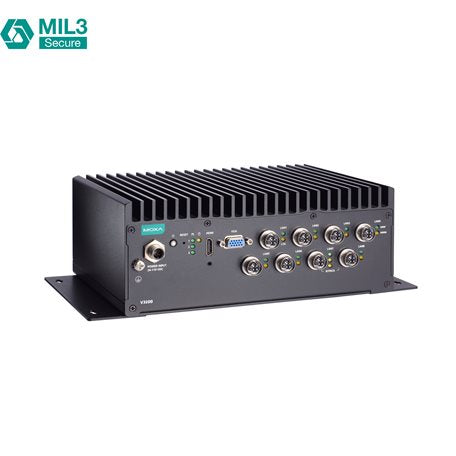

Moxa V3210-TL1-8L-T | V3200 Fanless Industrial PC, Celeron 6305E, 8x LAN, -40 to 70C

Authorised Moxa Partner

SKU:V3210-TL1-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa V3210-TL1-8L-T is a fanless x86 industrial PC from the V3200 Series, built around an Intel Celeron 6305E processor (2 cores, 1.8 GHz) and rated for -40 to 70°C operation. This 8 LAN port model pairs a 2.5 GbE port with GbE ports, including a LAN bypass pair (LAN7 and LAN8), and is certified to EN 50155 and EN 50121-4 for railway onboard and wayside deployments.

It ships with 16 GB of DDR4 and a 128 GB M.2 NVMe drive, with two further SSD bays and two DDR4 SODIMM slots (64 GB maximum) for growth. Two software-selectable RS-232/422/485 serial ports, 2 DIs, 2 DOs, 2 USB 3.0 ports and independent VGA and HDMI outputs cover in-vehicle I/O and display needs, while the 24 to 110 VDC input suits rolling stock power systems. It supports Windows 10 IoT Enterprise LTSC 2021 and Moxa Industrial Linux 3.

Features

- Fanless Intel Celeron 6305E design for in-vehicle and wayside applications
- 8 Ethernet ports with a one-pair LAN bypass (LAN7 and LAN8) for uninterrupted data transmission
- Dual independent displays via VGA and HDMI with 4K support
- Built-in TPM 2.0 for hardware-based security
- Compliant with EN 50155 and EN 50121-4 for railway use
- Wide -40 to 70°C operating range with 24 to 110 VDC input
- Expansion for wireless via mPCIe (Wi-Fi 5 or LTE) and M.2 E key (Wi-Fi 6)
- Three programmable LEDs for monitoring software runtime status

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Celeron 6305E (2C/2T, 4M cache, 1.8 GHz)
- Memory: 16 GB DDR4 pre-installed, 2 x SODIMM slots (64 GB max)
- Storage: 128 GB M.2 M key NVMe pre-installed, 2 x 2.5-inch SSD slots
- Ethernet: 8 ports (2.5 GbE and GbE), LAN1 Intel I225 with Intel AMT support
- Serial: 2 x RS-232/422/485 (software-selectable, DB9 male)
- I/O: 2 DIs, 2 DOs, 2 x USB 3.0 type-A
- Video: 1 x VGA, 1 x HDMI (type A), Intel UHD Graphics
- Expansion: 2 x M.2 B key, 1 x M.2 E key (Wi-Fi 6), 1 x mPCIe
- TPM: v2.0
- Input voltage: 24 to 110 VDC, M12 A-coded power connector
- Power consumption: 100 W max
- Operating temperature: -40 to 70°C
- Housing: aluminium, IP30
- Dimensions: 250 x 96.7 x 180 mm (without ears)
- Weight: 3.86 kg
- Railway standards: EN 50155:2017, EN 50121-4, EN 50121-3-2, EN 45545-2:2020
- Shock and vibration: IEC 60068-2-27, IEC 60068-2-64, IEC 61373
- Supported OS: Windows 10 IoT Enterprise LTSC 2021, Moxa Industrial Linux 3

FAQs

Q: What operating temperature does the V3210-TL1-8L-T support?
A: It is rated for -40 to 70°C operation, as indicated by the -T suffix, and has a storage range of -40 to 85°C.

Q: Is this model railway certified?
A: Yes. It is compliant with EN 50155:2017 and EN 50121-4 for railway onboard and wayside applications, with fire protection to EN 45545-2:2020.

Q: How many Ethernet ports does it have and is there LAN bypass?
A: This 8L model has 8 Ethernet ports, including one 2.5 GbE port with the rest GbE. A one-pair LAN bypass function on LAN7 and LAN8 keeps data flowing during a fault.

Q: What memory and storage are included?
A: It comes with 16 GB DDR4 and a 128 GB M.2 NVMe drive pre-installed. You can expand to 64 GB across two SODIMM slots and add up to two 2.5-inch SSDs.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021 64-bit and Moxa Industrial Linux 3 (Debian 11) are supported, with Linux drivers for Debian 12 and Ubuntu 22.04 LTS.

Q: What power input does it require?
A: It accepts 24 to 110 VDC through an M12 A-coded power connector, with a maximum consumption of 100 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
